                    1990 Williams Funhouse

                                          SOLD

This is a TOP OF THE LINE RESTORED PINBALL MACHINE By ELKHART PINBALL INC.

It is as close to brand new as it can get!!

What Was On The Rotisserie

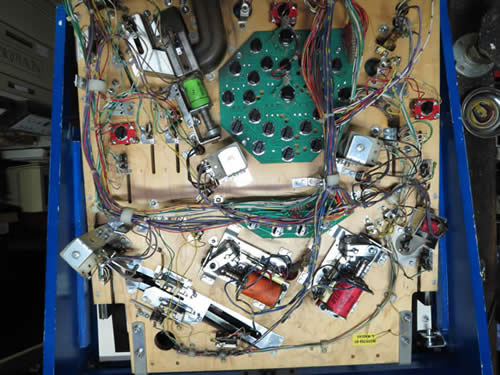

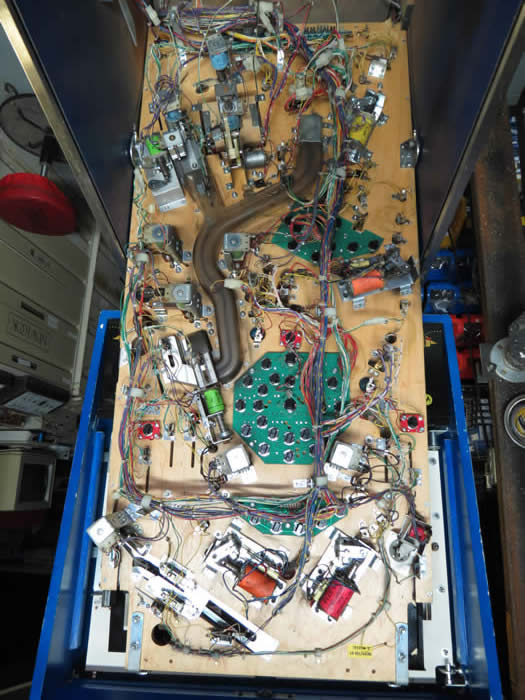

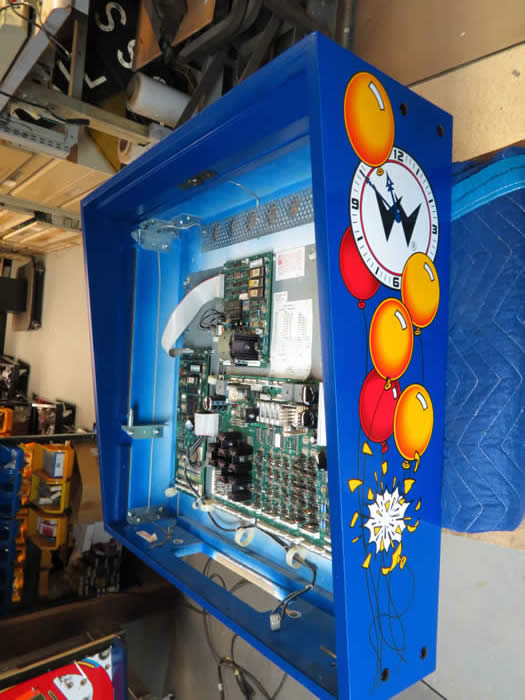

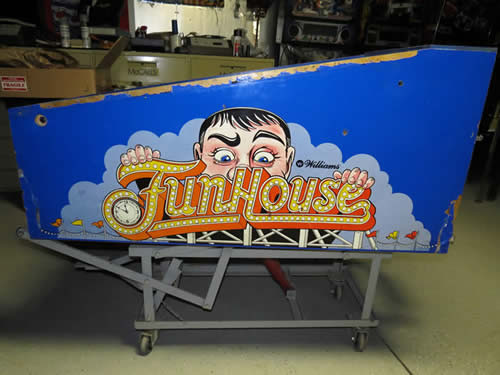

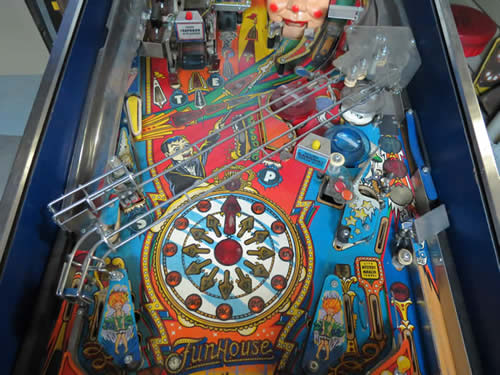

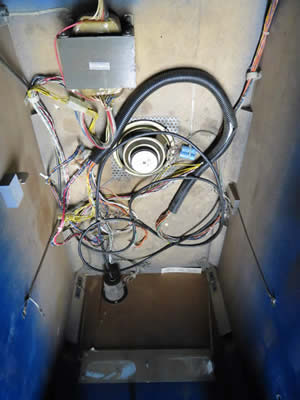

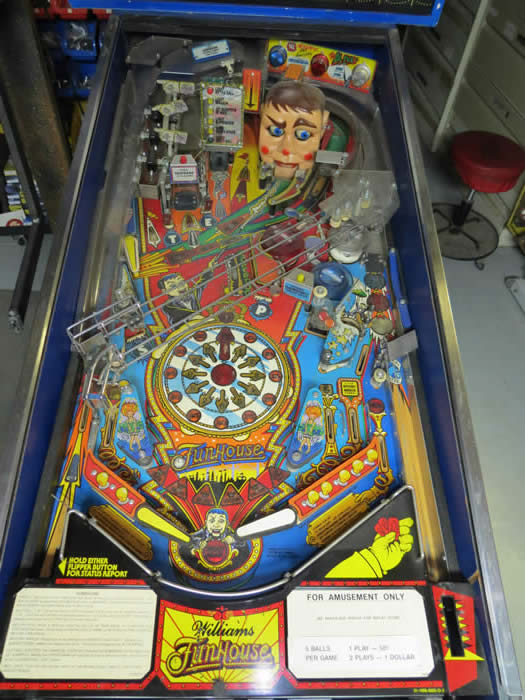

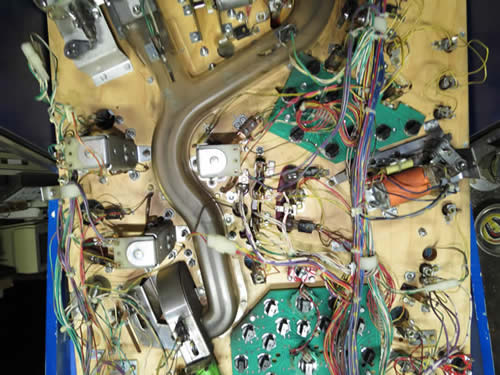

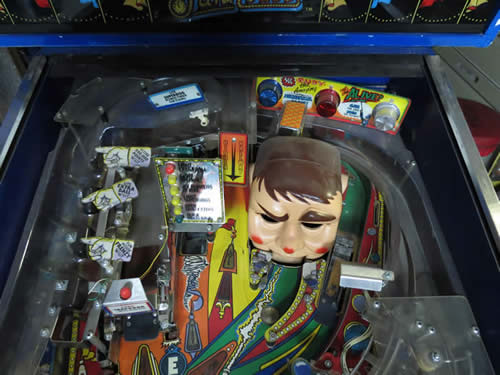

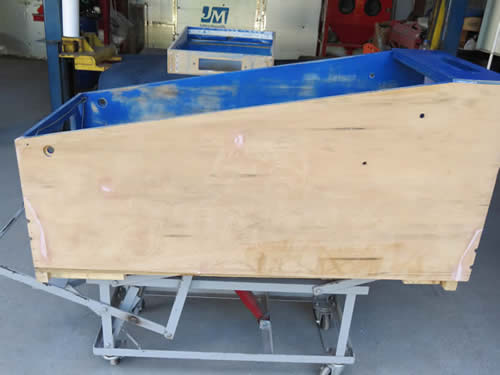

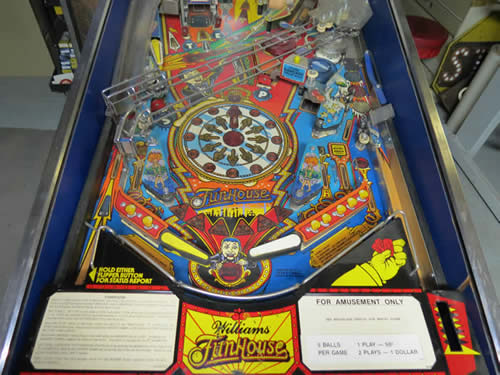

                                              8-23-13 Pictures before restoring

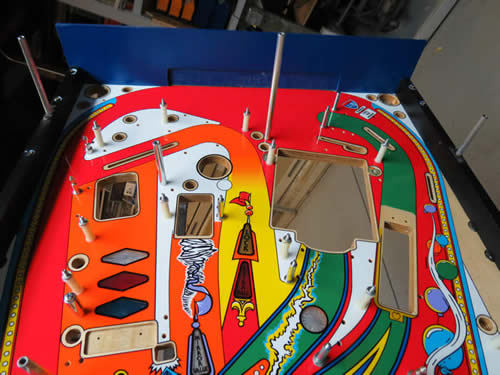

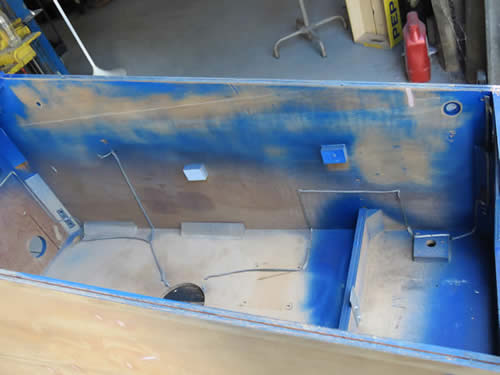

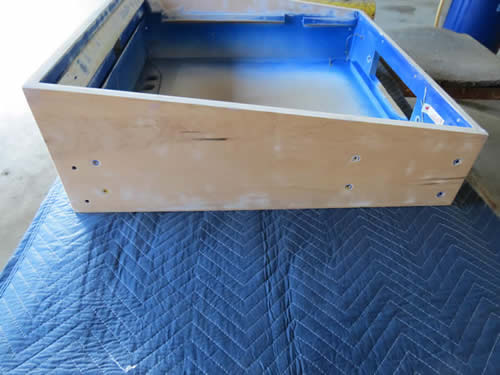

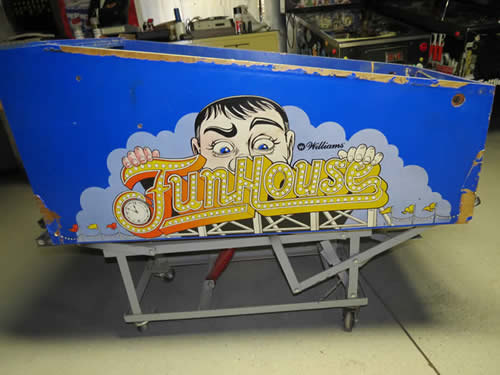

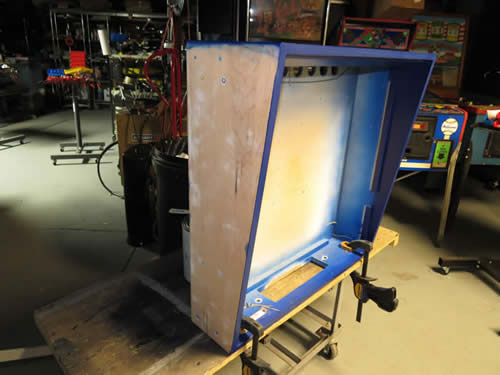

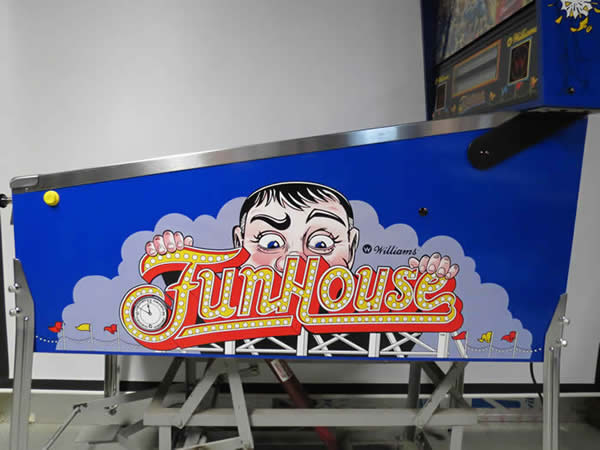

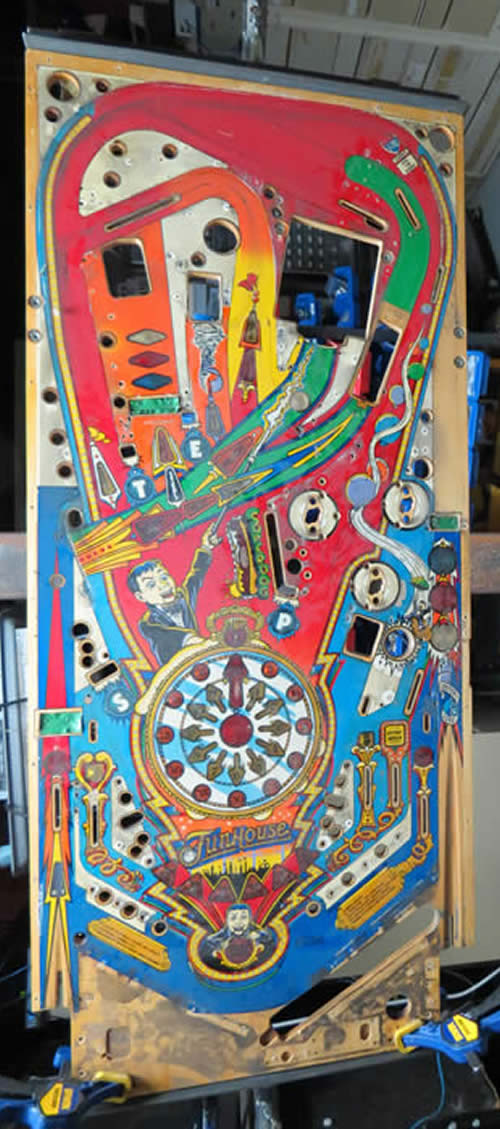

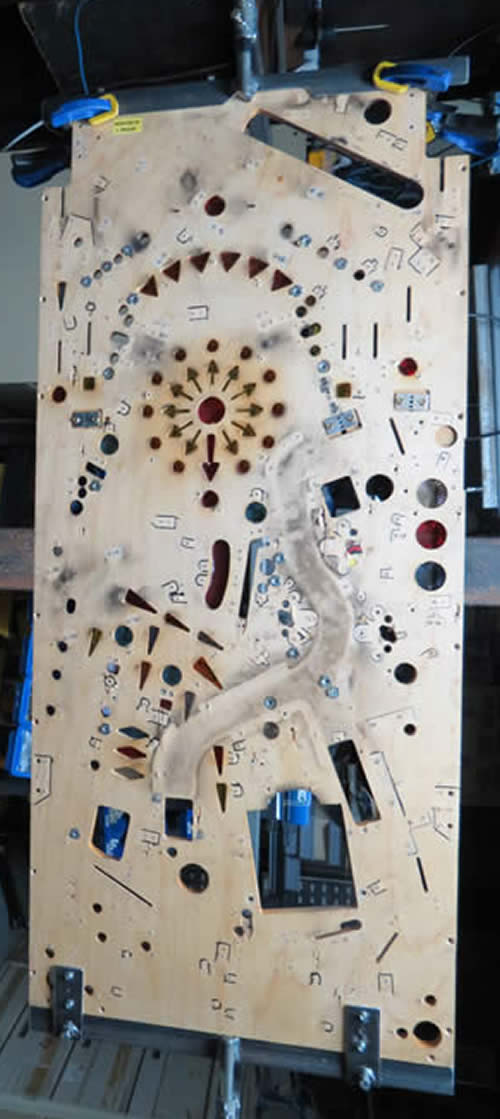

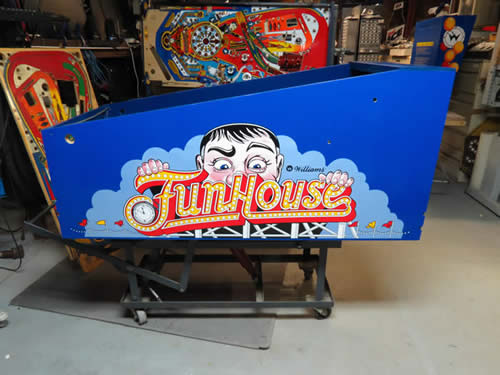

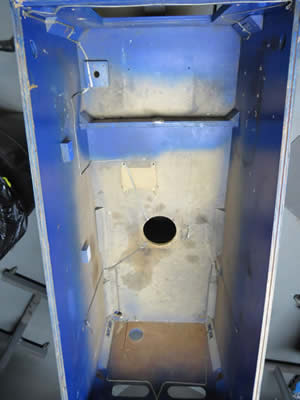

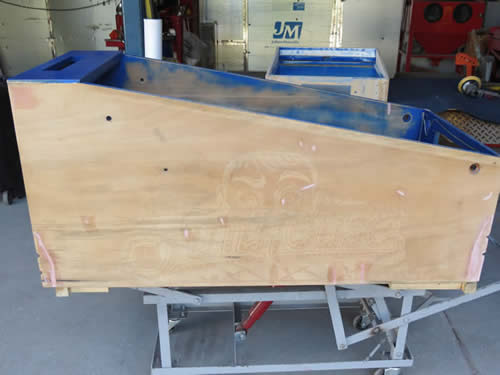

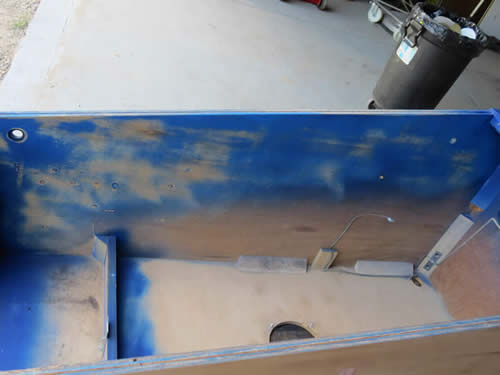

All parts have been remover, time to clean all of them, remove side art, repaint cabinet &

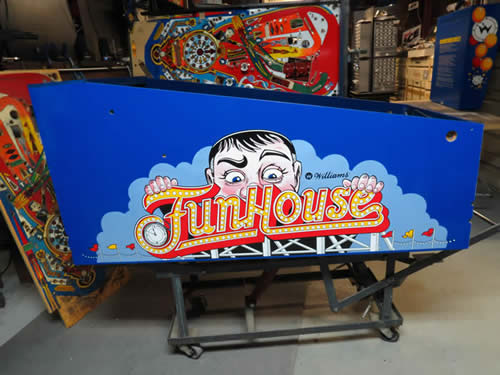

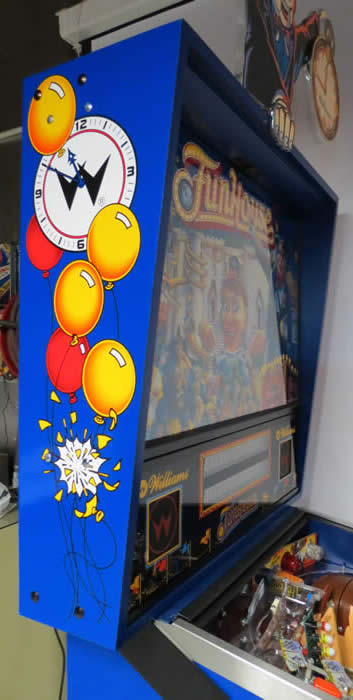

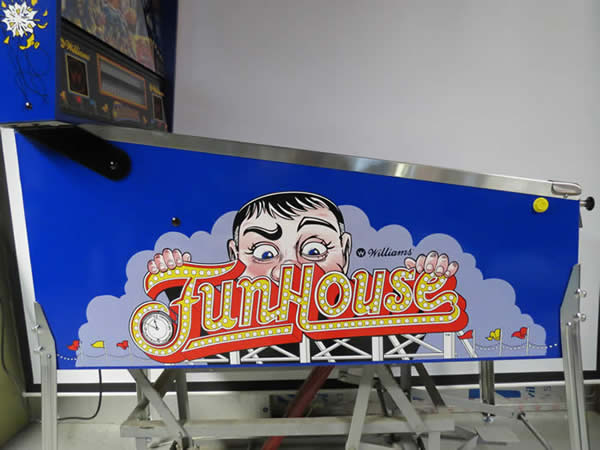

head, then install the new side art

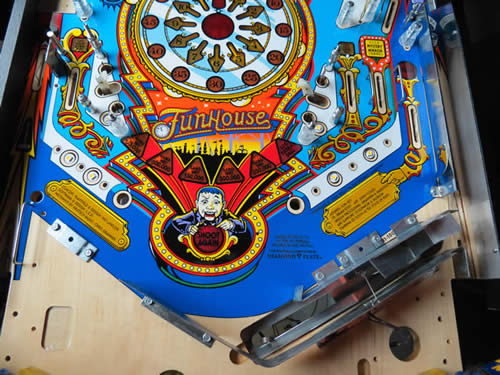

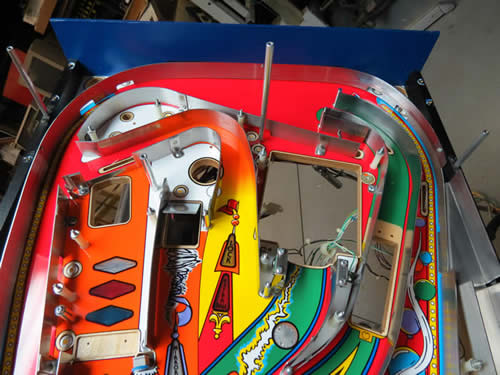

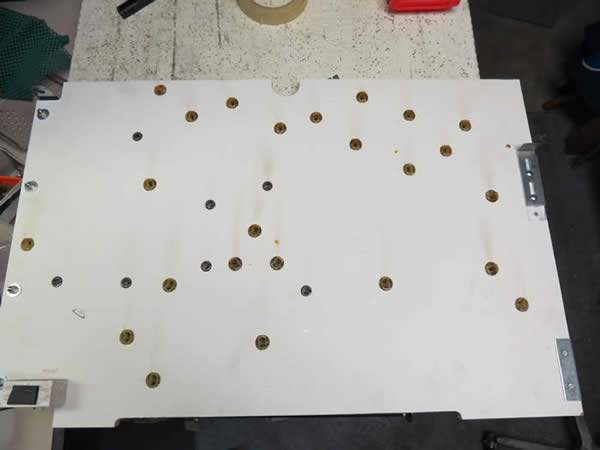

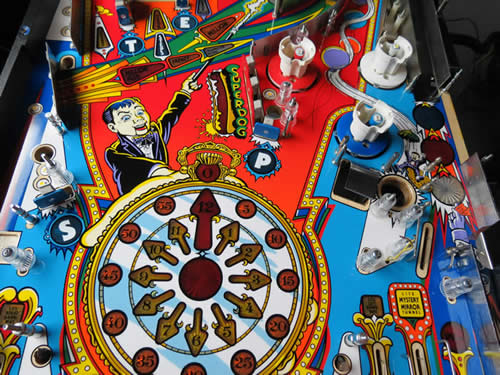

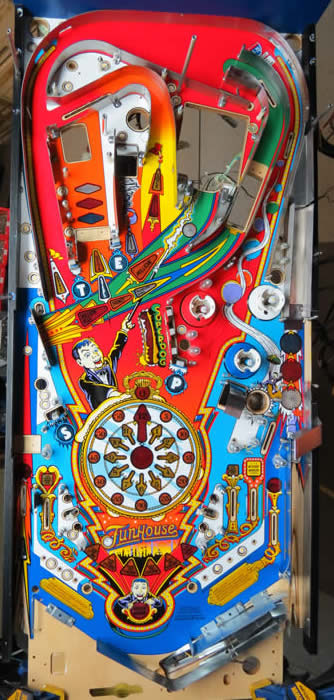

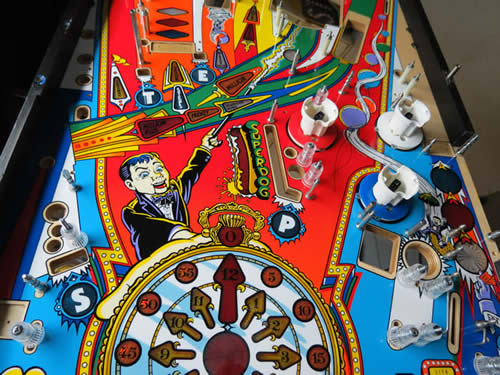

                       Pictures of being restored   9-06-13

                                                                   9-08-13

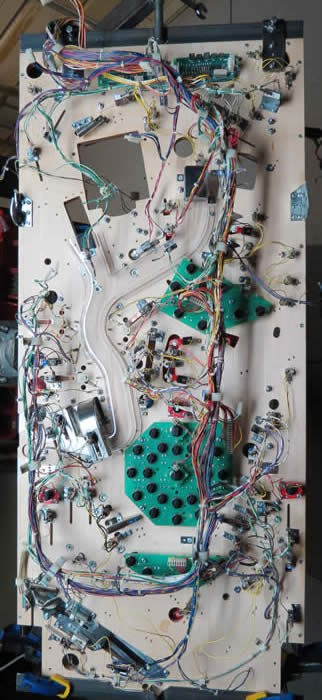

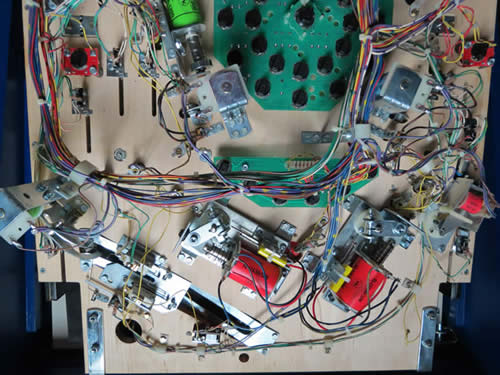

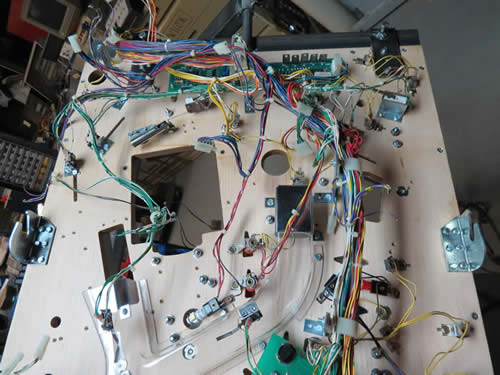

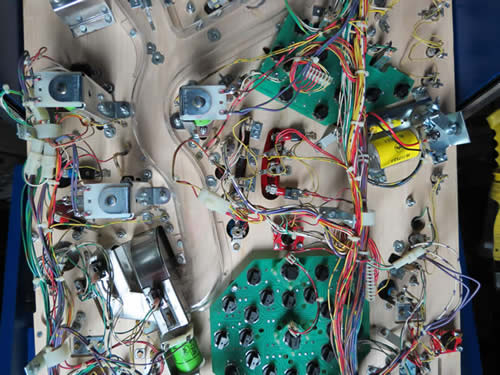

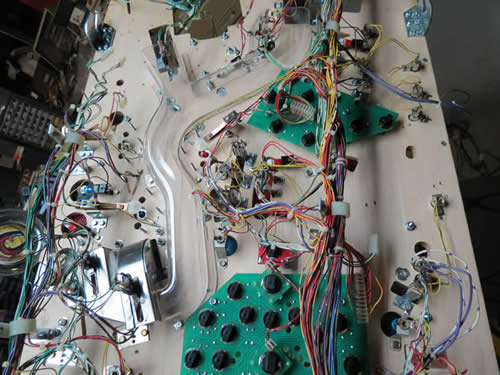

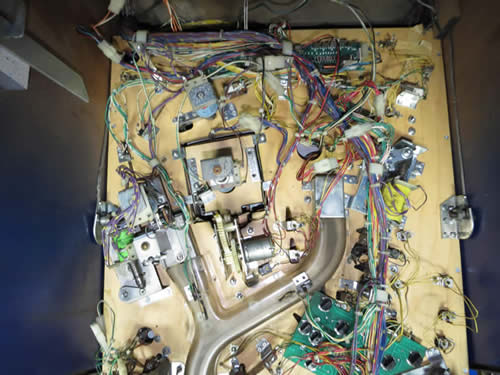

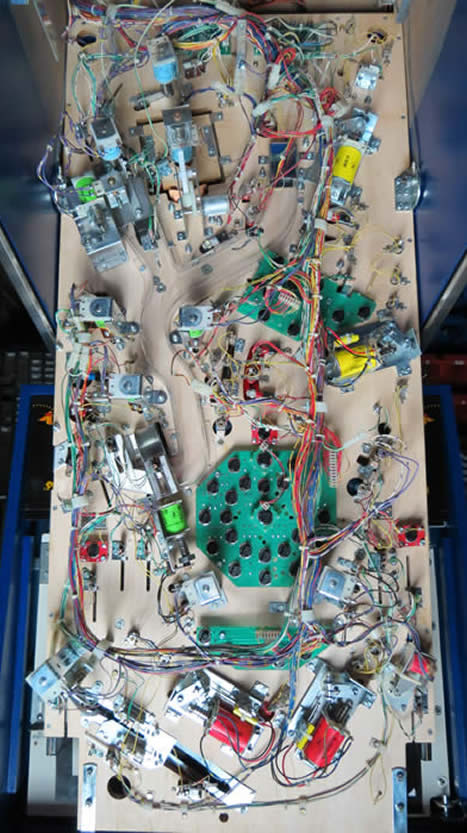

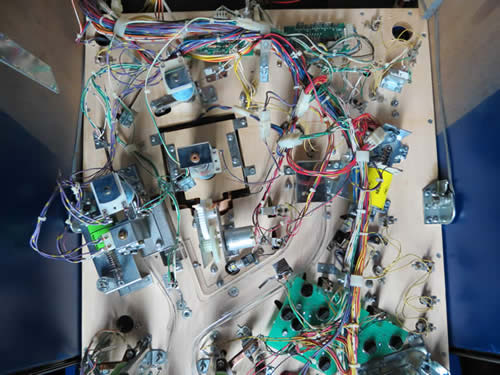

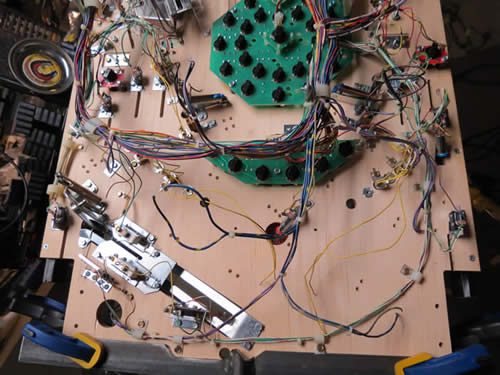

The wire harness to the head and playfield has been Ultrasonic Cleaning, and all ball guides were

Ultrasonic Cleaned and buffed on a buffing wheel. All remaining playfield parts were Ultrasonic

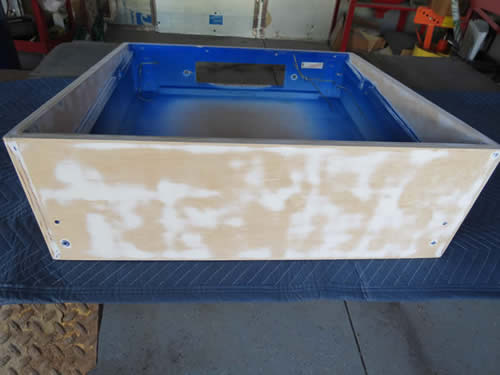

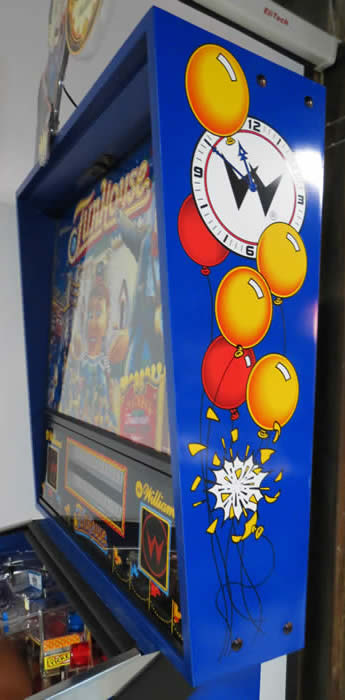

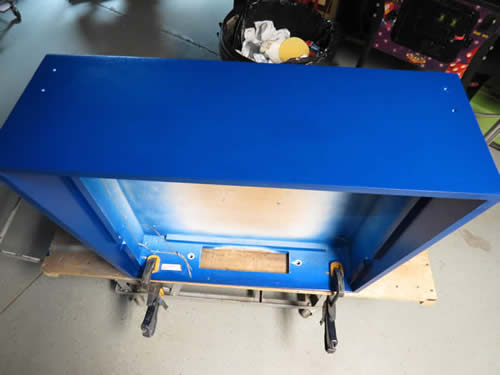

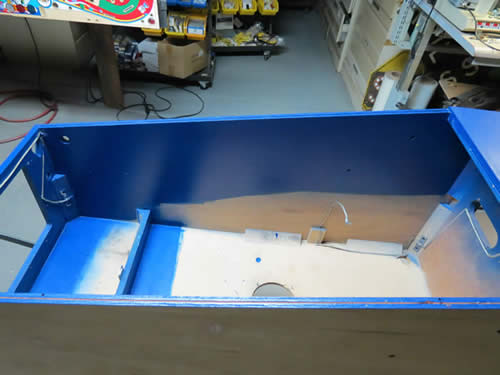

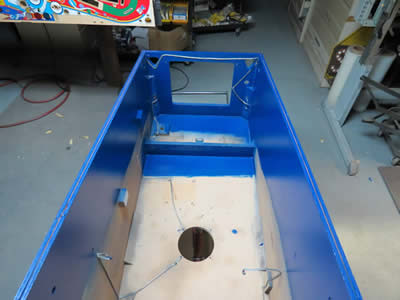

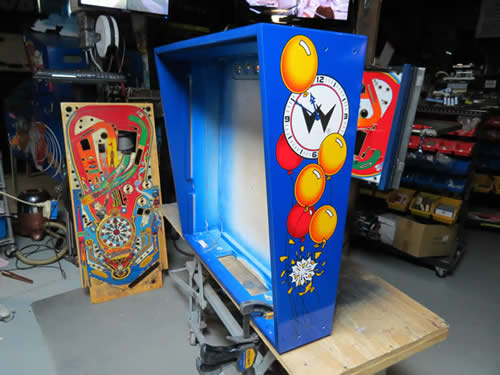

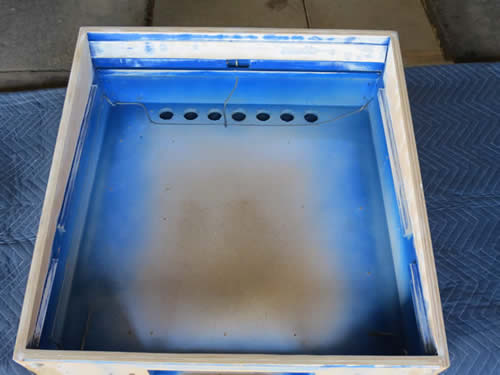

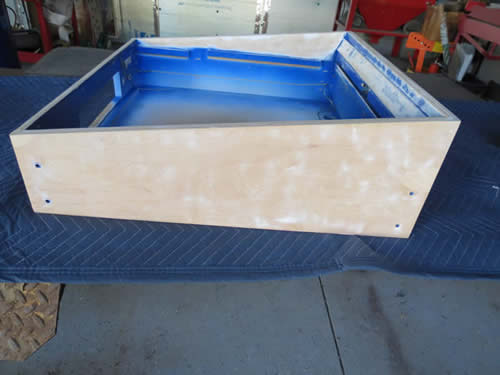

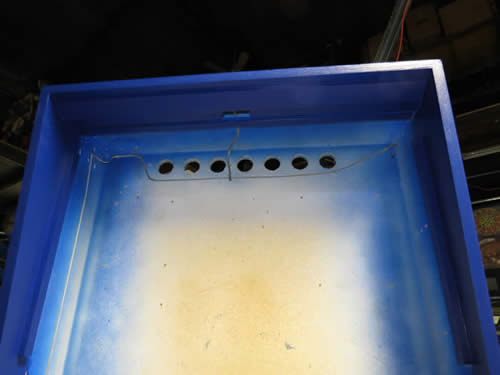

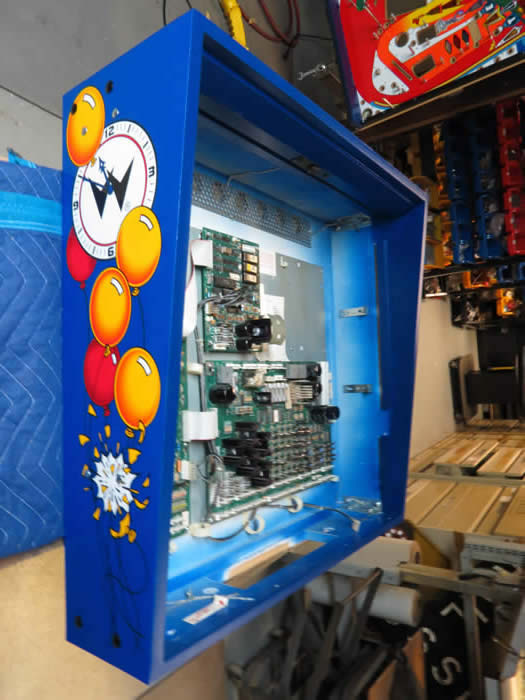

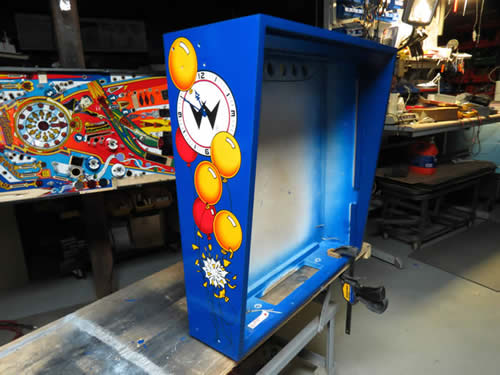

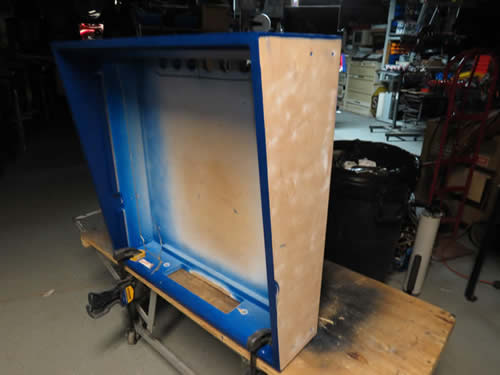

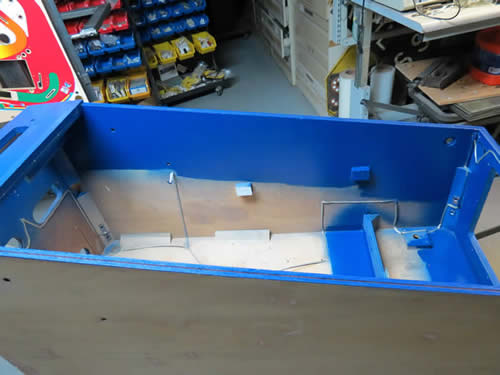

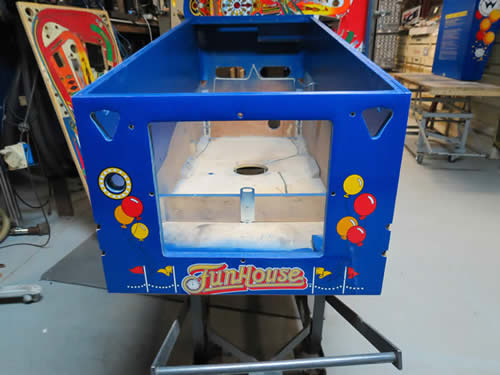

Cleaned. The box and head was dents filled, and then painted.

                                                                   9-10-13

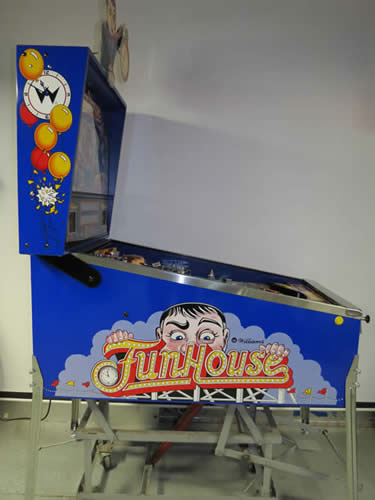

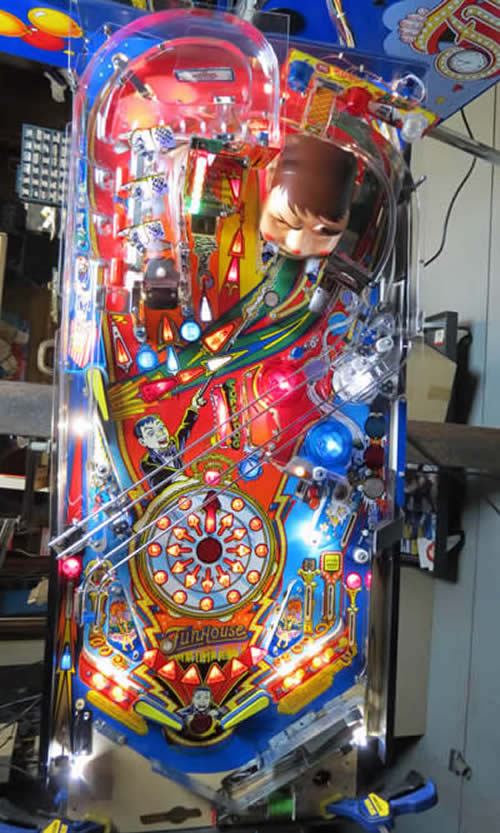

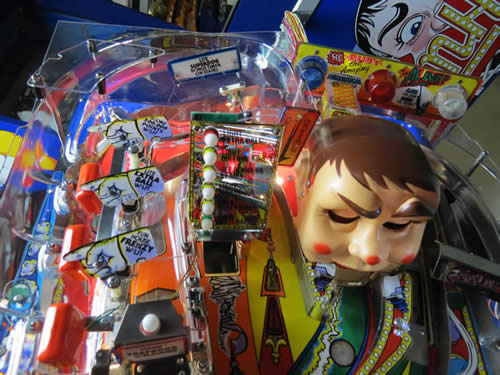

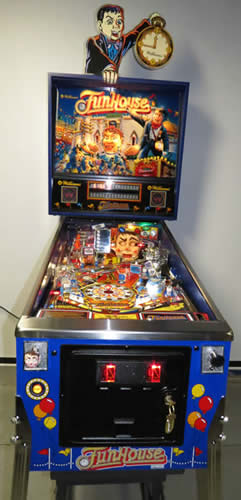

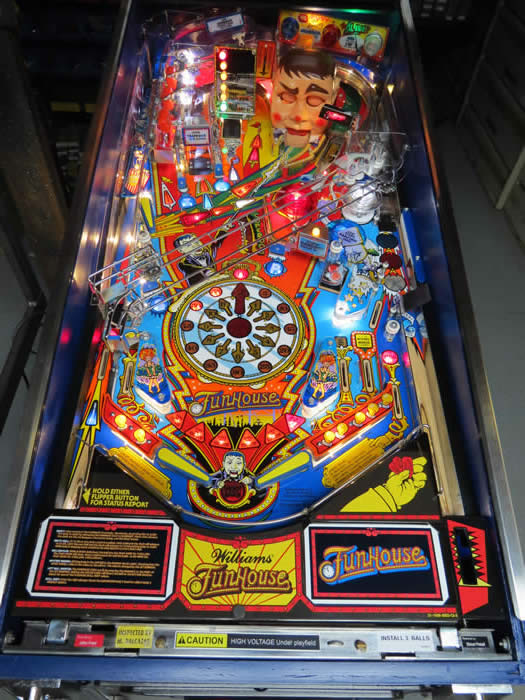

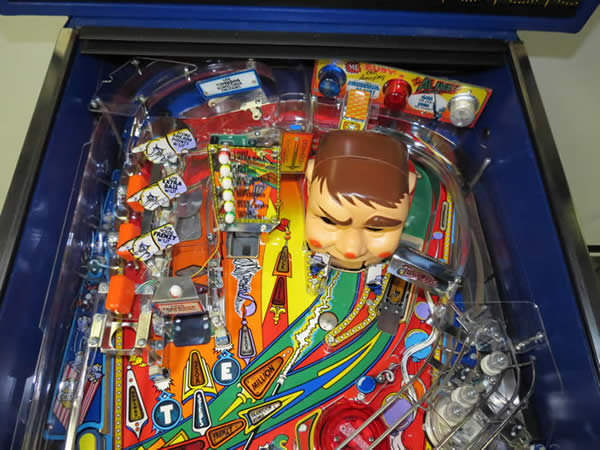

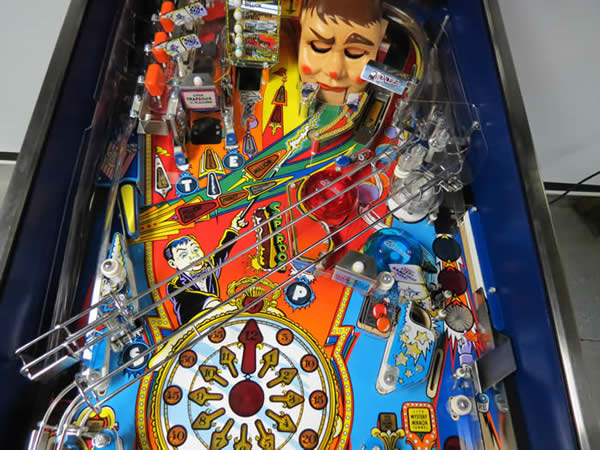

This is a TOP OF THE LINE RESTORED PINBALL MACHINE It is as close to brand new as it

can get!!

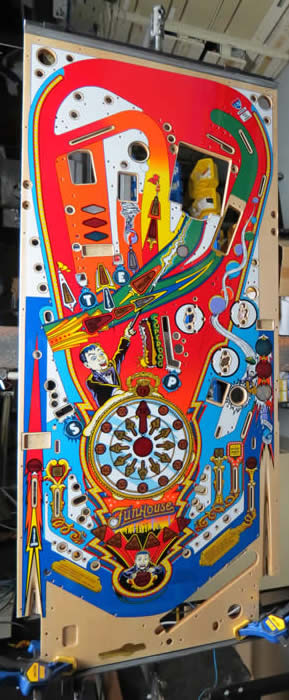

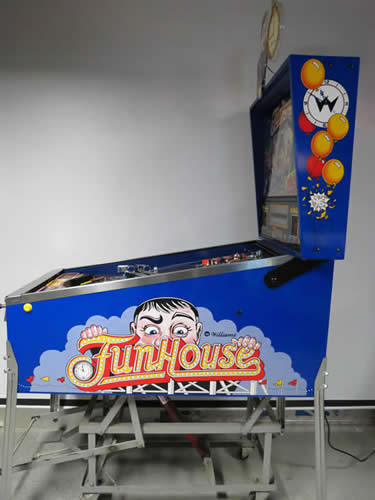

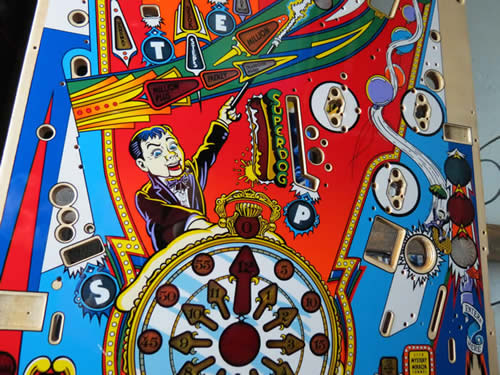

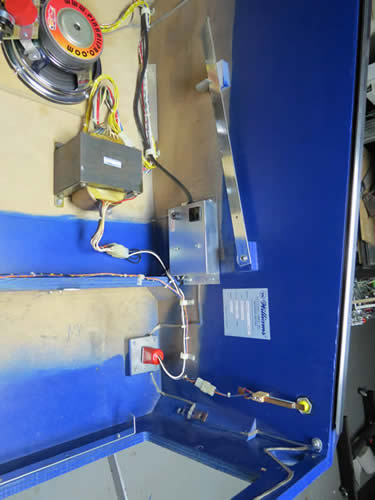

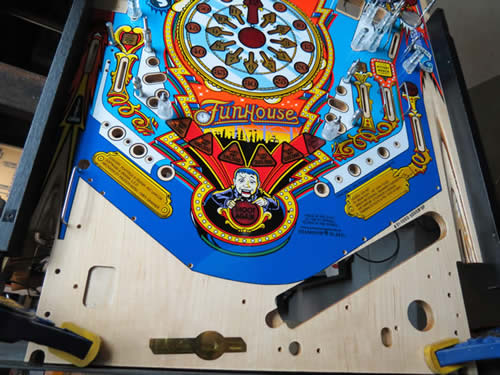

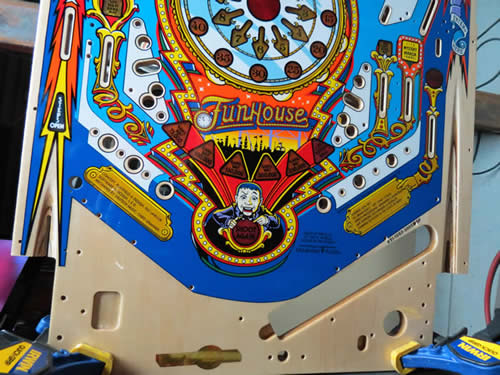

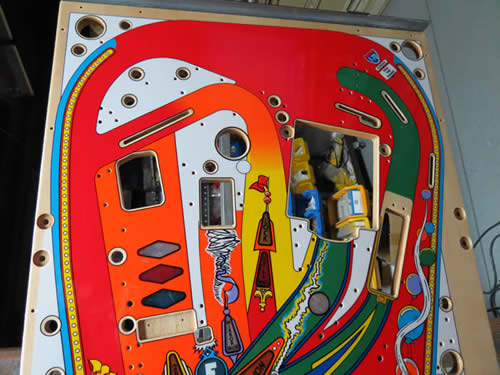

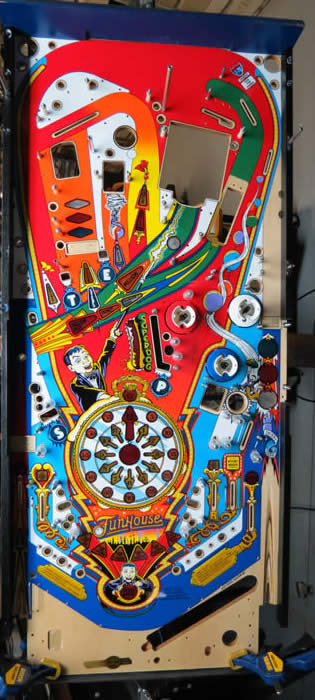

As of  9-10-13 it has NEW - playfield - side art - 2 flipper buttons - flipper switches - power cord -

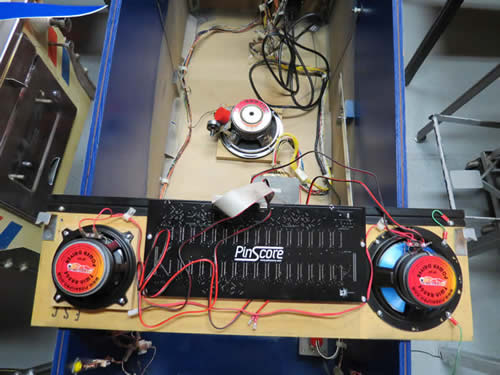

Pinball Pro Speakers with Premium High Energy Subwoofer Upgrade - PINSCORE led displays,

Coin Taker COMPLETE SUPER FUNHOUSE LED KIT with PREMIUM UPGRADE - all new

ramps - rear glass channel - slingshot cranks & plunger with link - all stand up targets - pop bumper

bodied & skirts. The 3 AAA Batteries removed and converted over to 1 lithium battery, so no more

leaking batteries - back glass lift channel.

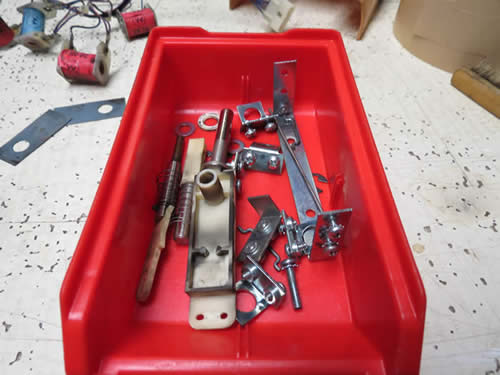

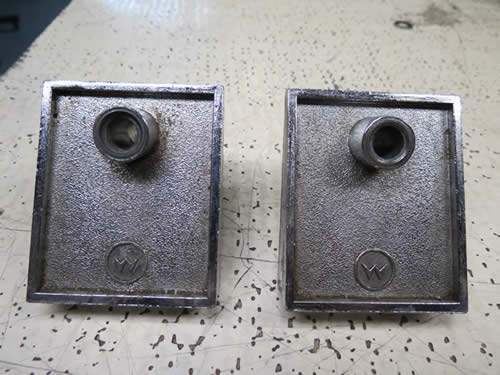

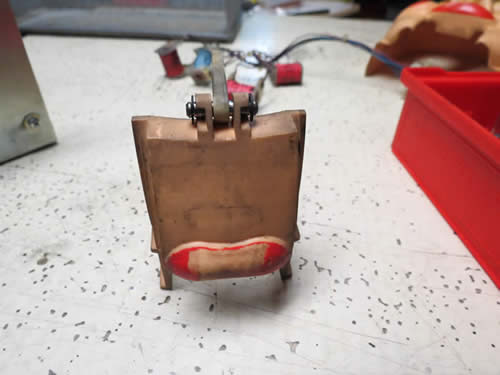

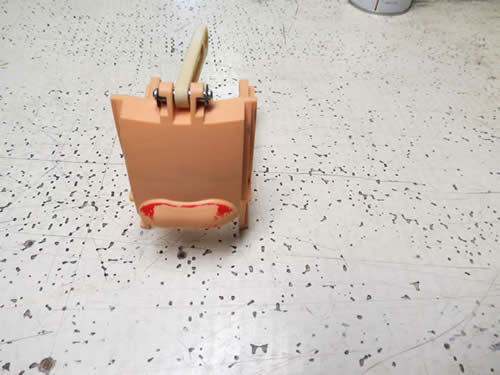

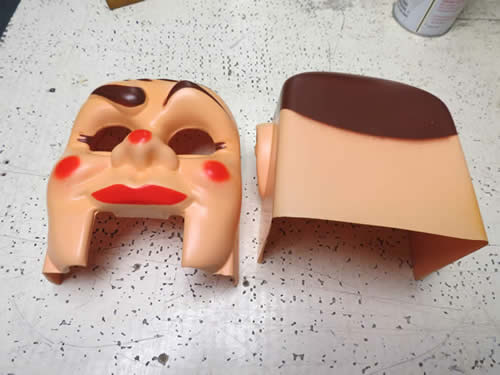

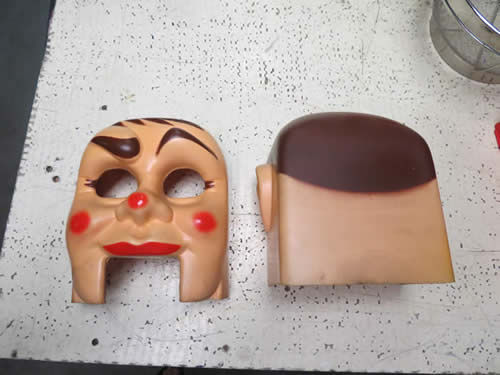

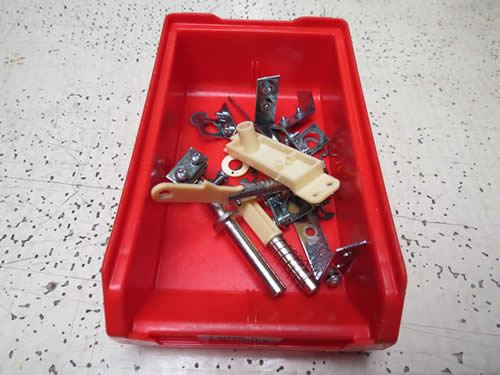

   Before Cleaning in the ultrasonic cleaner After

                                                                   9-16-13

As of 9-16-13 NEW back glass lift channel. The wire harness to the head and playfield has been

Ultrasonic Cleaning, and all ball guides were Ultrasonic Cleaned and buffed on a buffing wheel.

All remaining playfield parts were Ultrasonic Cleaned. The box and head was dents filled, and

then painted.

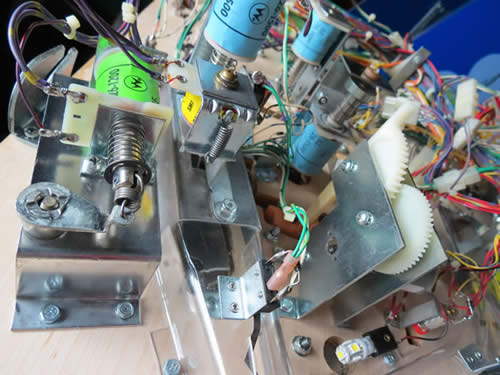

It has NEW - 3 full flipper assembles - all clear plastic posts - 3 flipper bats -

3 orange switch covers - trap door assembly – playfield plastic set – plastic shield set – lock

nuts for playfield plastics – jet bumper caps , steel, and fiber armature Yoke – lamp shade –

plastic switch cover and decal – mirror billboard – 15 new coils - coil label's – multi ball release

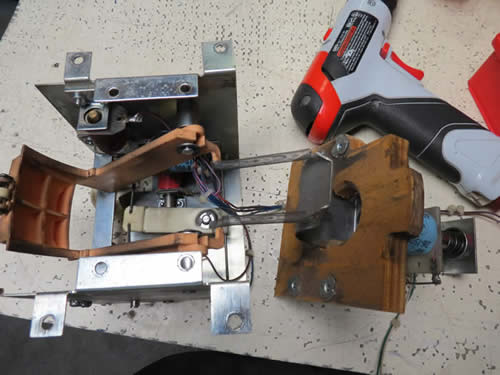

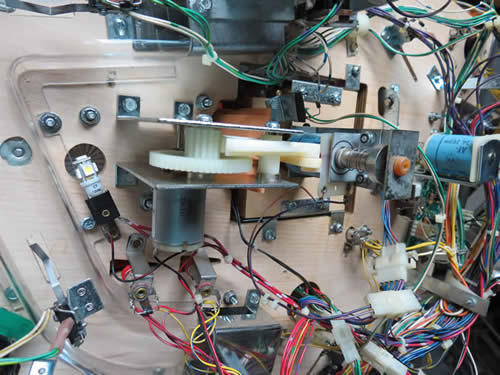

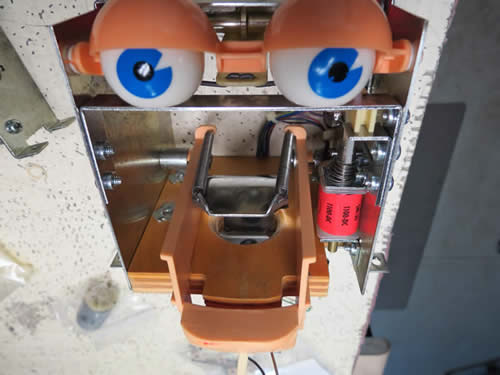

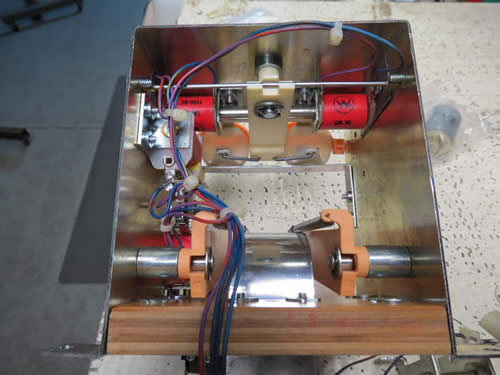

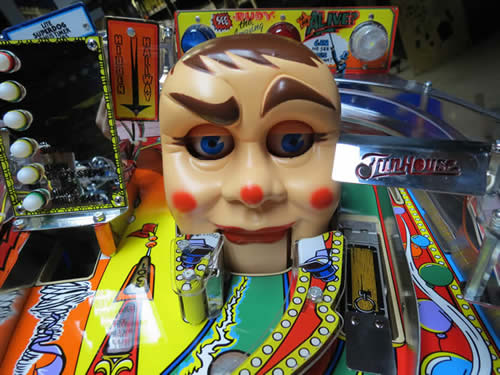

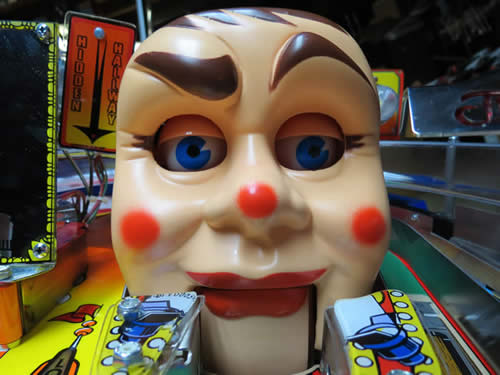

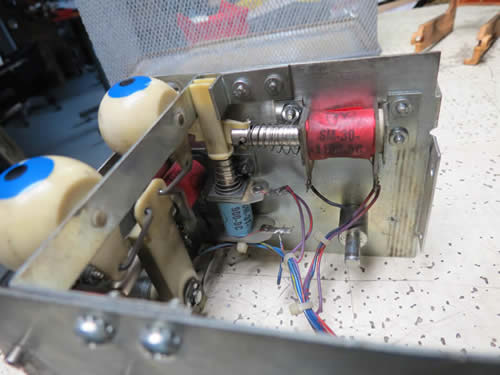

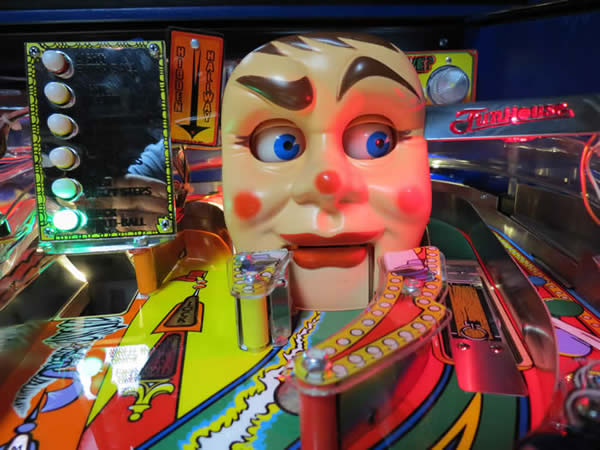

– eye lid’s – eyes – main eyelid plunger - gears, springs, and motor for Rudy mouth – centering

flange and plunger for eyes open – glass channels and side rails – back box latch – speaker

panel – Stern leg protectors – legs, bolts, and leveler’s – white rubber bands – 3 blue flipper

bands - Cliffy’s Premium color post sleeves – 3 pinballs -back glass lift channel.

     Before Cleaning in the ultrasonic cleaner After

                                                          9-26-13

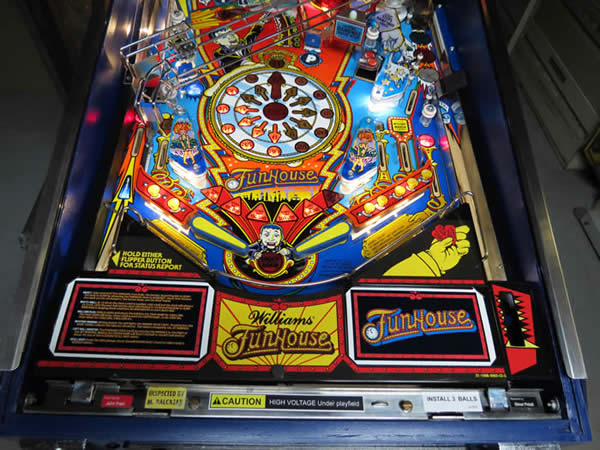

As of 9-26-13 it has NEW -  apron and shooter guide decal - playfield glass – right shooter rod,

2 barrel springs, 4 washer spacers, 2 shooter sleeves – Rudy Topper holding a clock,

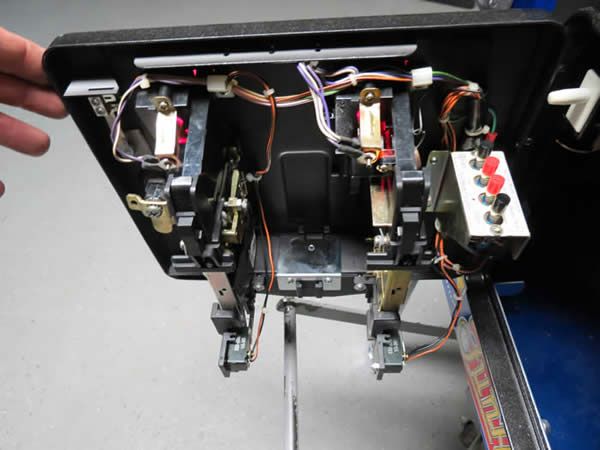

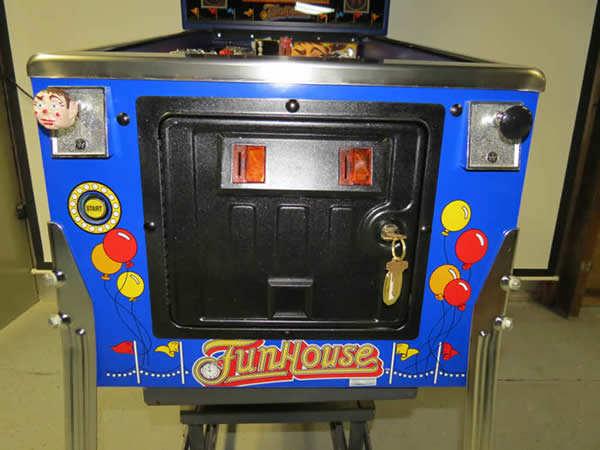

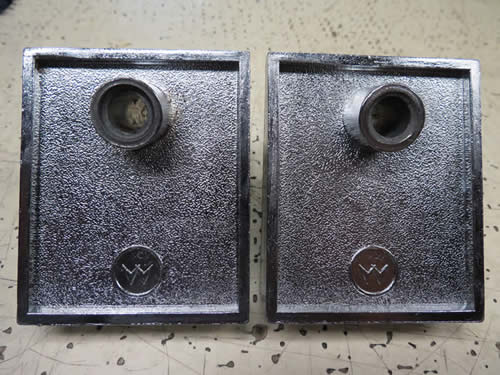

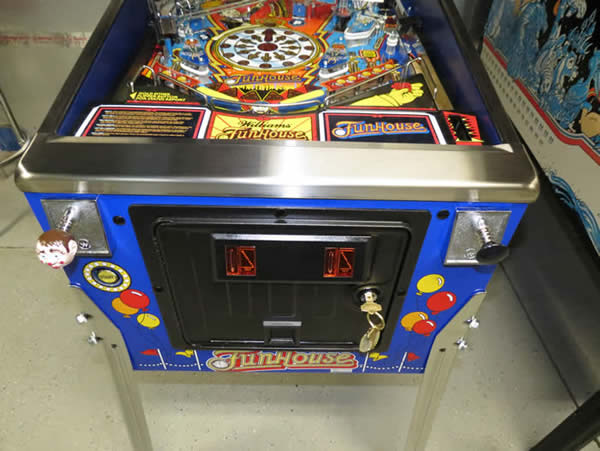

The coin door was bead blasted and painted. Apron  and right shooter guide sanded and

repainted and decaled installed.

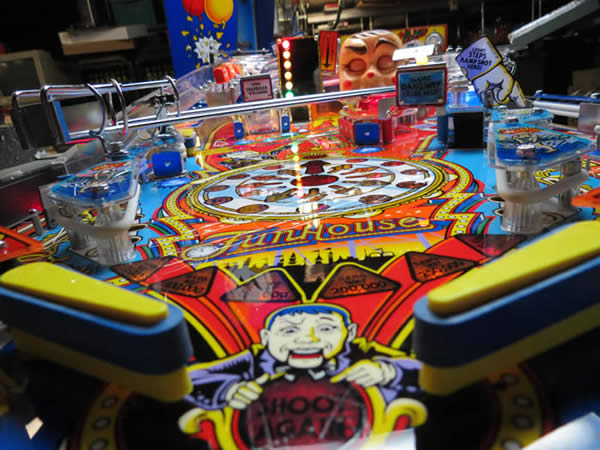

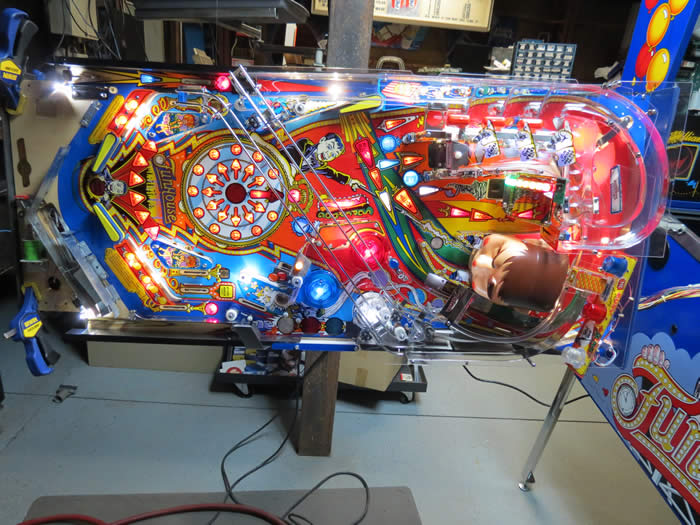

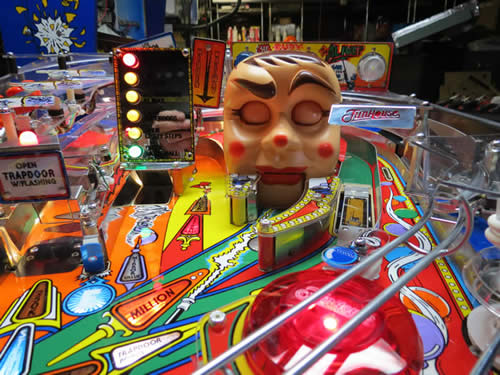

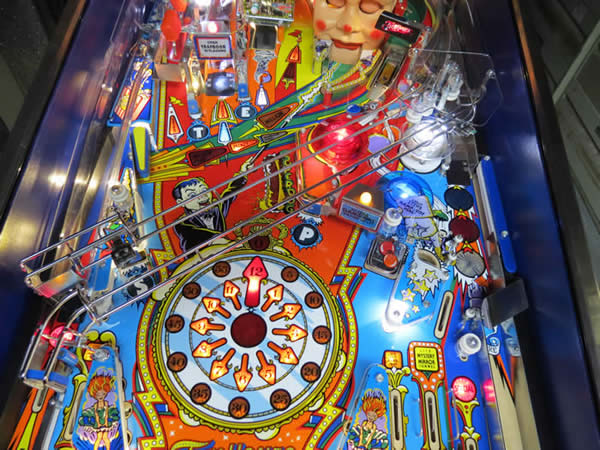

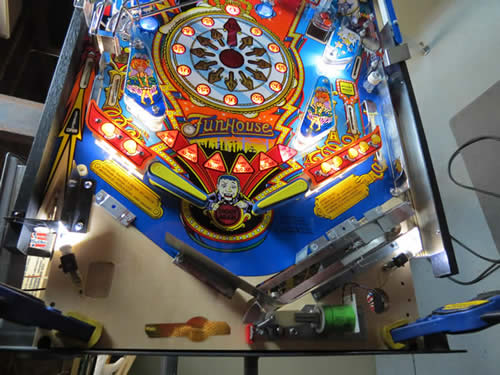

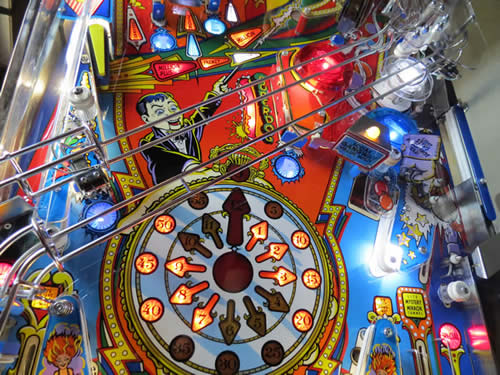

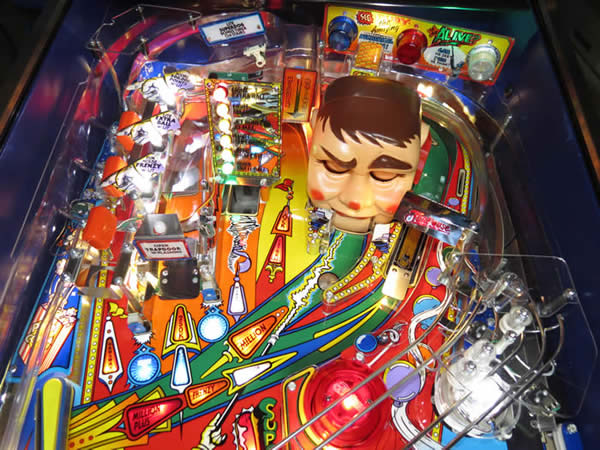

                                       LED'S TURNED OFF                                                         LED'S TURNED ON

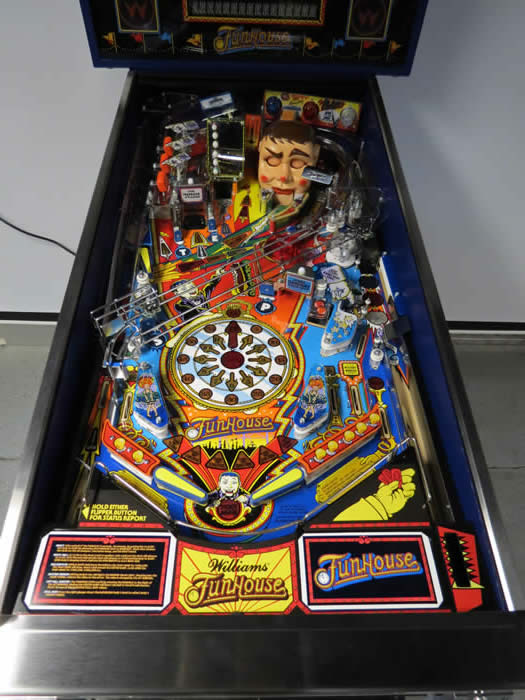

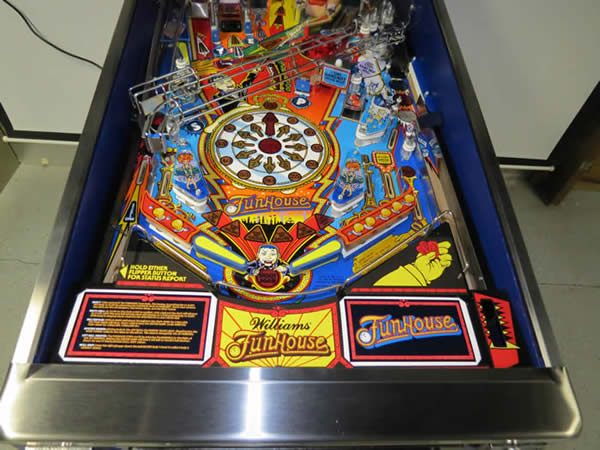

                          As of 11-12-13 a new Brushed Stainless steel lockdown bar has been installed.

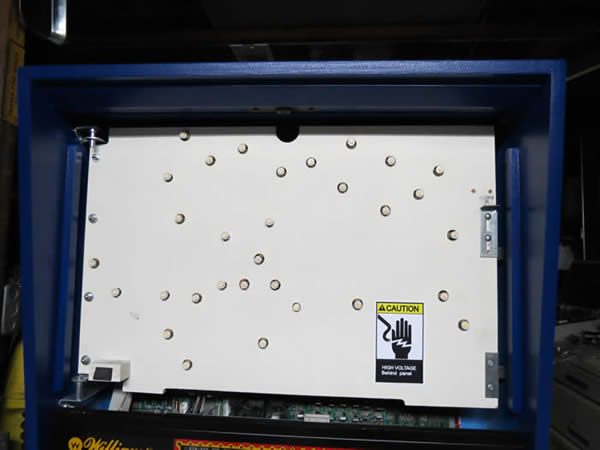

                            BEFORE                       BACK DOOR CLEANED                  AFTER

Thanks for looking

John Freel

Elkhart Pinball Inc.
