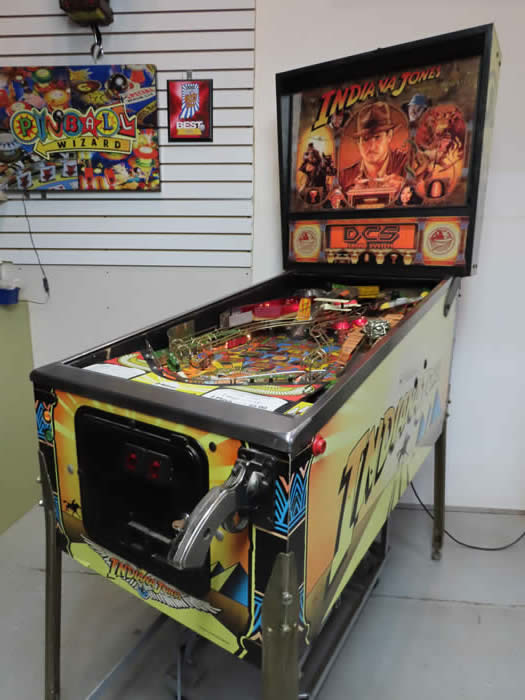

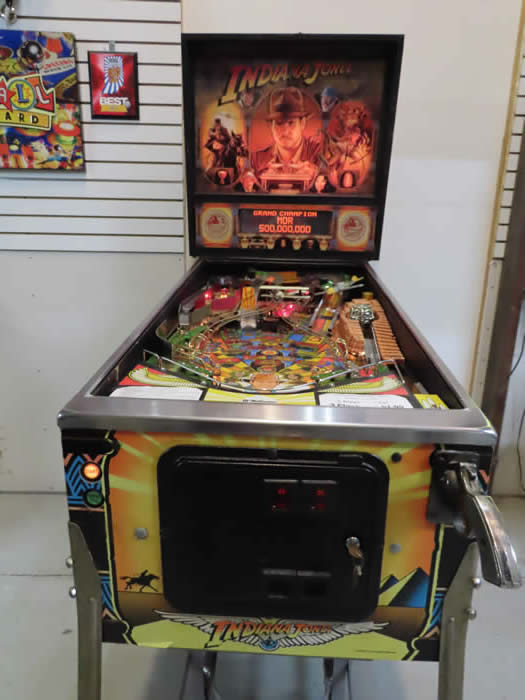

Elkhart Pinball Inc.

This game belongs to Elkhart Pinball Inc.

This is a very fun and classic fun family game.

This game plays and LOOKS like new.

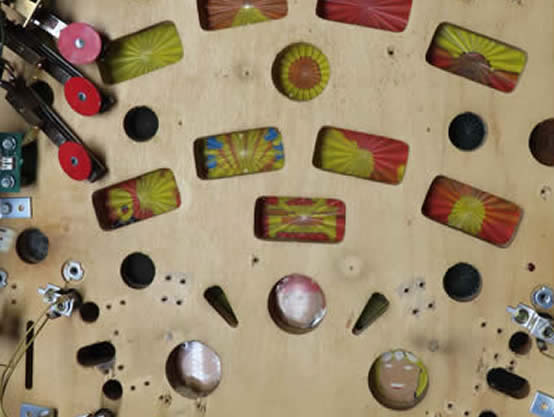

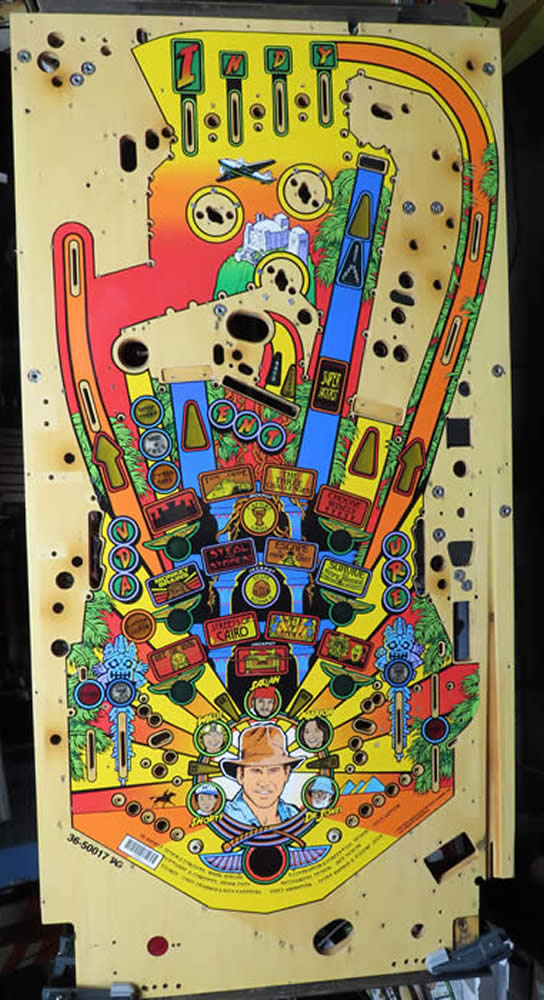

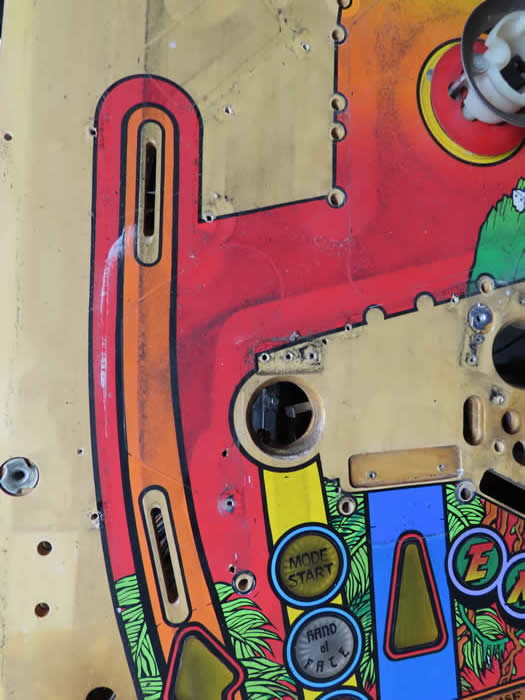

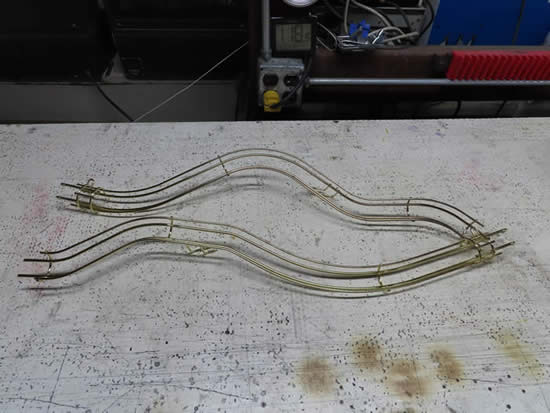

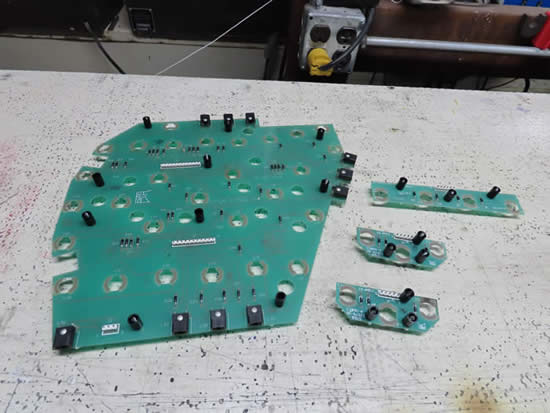

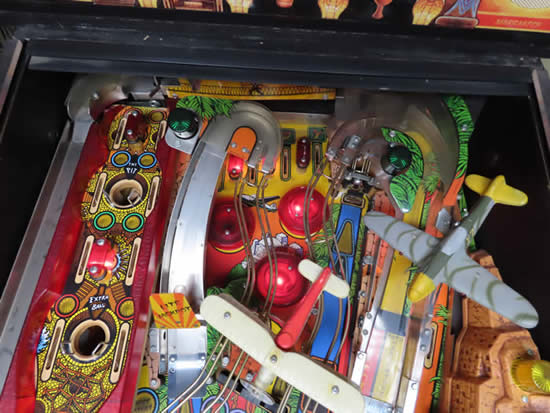

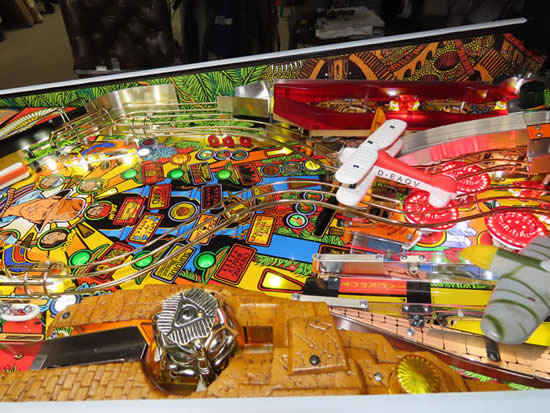

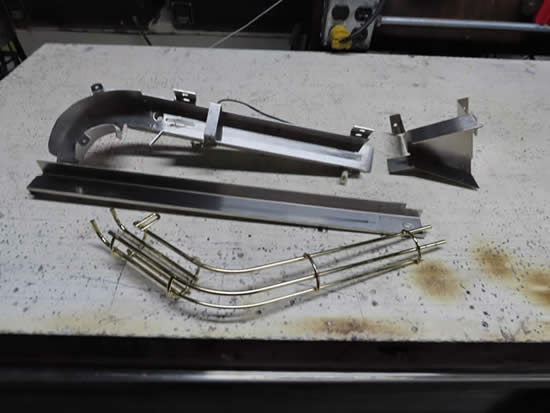

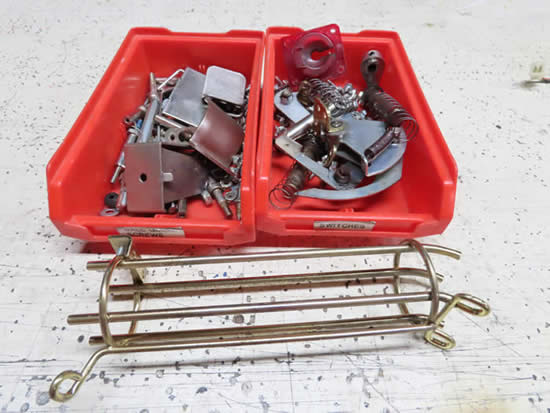

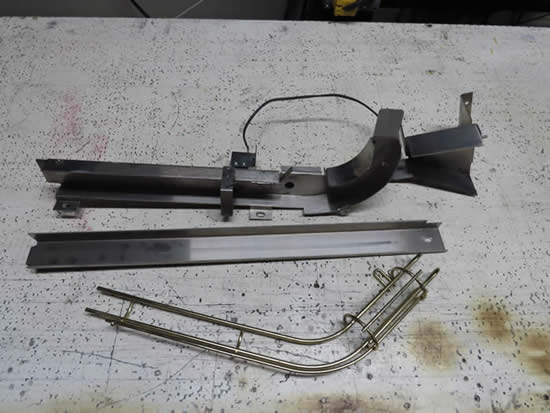

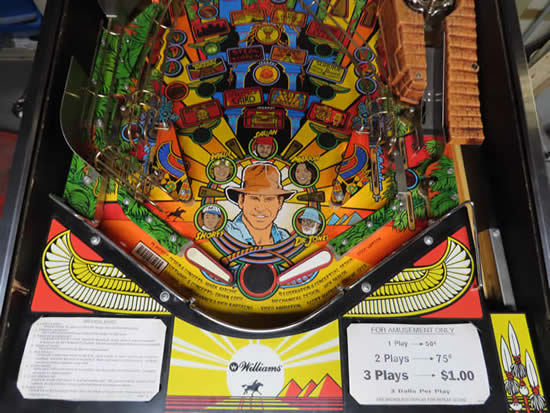

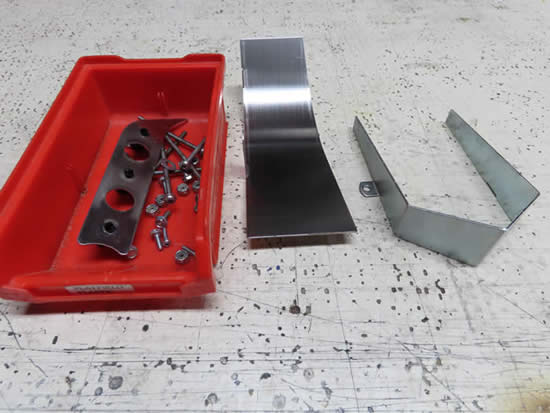

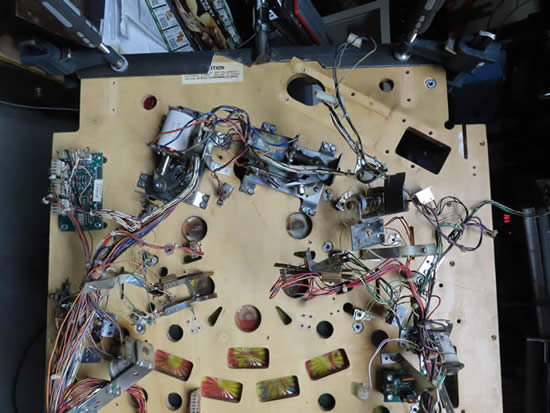

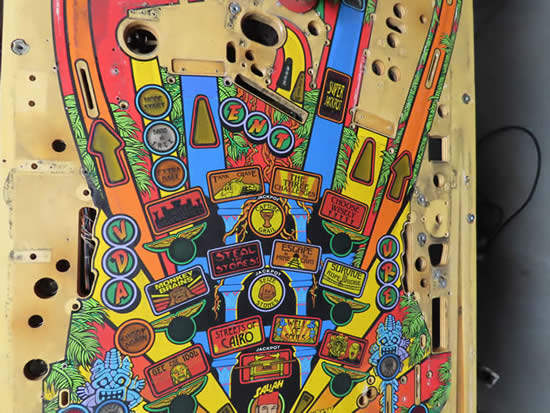

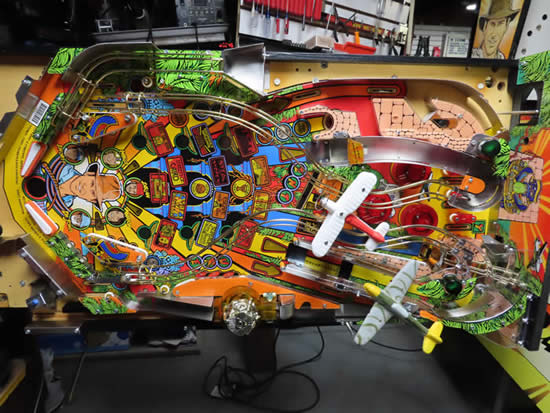

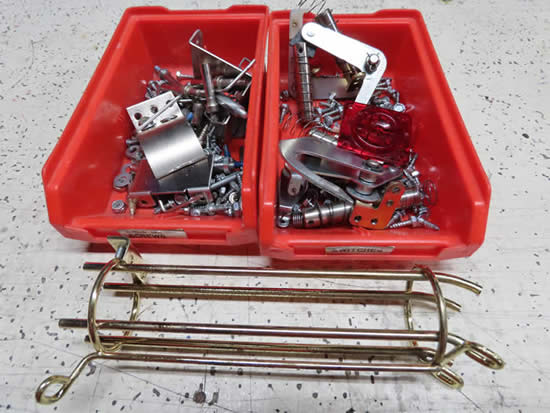

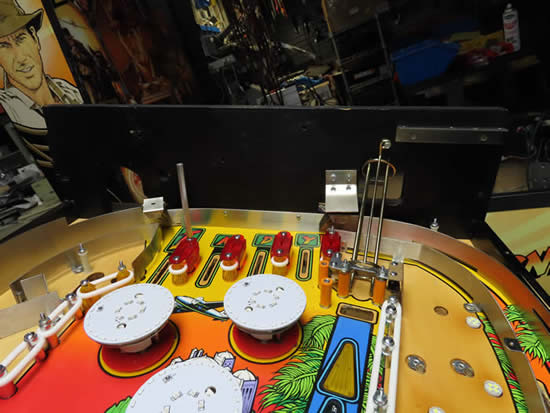

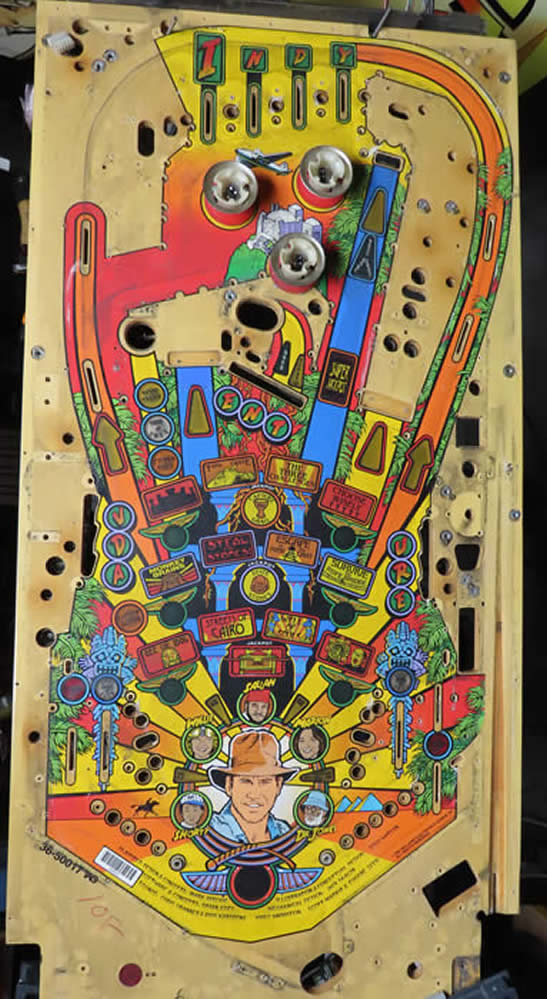

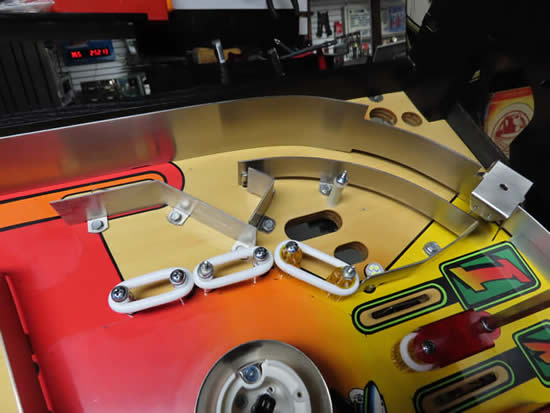

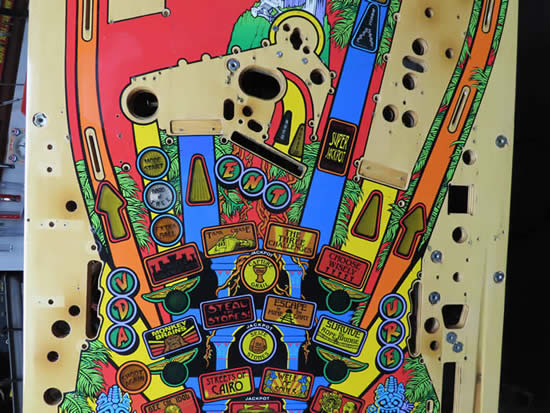

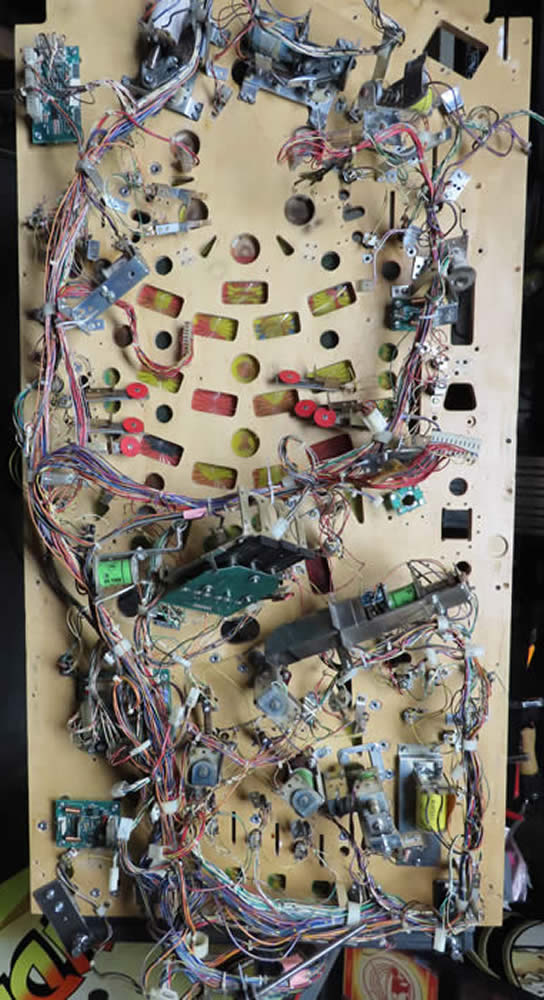

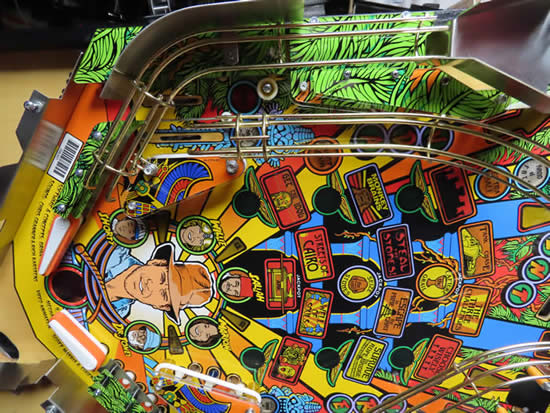

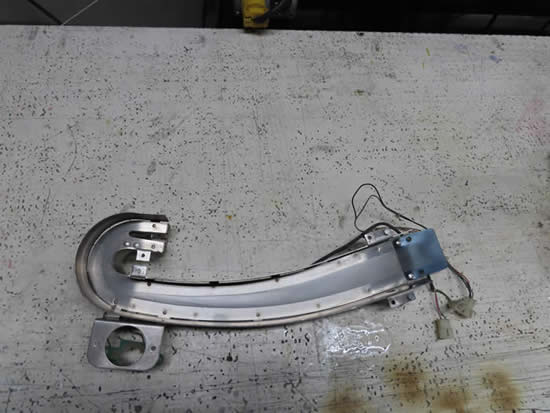

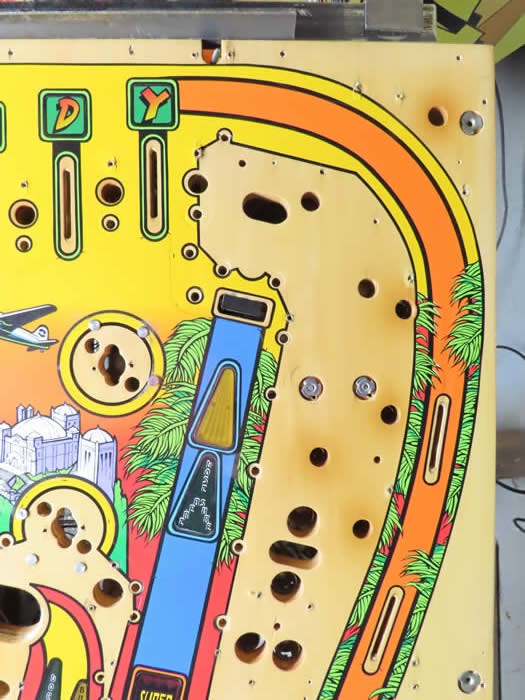

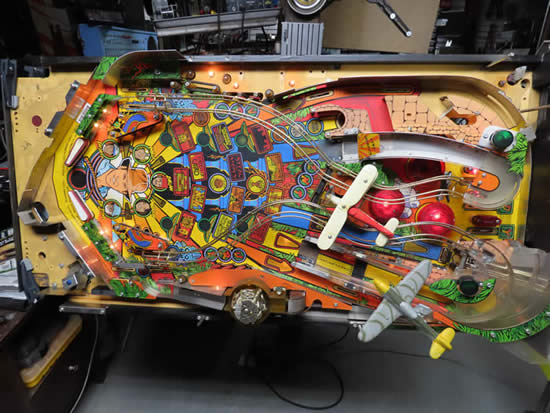

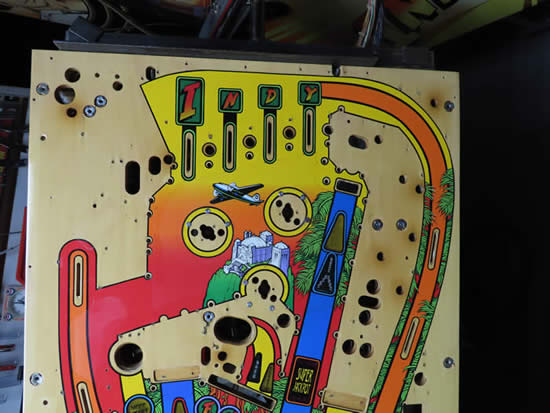

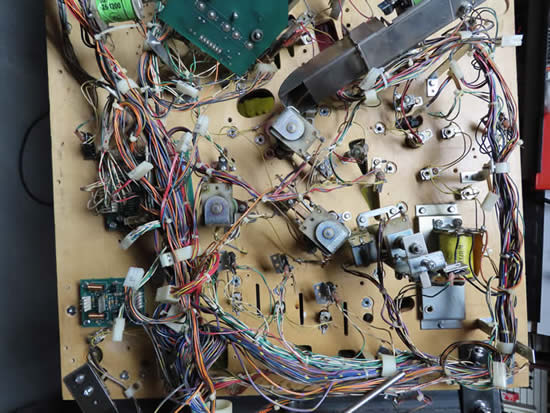

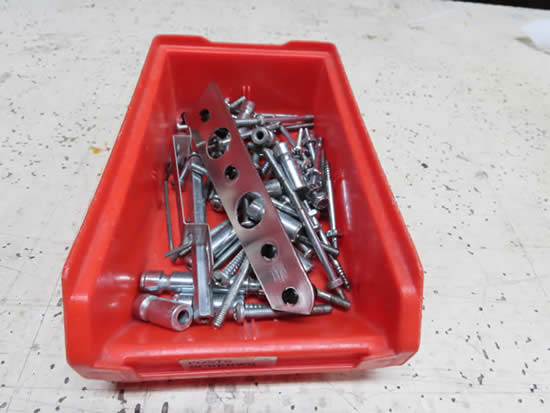

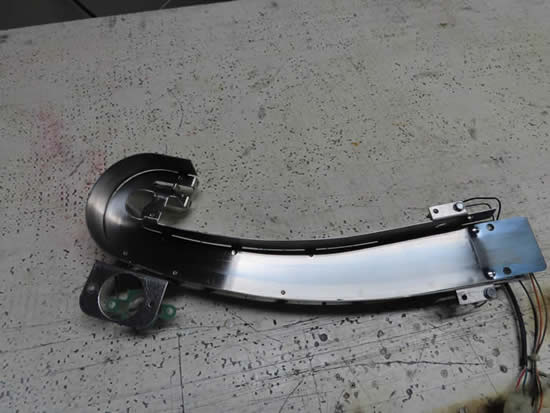

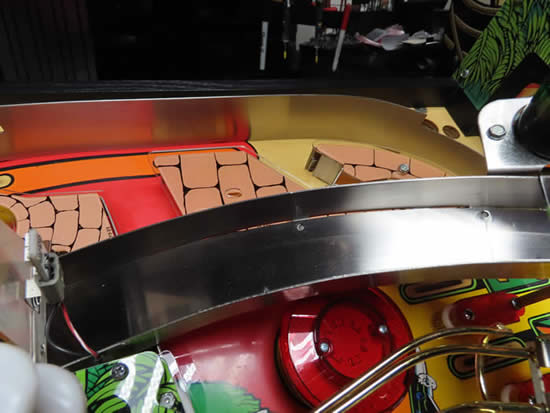

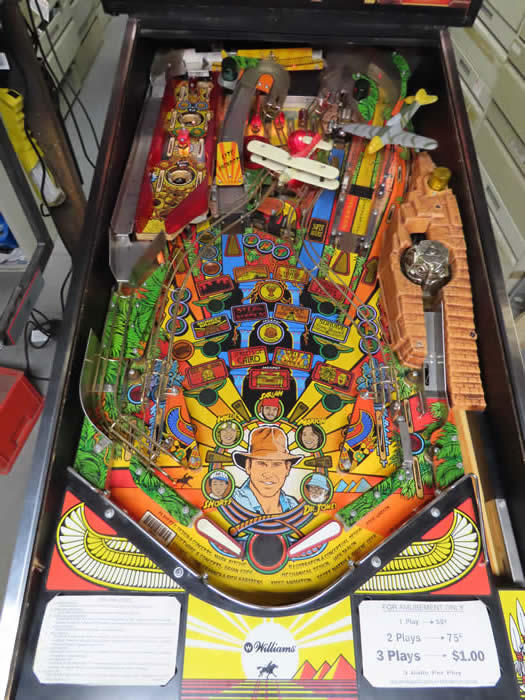

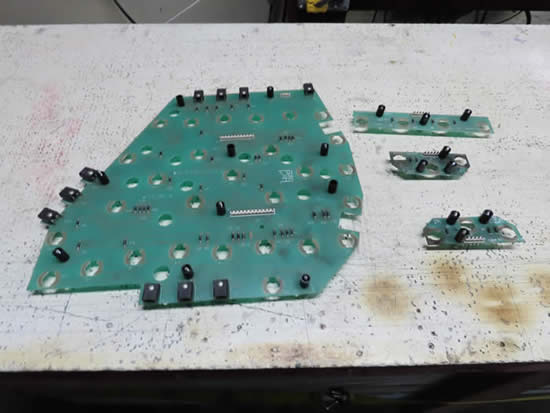

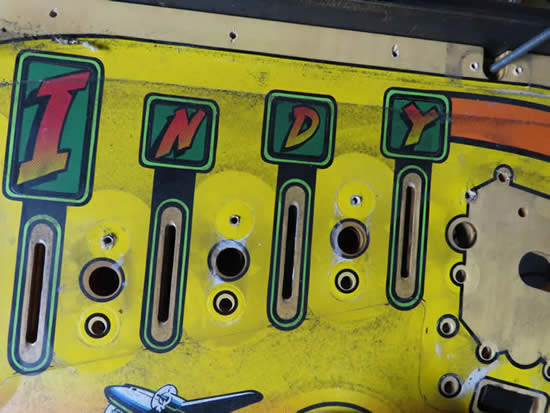

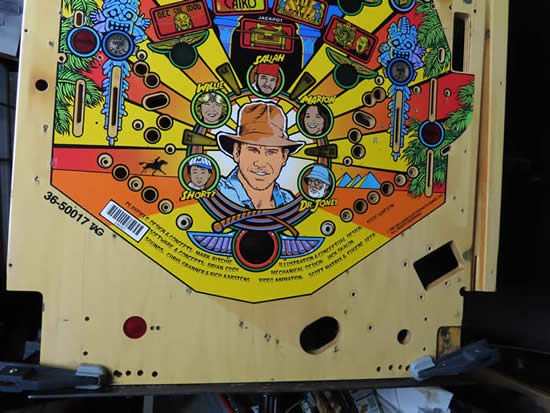

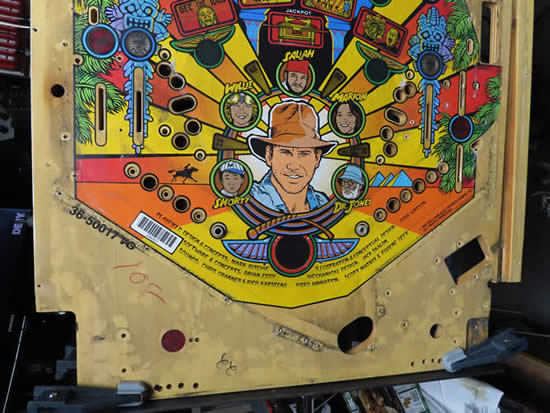

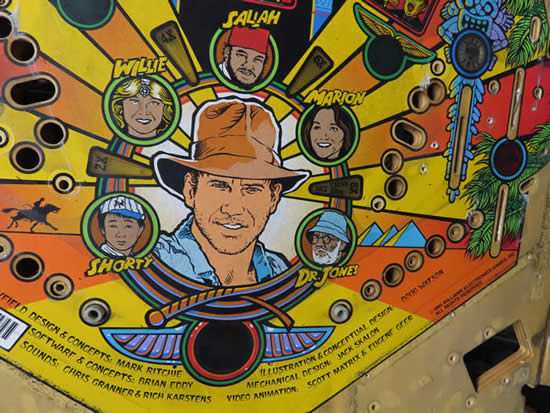

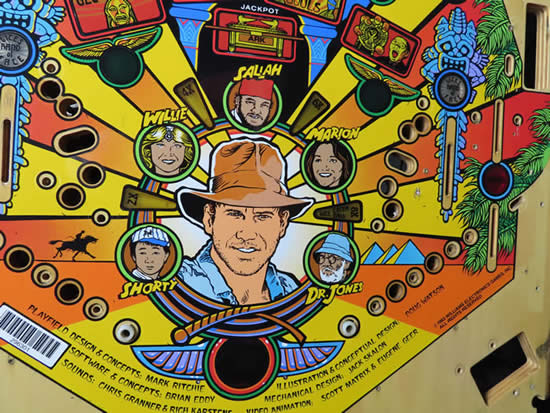

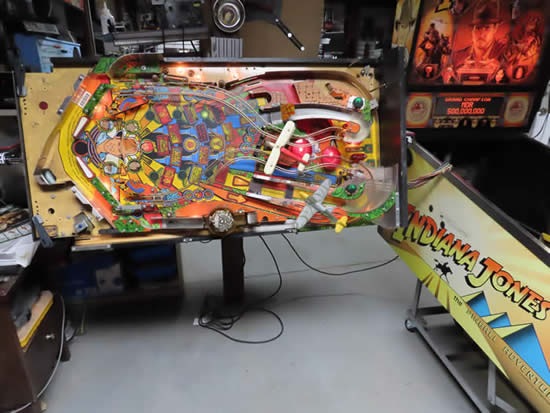

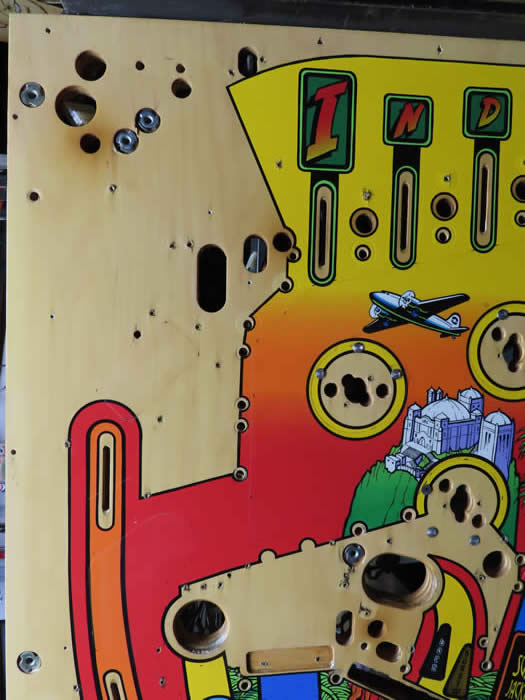

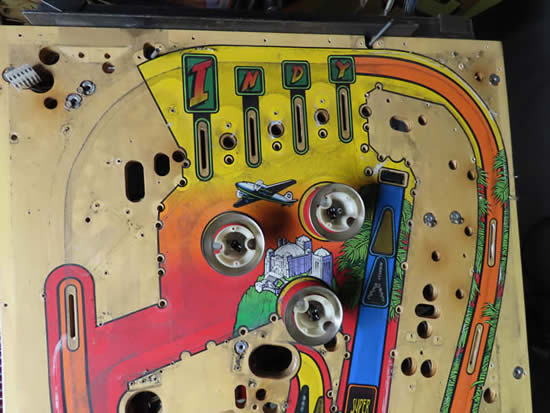

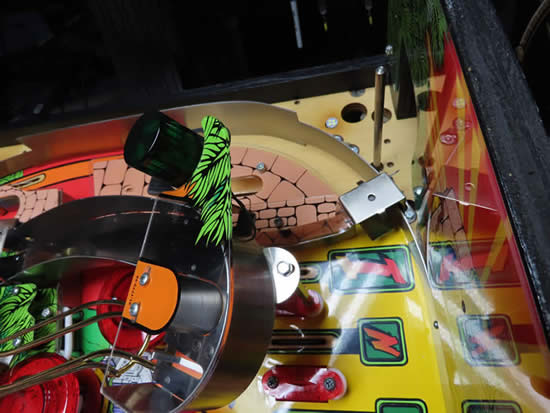

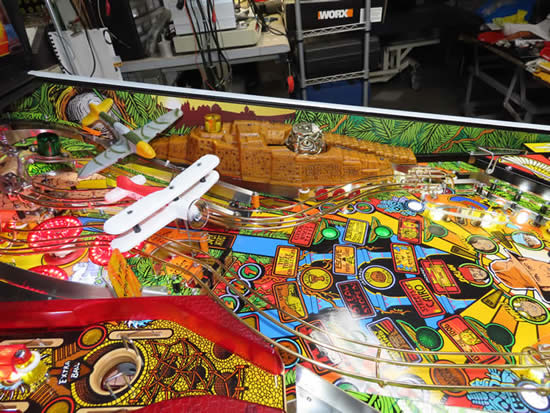

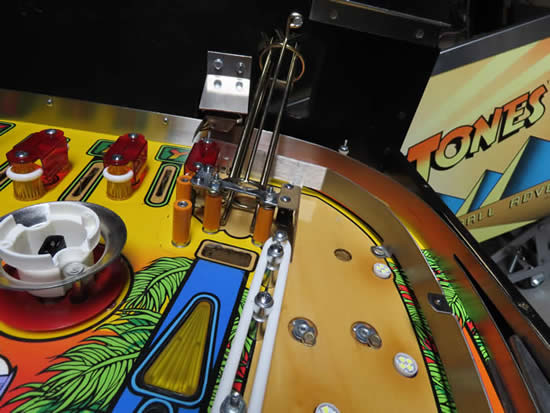

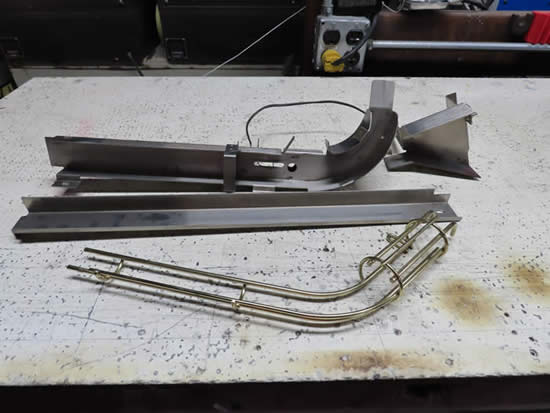

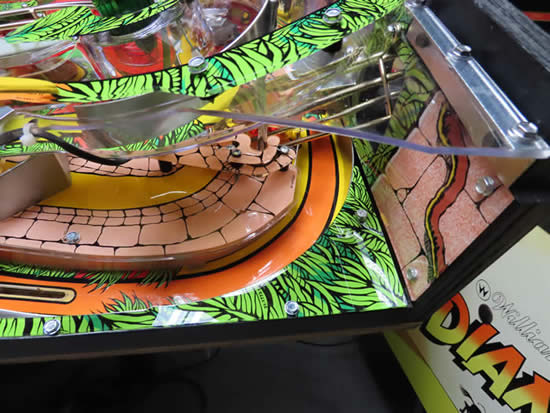

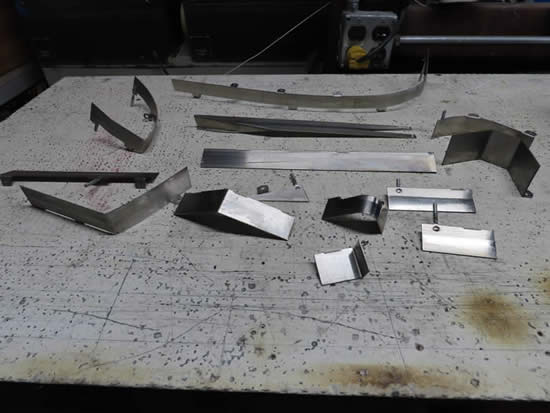

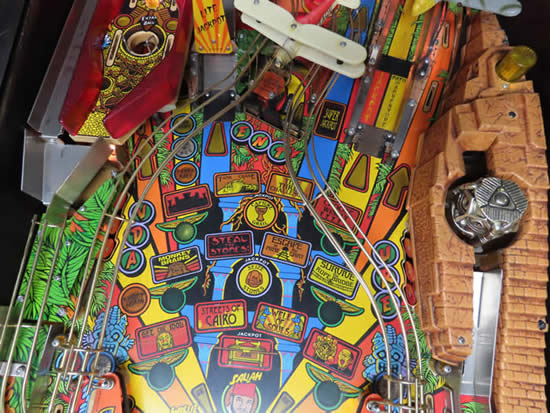

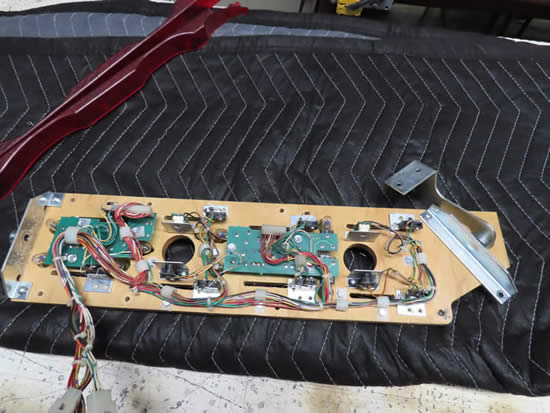

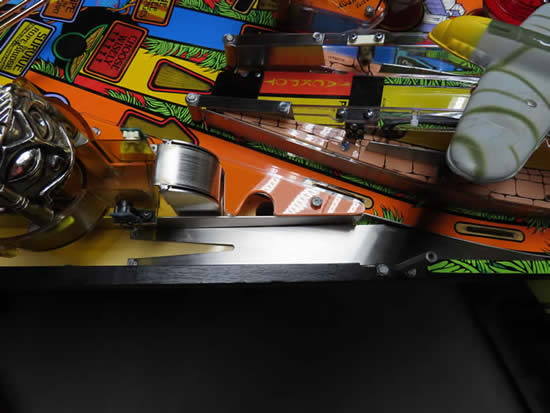

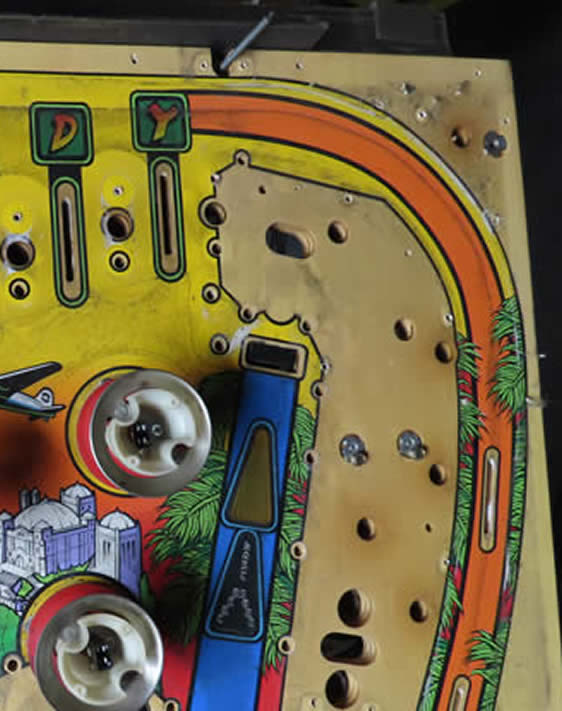

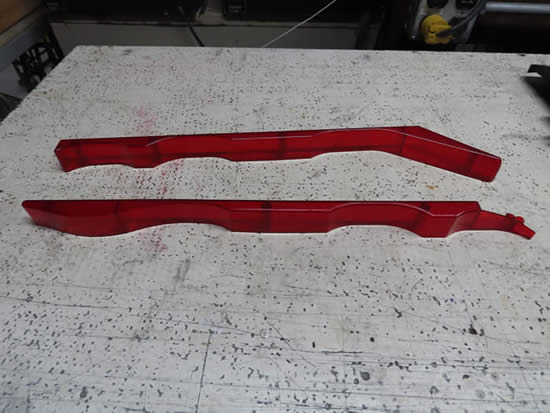

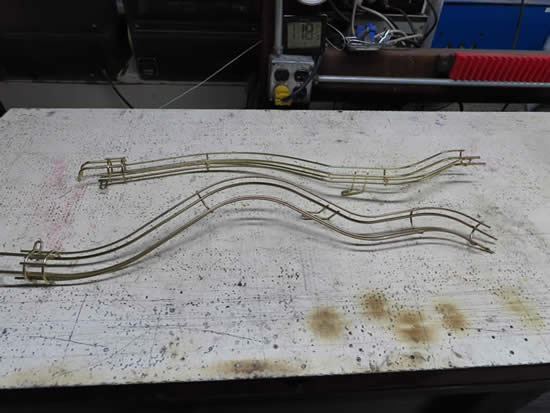

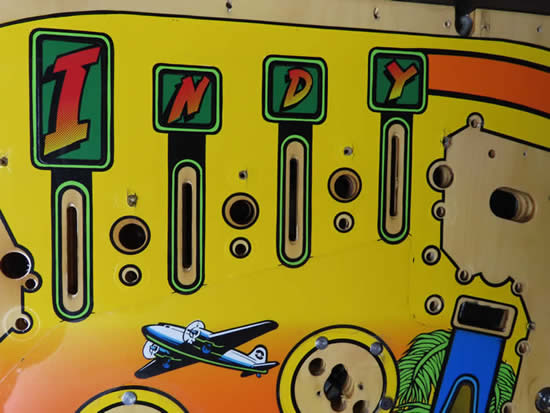

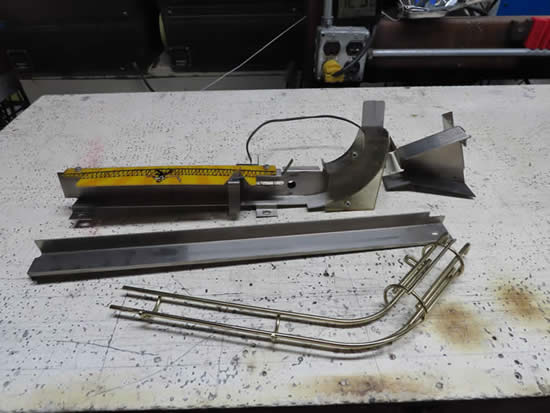

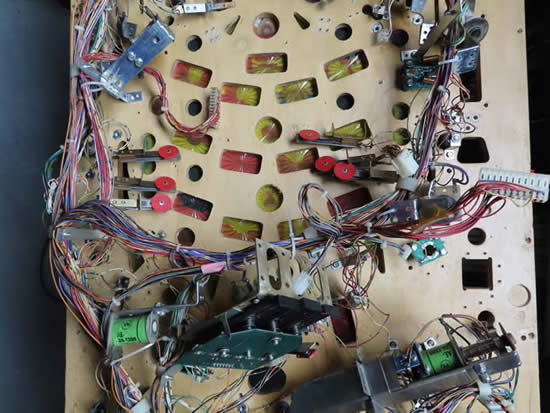

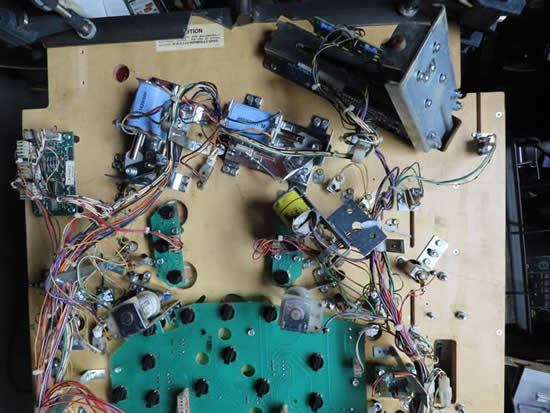

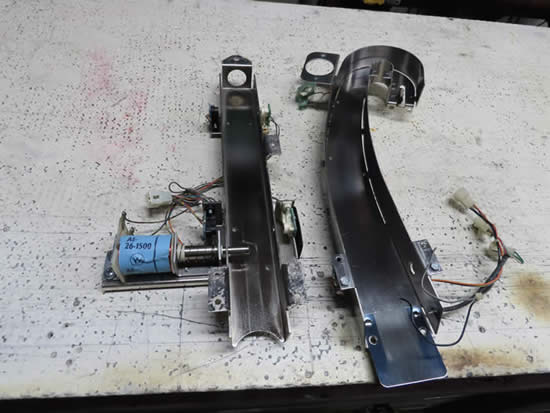

It was given a complete check up and Top Of The Line Reconditioning, we remove all playfield plastic, ramps, light bulbs and posts, clean everything removed in the ultrasonic cleaner, clean the playfield and polish it, and then reassemble the game, check all switches for proper adjustment, install new LED's bulbs, and Premium Silicone  bands, check all the bulbs to make sure there are no shorts in the lamp matrix. Then we will reassemble the New ramp, New playfield plastic set, Playfield Plastic Protector Set, and check switches and lamps again to make sure they work properly.

With Over 170 Hours Of Labor Into this Restore.

We replaced anything that could go wrong or break, or did not make this game look like BRAND NEW.

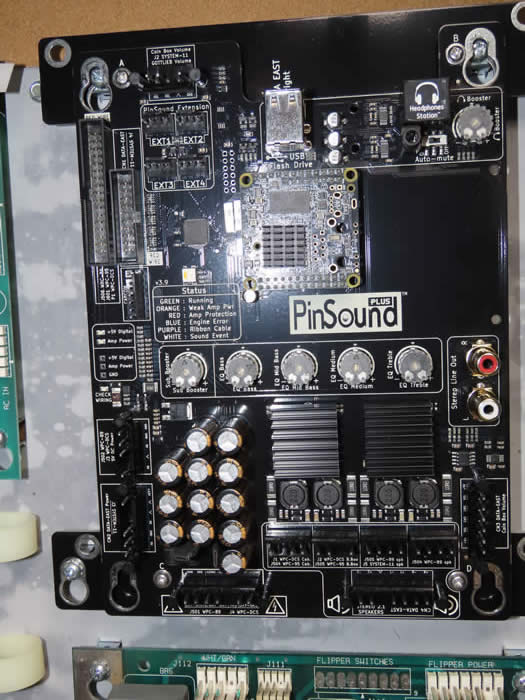

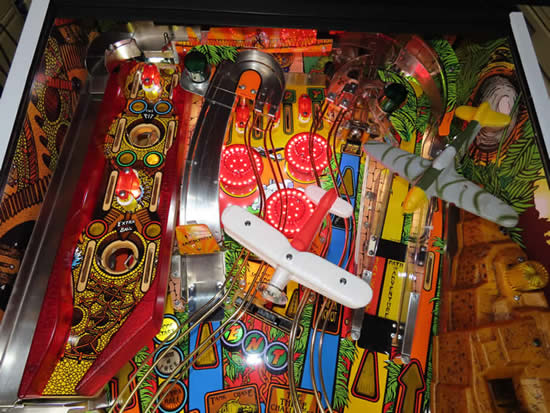

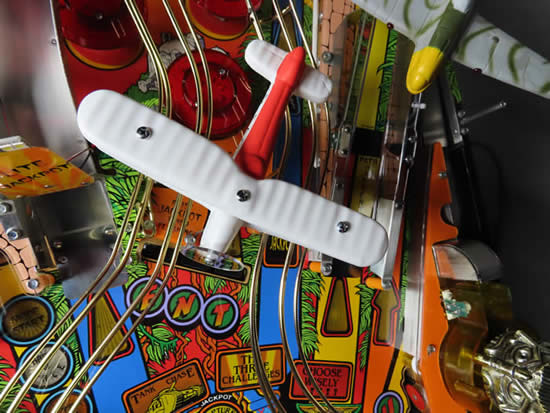

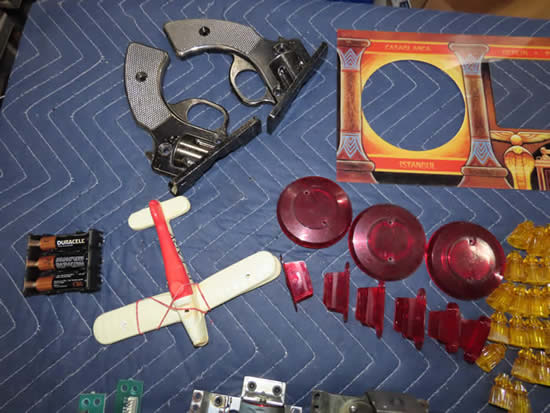

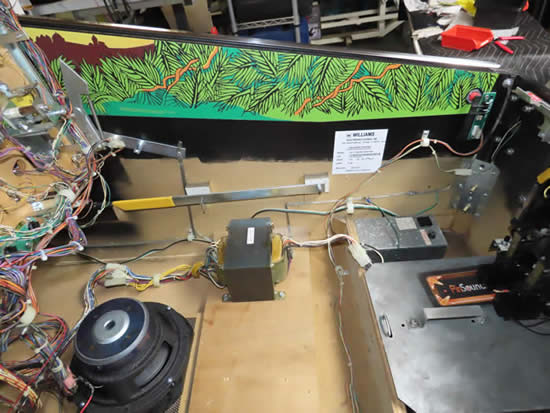

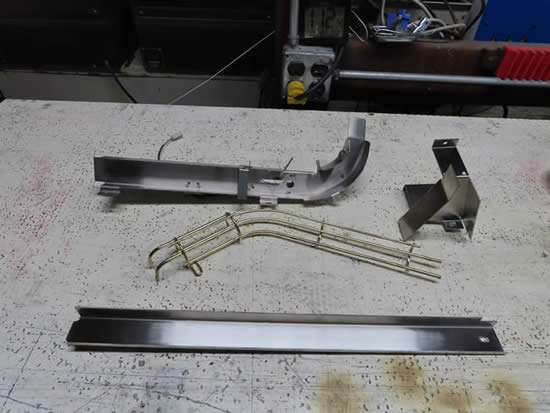

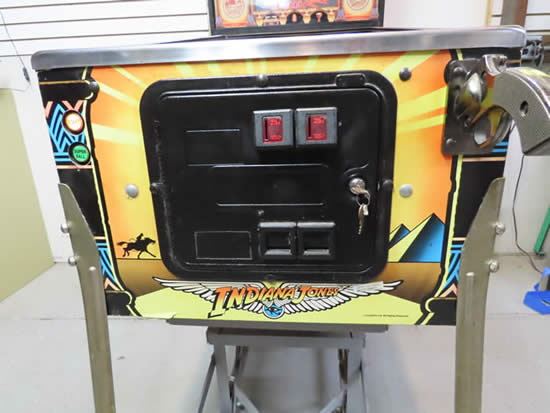

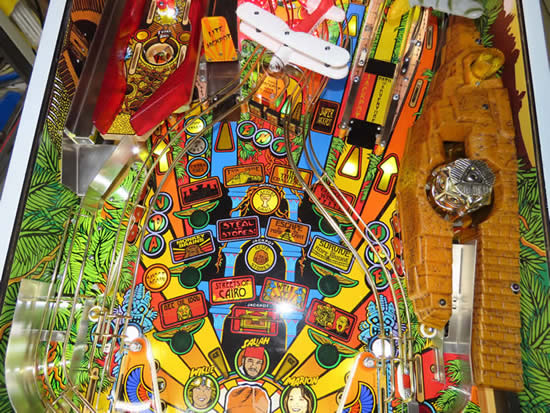

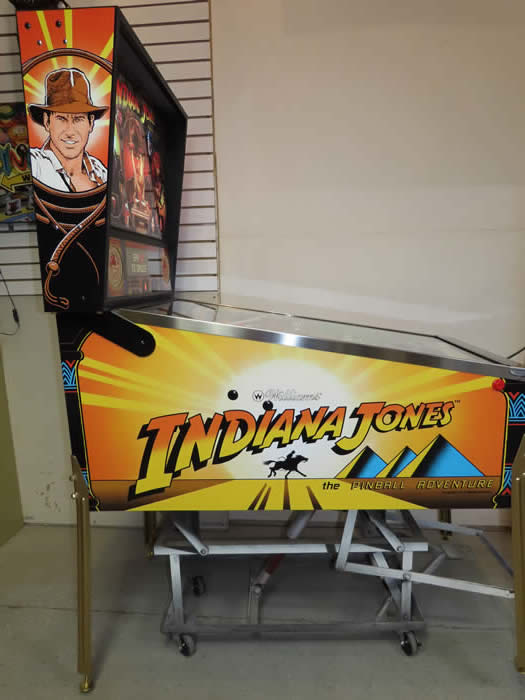

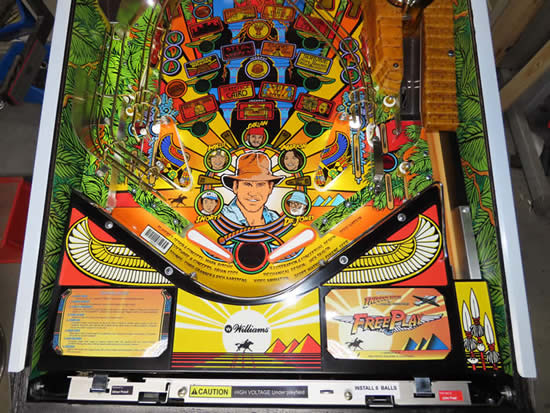

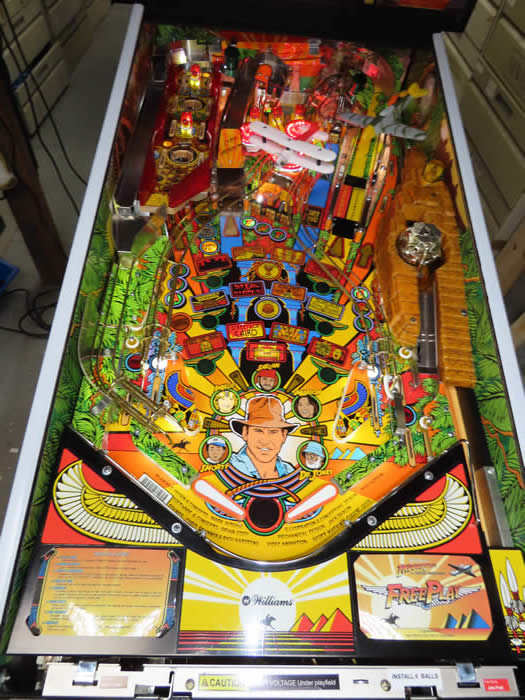

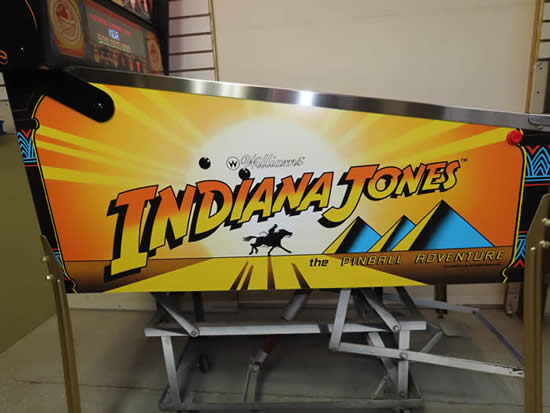

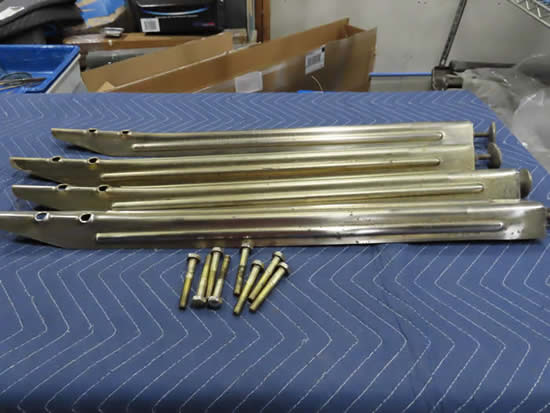

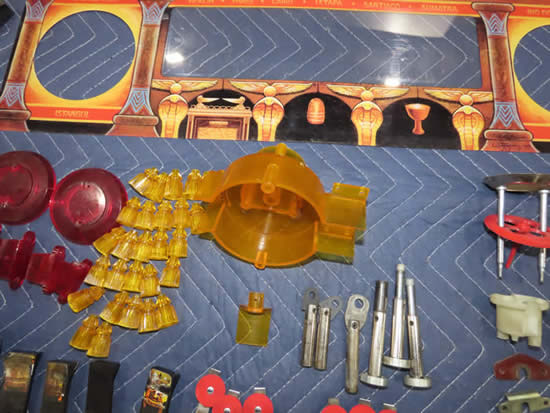

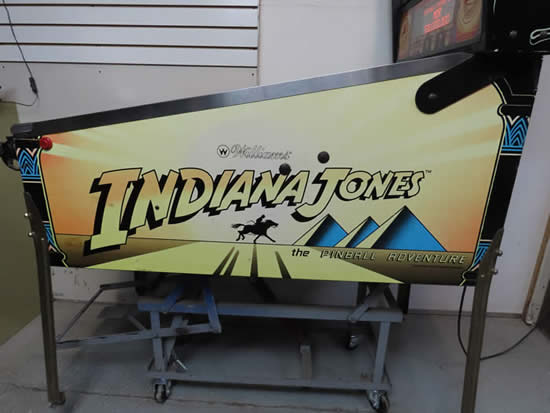

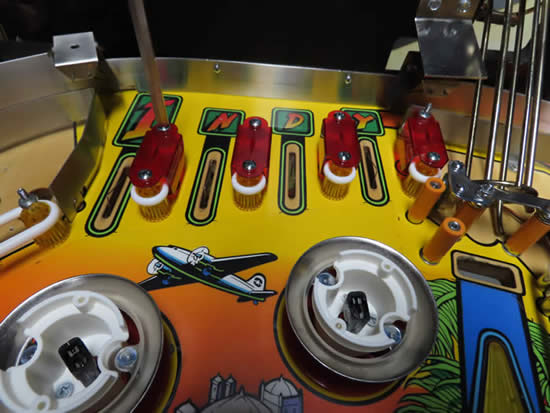

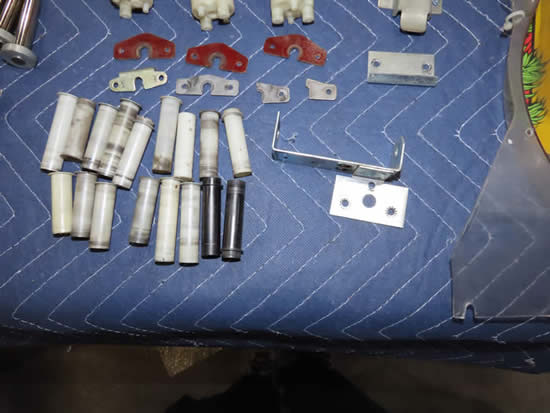

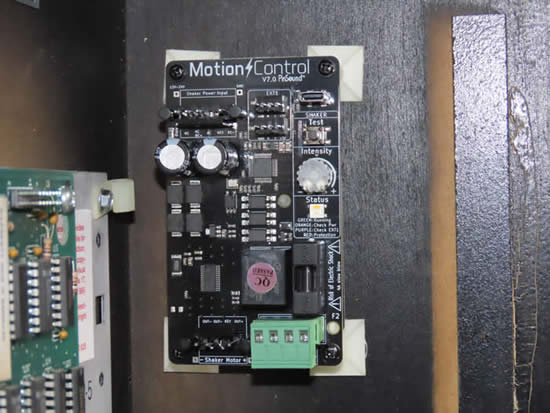

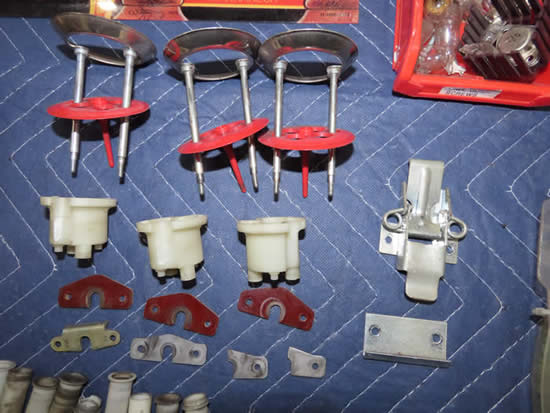

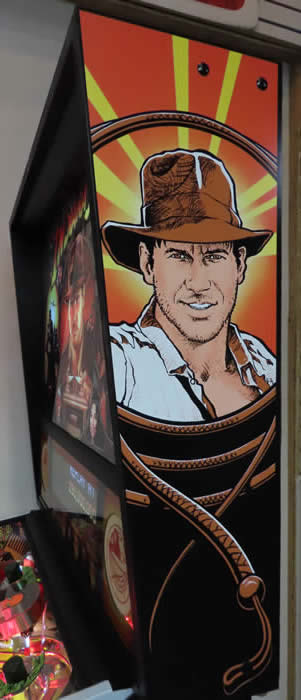

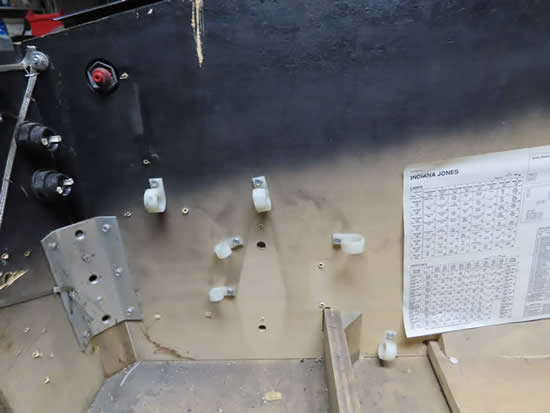

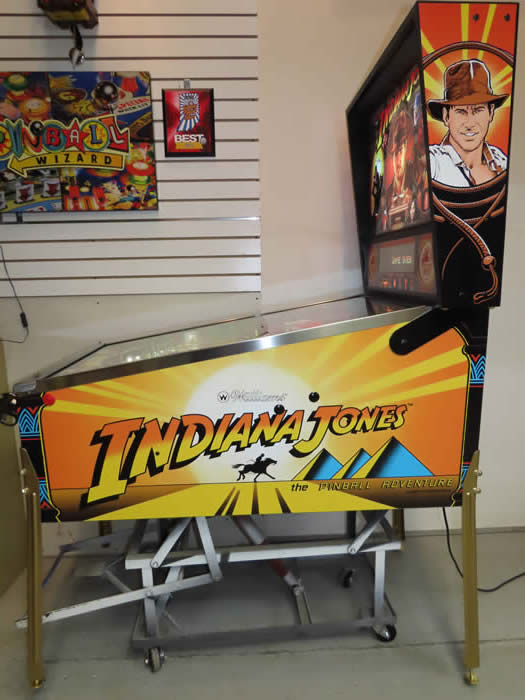

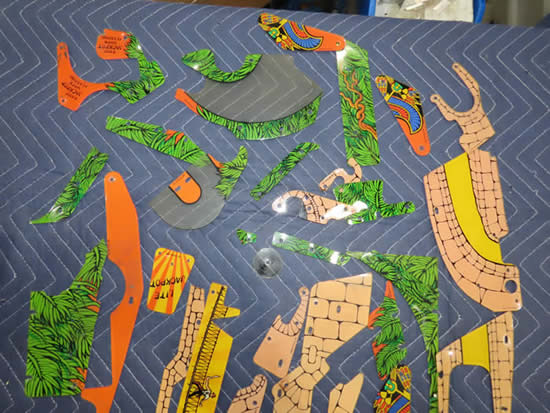

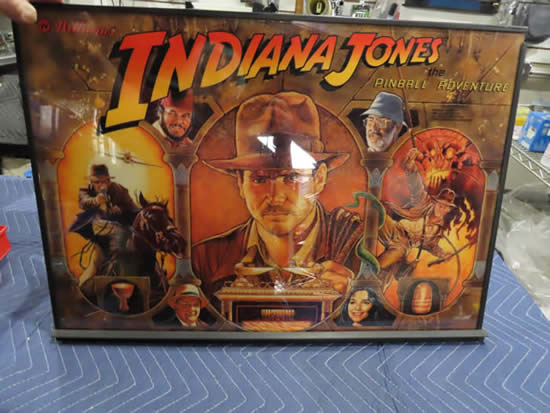

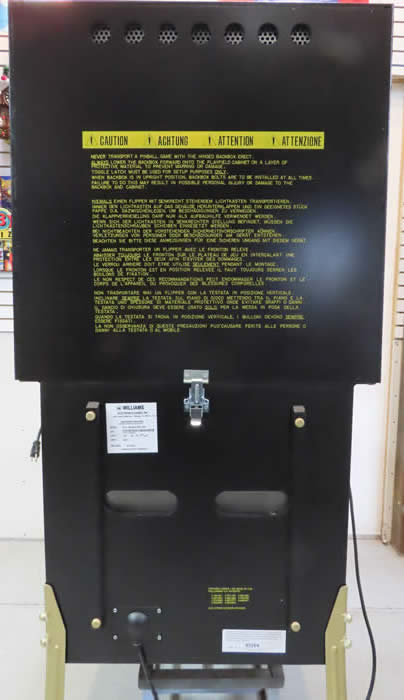

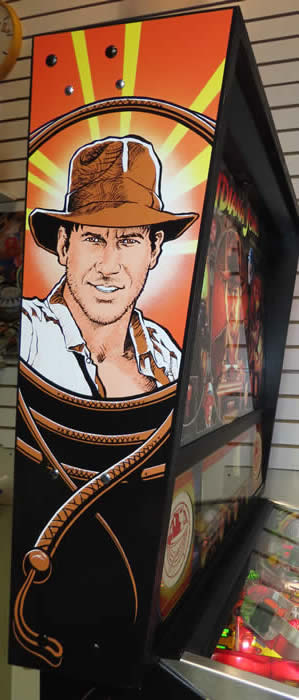

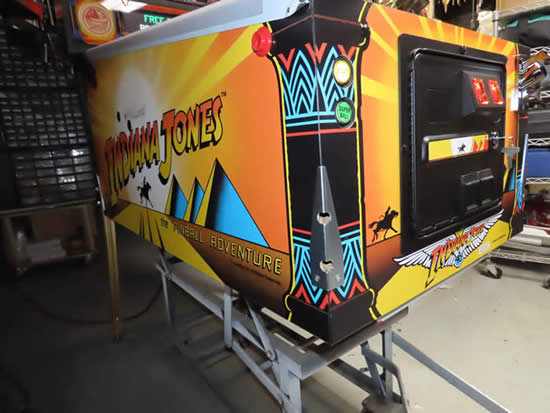

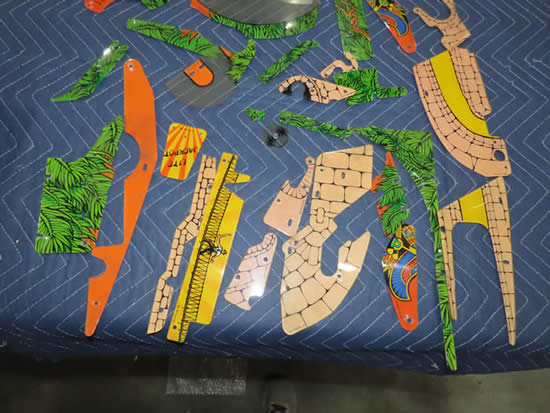

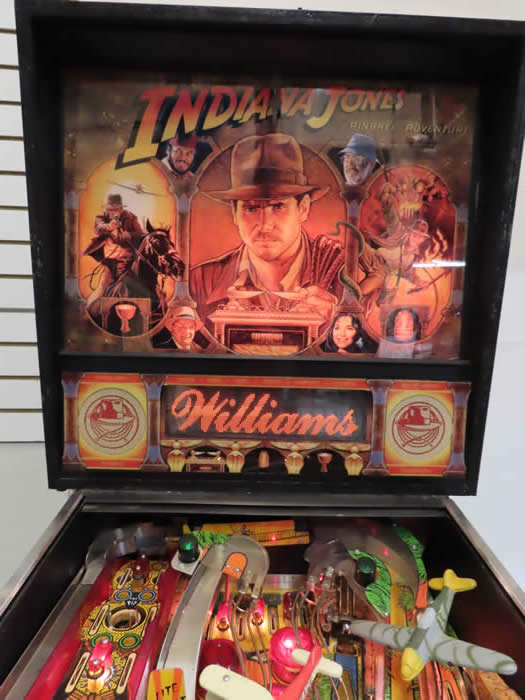

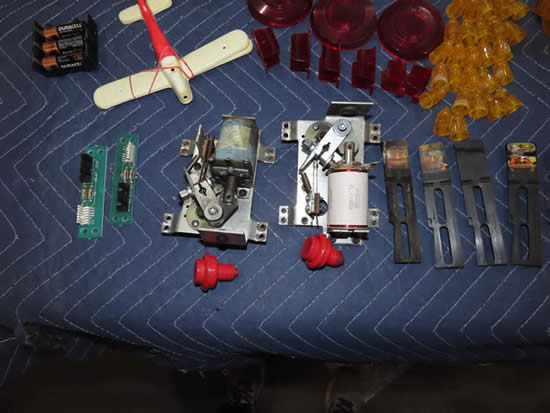

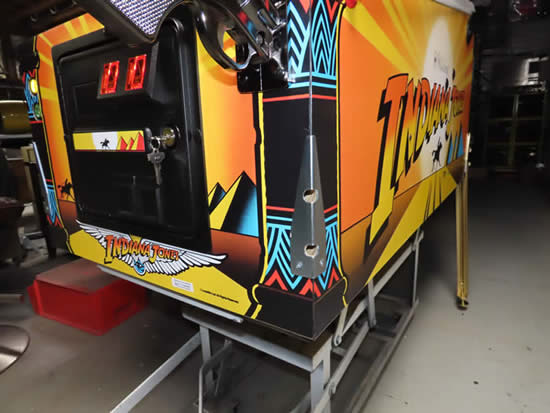

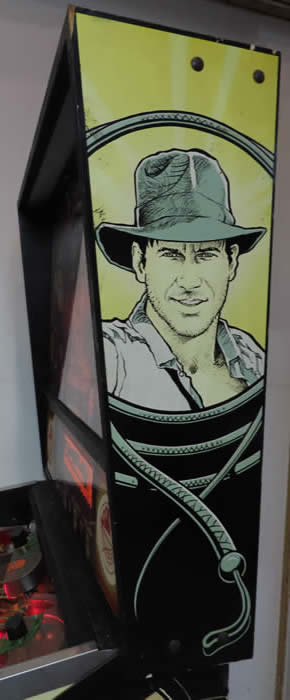

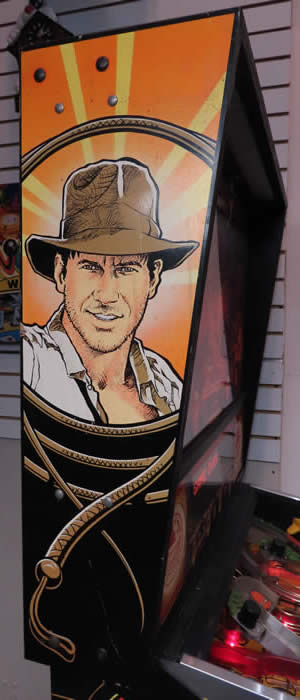

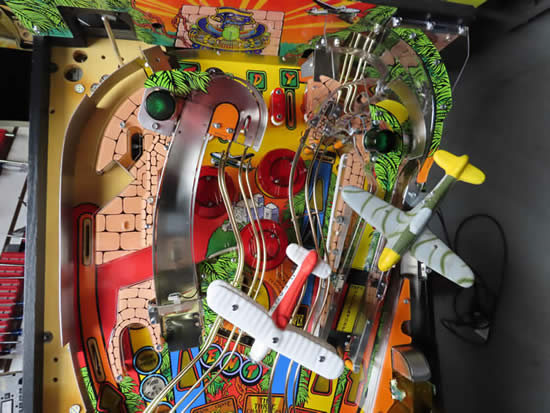

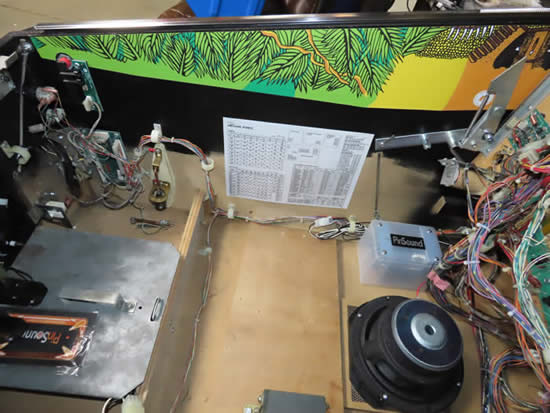

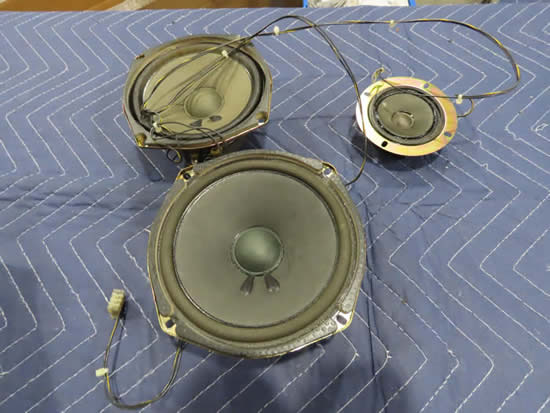

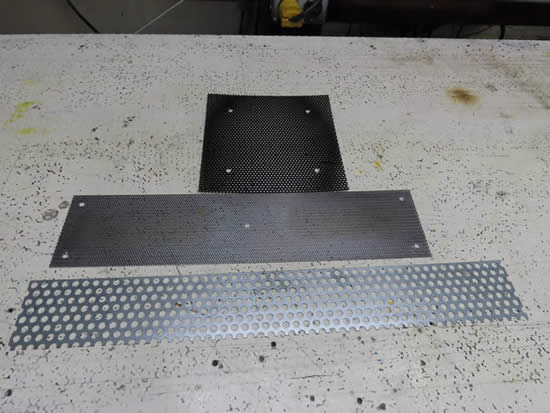

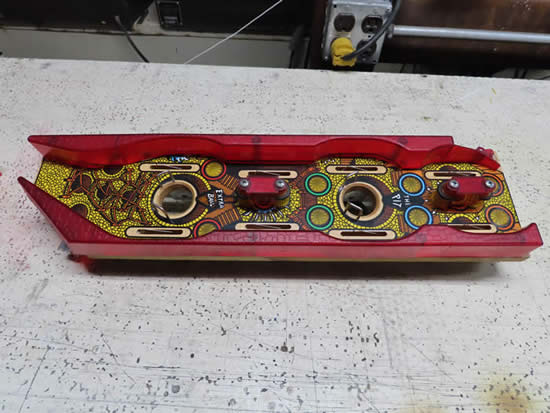

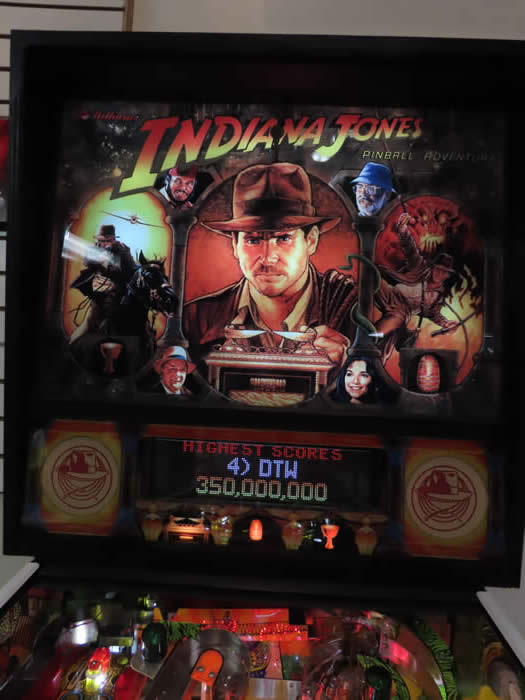

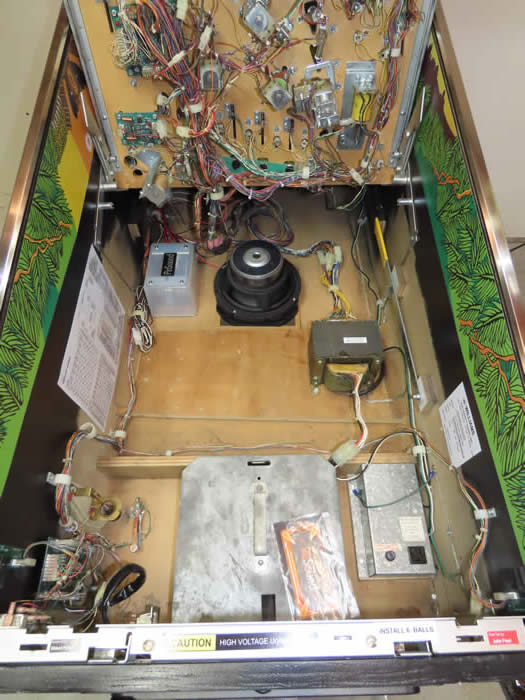

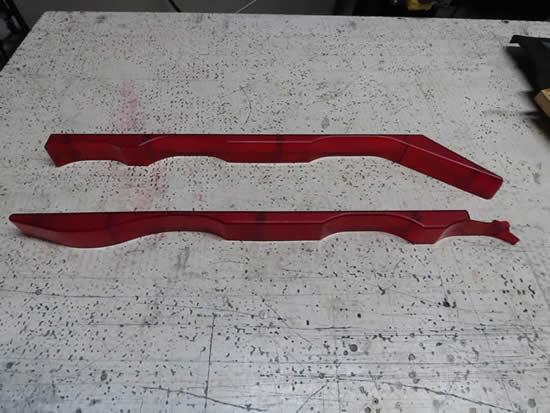

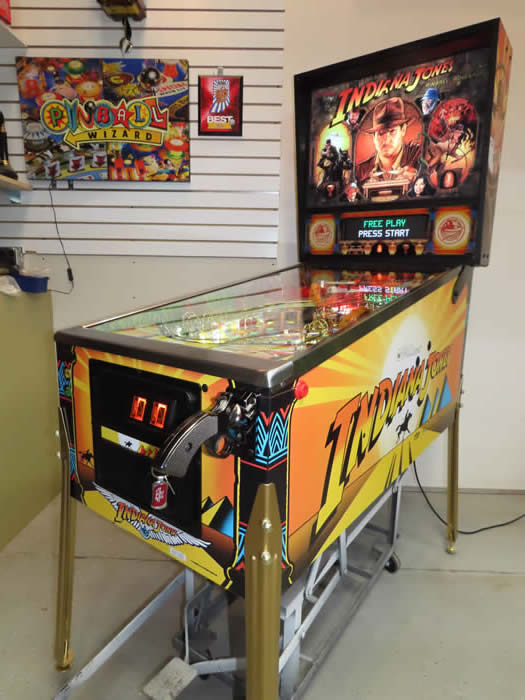

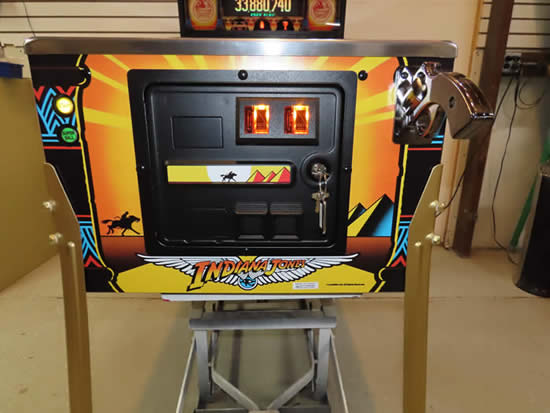

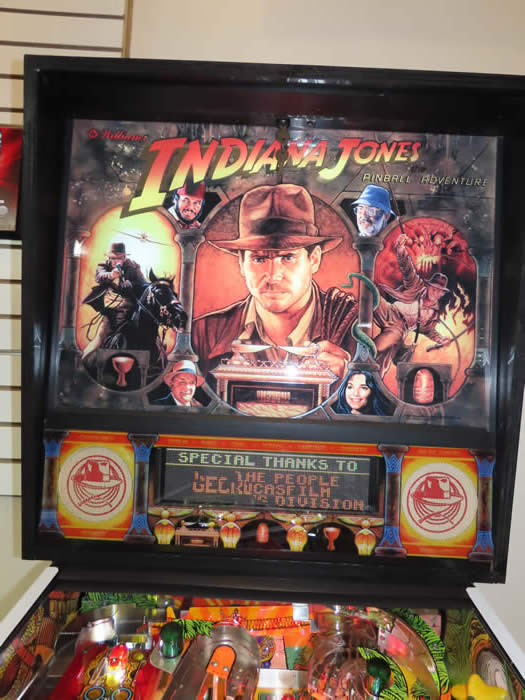

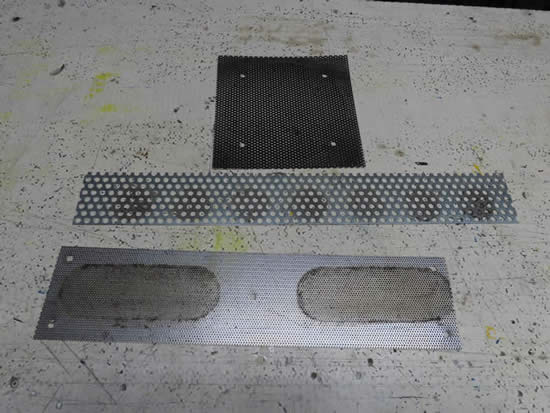

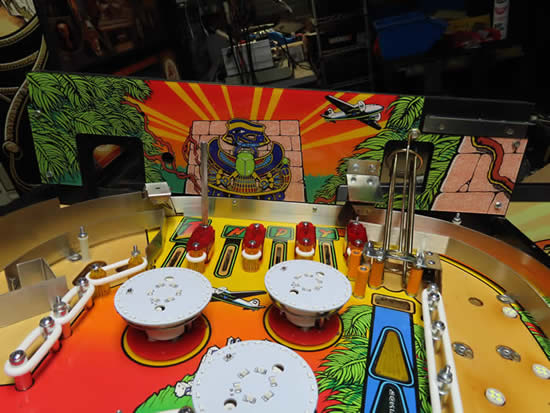

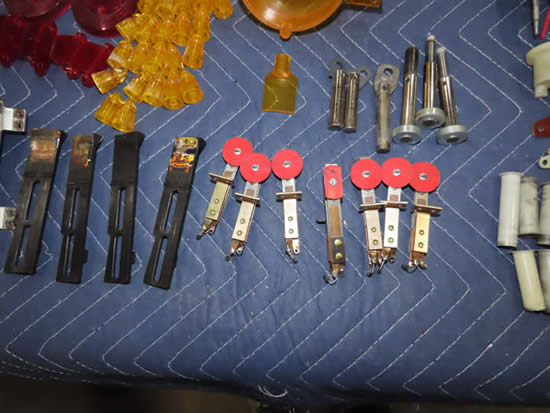

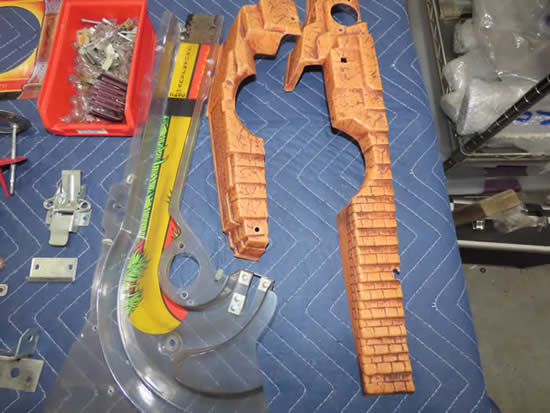

And Over $4,500 of New Parts Installed = CPR Mirror Glass Backglass, Cabinet & Head Restored and Repainted with Silkscreened Warning on Back, Backbox Latch, Side Art, Inner Cabinet Side Blades, Side Rails, side and  2 Complete Flipper Assembles, Yellow Star Plastic Post's, Red lane Guides, Coil Sleeves on all coils, 4 Gold Painted Legs, 8 Gold Leg Bolts, 4 gold Leg Levelers, 4 Stern Leg Protectors (Legs will not touch the new side art at all) very cool, Coin Door, Pinsound Plus Sound Board, Pinsound PS SW8 Sub Woofer, Pinsound PS-SPK5 Speakers, Pinsound Control Shaker Motor Kit, Cliffy's Post's protector, All 3 Pop Bumpers Rebuilt (Bodies, Red Skirts, Ring and Rod Assembly, Metal and Fiber Yoke) 3 led lighted pop bumper caps, COLOR DMD LED Display, 2 Flipper Buttons, 2 Flipper Bats, 2 flipper Opto switches, Playfield Plastic Set, Indiana Jones Lost Plastic piece on Playfield Backboard, Jackpot Light Board for Speaker Pannel, Shooter Gun, Ruins Plastic Set, Bi-Plane, Yellow Plastic Rotor Lock For Idol, and Yellow Plastic Lock, All Stand Up, and Drop Targets W/ Idol decals replaced, Display Speaker Pannel, All LED Lights and Flashers, Playfield Glass.

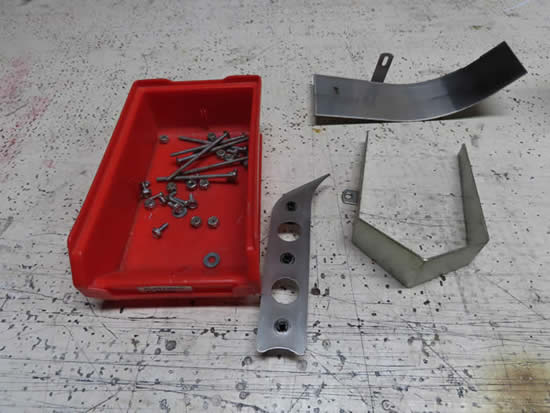

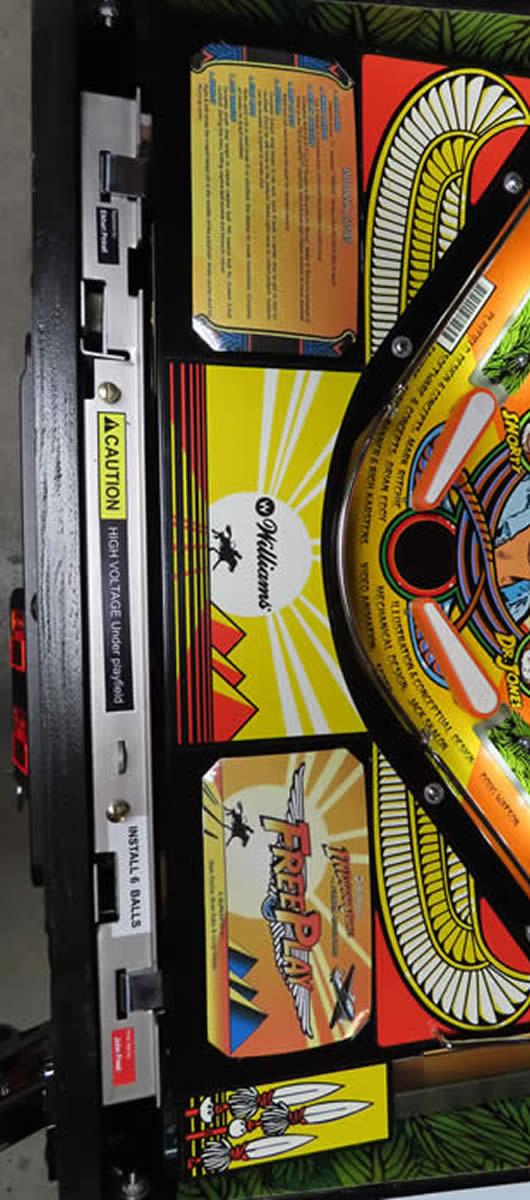

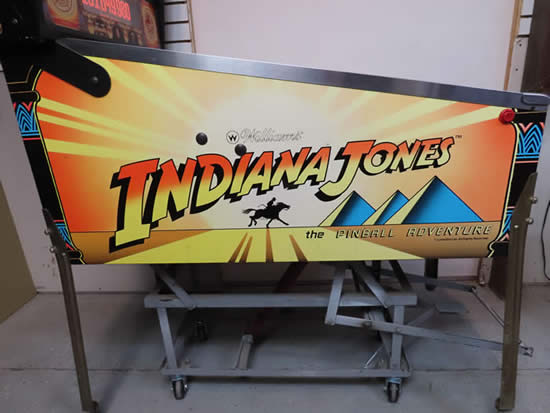

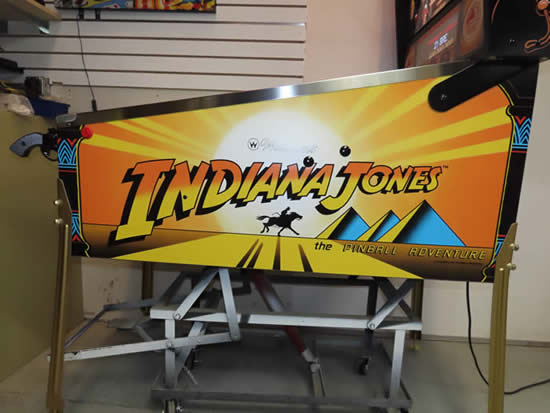

Lock Down Bar Mechanism was Bead Blasted and Repainted.

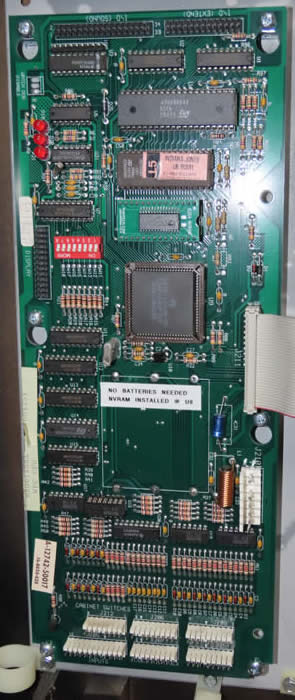

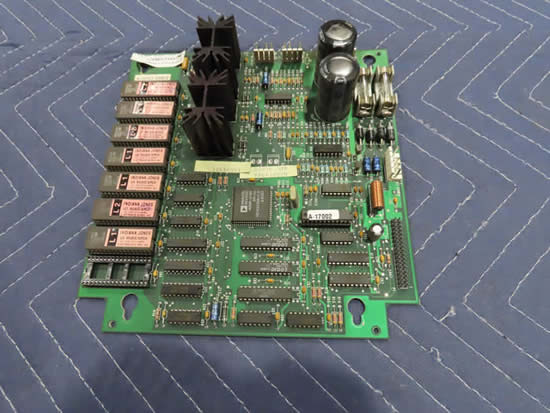

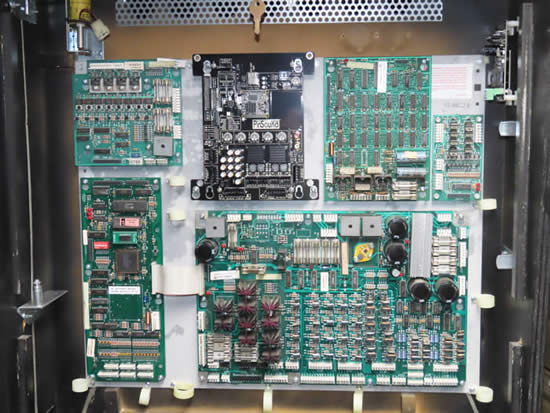

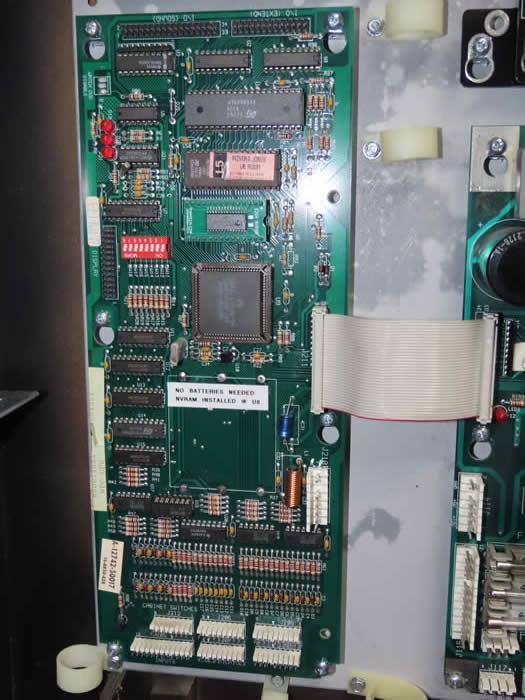

3 AAA Batteries removed and converted over to a NVRAM by www.pinitech.com

These modules use CYPRESS F-RAM nvram ICs rated at 151-year data retention & 100 trillion reads/writes. So no more changing or leaking batteries very great idea.

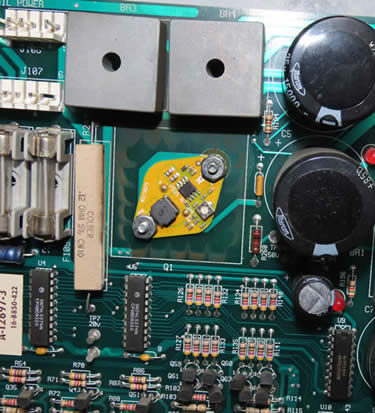

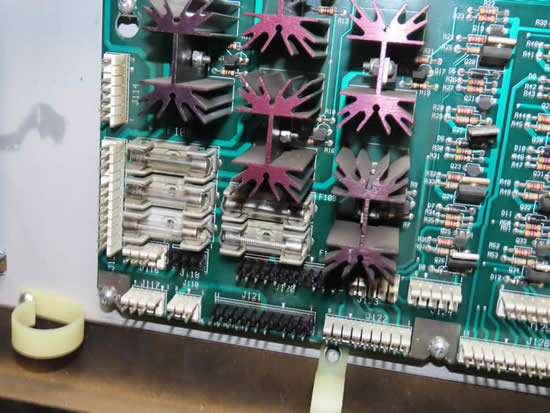

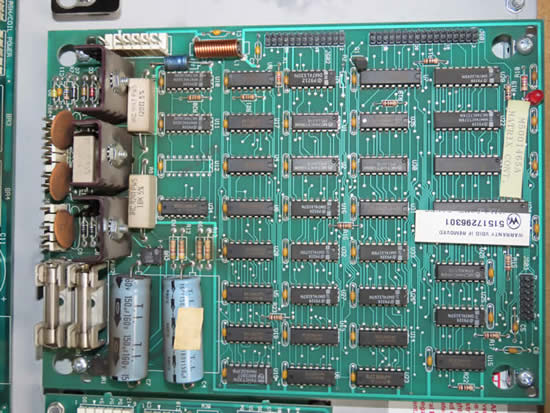

5 Volt Regulator Replaced with PSU5 No Noise Replacement

5 Volt Regulator Replaced with PSU5 LM323K Replacement

• Drop-in replacement of the obsolete LM323K or equivalent linear voltage regulator.
• Guaranteed 3A output current.
• Identical input voltage range of 7.2V to 20V
• Suitable for use in Pinball machines and video game consoles
• High efficiency switching regulator design reduces power disspation with superior voltage regulation compare to the LM323K.
• Thermal shutdown and current limit protection
• Board dimensions are identical to the TO3 package of the LM323K.
• Heatsinks are optional.
• All components are mounted on one side of the PCB
• Highest component is the inductor at 5mm above the PCB.
• Available with or without pins.
• Gold plated pins and PCB to withstand harsh environments over the long term.
• Can drive inductive loads such as solenoids and DC motors.

PART  1

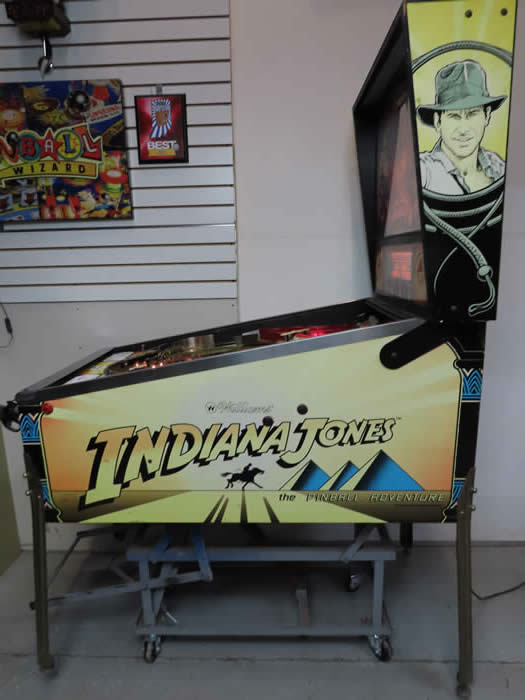

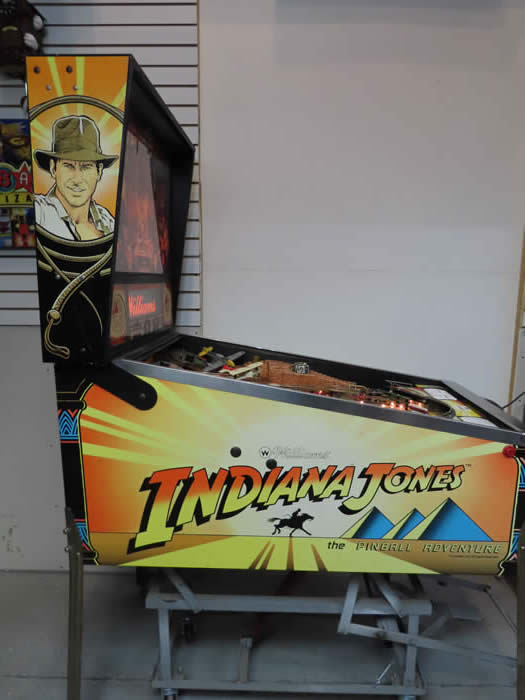

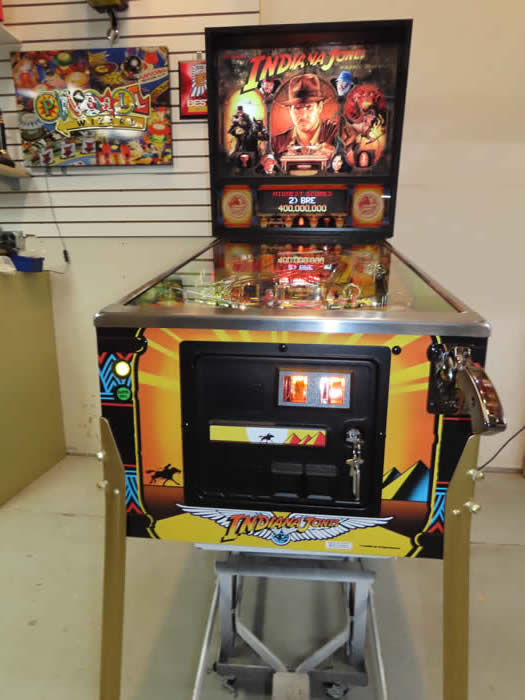

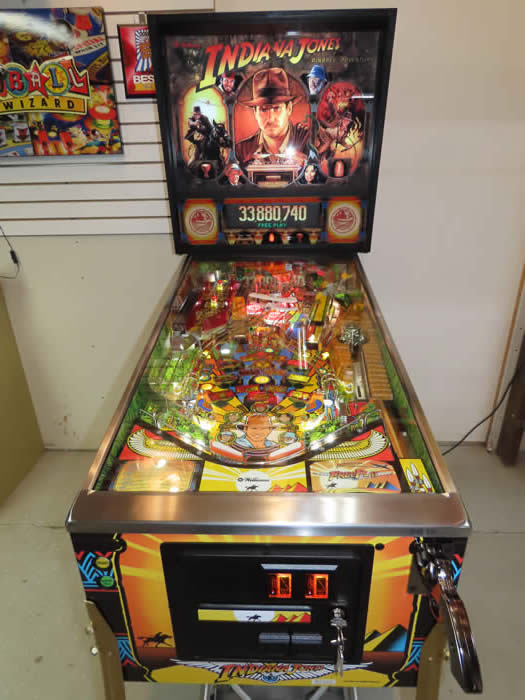

1993 Indiana Jones Reconditioning
