Elkhart Pinball Inc.

This game belongs to Elkhart Pinball Inc.

This is a fun and clean family game.

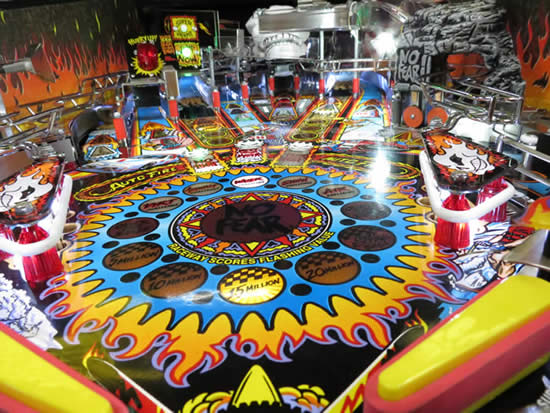

This game plays like brand new.

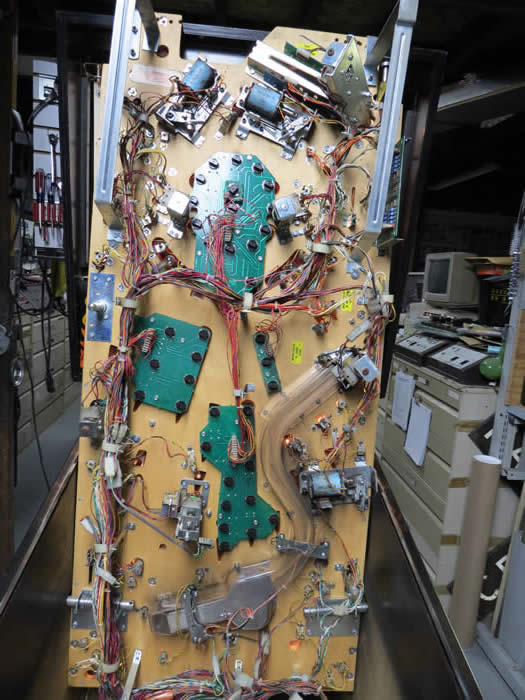

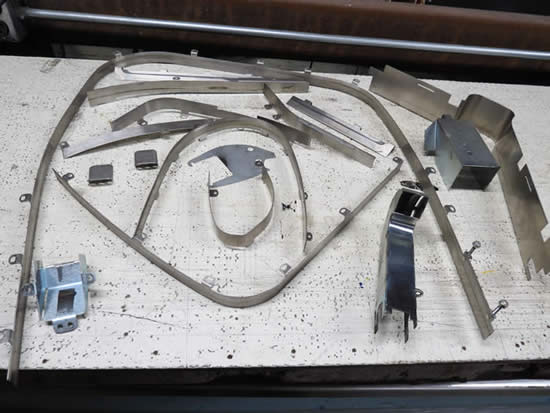

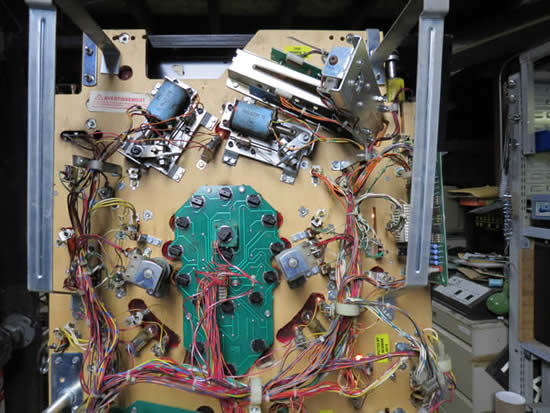

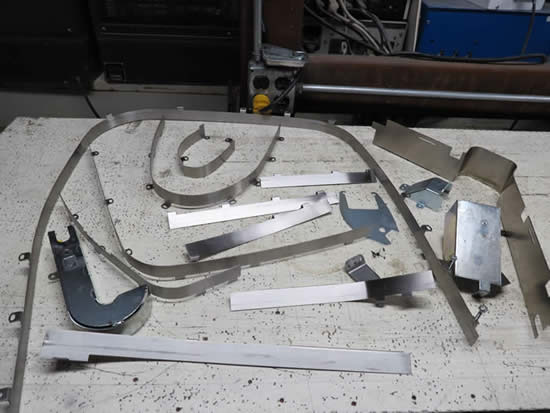

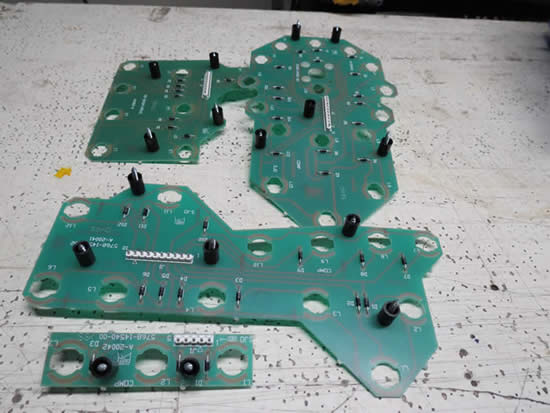

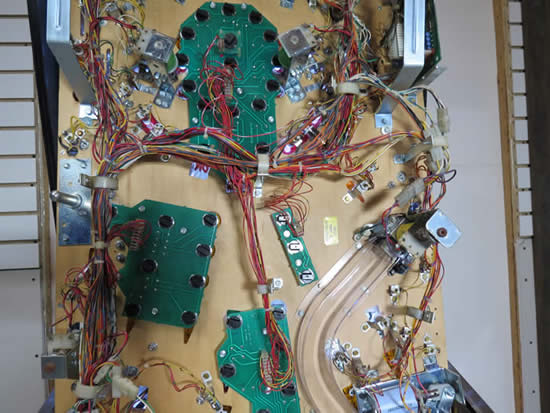

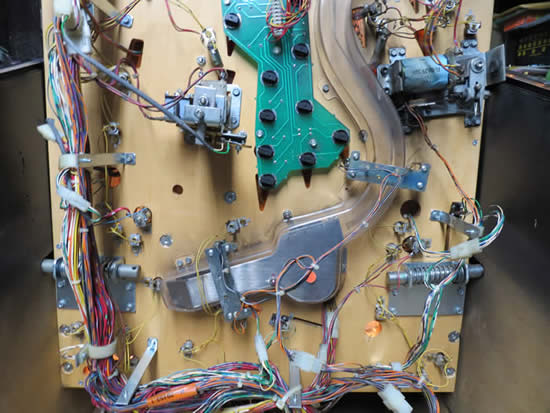

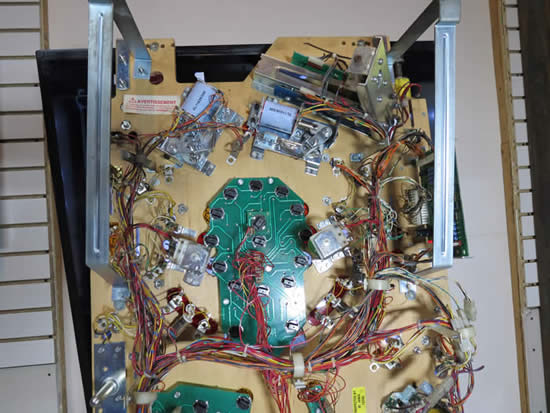

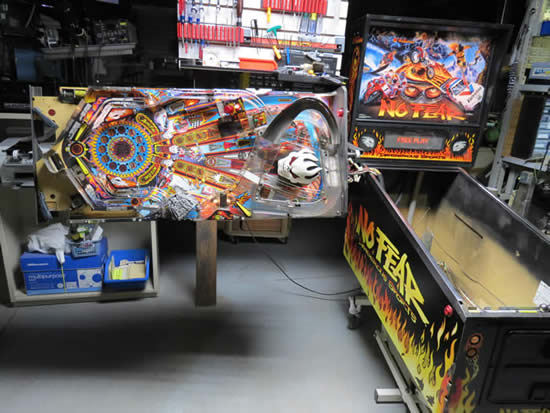

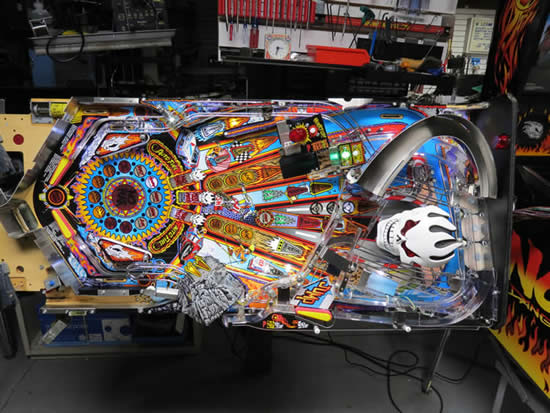

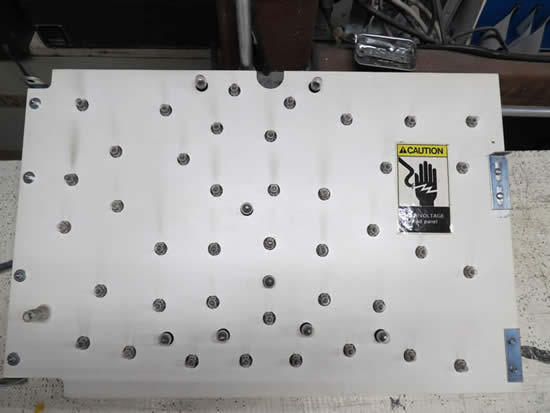

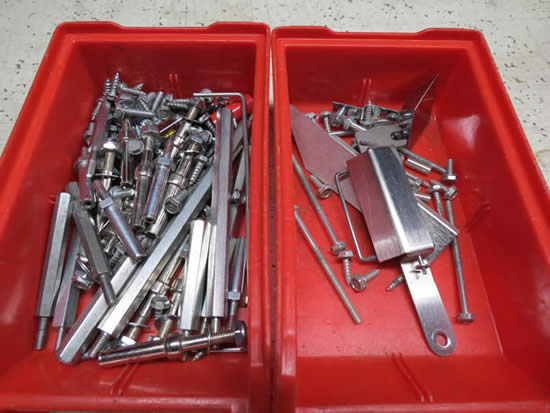

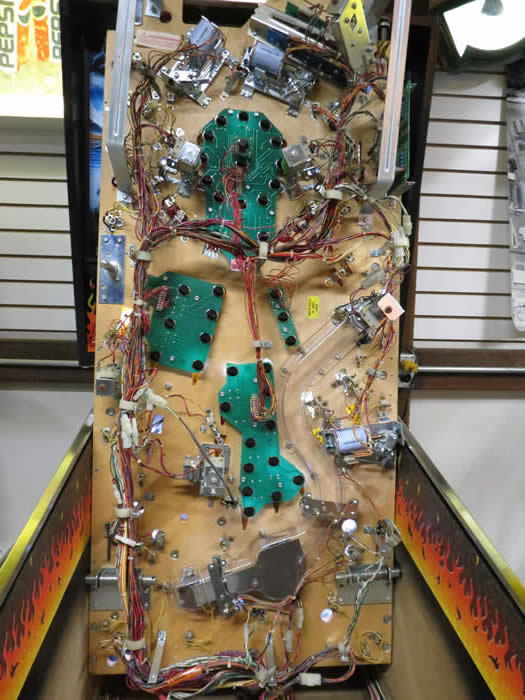

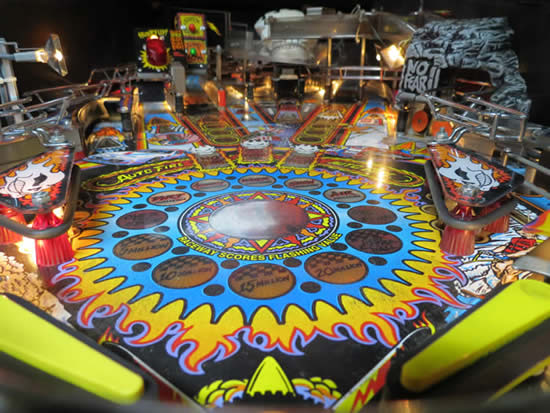

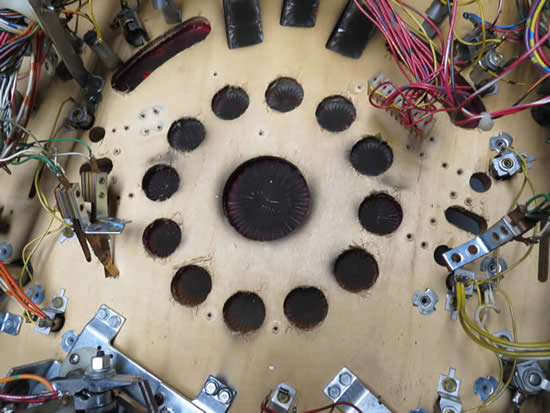

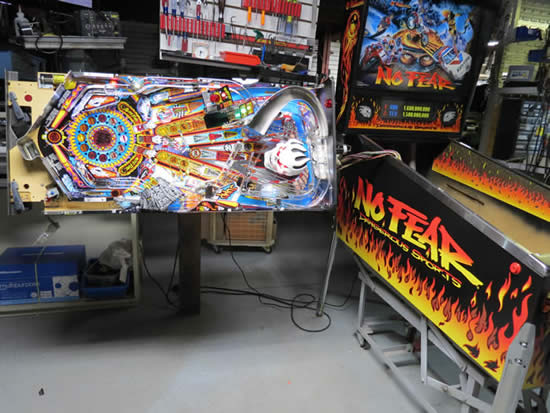

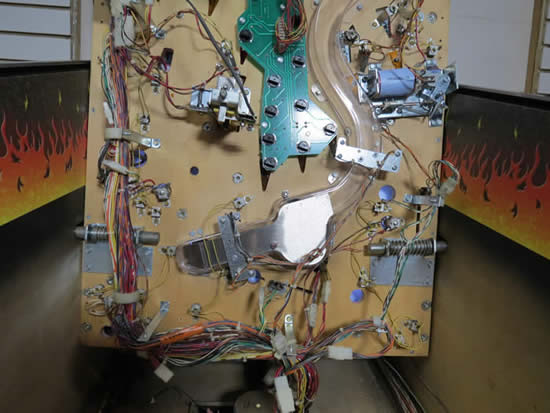

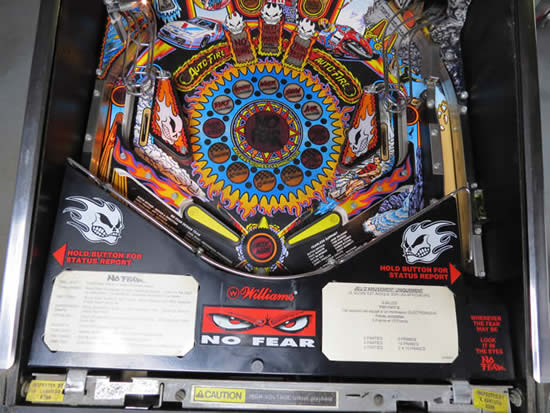

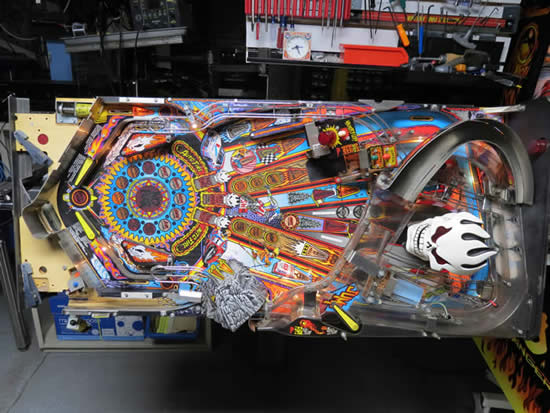

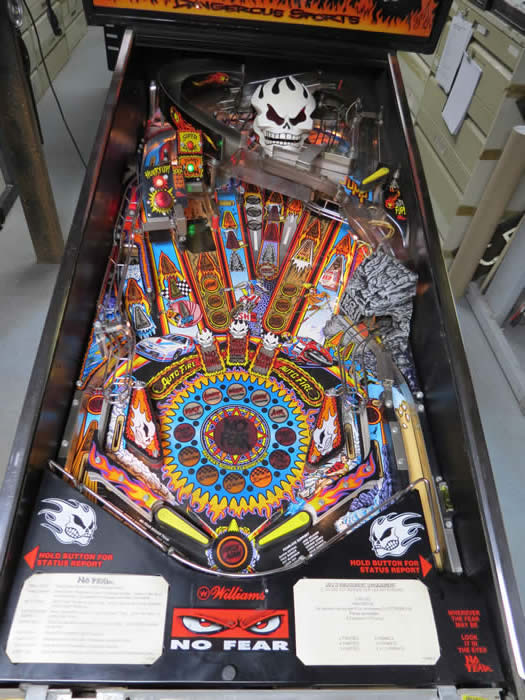

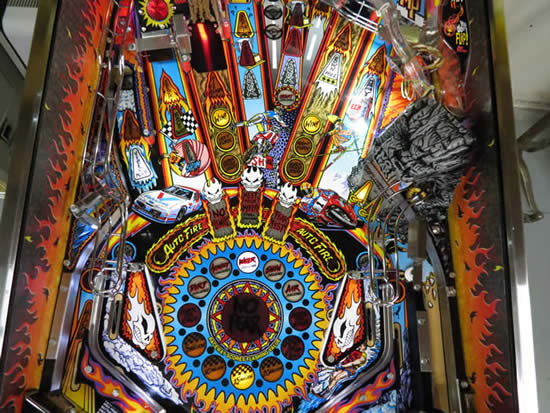

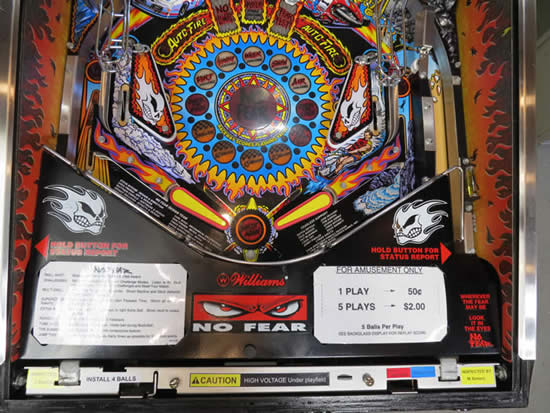

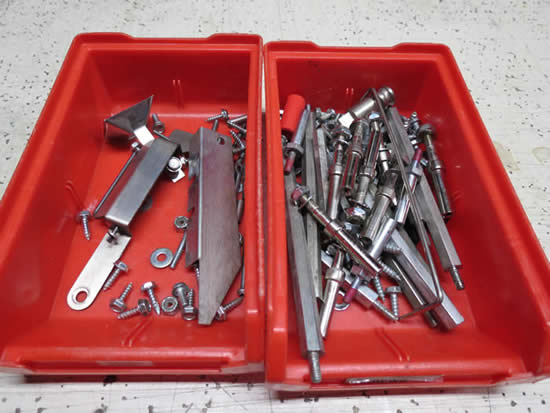

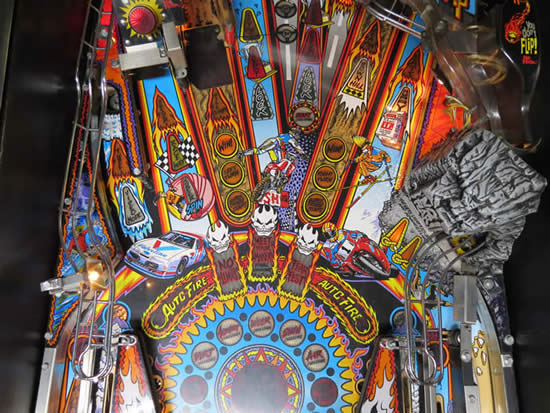

It was given a complete check up and Reconditioning, we remove all playfield plastic, ramps, light bulbs and posts, clean everything removed in the ultrasonic cleaner, clean the playfield and polish it, and then reassemble the game, check all switches for proper adjustment, install new LED's bulbs, and bands, check all the bulbs to make sure there are no shorts in the lamp matrix. Then we will reassemble the ramps, playfield plastic and check switches and lamps again to make sure they work properly.

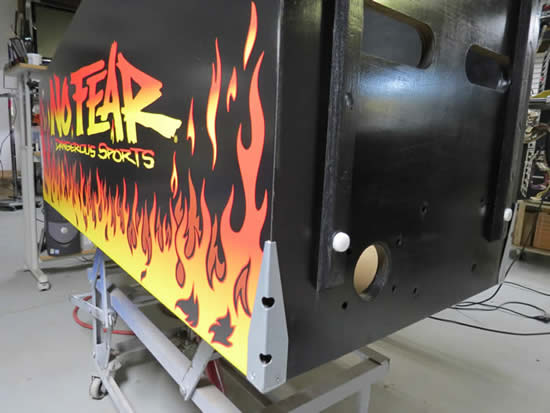

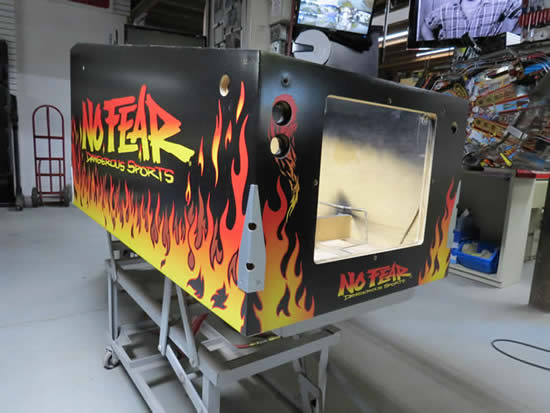

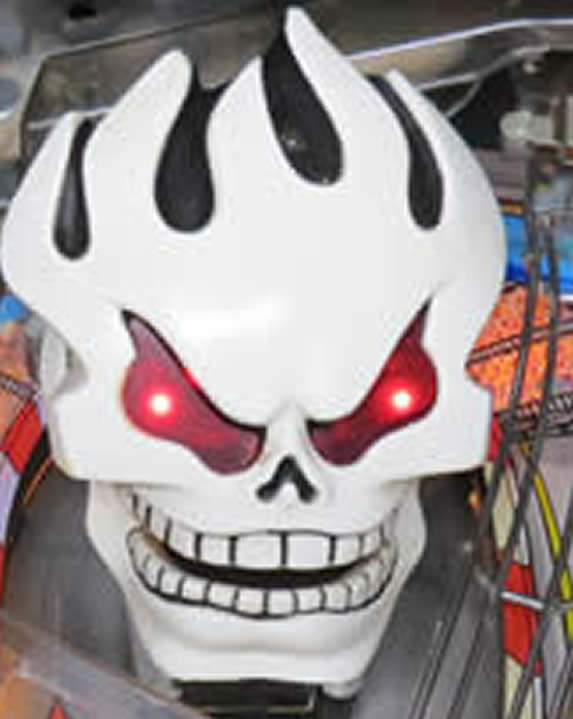

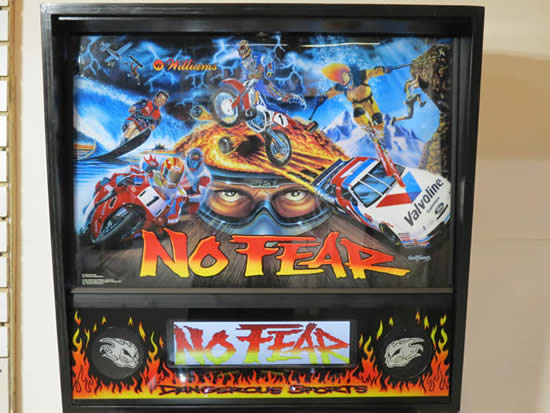

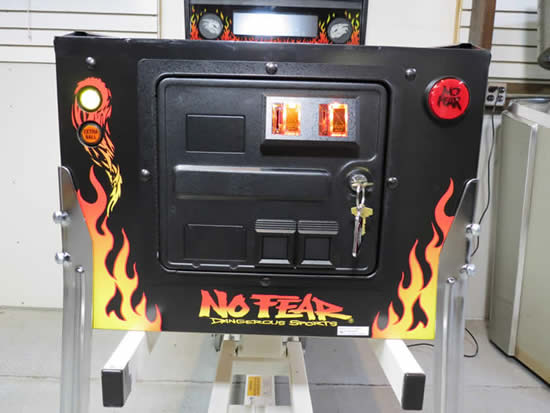

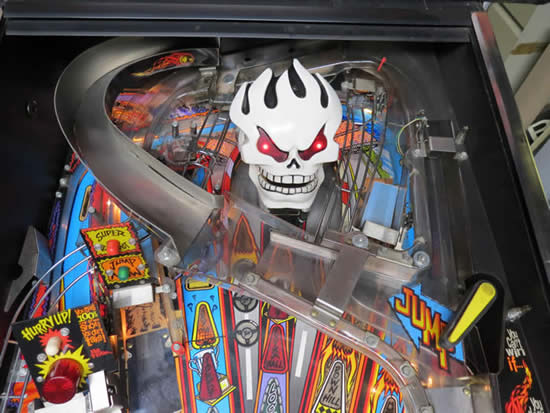

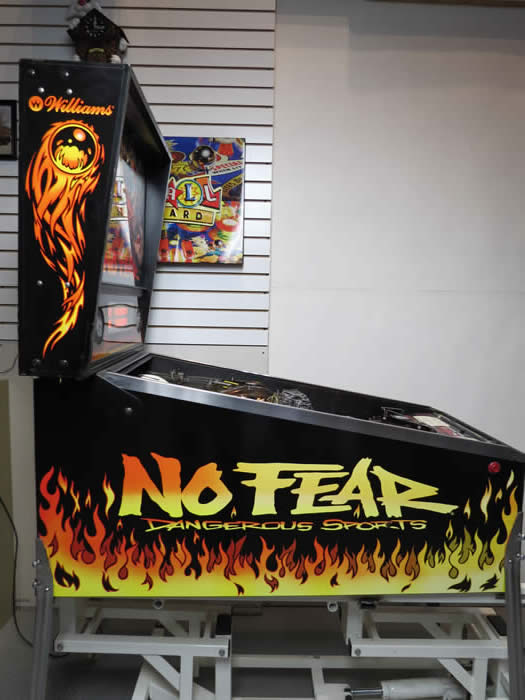

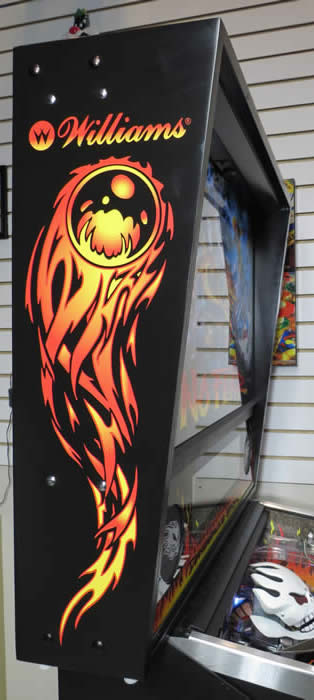

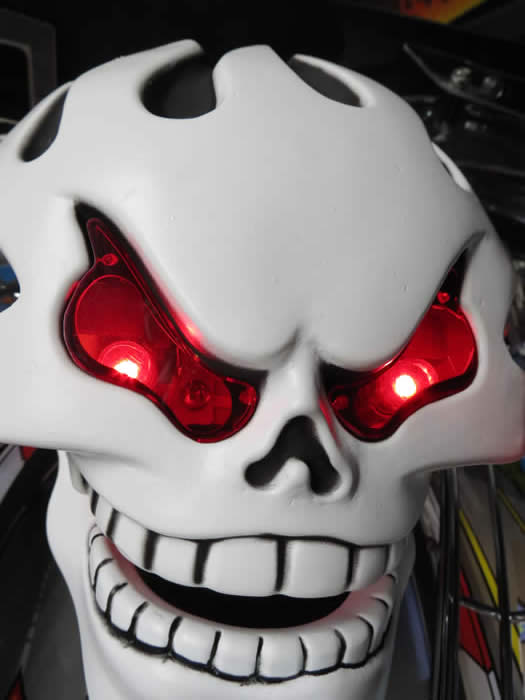

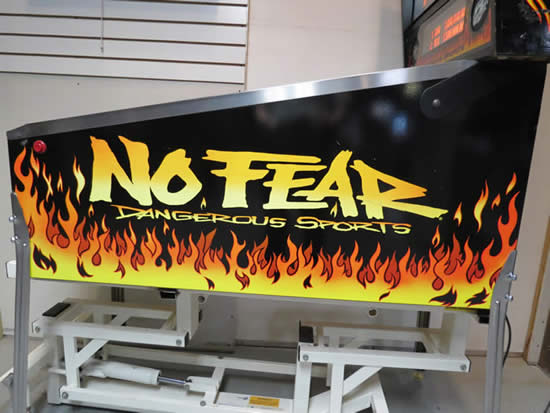

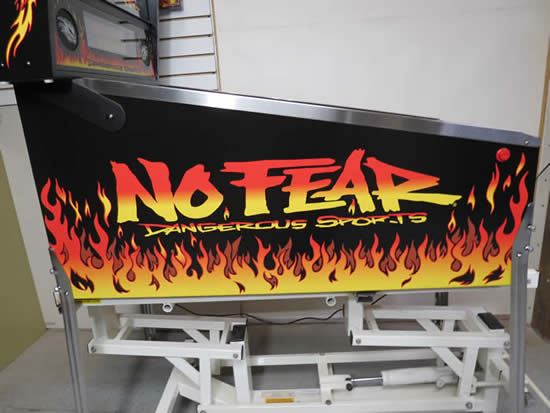

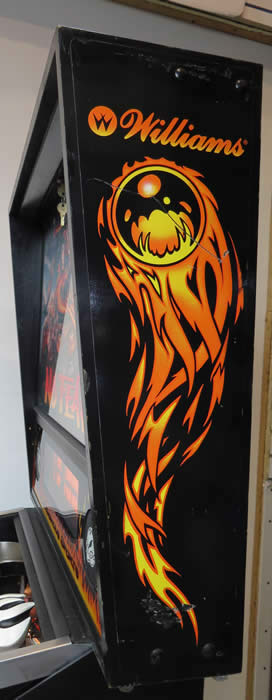

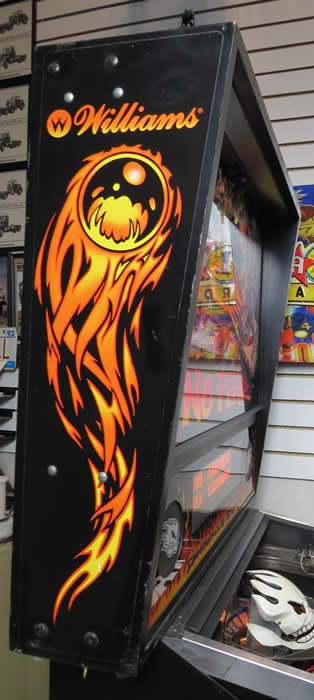

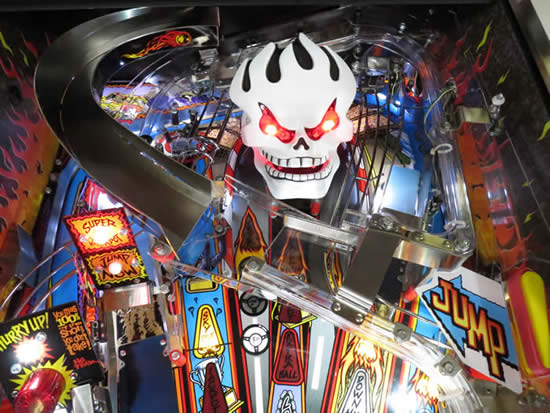

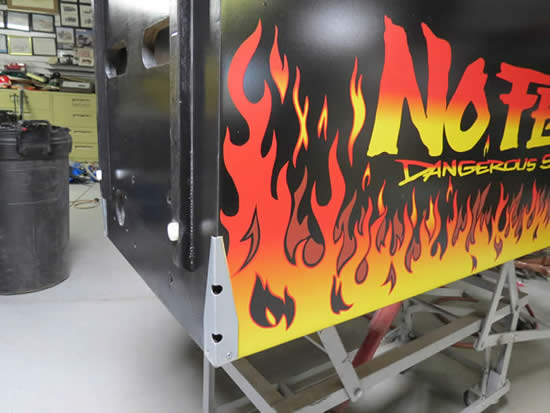

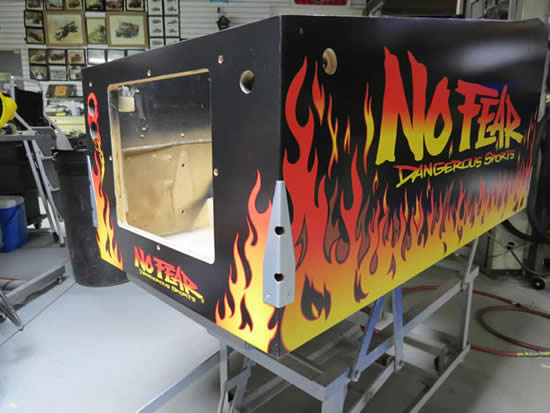

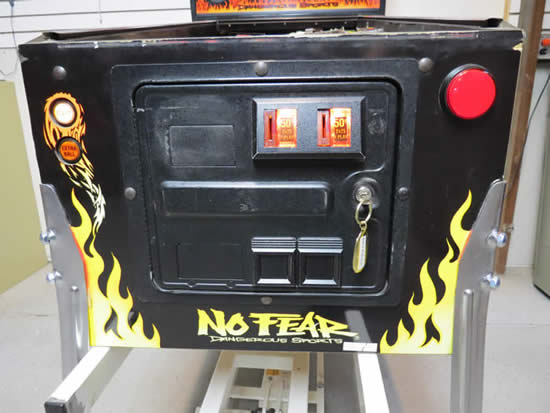

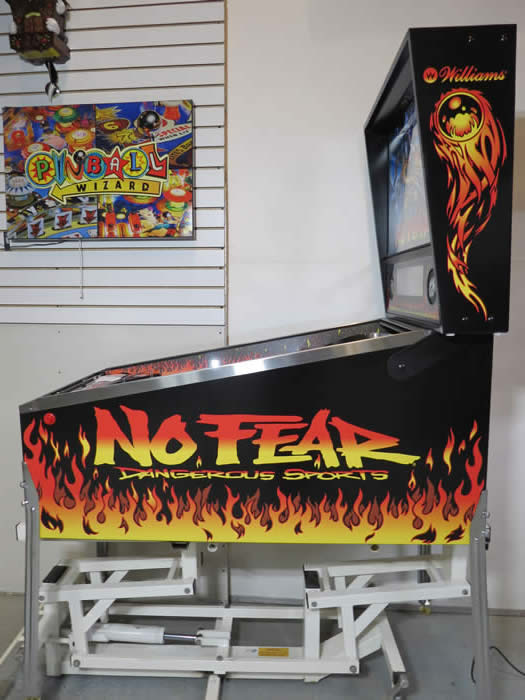

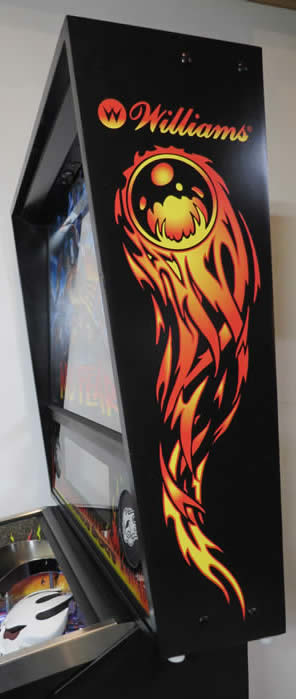

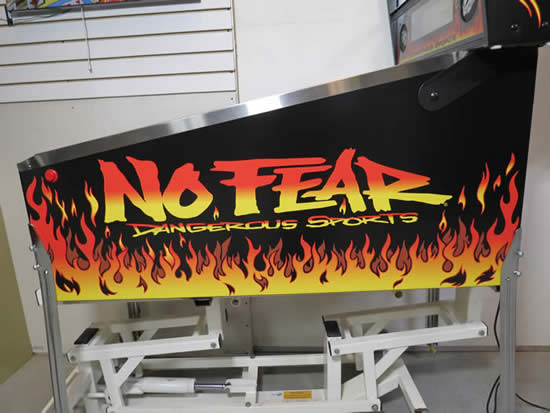

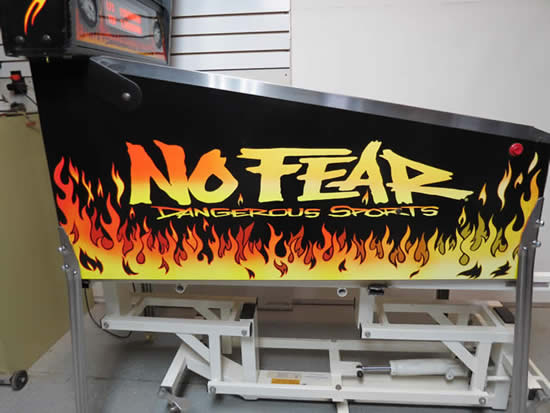

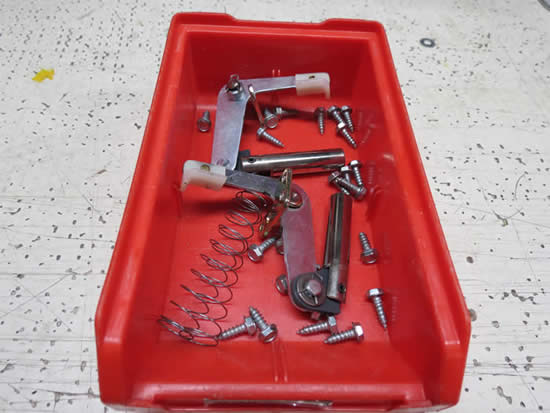

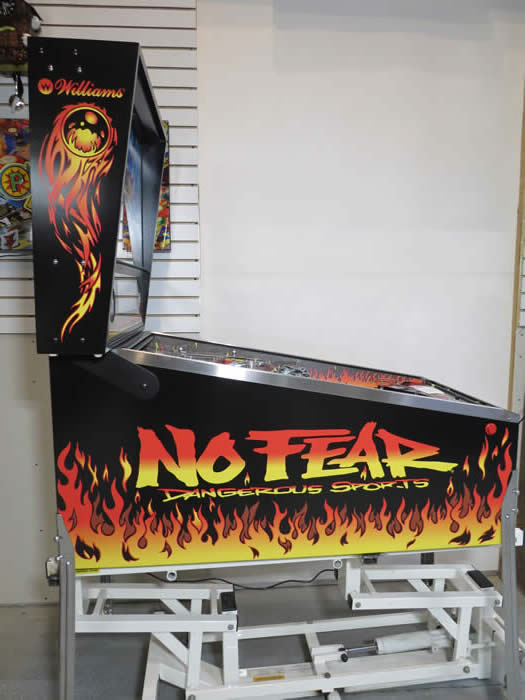

Over $2,300 of New Parts Installed = Cabinet & Head Repainted with Silkscreened Warning on Back, Side Art (Next Gen V2), Side Rails, 3 Complete Flipper Assembles, 2 Flipper Bats, 1 Long Flipper Bat with Long Flipper Bushing, 8 Red Star Plastic Post's, Coil Sleeves on all coils, 4 Legs, 8 Leg Bolts, 4, Leg Levelers, 4 Stern Leg Protectors (Legs will not touch the new side art at all) very cool, Skull, Skull Jaw, Coin Door, Lockdown Bar, Speaker Panel, Color LCD Display, Start Button, 2 Flipper Buttons, Playfield Plastic Set, Side Blades by Tilt Graphics, All Ramp Set, All LED Lights and Flashers, Playfield Glass.

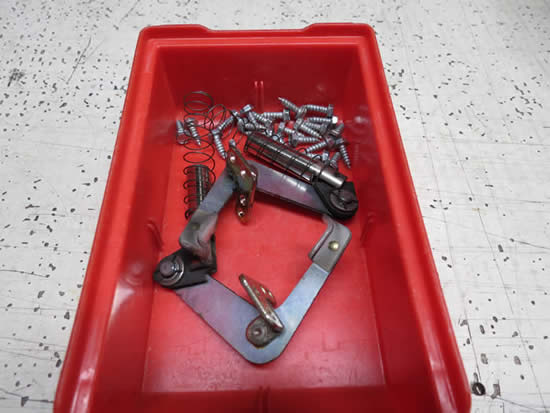

Lock Down Bar Mechanism, Bead Blasted and Repainted.

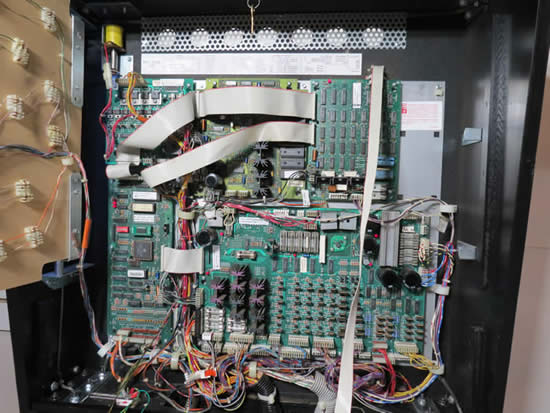

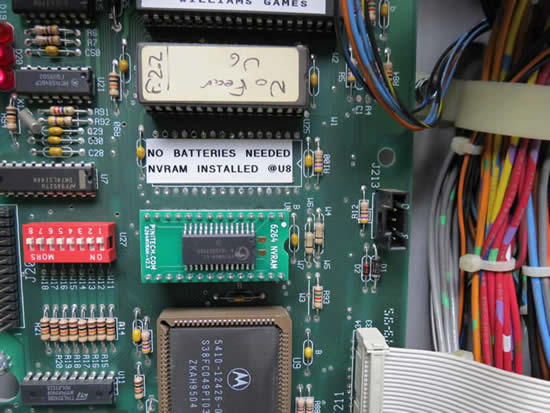

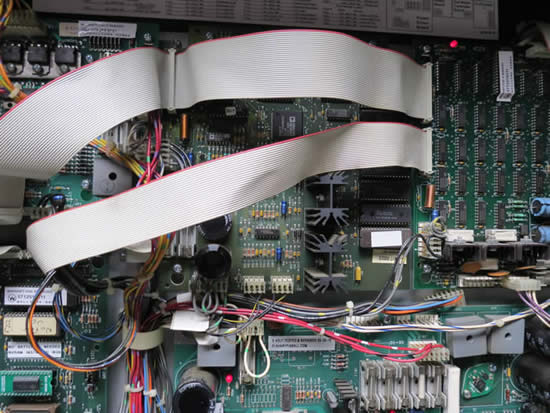

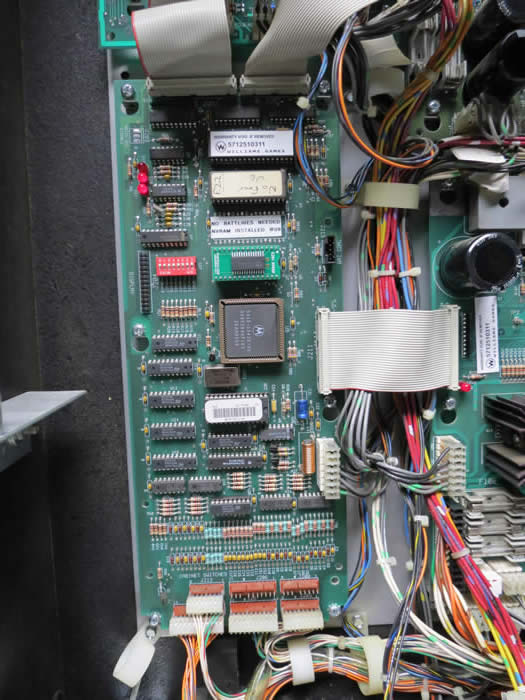

3 AAA Batteries removed and converted over to a NVRAM by www.pinitech.com

These modules use CYPRESS F-RAM nvram ICs rated at 151-year data retention & 100 trillion reads/writes. So no more changing or leaking batteries very great idea.

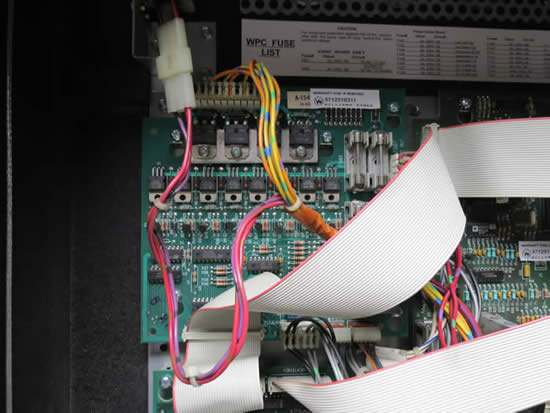

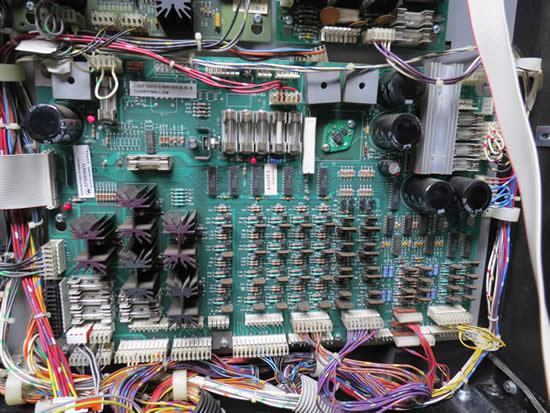

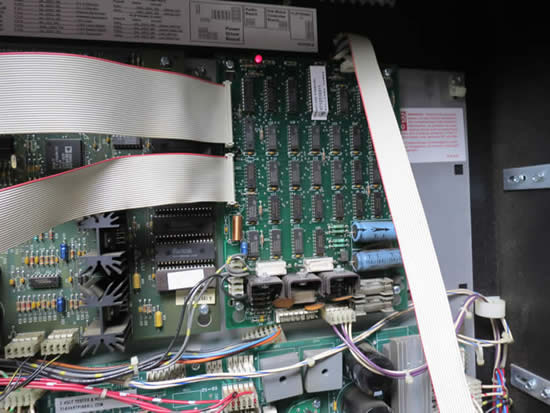

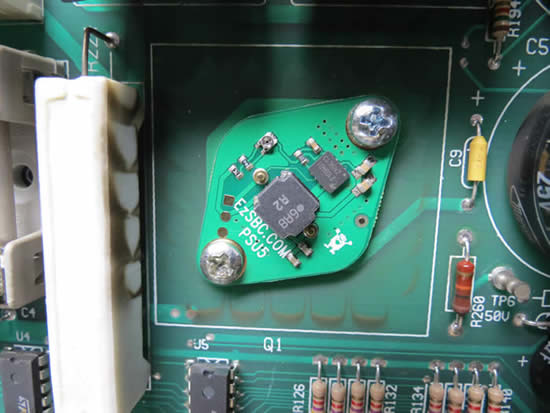

5 Volt Regulator Replaced with PSU5 LM323K Replacement

5 Volt Regulator Replaced with PSU5 LM323K Replacement

• Drop-in replacement of the obsolete LM323K or equivalent linear voltage regulator.
• Guaranteed 3A output current.
• Identical input voltage range of 7.2V to 20V
• Suitable for use in Pinball machines and video game consoles
• High efficiency switching regulator design reduces power disspation with superior voltage regulation compare to the LM323K.
• Thermal shutdown and current limit protection
• Board dimensions are identical to the TO3 package of the LM323K.
• Heatsinks are optional.
• All components are mounted on one side of the PCB
• Highest component is the inductor at 5mm above the PCB.
• Available with or without pins.
• Gold plated pins and PCB to withstand harsh environments over the long term.
• Can drive inductive loads such as solenoids and DC motors.

PART  2

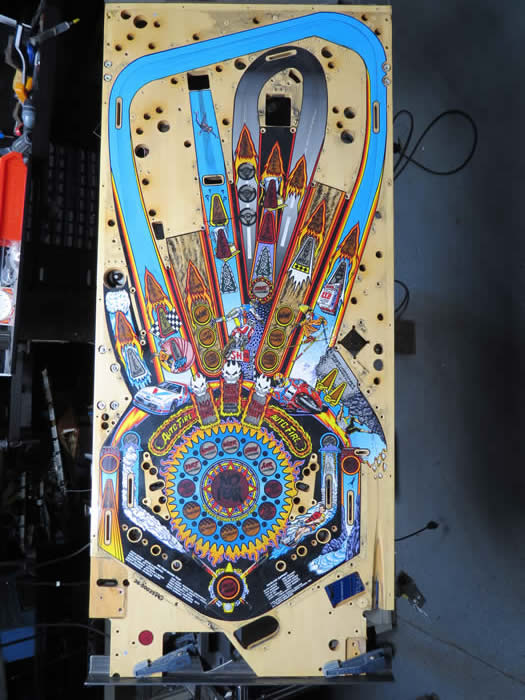

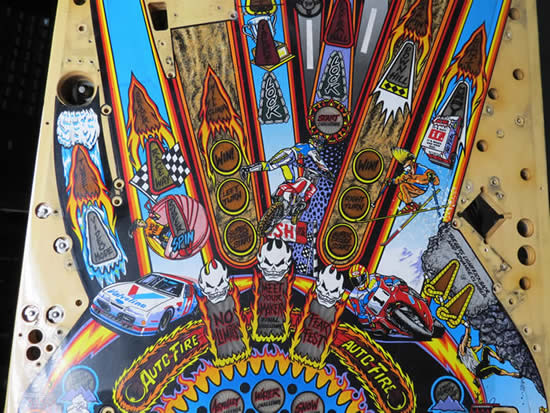

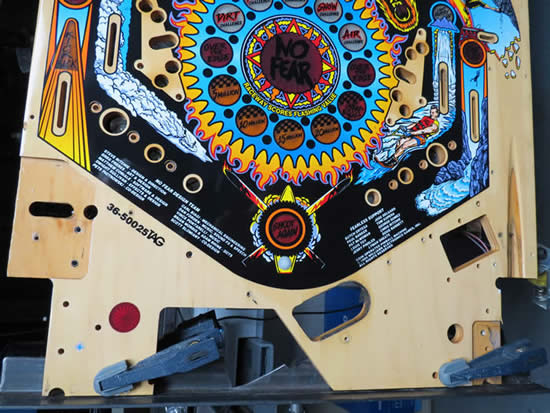

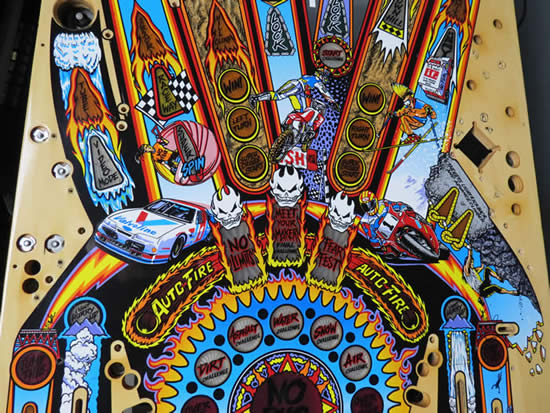

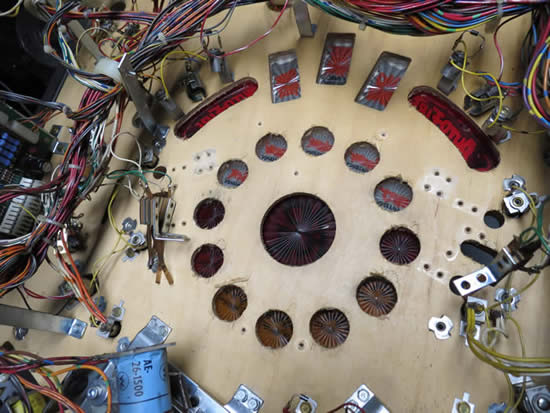

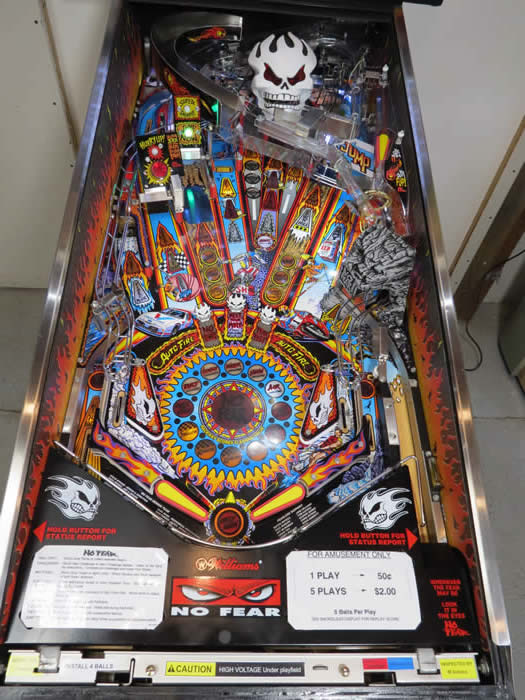

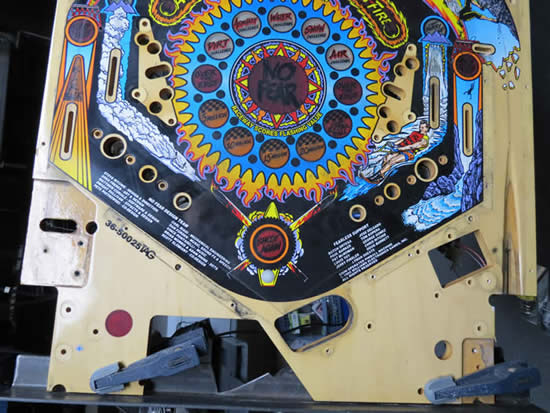

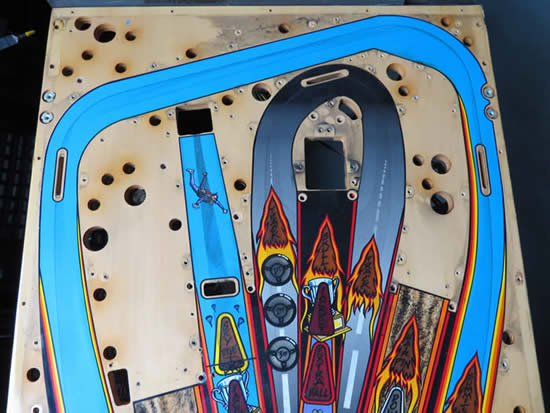

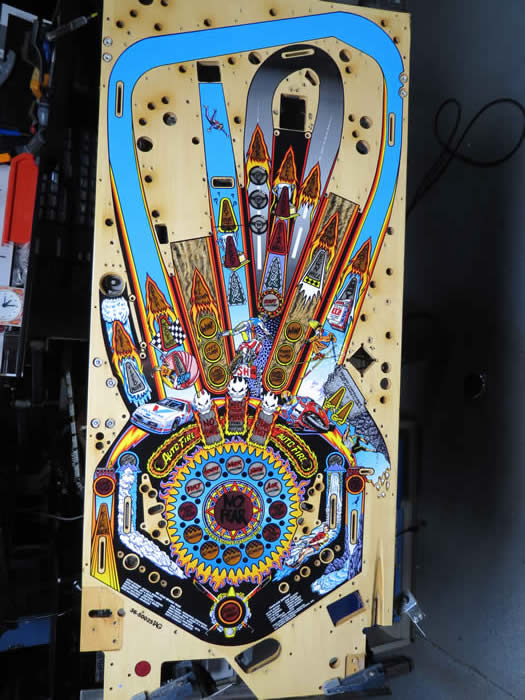

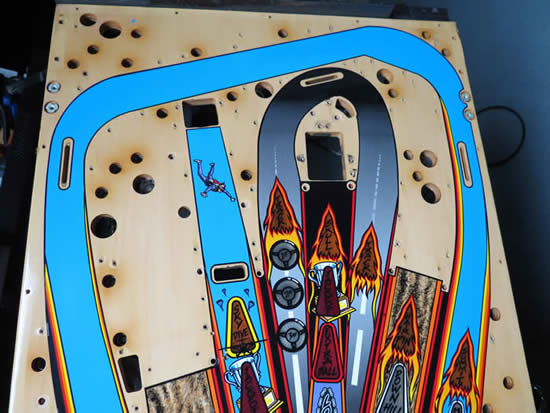

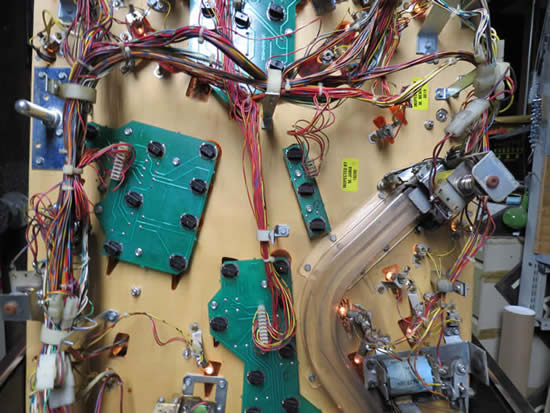

1995 No Fear Playfield Reconditioning
