What Was On The Rotisserie



1994 Bally Popeye Saves The Earth

SOLD  on 12-11-18

This game belongs to Elkhart Pinball Inc.

This is a fun and clean family game.

This game is a very clean game, and plays like brand new, cabinet and boards all look great.

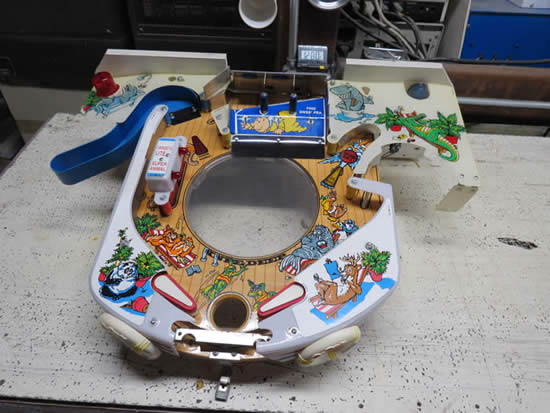

It was given a complete check up and Reconditioning, we remove all playfield plastic, ramps, light bulbs and posts, clean everything removed in the ultrasonic cleaner, cleaned all light inserts under playfield, clean the playfield and polish it, regrained and polished all the ball guides, and then reassemble the game, check all switches for proper adjustment, and all new white bands,replaced all the bulbs to LED's and then make sure there are no shorts in the lamp matrix. Then we will reassemble the ramps, playfield plastic and check switches and lamps again to make sure they work properly.

5 Volt Regulator Replaced with PSU5 LM323K Replacement

3 AAA Batteries removed and converted over to a NVRAM by www.pinitech.com

These modules use CYPRESS F-RAM nvram ICs rated at 151-year data retention & 100 trillion reads/writes. So no more changing or leaking batteries very great idea.

New Playfield Glass, 4 Flipper Assembly's, replaced al light bulbs with LED's, 6 New Balls, replaced all coil sleeves, Cliffy's® Premium COLOR Post Sleeves, Bottom Box Speaker.

11-26-18

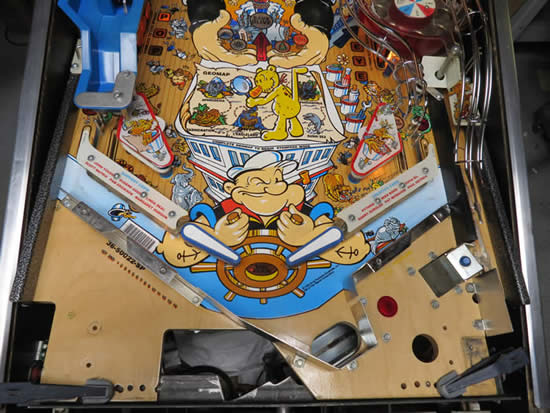

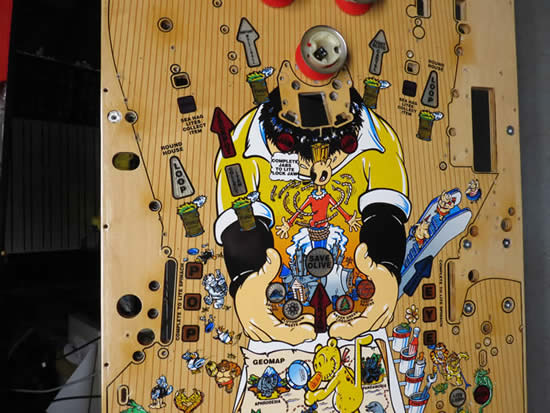

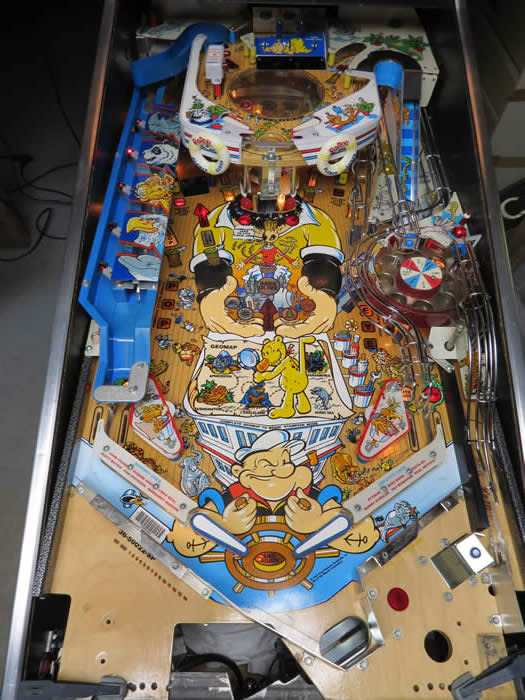

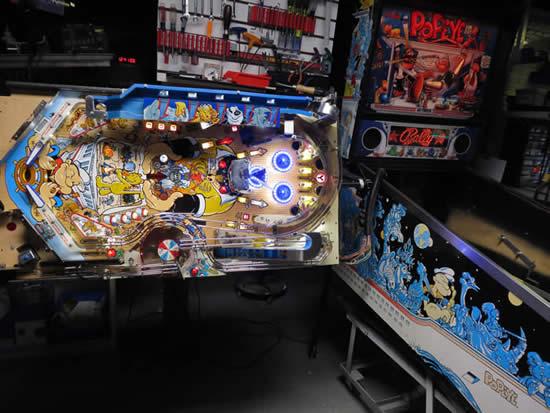

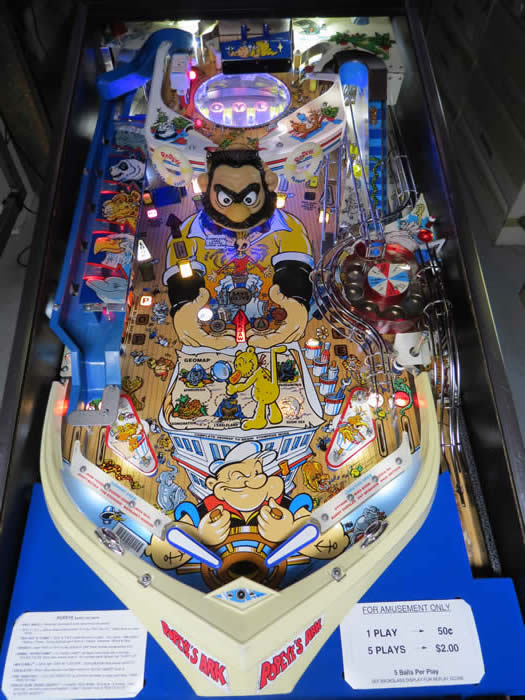

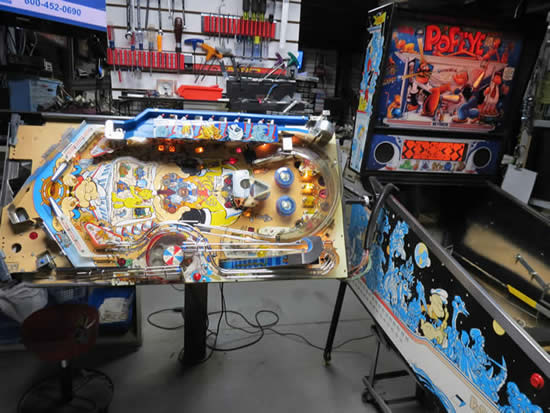

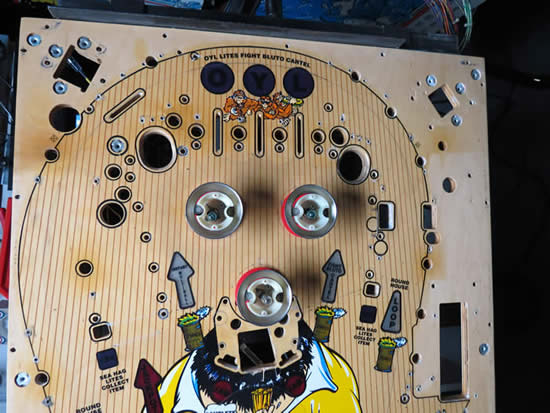

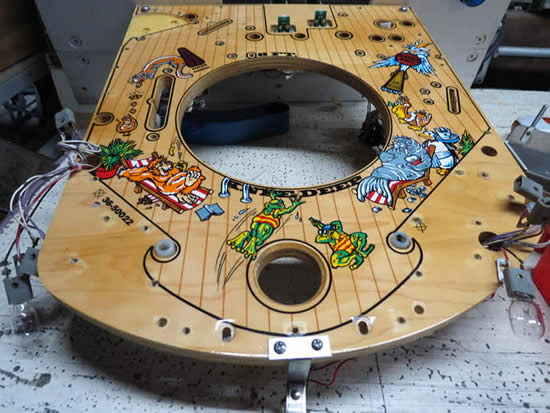

Before     RECONDITIONING        After

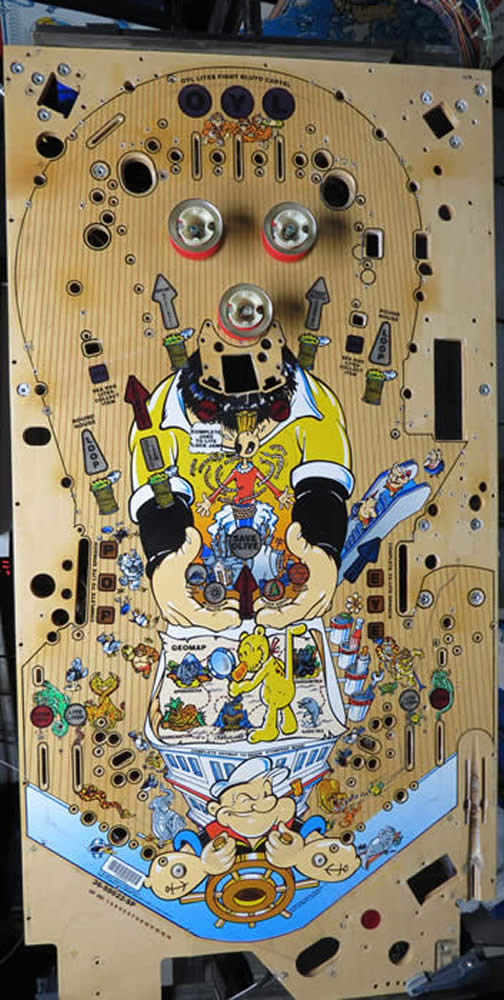

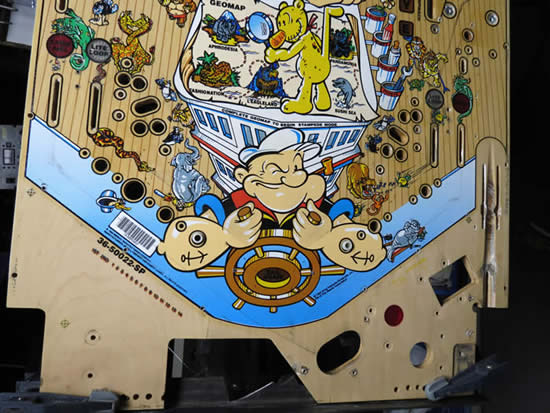

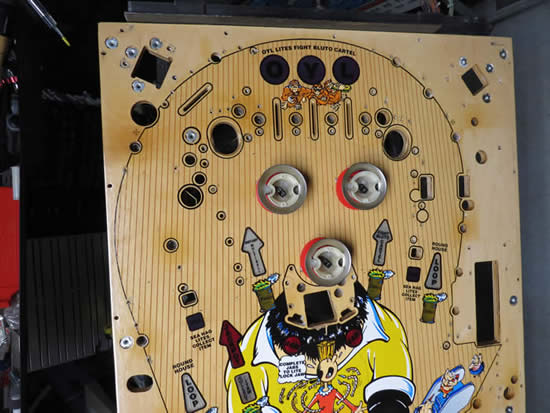

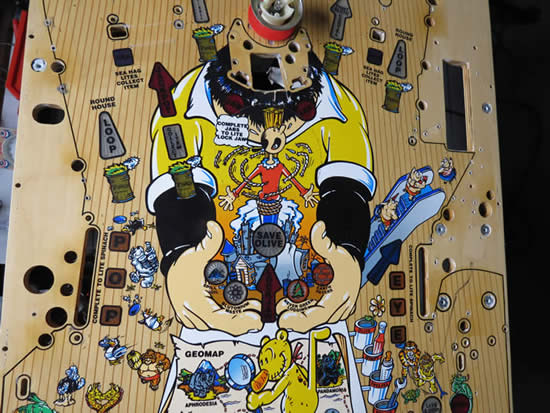

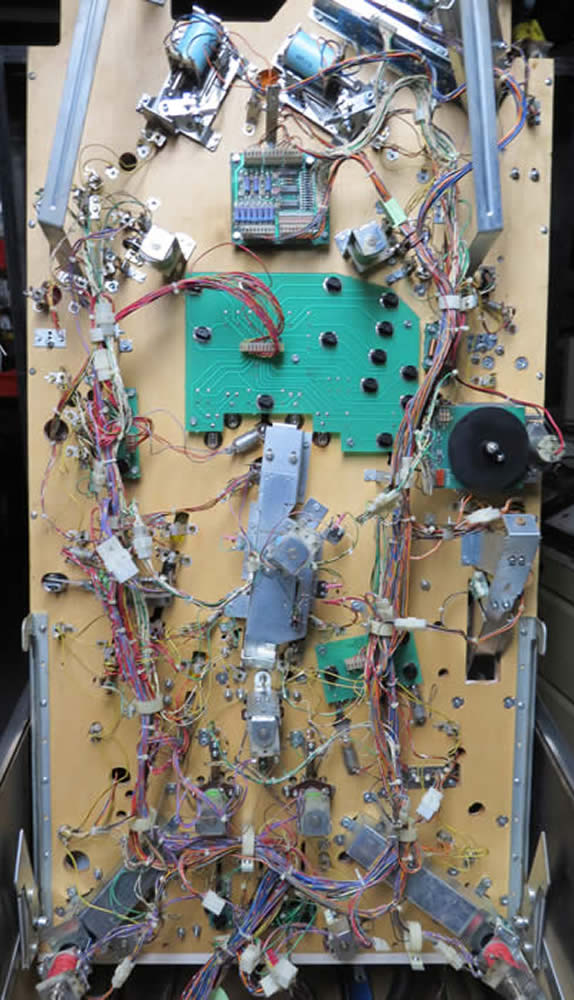

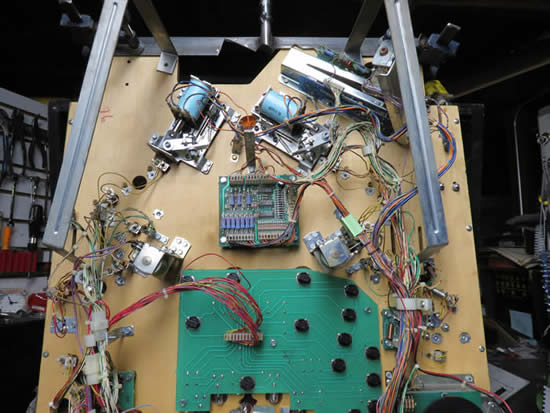

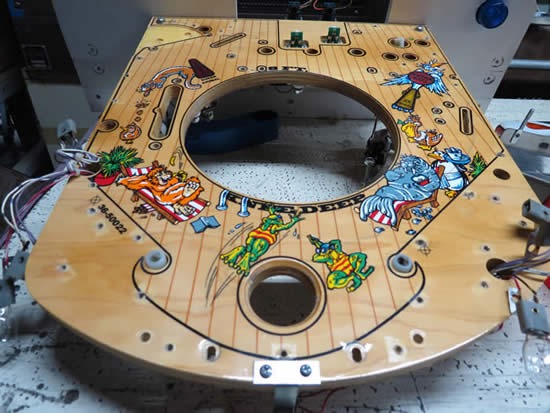

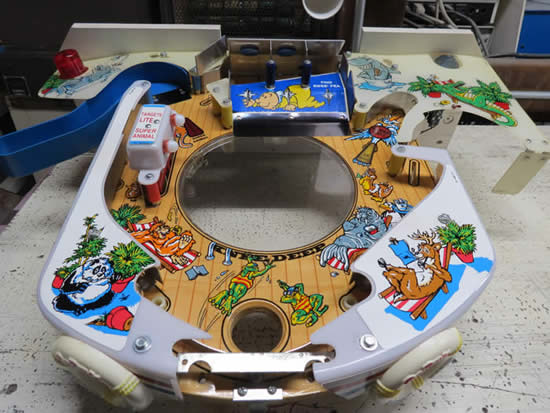

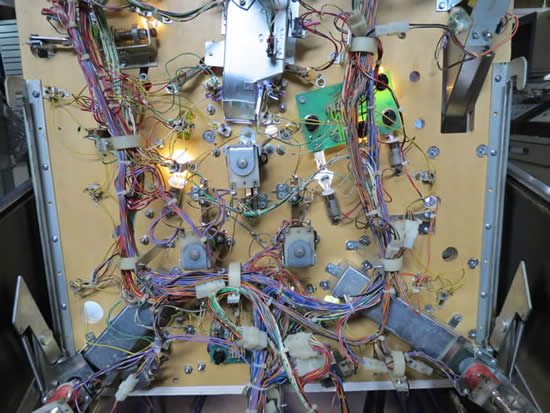

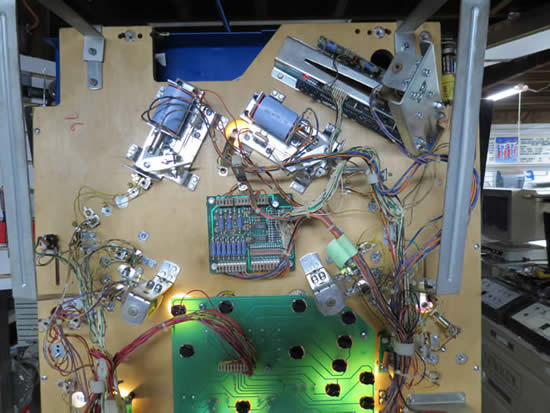

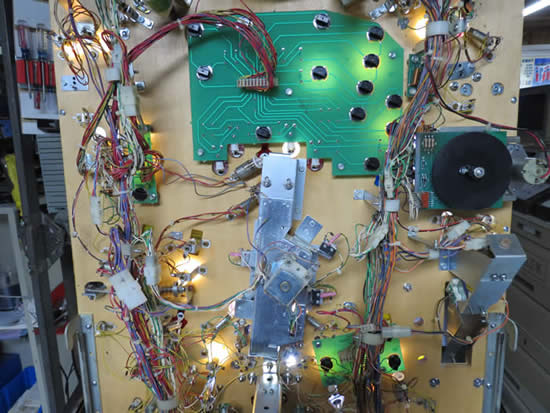

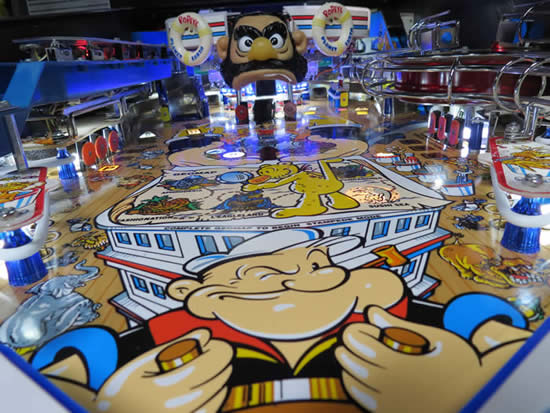

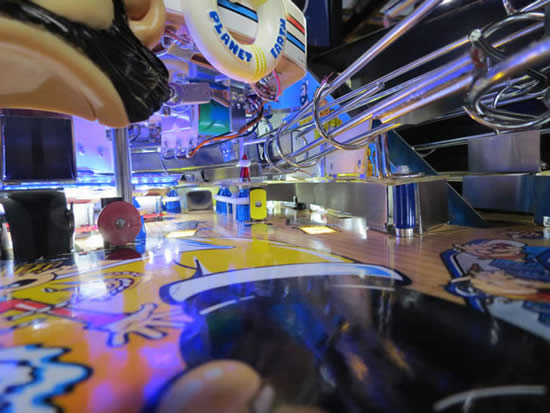

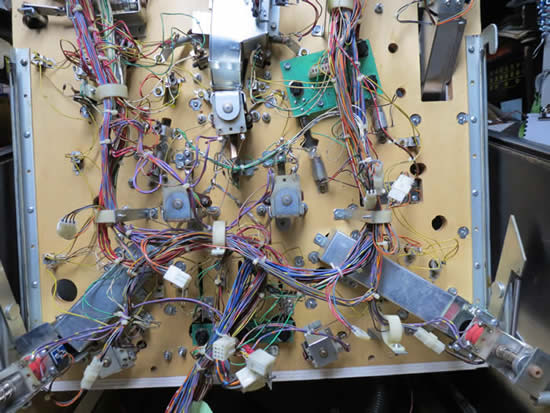

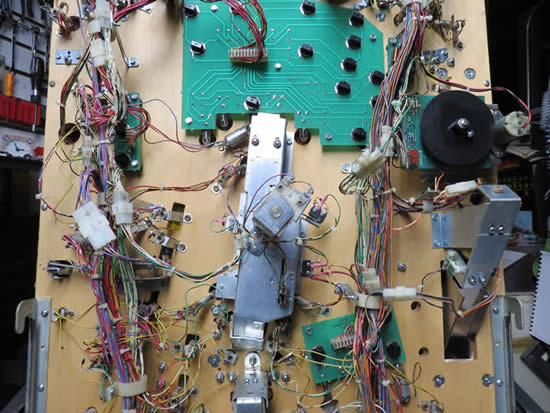

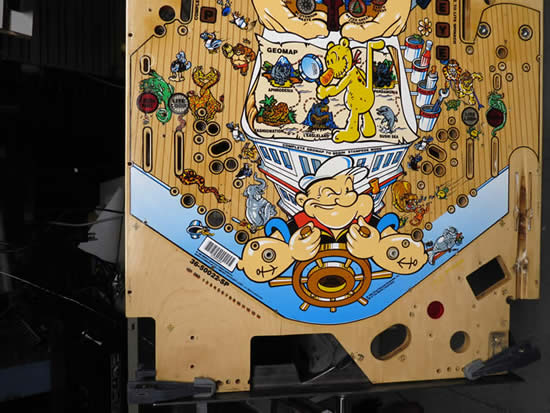

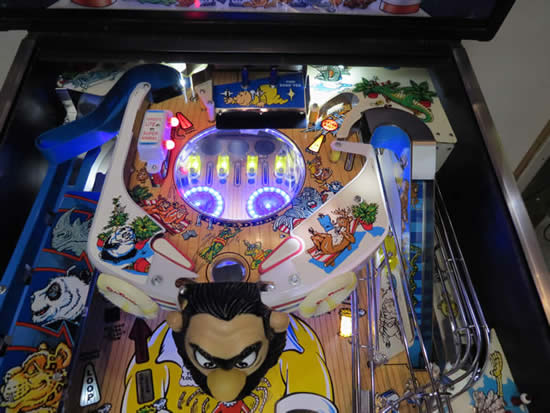

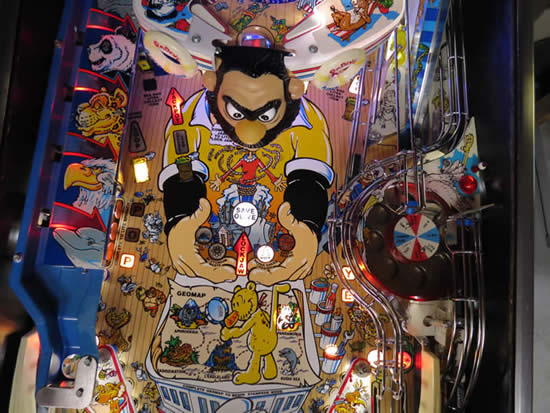

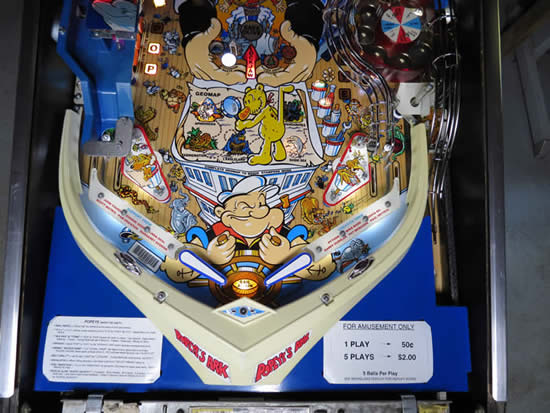

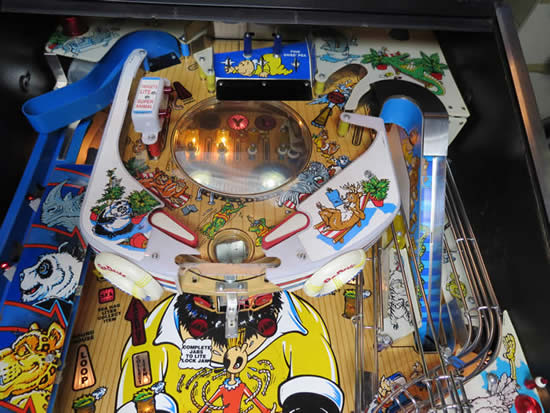

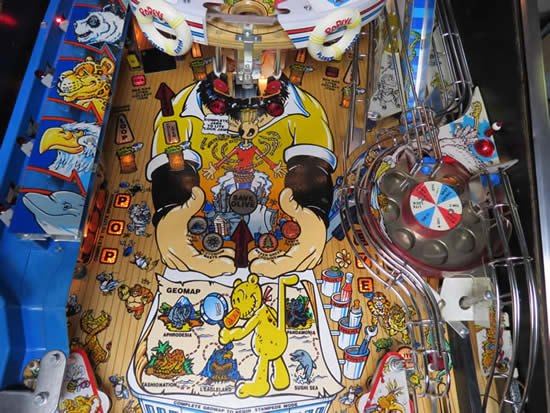

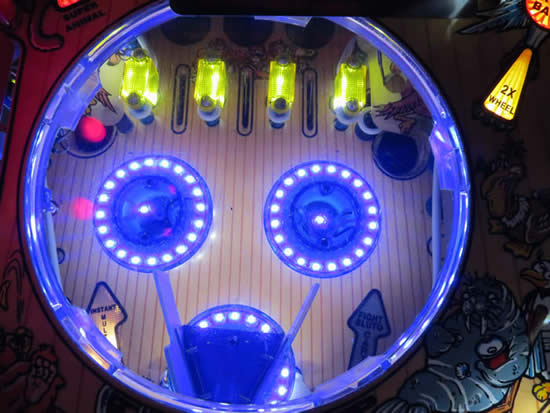

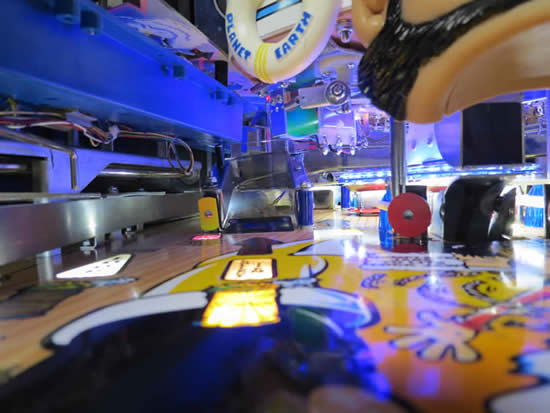

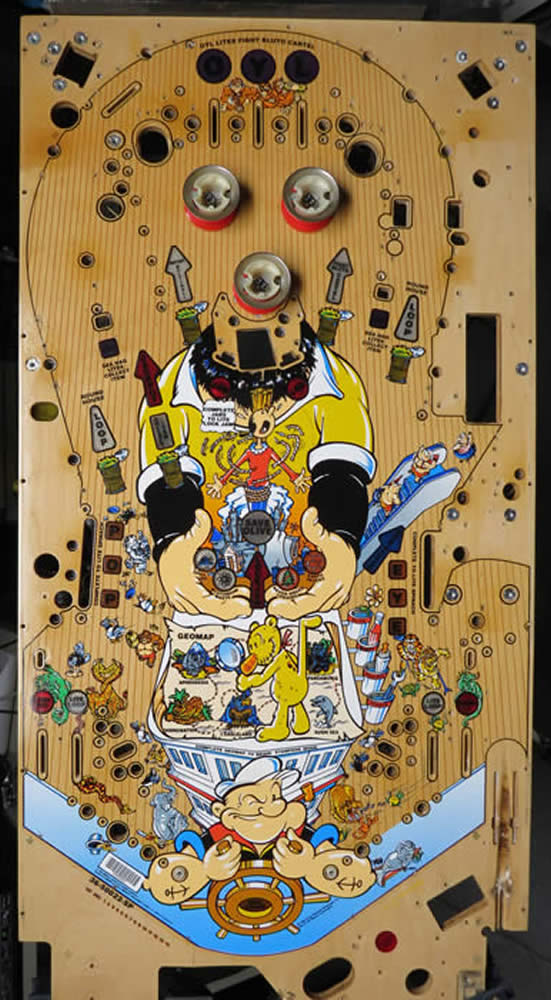

More Close Up
  Pictures Of Playfield

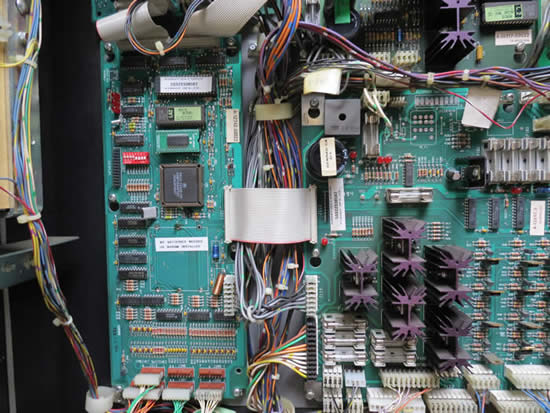

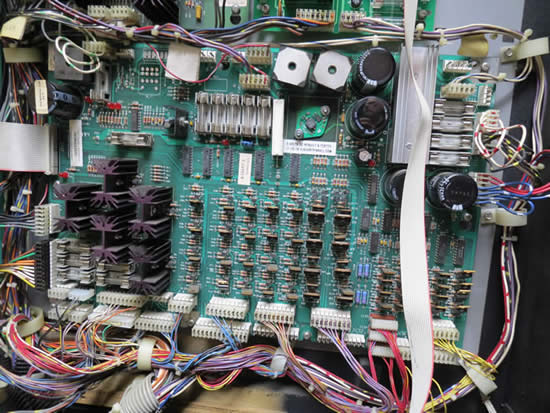

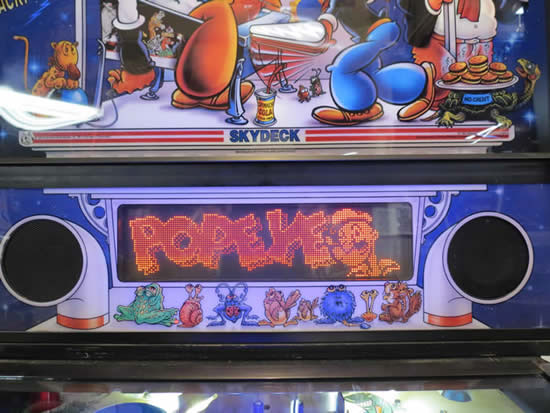

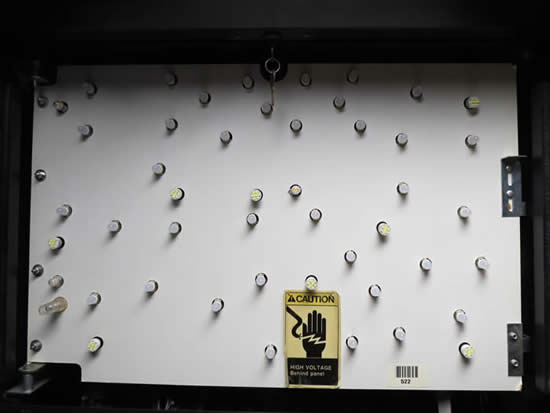

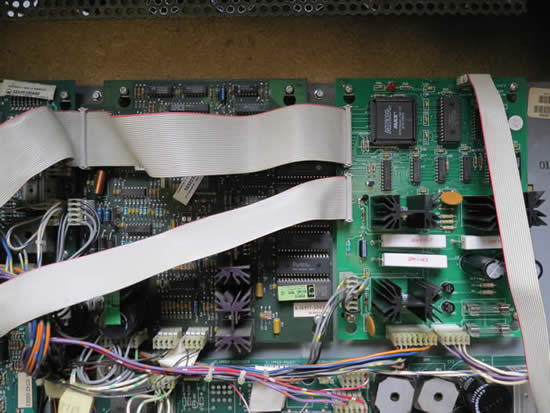

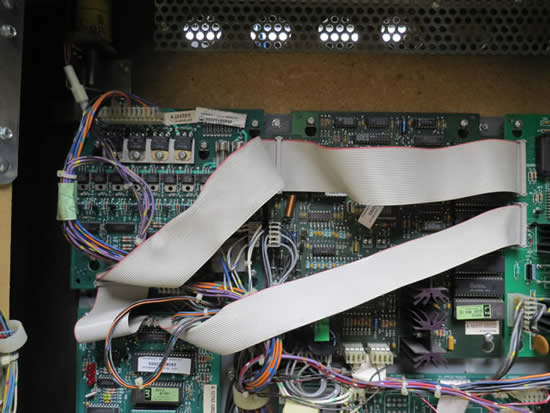

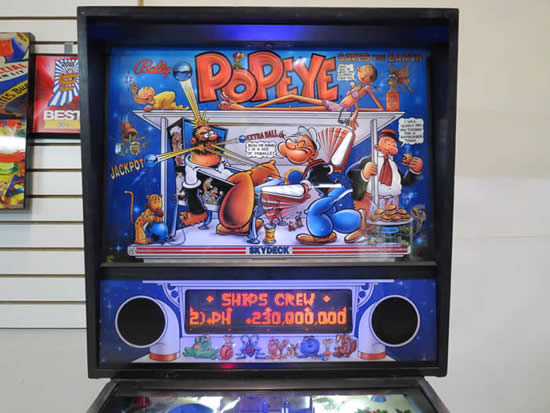

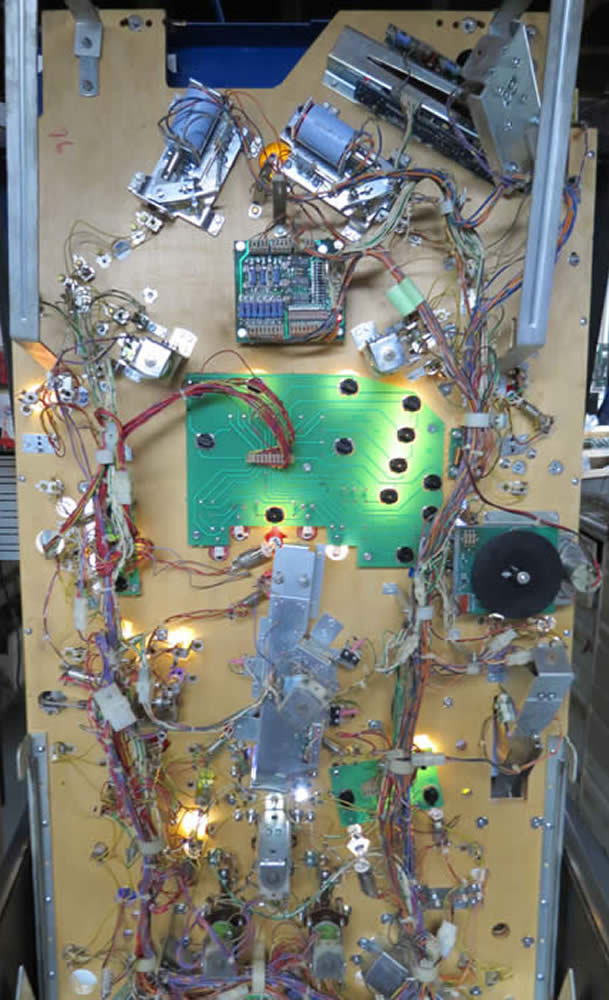

Back Box And
Electronics Pictures

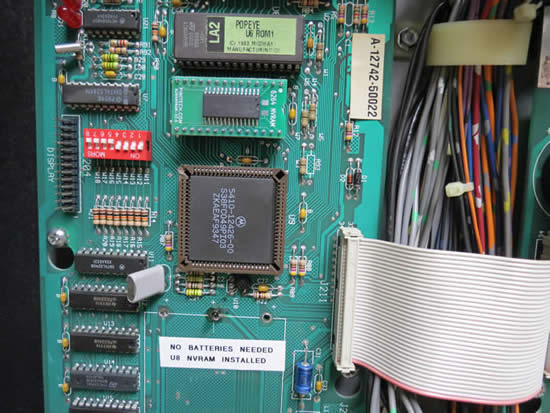

AAA Batteries removed and converted over to a NVRAM by www.pinitech.com

These modules use CYPRESS F-RAM nvram ICs rated at 151-year data retention & 100 trillion reads/writes.

So no more changing or leaking batteries, very great idea.

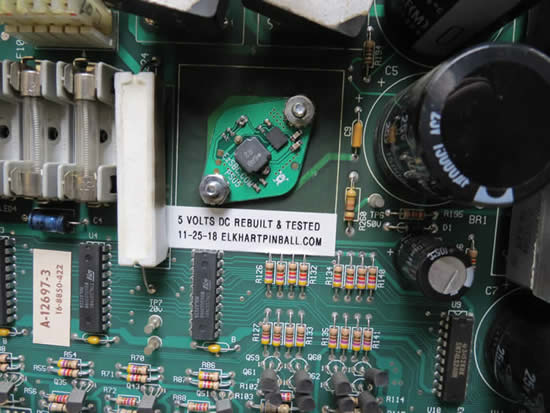

5 Volt Regulator Replaced with PSU5 LM323K Replacement

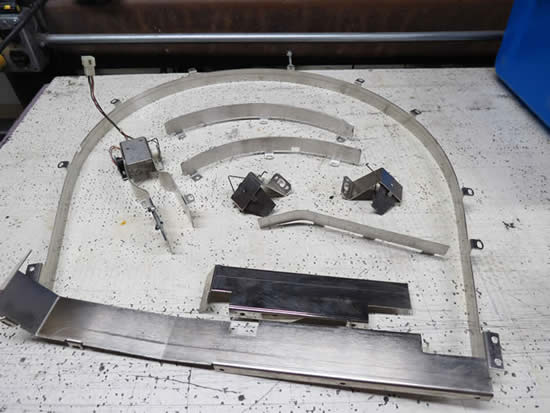

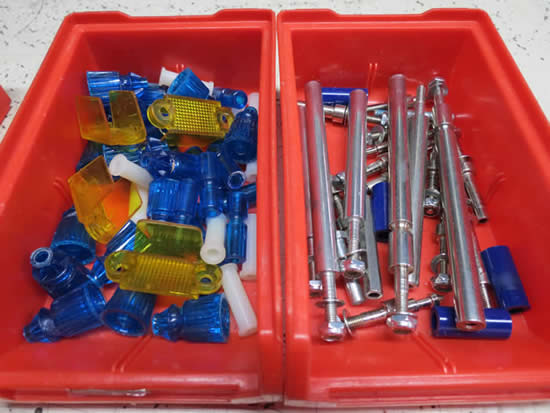

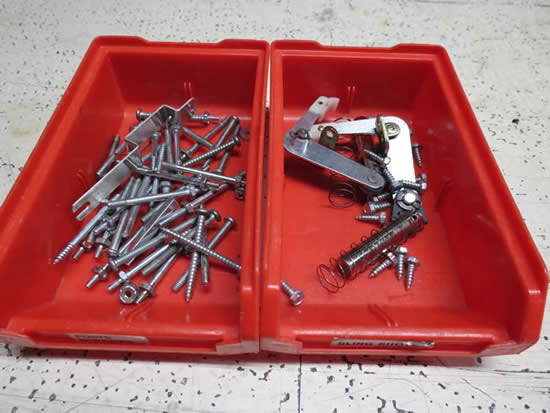

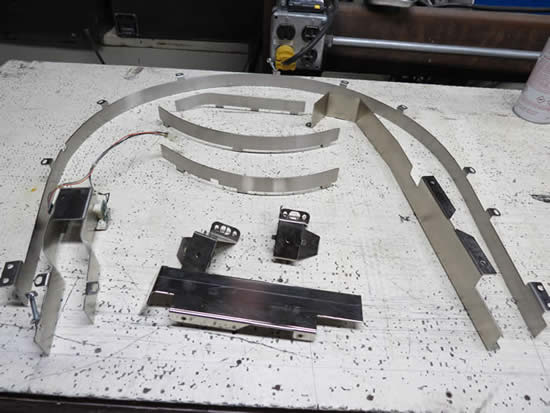

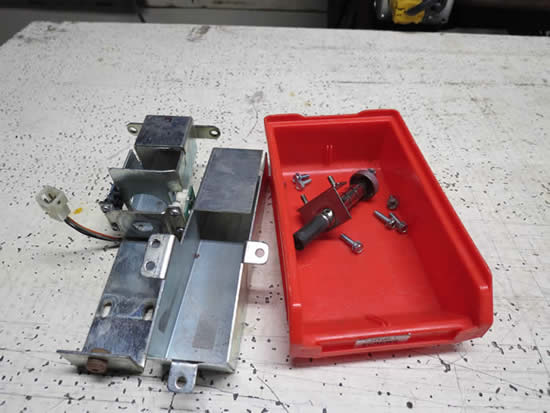

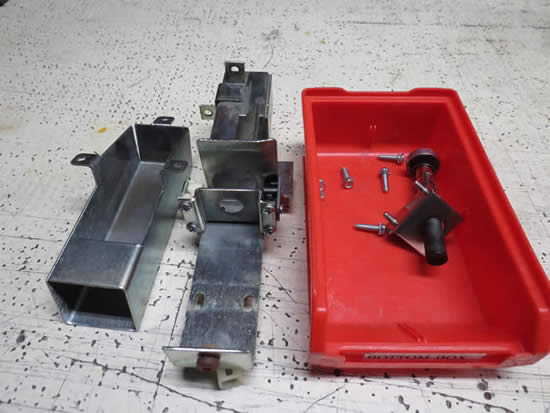

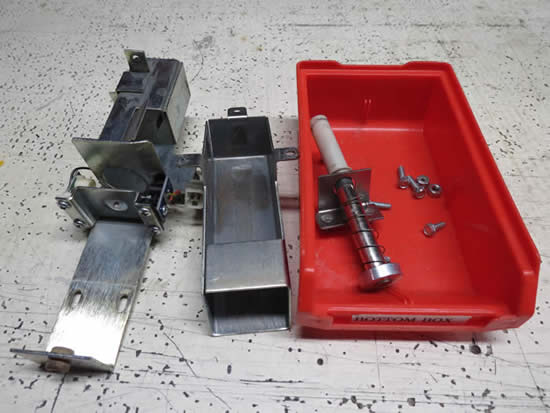

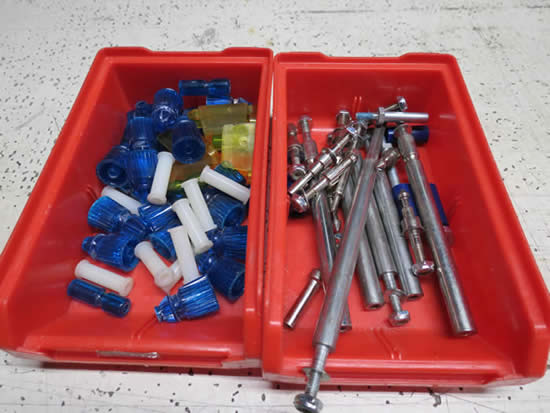

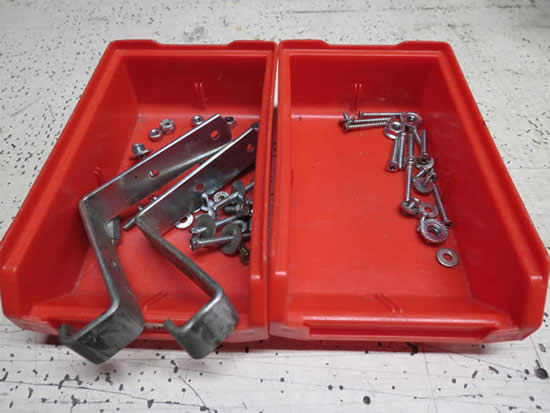

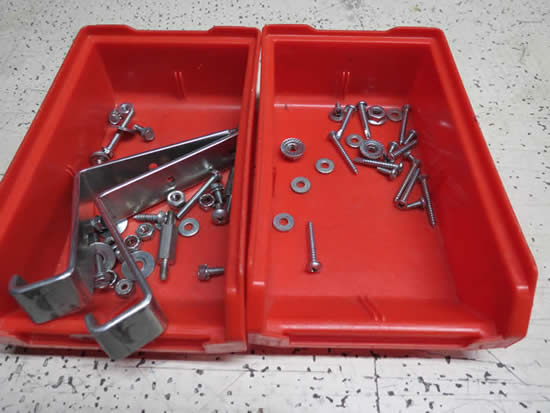

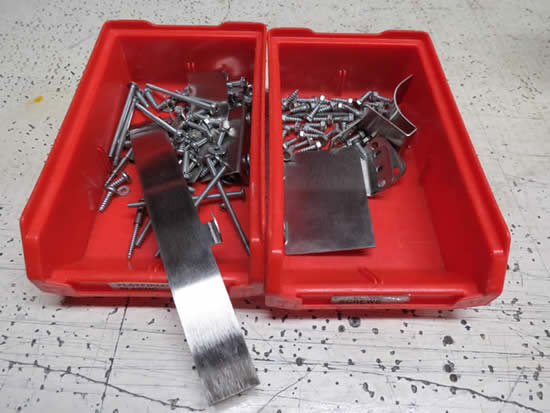

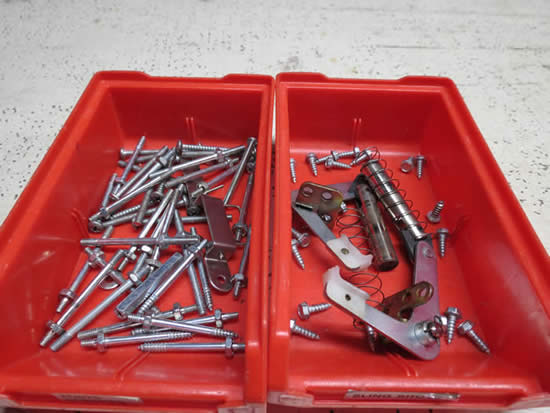

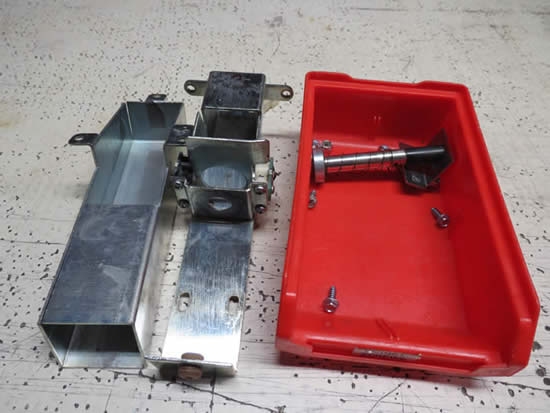

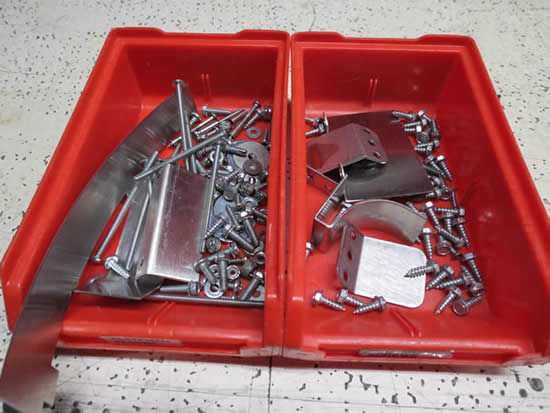

Before Ultrasonic
 Cleaning After

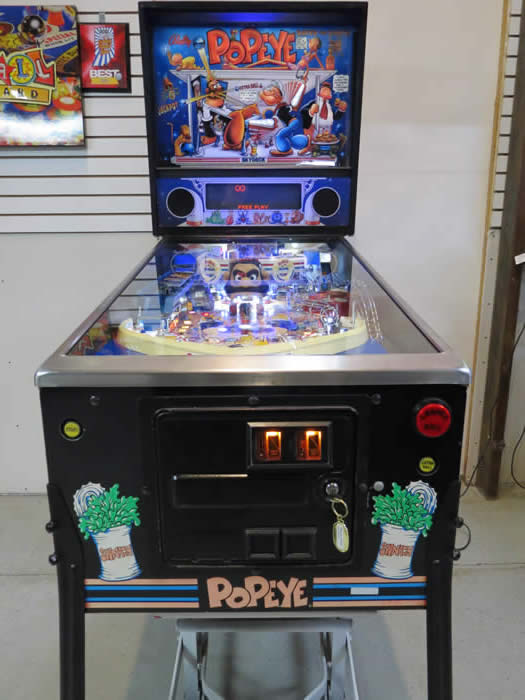

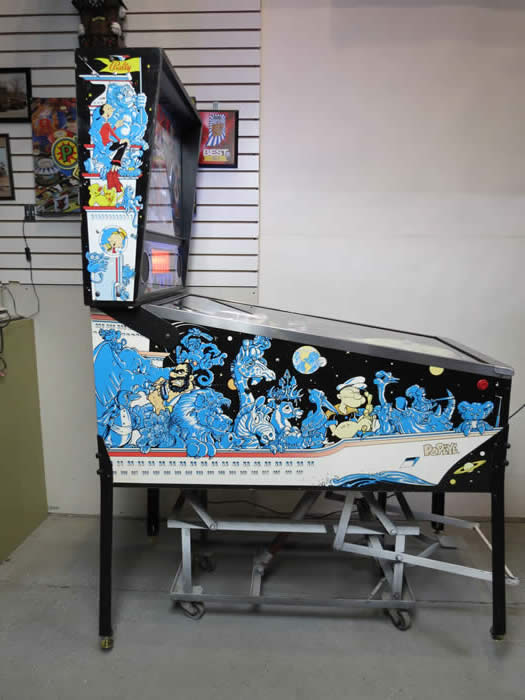

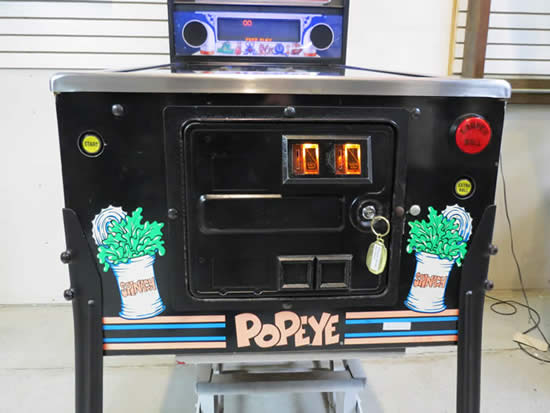

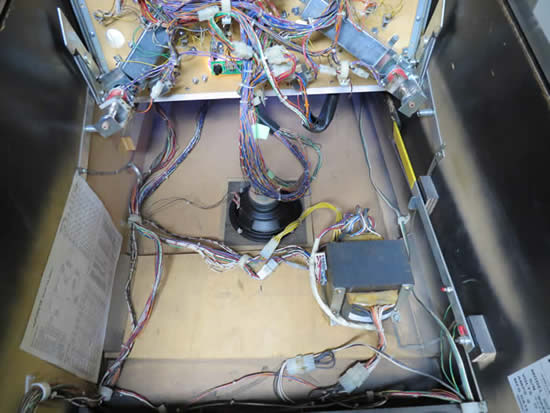

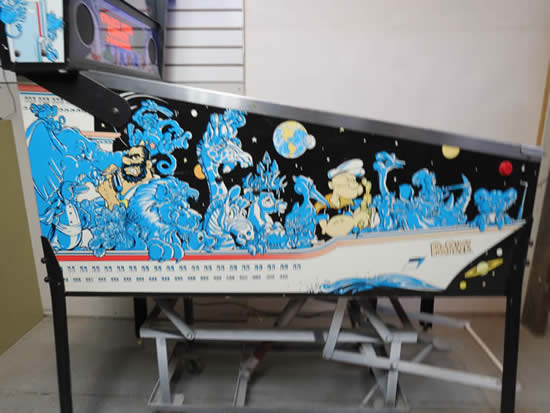

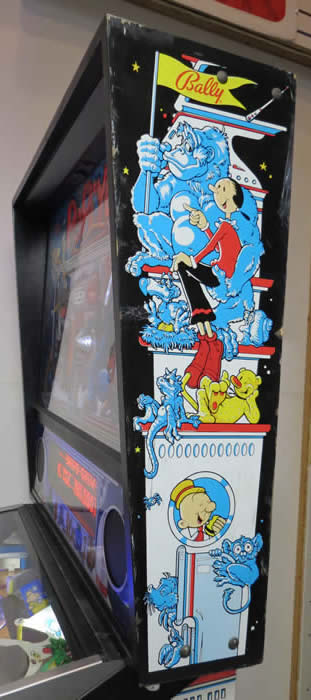

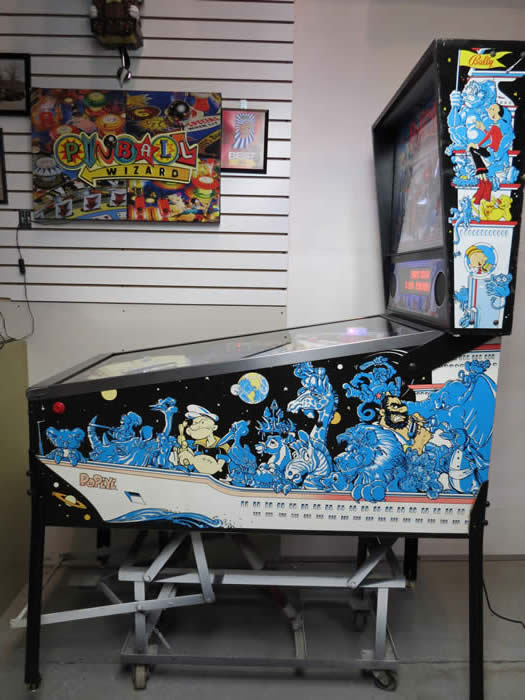

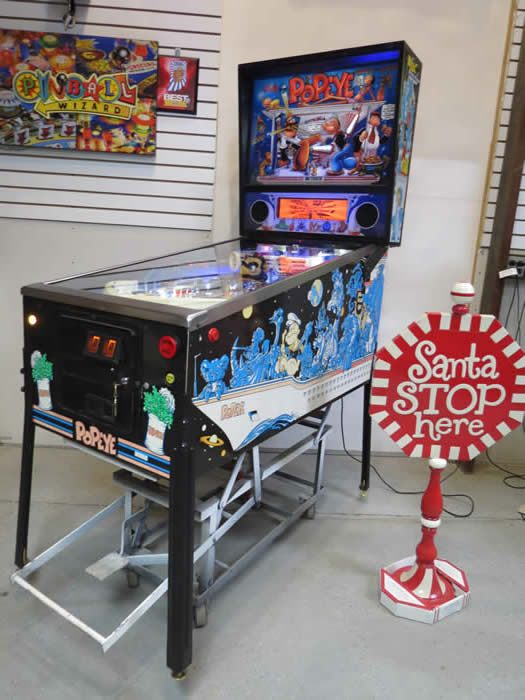

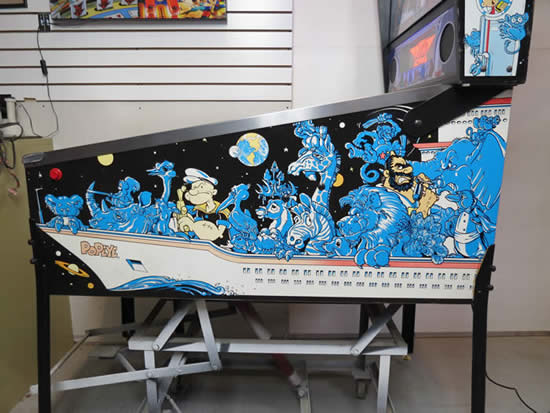

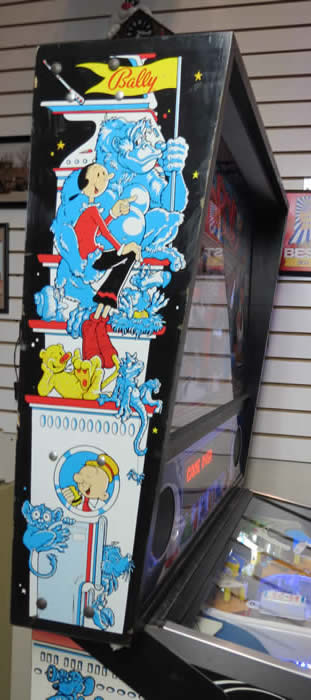

Cabinet
 Pictures

Thanks for looking

John Freel
