What Was On The Rotisserie

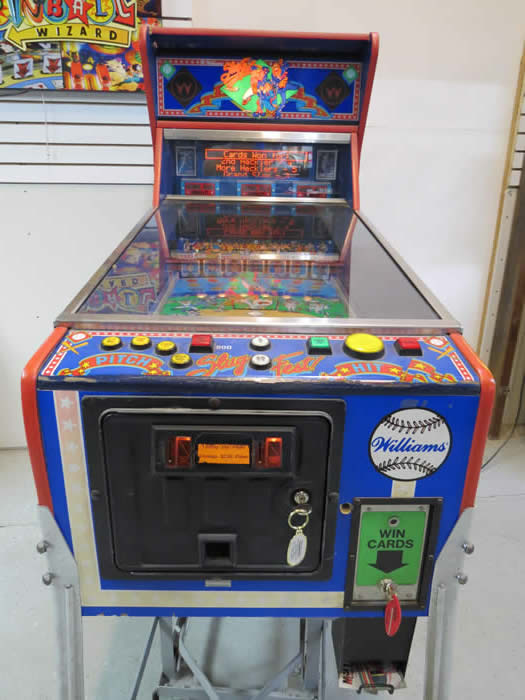

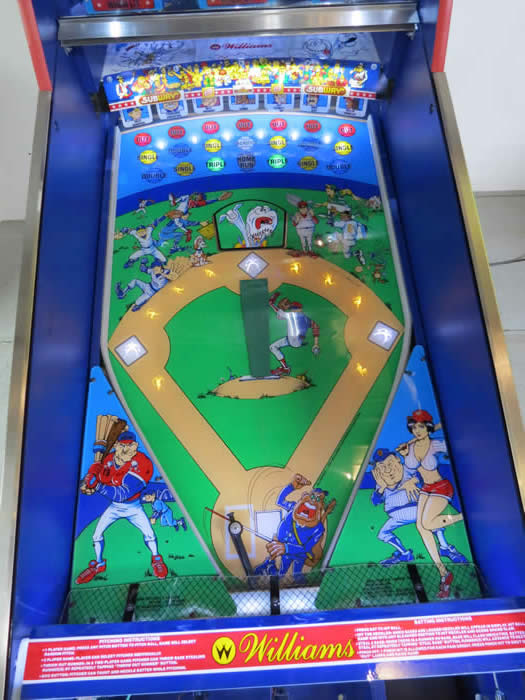

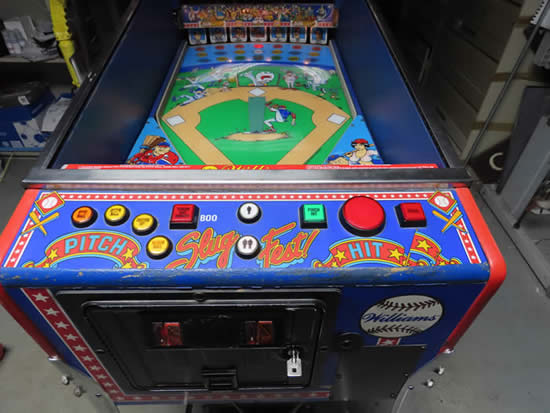

1991 Williams Slugfest (Pitch and Bat Baseball Game)

SOLD on 05-07-18

This game belongs to Elkhart Pinball Inc.

This is a fun and clean family game.

This game plays like brand new.

It was given a complete check up and Reconditioning, we remove all playfield plastic, light bulbs, clean everything removed in the ultrasonic cleaner, clean the playfield and polish it, and then reassemble the game, check all switches for proper adjustment, install new LED's bulbs, and bands, check all the bulbs to make sure there are no shorts in the lamp matrix.

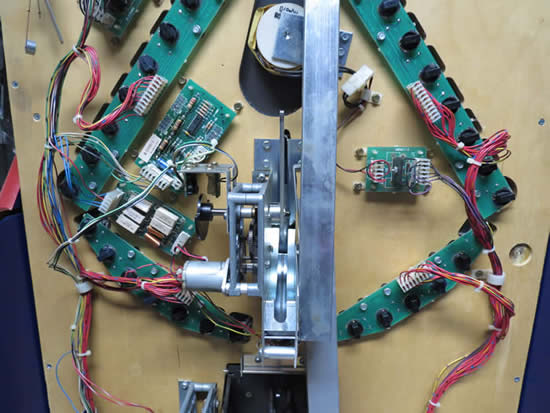

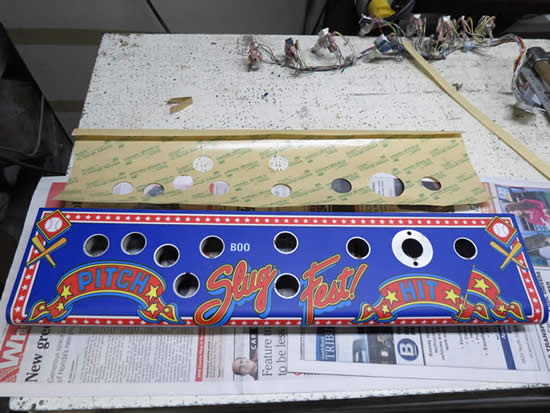

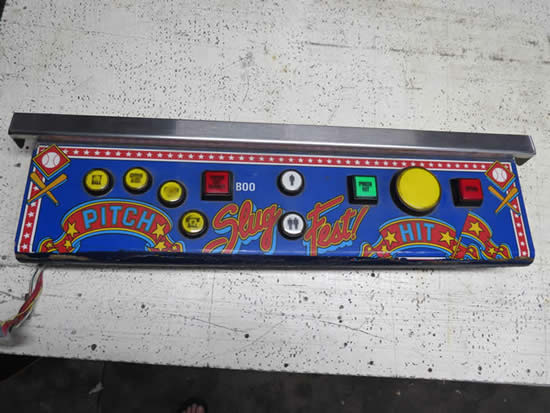

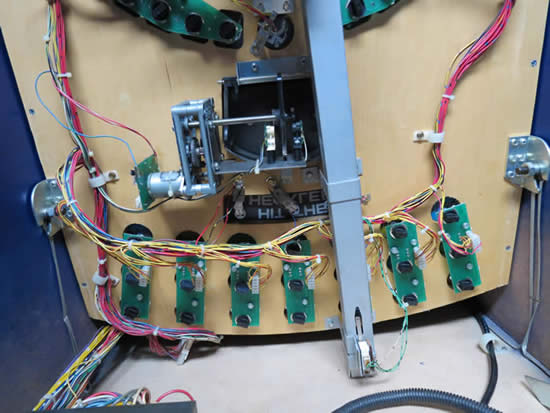

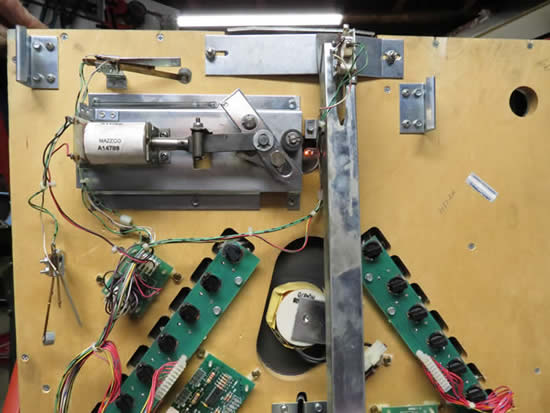

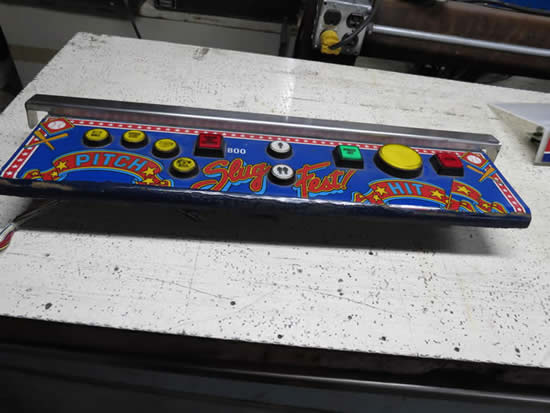

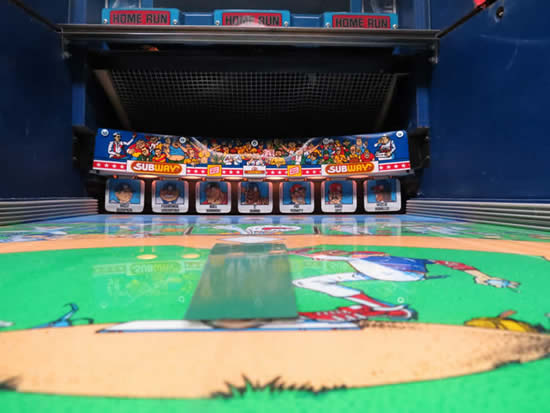

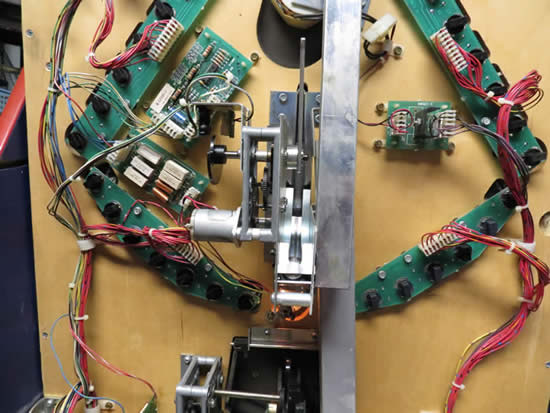

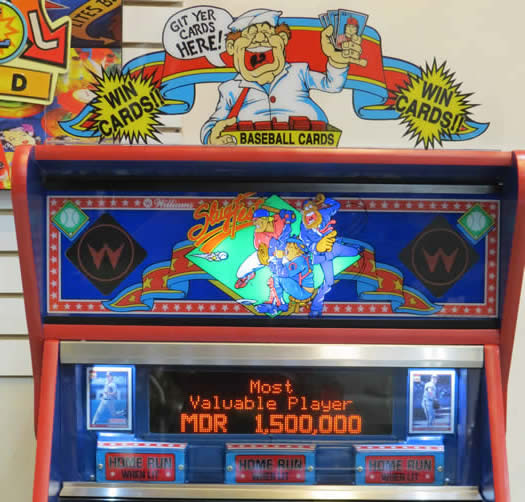

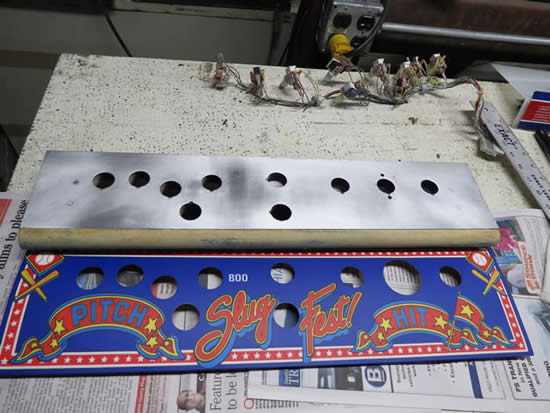

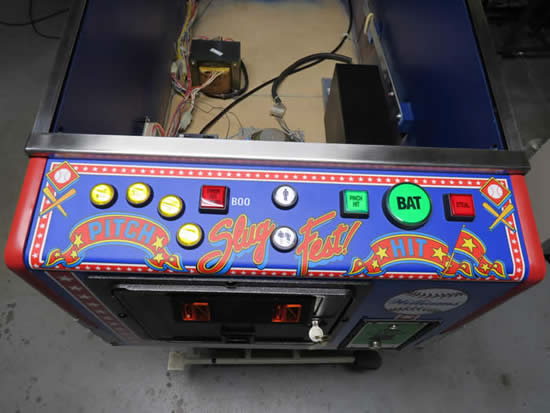

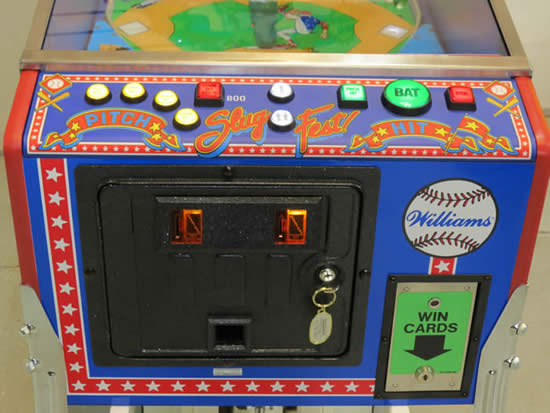

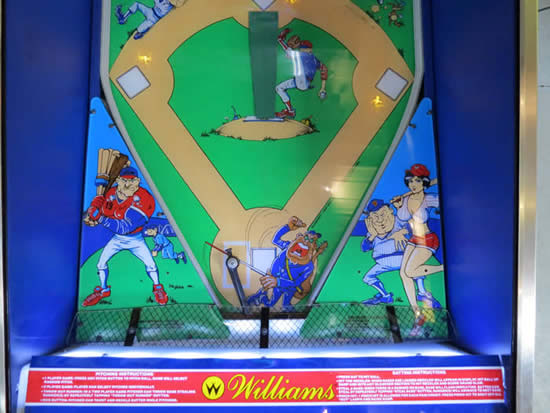

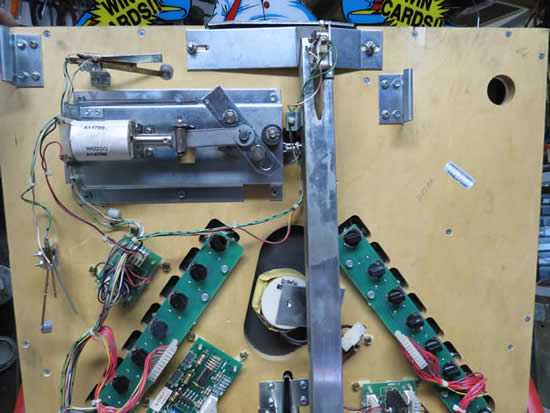

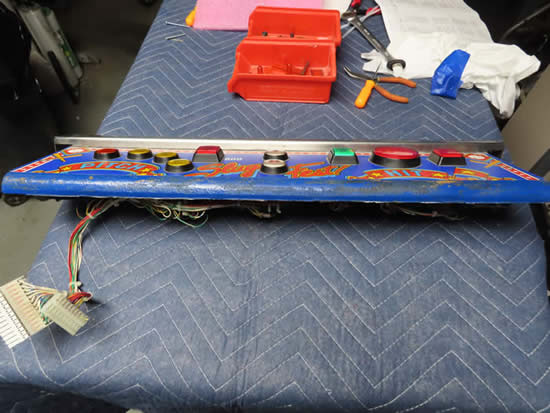

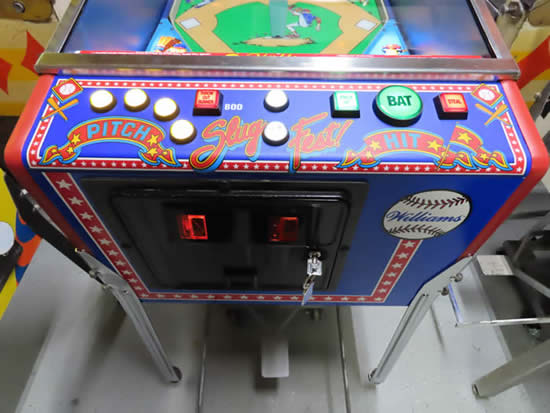

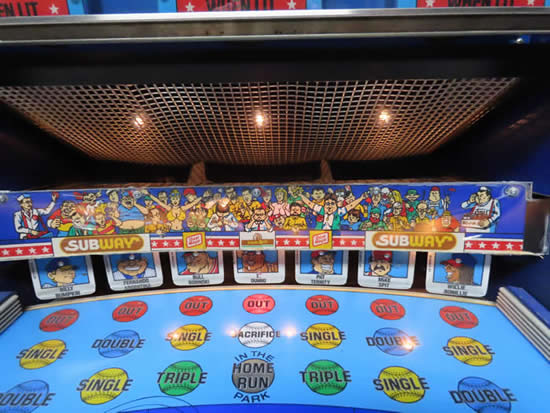

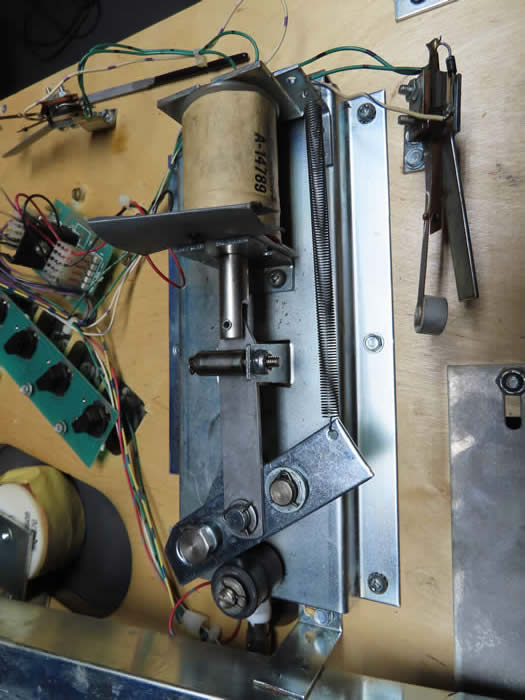

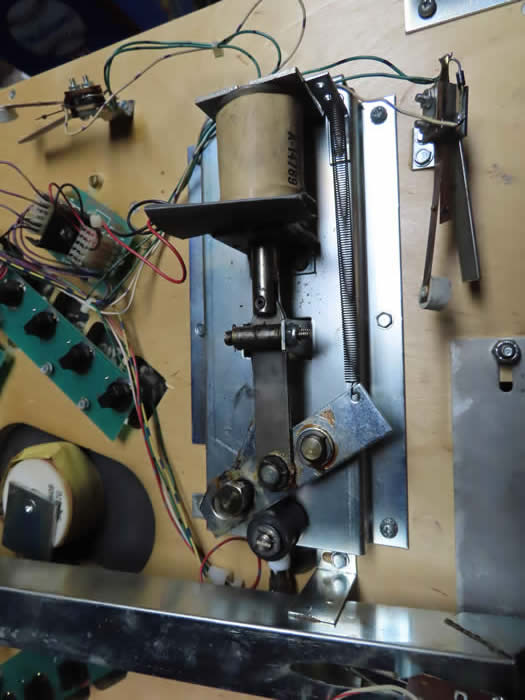

New Parts Installed = Cabinet & Head Repainted, Side Art, Red T Molding, NOS Williams Control Board Overlay, All Control Buttons, Plastic Topper, Bleacher Plastic Screen Printed on Laser Cut PETG, Bat, Bat Coil, Bat Mechanism Rebuilt with all new parts, 4 Legs, 8 Leg Bolts, 4, Leg Levelers, 4 Stern Leg Protectors (Legs will not touch the new side art at all) very cool, Playfield Plastic Set, All LED Lights and Flashers,

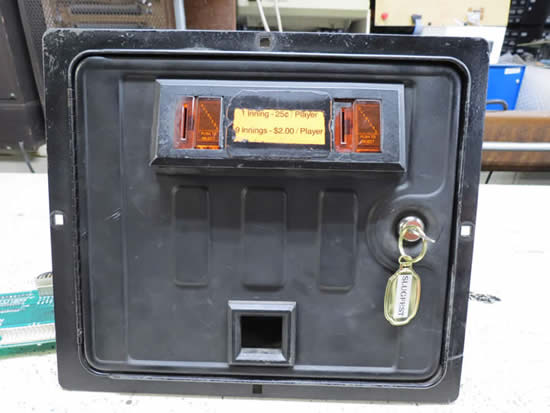

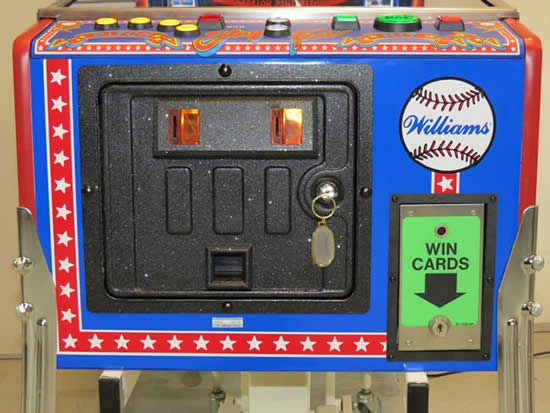

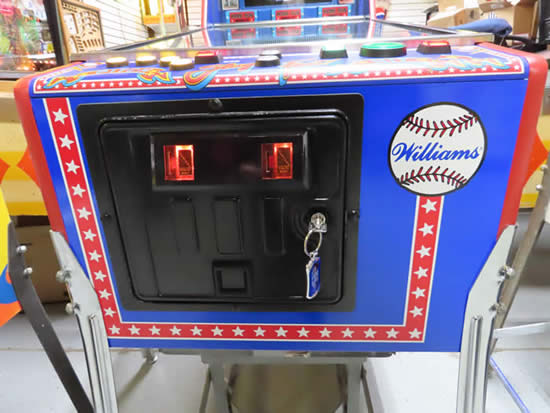

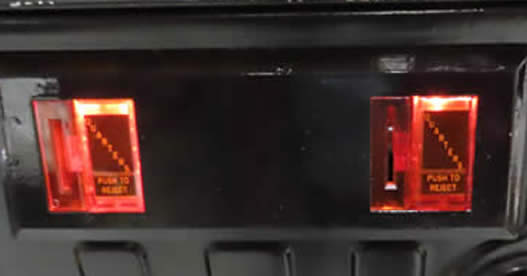

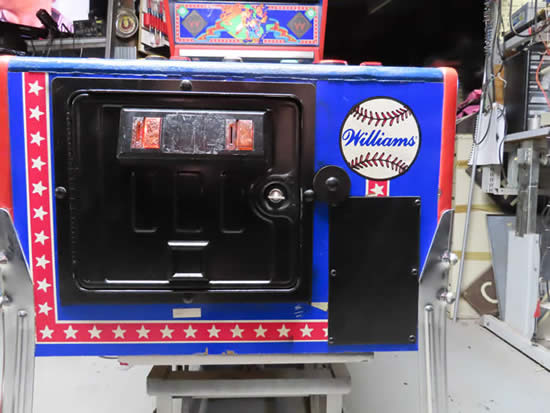

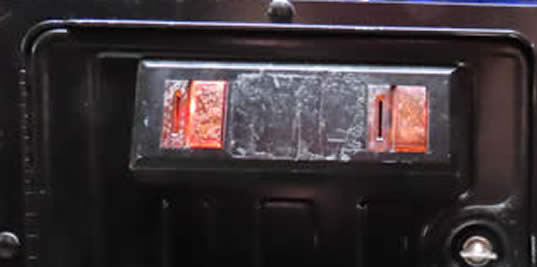

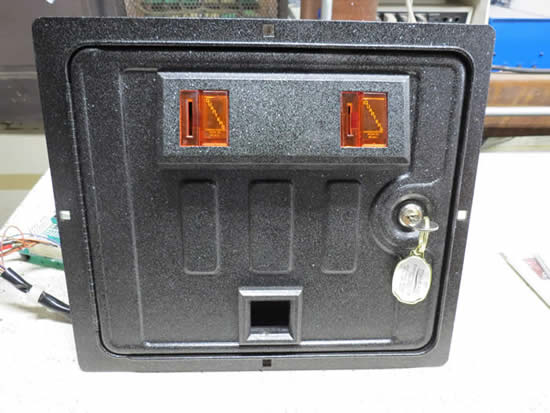

Coin Door, Bead Blasted and Repainted.

3 AAA Batteries removed and converted over to a NVRAM by www.pinitech.com

These modules use CYPRESS F-RAM nvram ICs rated at 151-year data retention & 100 trillion reads/writes. So no more changing or leaking batteries very great idea.

5 Volt Regulator Replaced with PSU5 LM323K Replacement

PART  1

04-15-18 - 05-02-18

1991 Slugfest Cabinet and Head

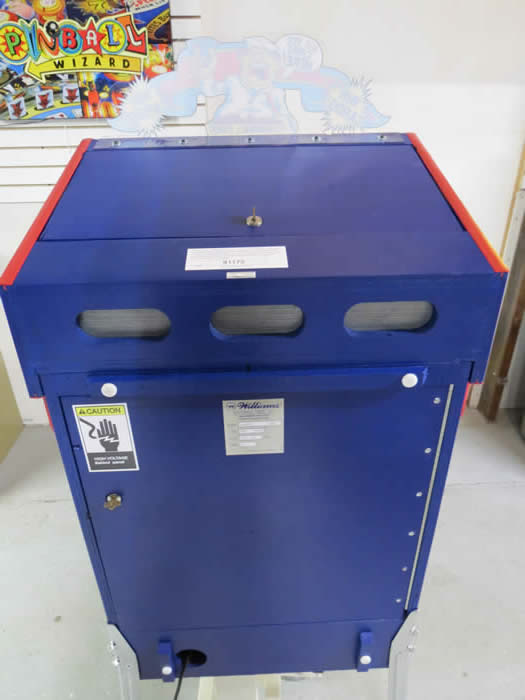

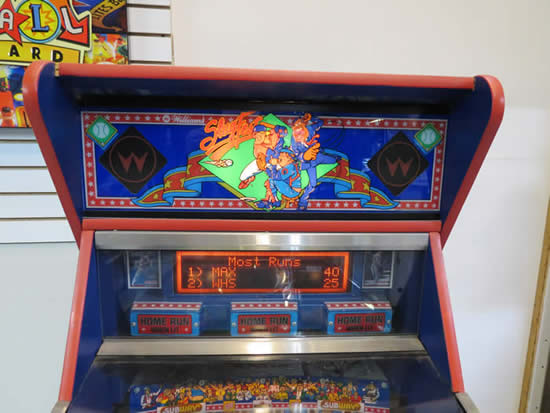

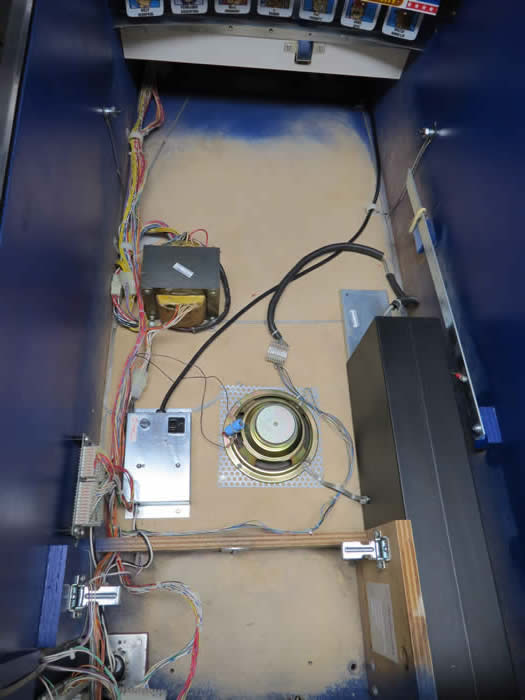

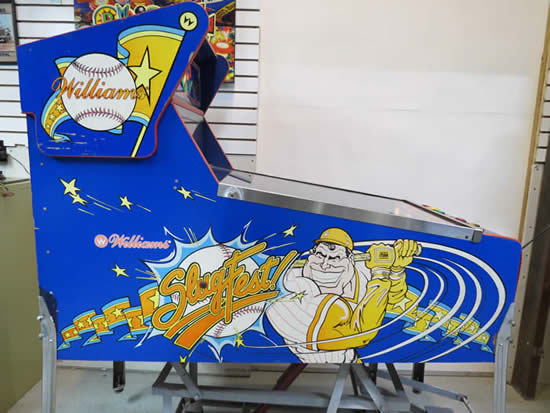

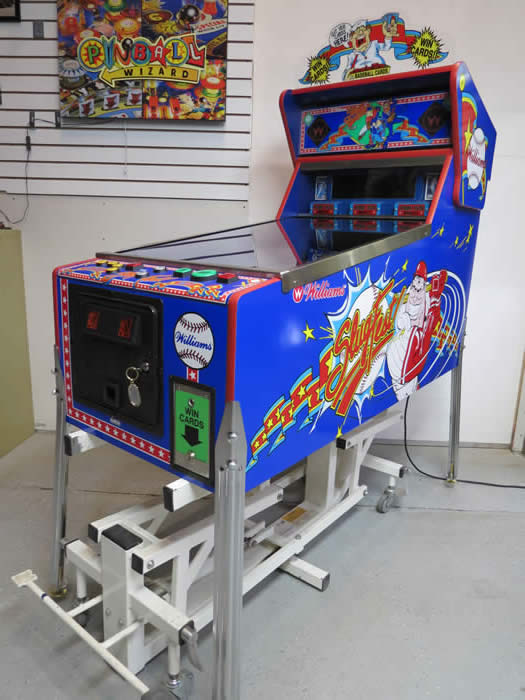

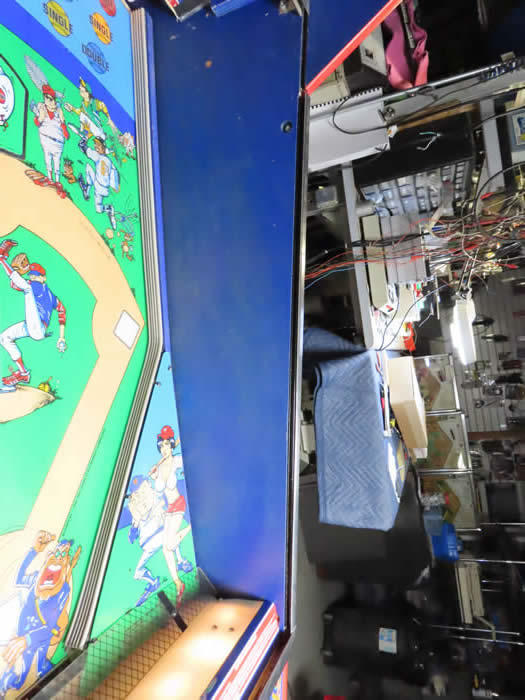

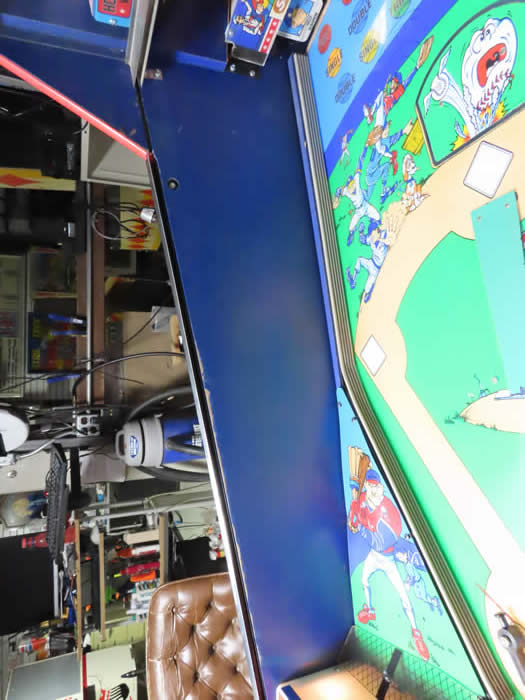

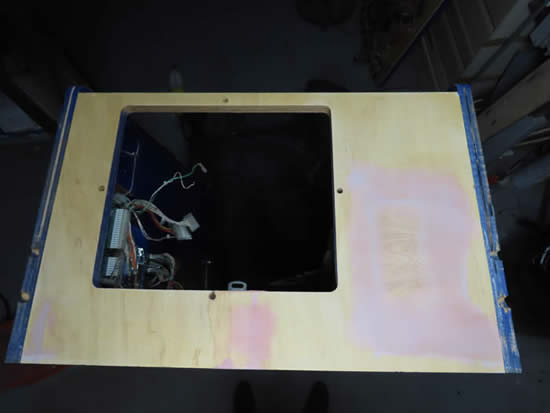

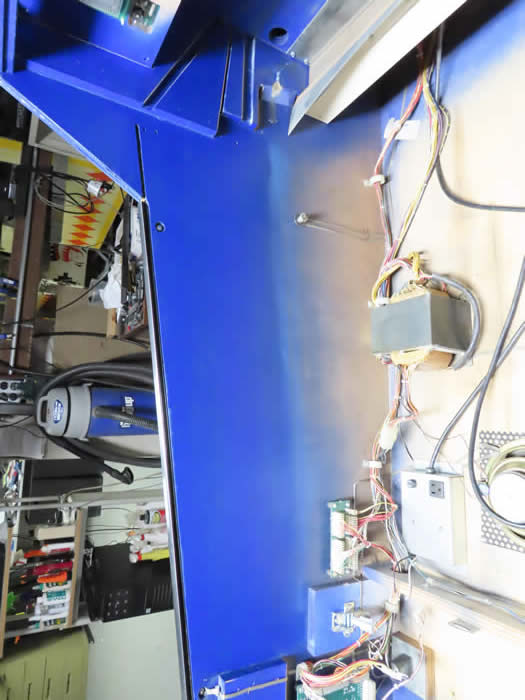

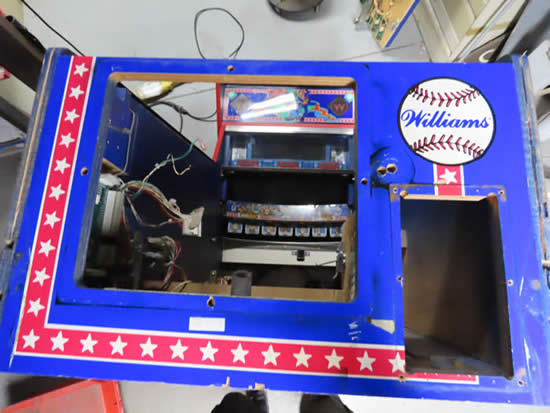

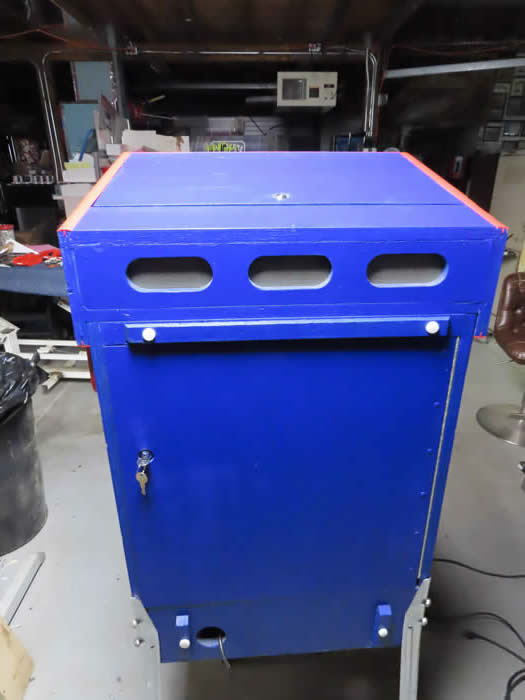

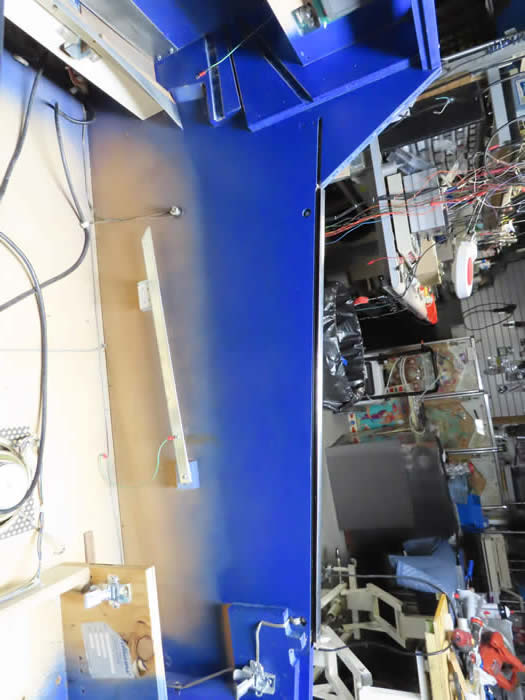

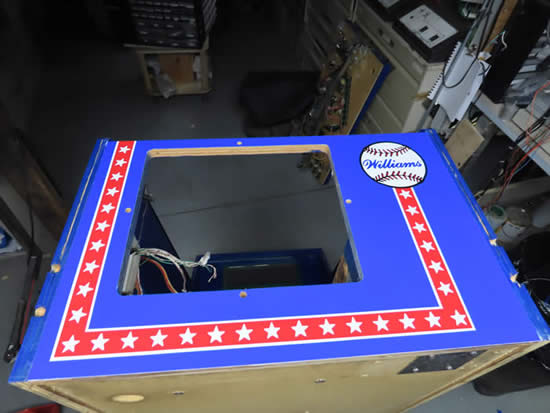

Head and cabinet is striped of all parts, and hardware, and getting ready for side art removal, & then repainted. Cabinet wood refinished, all imperfections filled, Cabinet & Head Repainted, then new side art and Red T Molding applied. New Stern leg protectors installed.

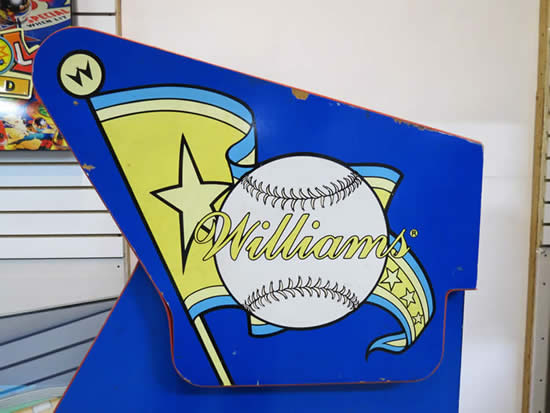

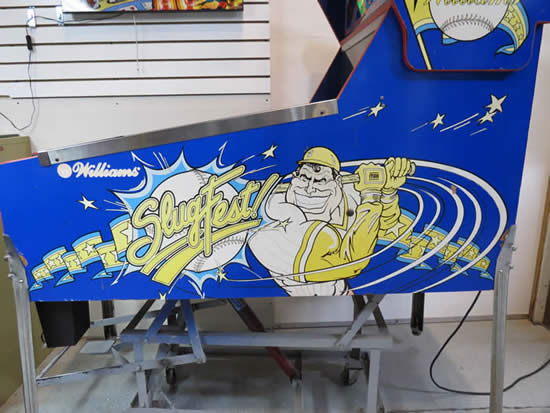

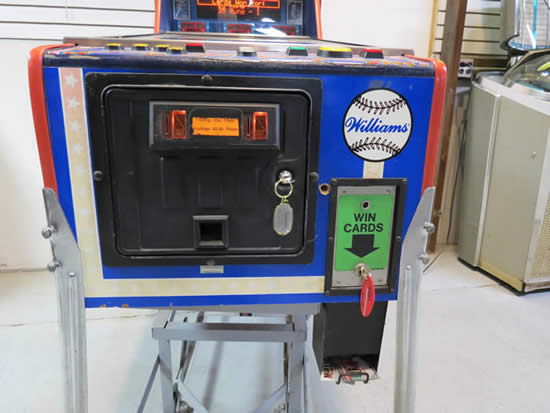

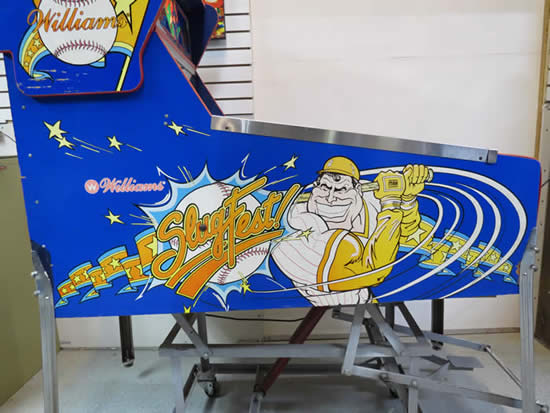

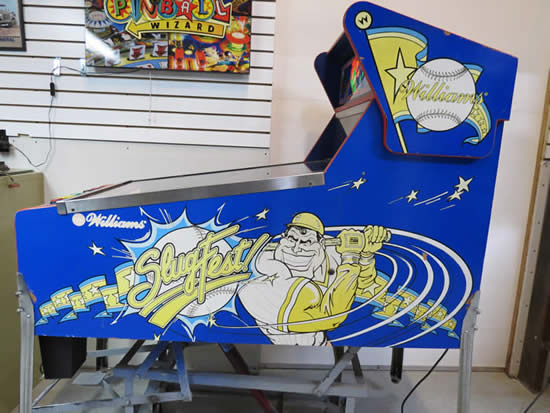

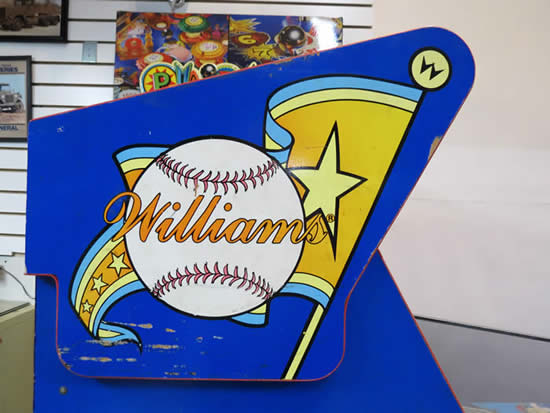

Before

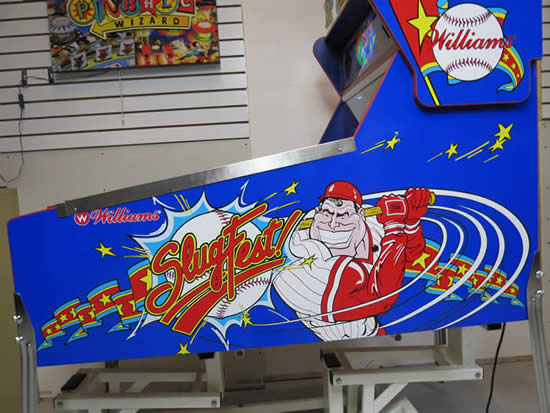

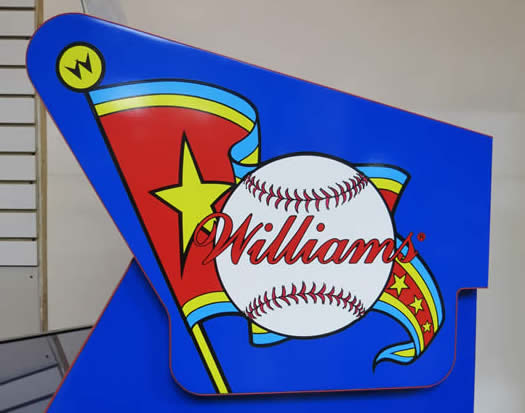

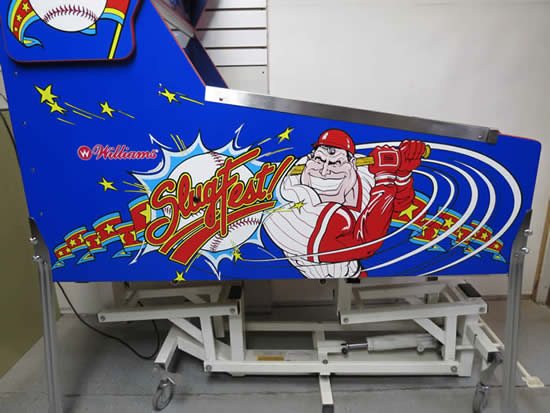

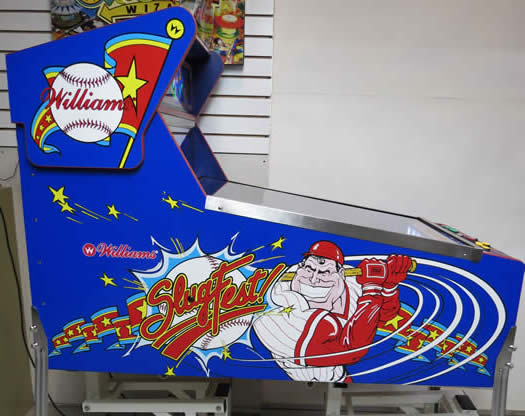

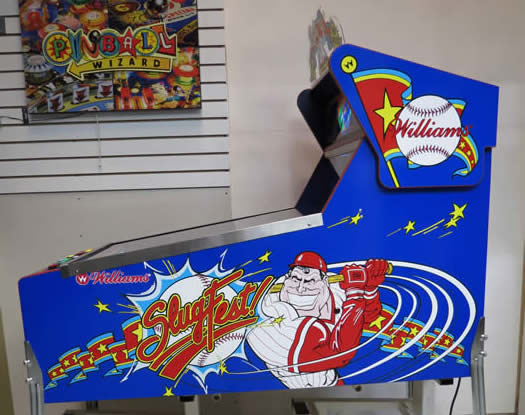

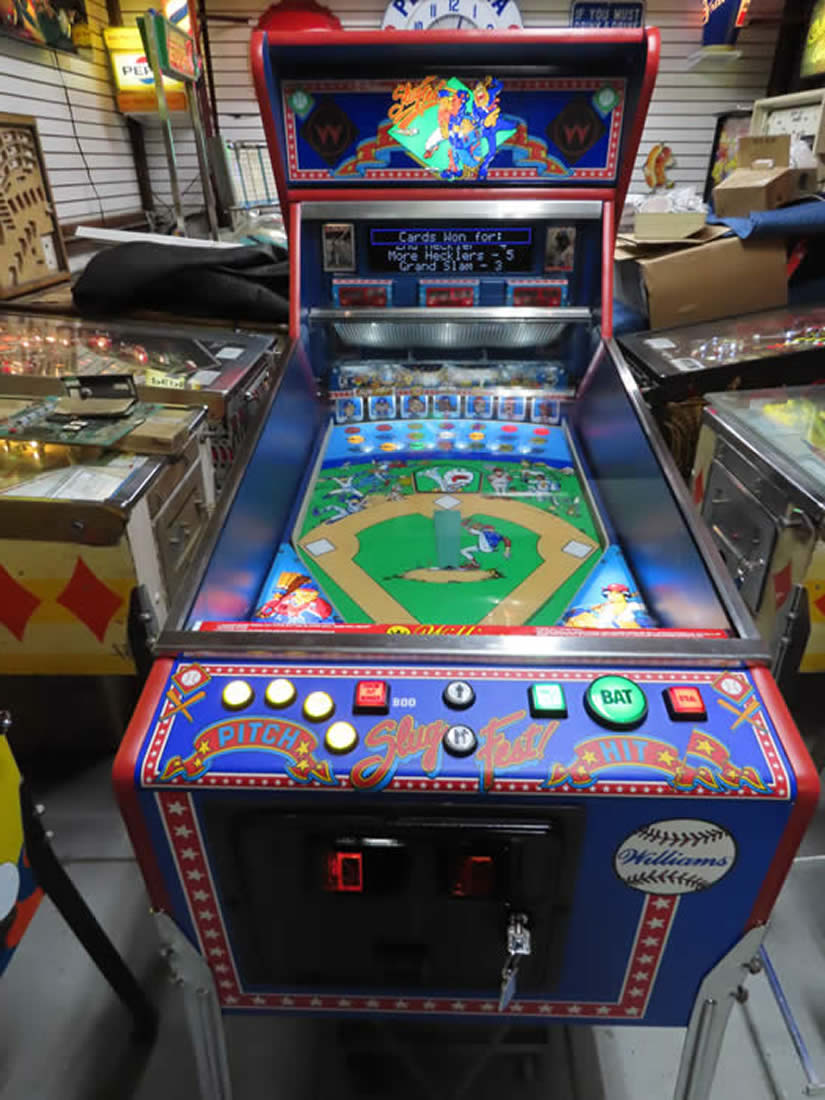

After

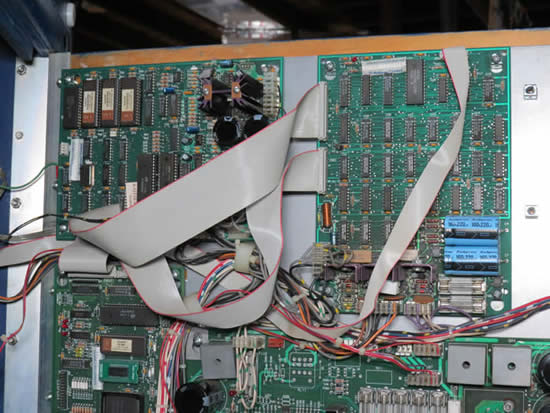

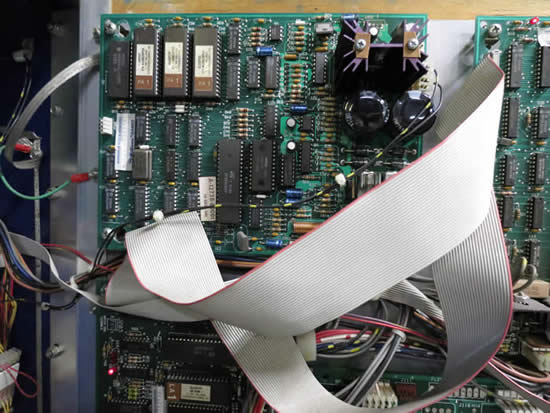

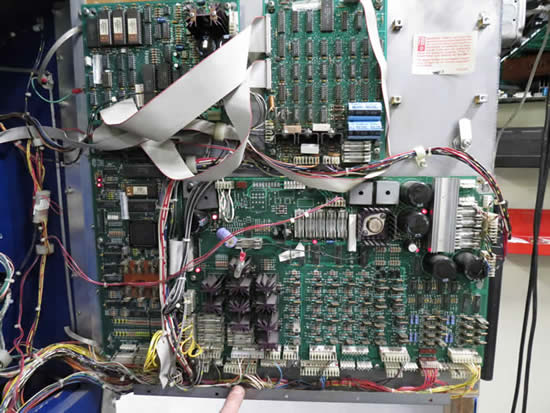

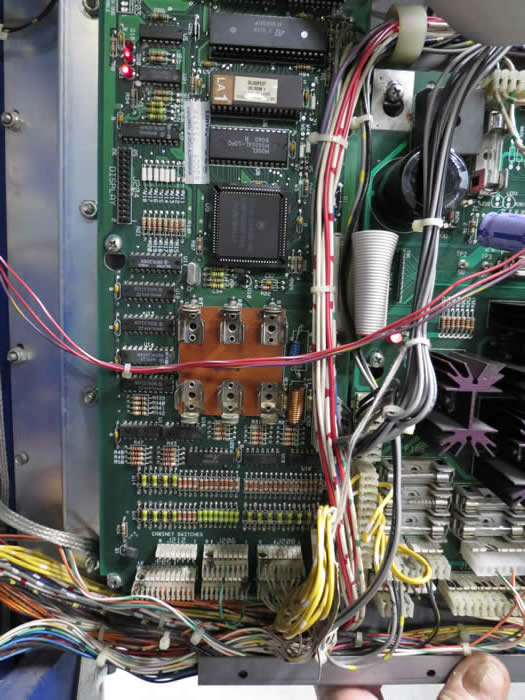

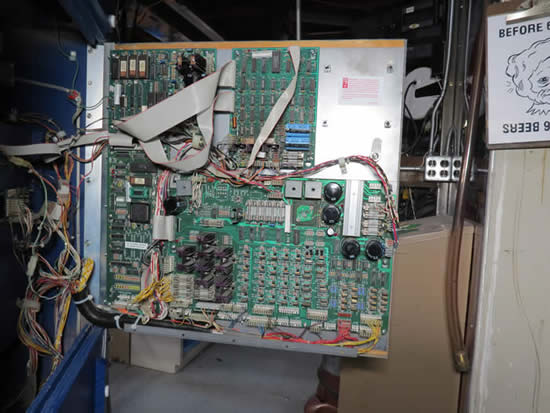

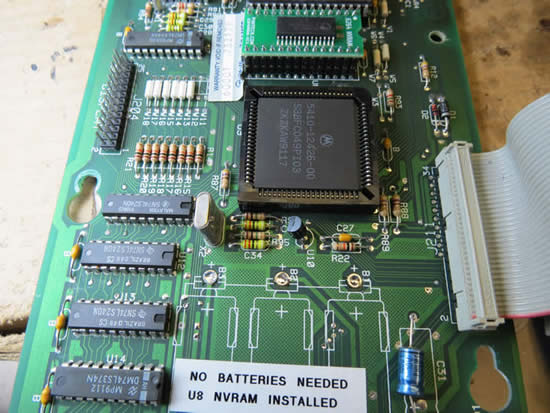

AAA Batteries removed and converted over to a NVRAM by www.pinitech.com

These modules use CYPRESS F-RAM nvram ICs rated at 151-year data retention & 100 trillion reads/writes.

So no more changing or leaking batteries, very great idea.

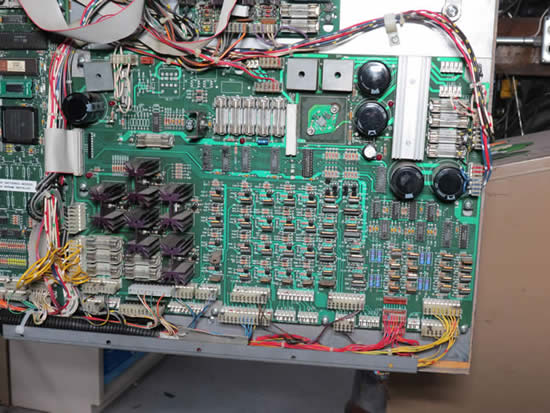

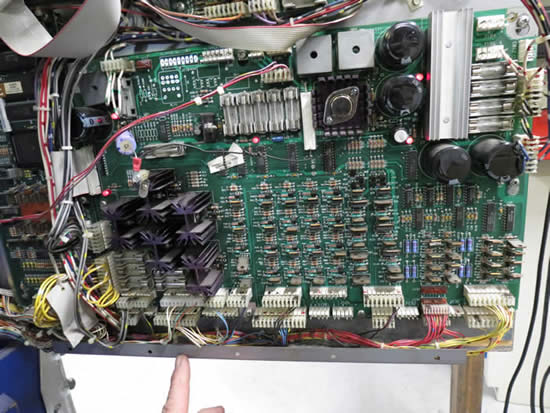

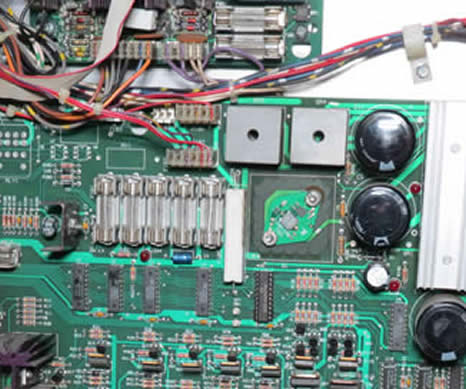

5 Volt Regulator Replaced with PSU5 LM323K Replacement

  • Drop-in replacement of the obsolete LM323K or equivalent linear voltage regulator.
  • Guaranteed 3A output current.
  • Identical input voltage range of 7.2V to 20V
  • Suitable for use in Pinball machines and video game consoles
  • High efficiency switching regulator design reduces power disspation with superior voltage regulation compare to the LM323K.
  • Thermal shutdown and current limit protection
  • Board dimensions are identical to the TO3 package of the LM323K.
  • Heatsinks are optional.
  • All components are mounted on one side of the PCB
  • Highest component is the inductor at 5mm above the PCB.
  • Available with or without pins.
  • Gold plated pins and PCB to withstand harsh environments over the long term.
  • Can drive inductive loads such as solenoids and DC motors.



PART  2

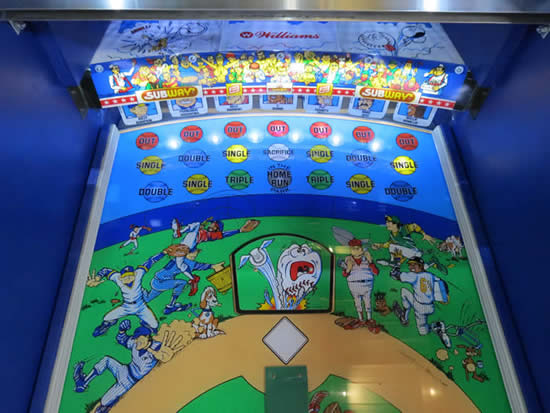

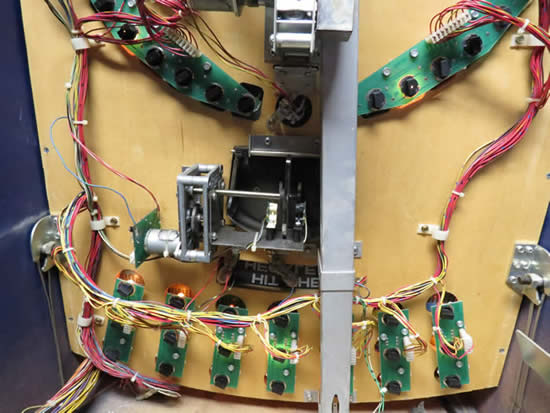

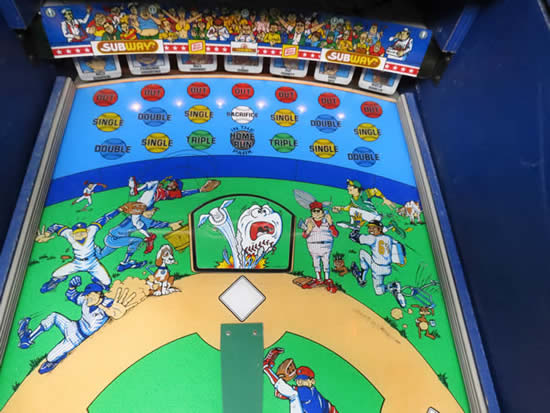

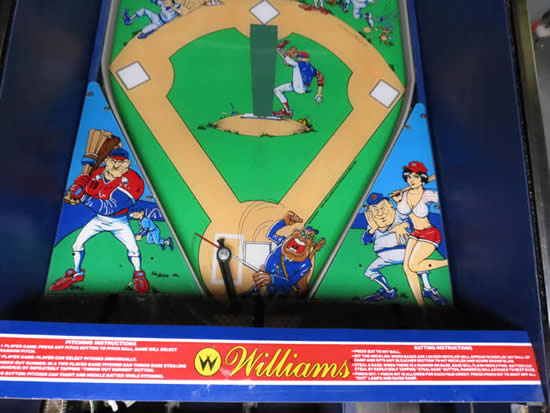

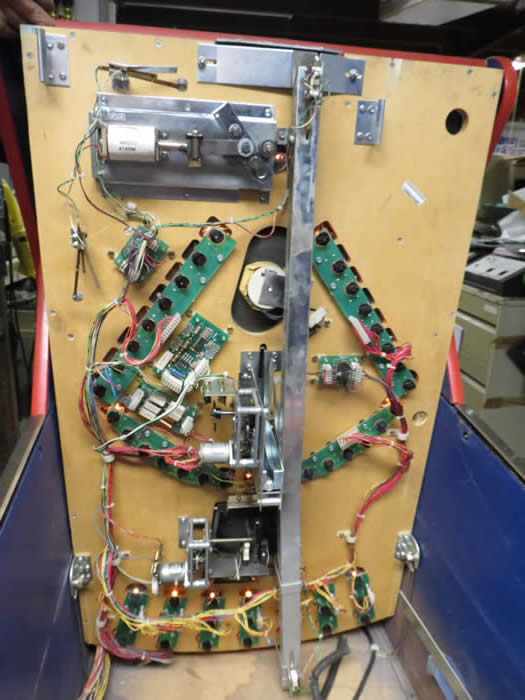

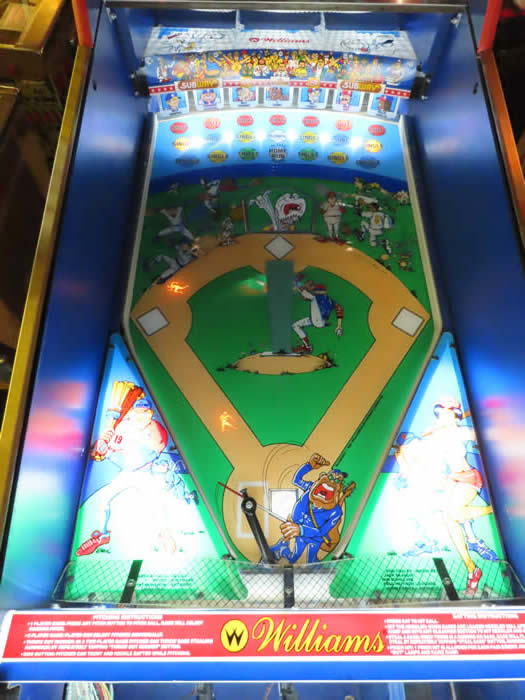

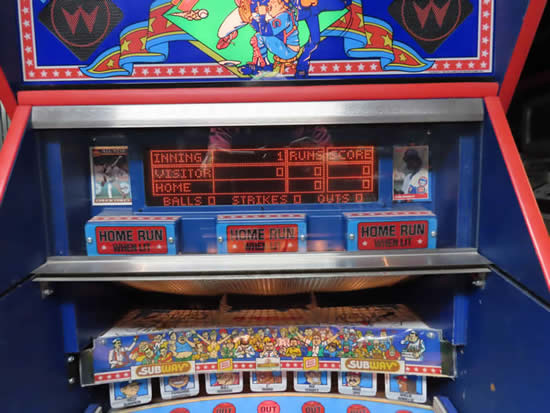

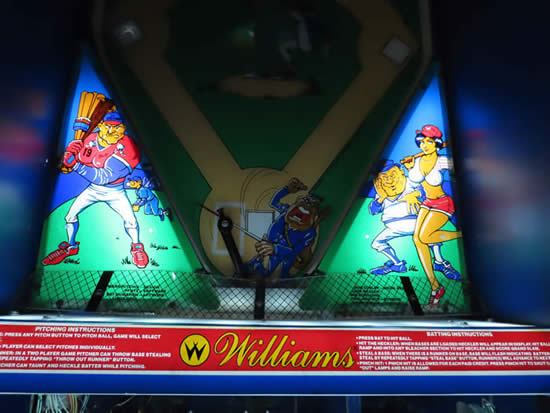

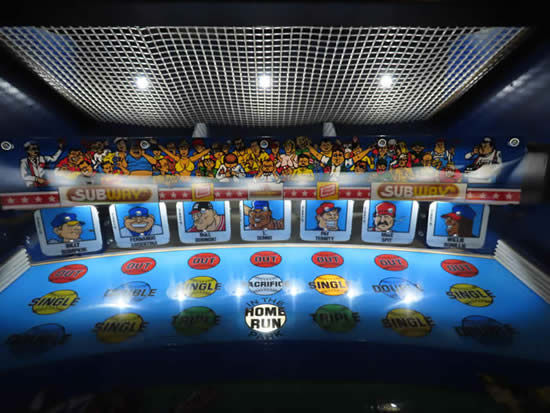

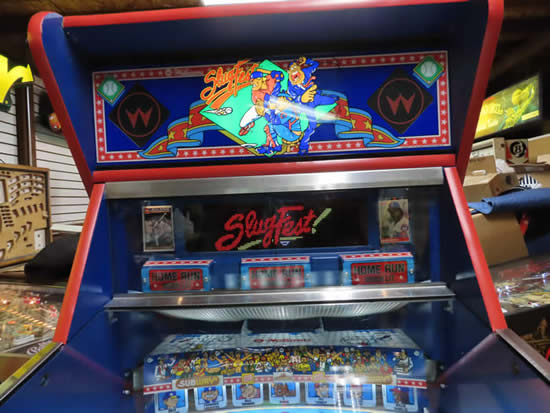

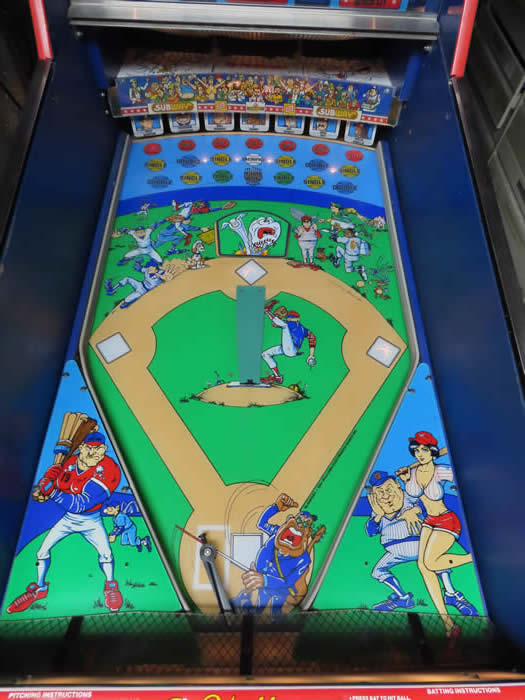

1991 Slugfest Reconditioning

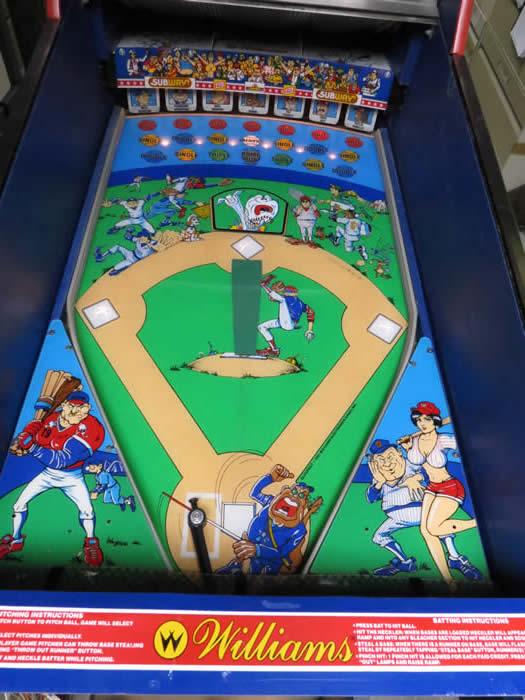

Before

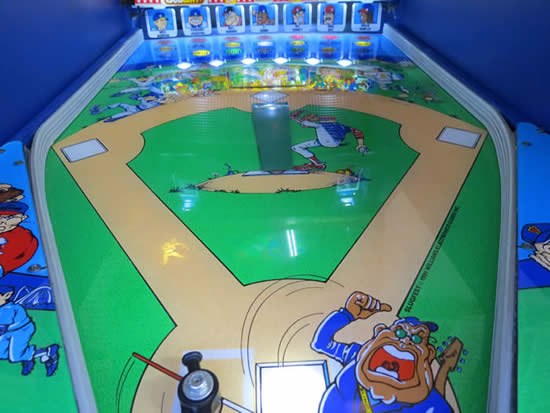

After

Thanks for looking

John Freel
