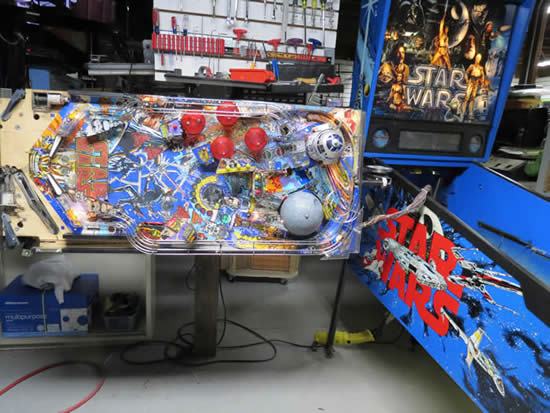

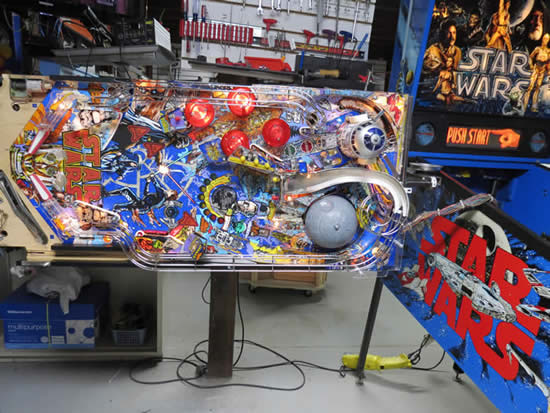

What Was On The Rotisserie

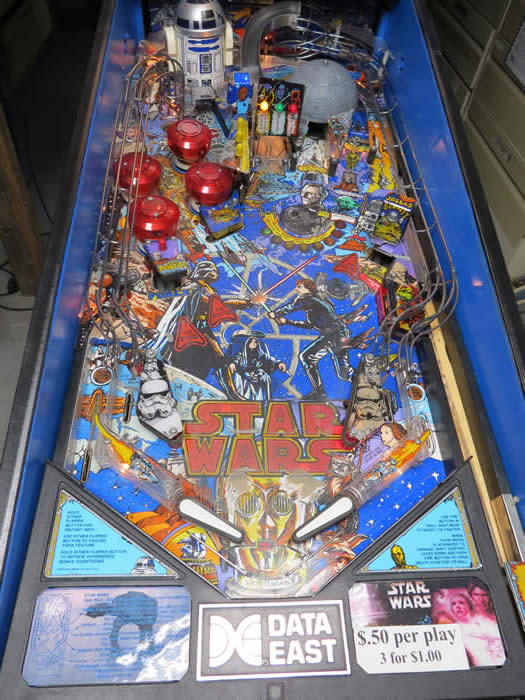

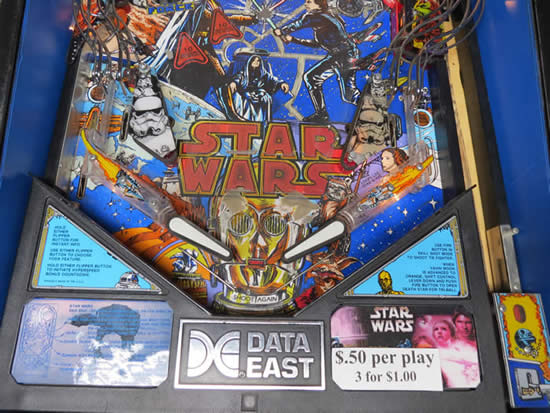

1992 Data East Star Wars (Customers)
This game is not Elkhart Pinball’s. This game belongs a customer to be given a complete check

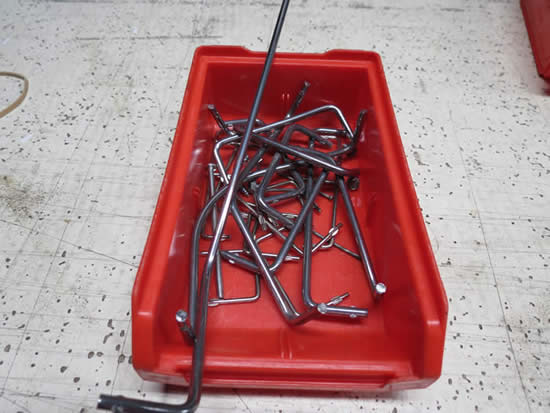

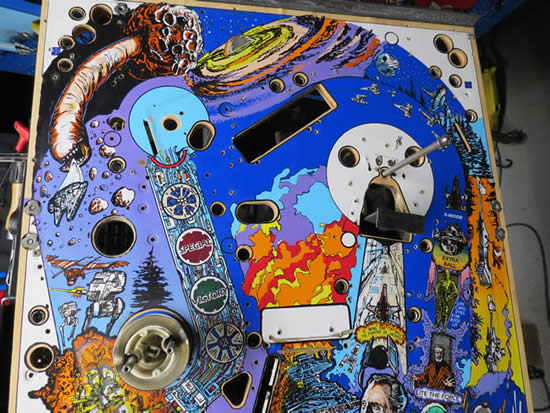

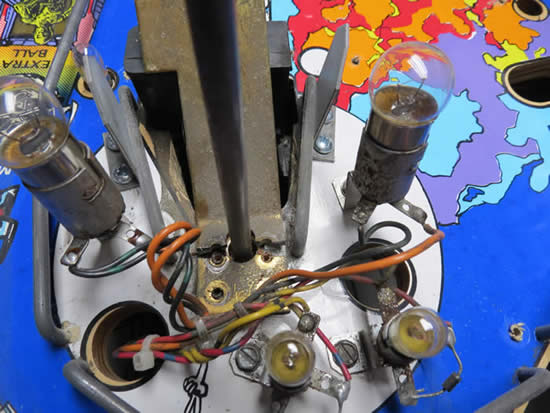

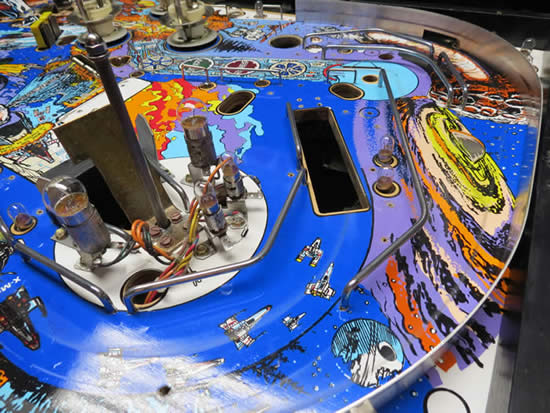

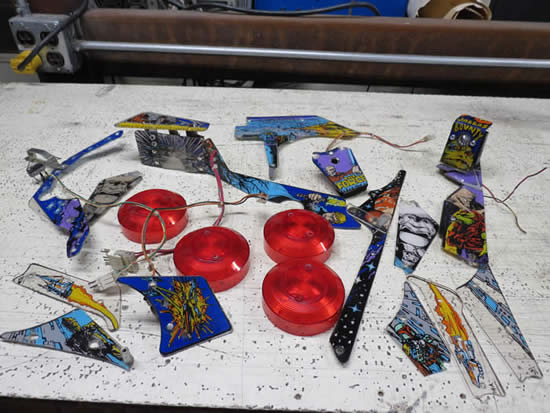

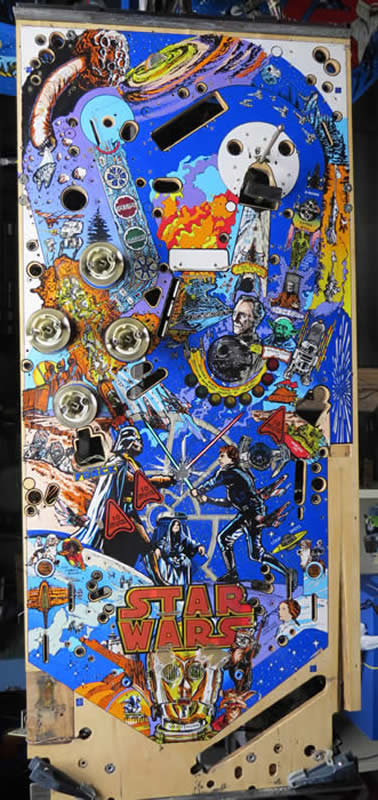

up, and Reconditioning. We will remove all playfield plastic, ramps, light bulbs and posts, clean everything removed in the ultrasonic cleaner, clean the playfield, polish it, and then reassemble the game, check all switches for proper adjustment, install new light bulbs, check all the bulbs to make sure there are no shorts in the lamp matrix. Then we will reassemble the ramps, playfield plastic set and check switches and lamps again to make sure they work properly.
AAA Batteries removed and converted over to a NVRAM by www.pinitech.com
These modules use CYPRESS F-RAM nvram ICs rated at 151-year data retention & 100 trillion reads/writes. So no more changing or leaking batteries very great idea.
New parts installed Flipper Coil Sops, Flipper Bushings, Flipper Plunger and Links, All Coil Sleeves.

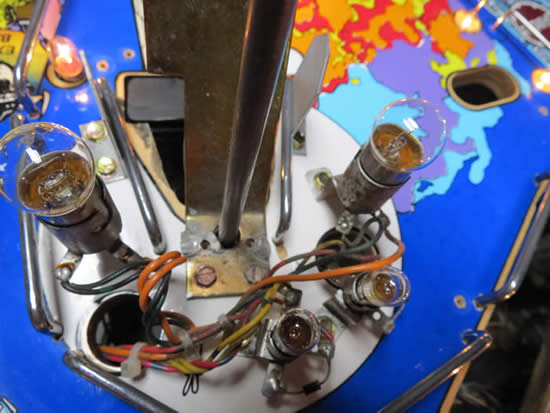

We Repaired And Cleaned up Power Supply's CN1 - CN8 - CN9, PPB Board's J5. Repaired CPU Display Section That Was Not Working. Fixed Sound Board, Sounds And Speech Was Not Coming Out All Mixed Up. Fixed Lamp Matrix To Work Properly.
We can do as little or as much to a pinball machine, what ever the customer wants.

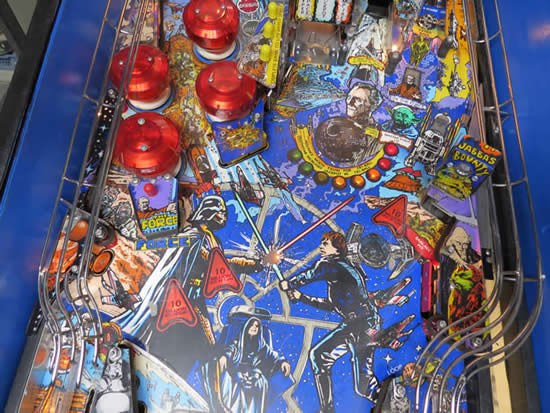

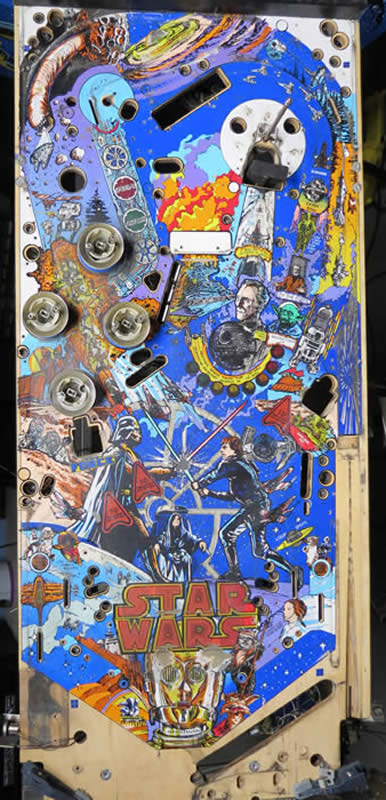

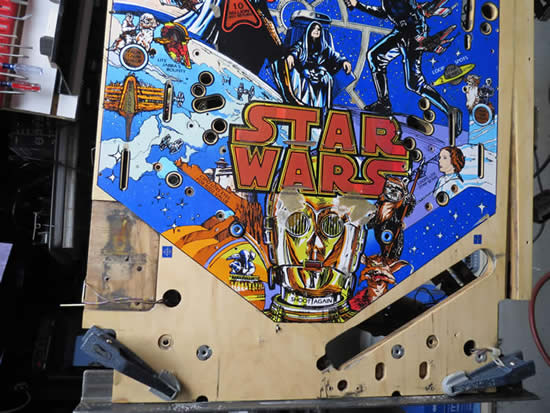

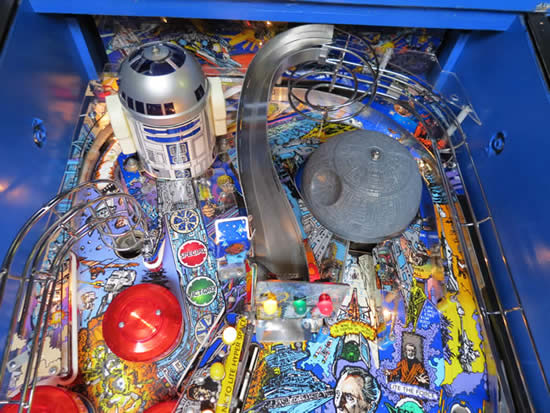

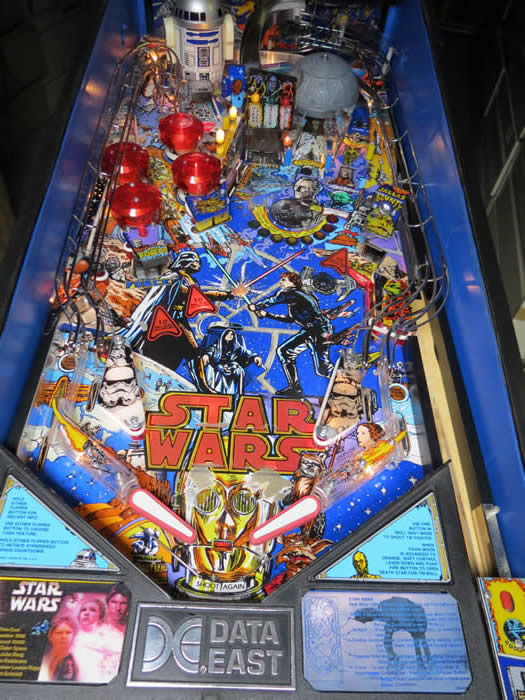

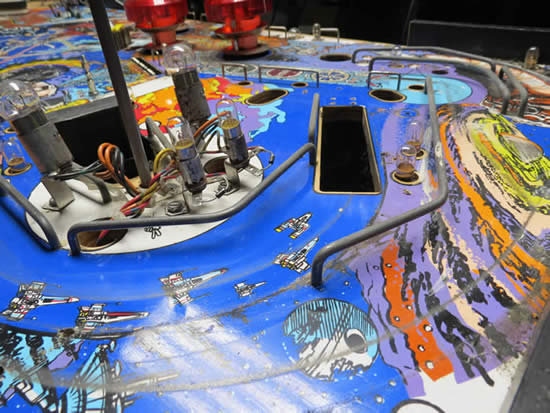

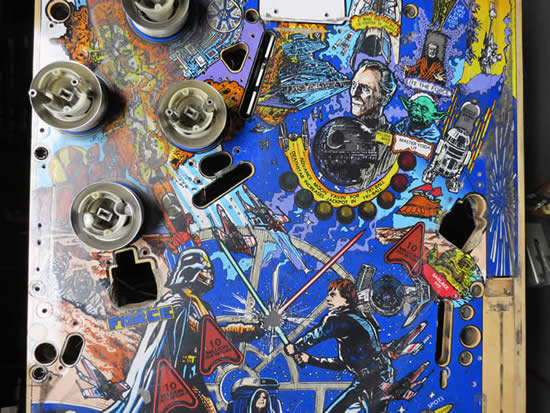

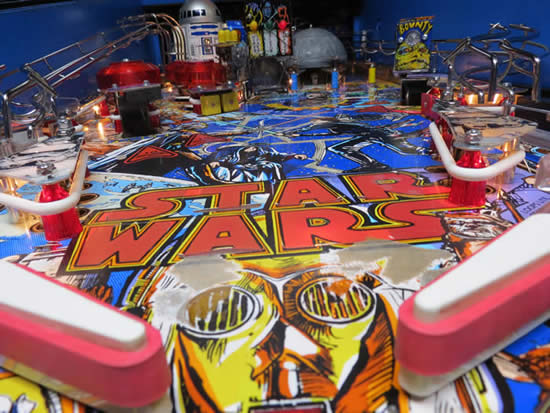

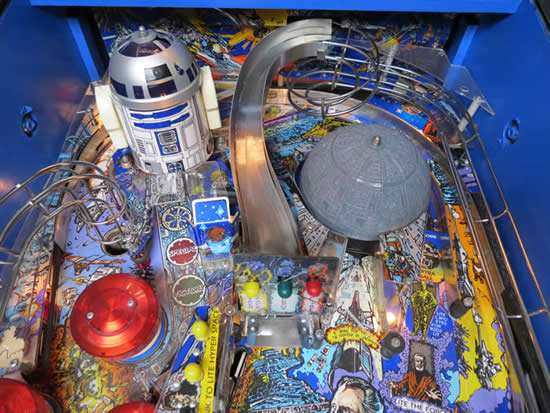

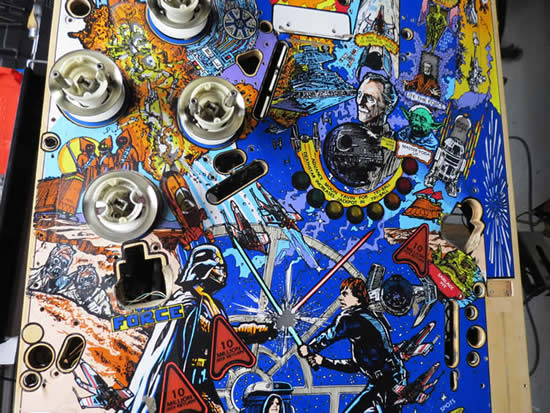

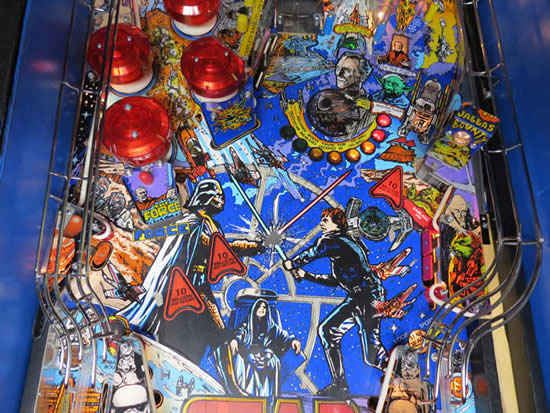

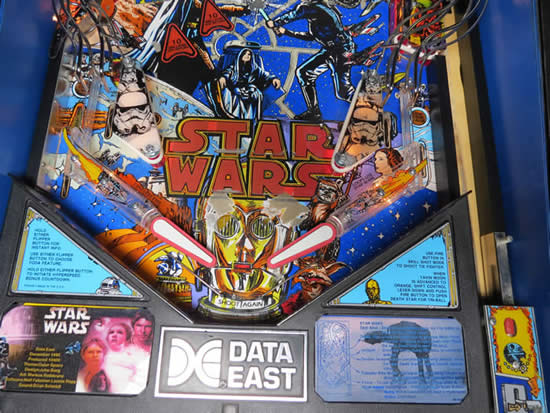

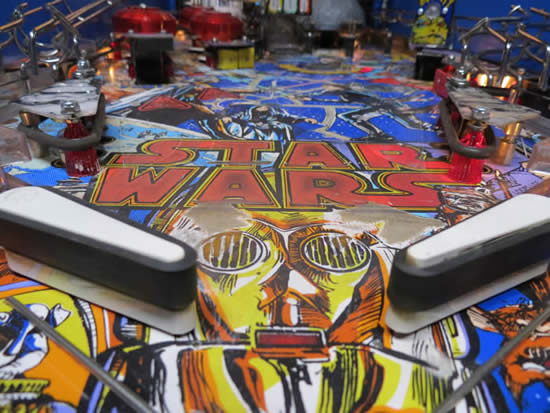

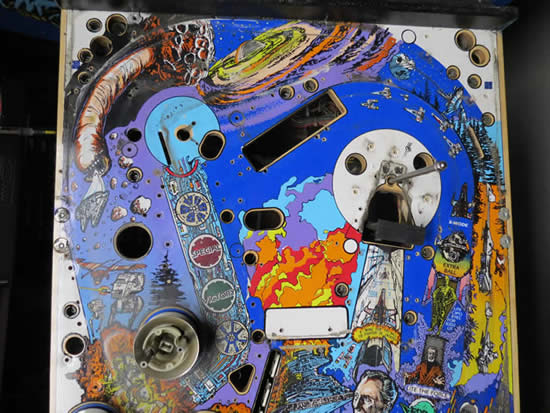

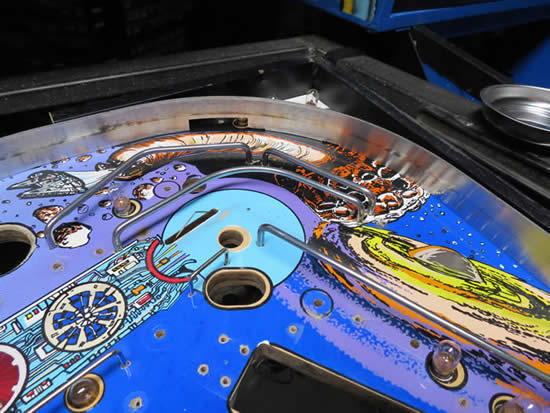

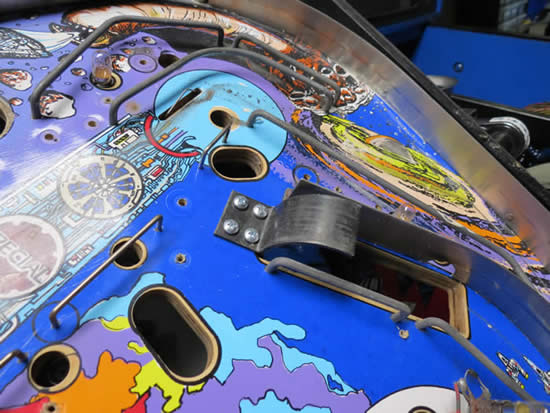

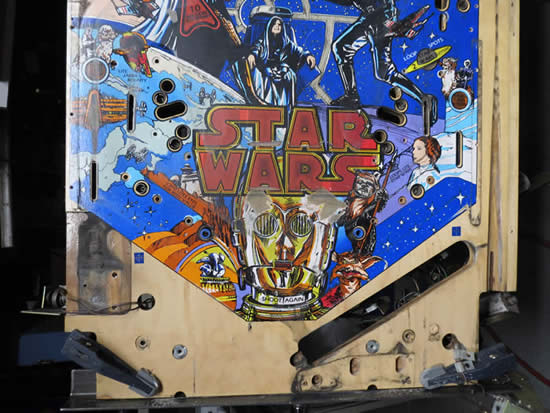

Before RECONDITIONING After

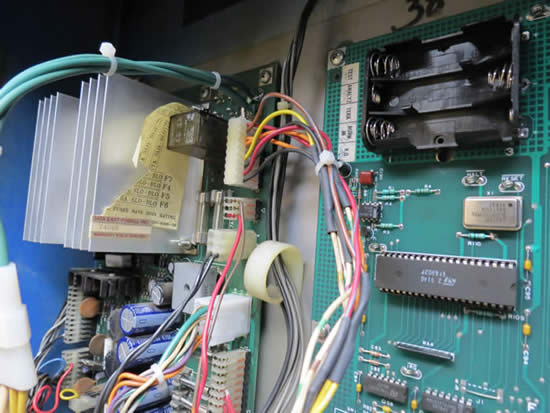

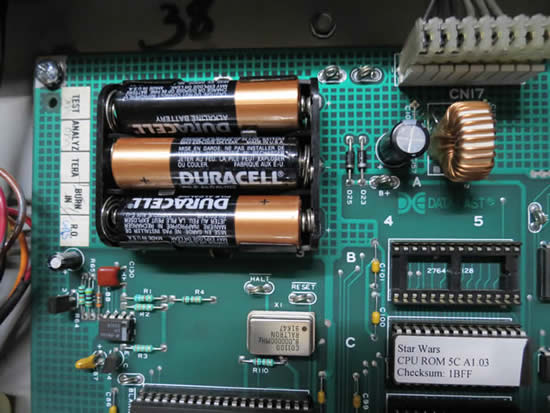

With 3 AAA Batteries

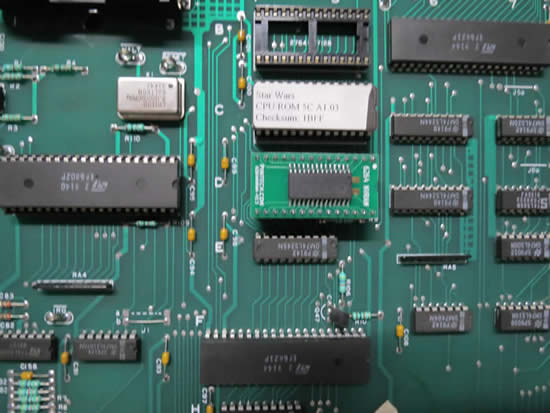

Converted Over NVRAM

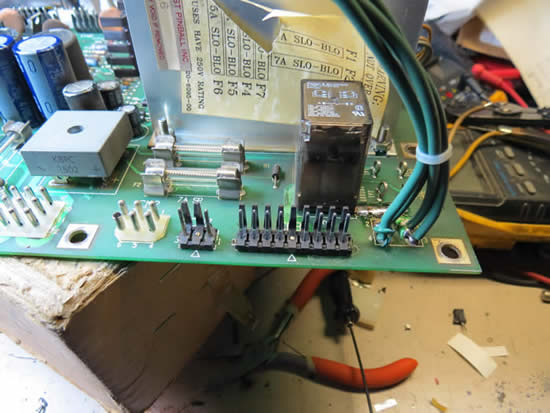

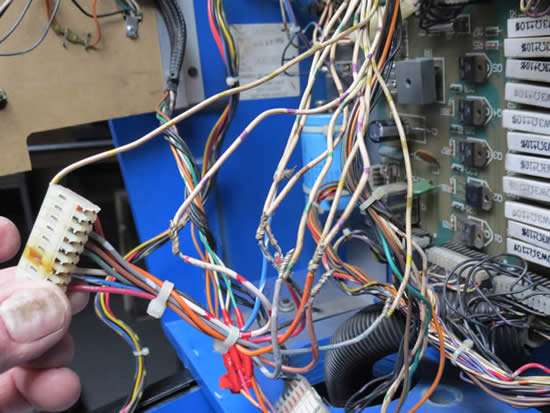

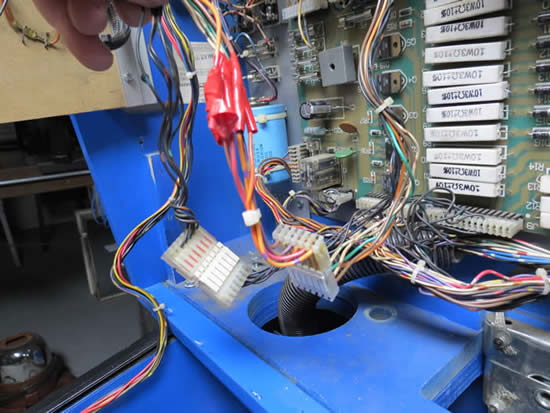

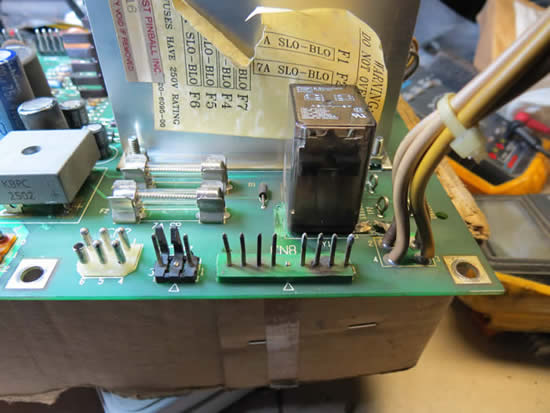

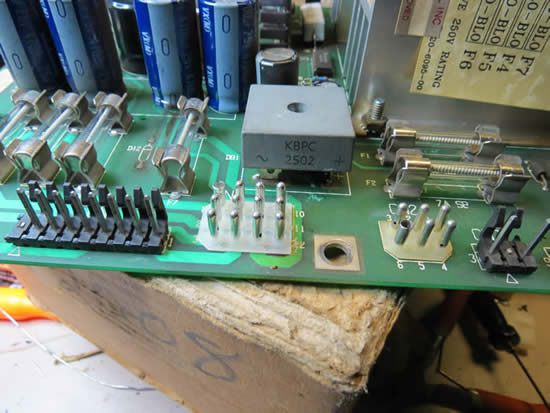

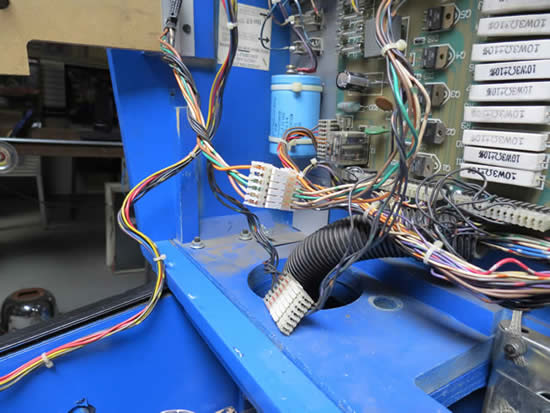

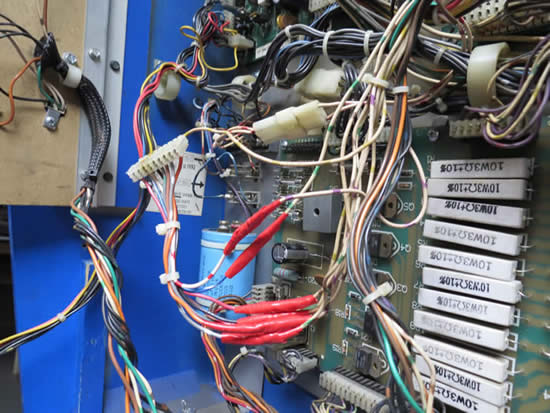

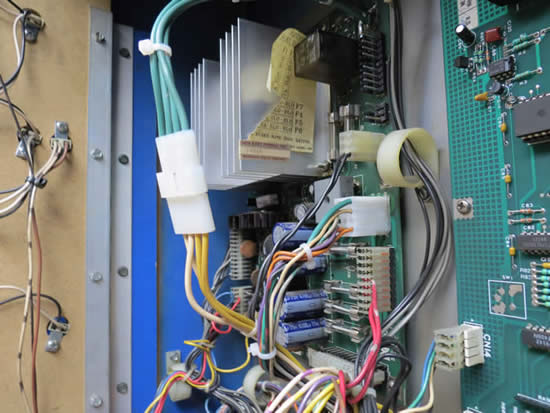

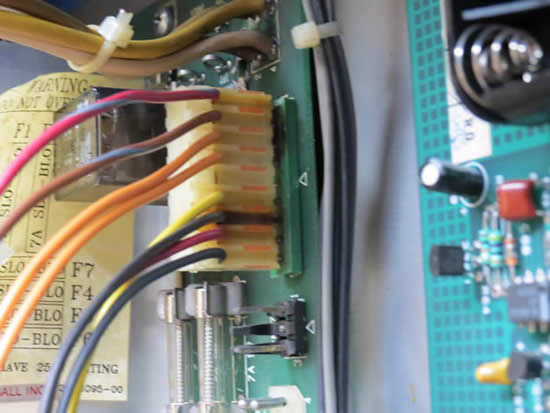

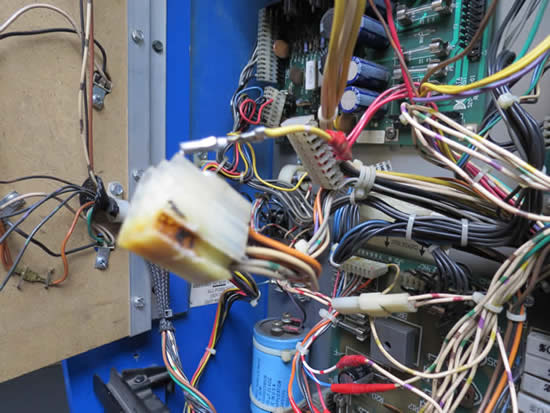

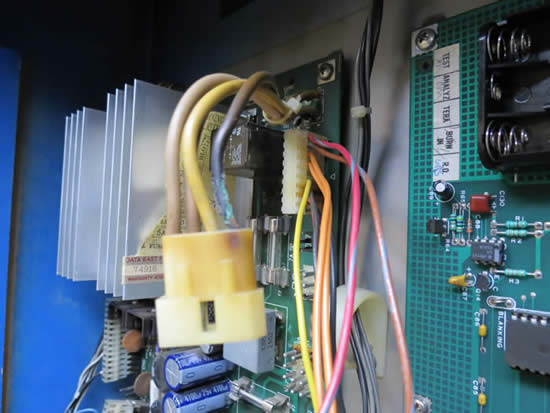

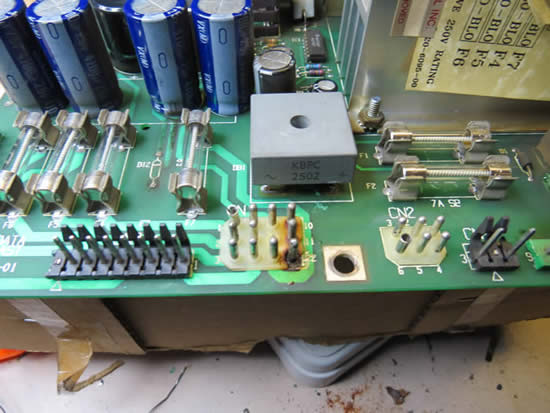

Power Supply CN 1 -8 -9
|and PPB J5 Repaired

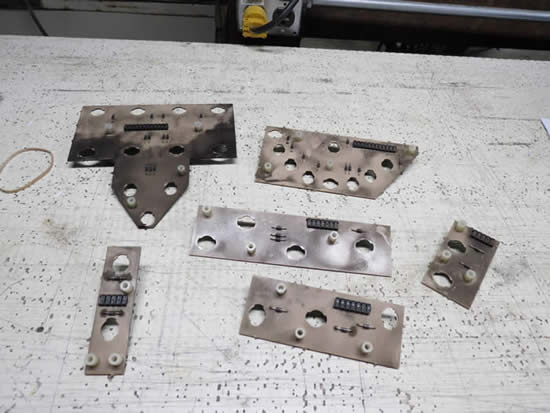

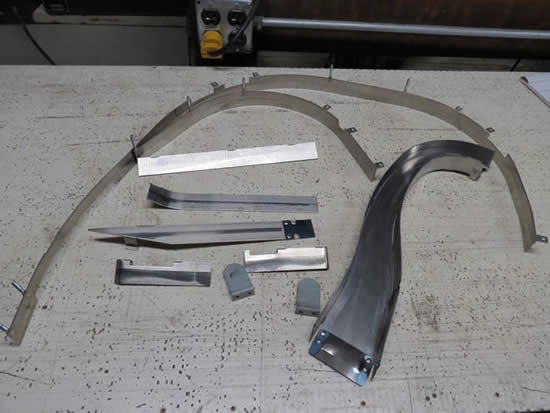

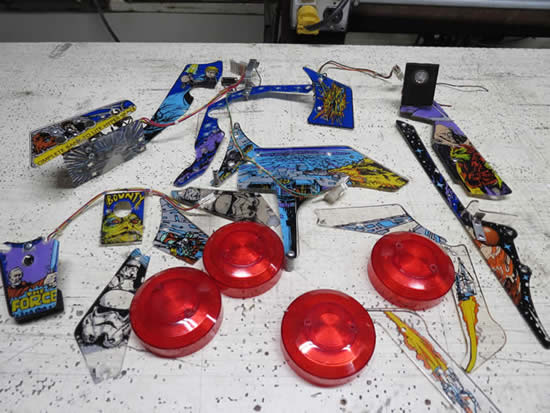

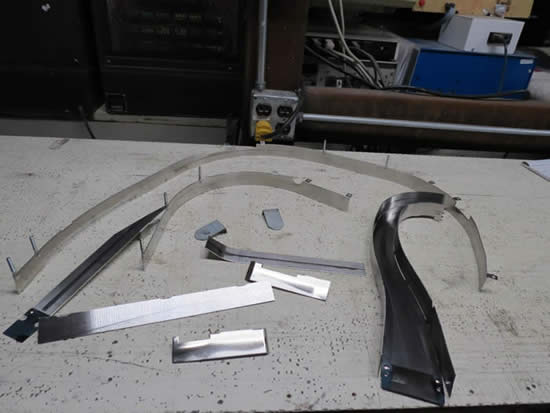

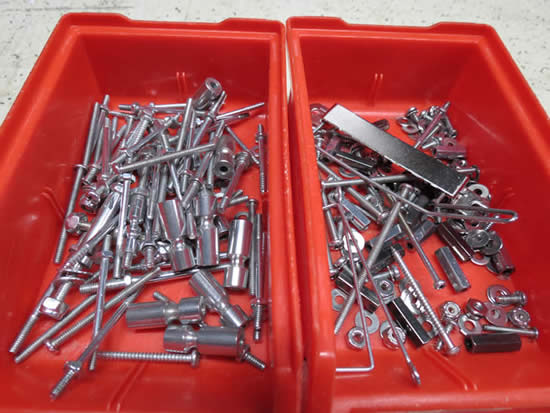

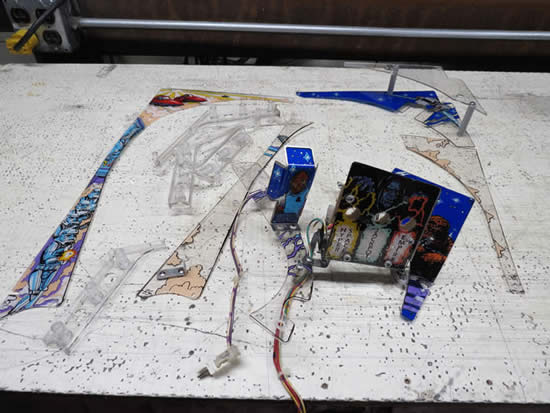

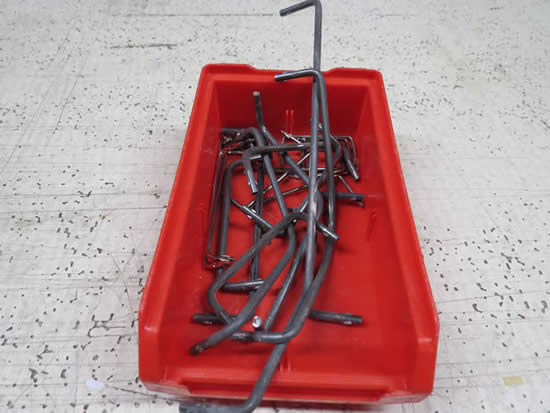

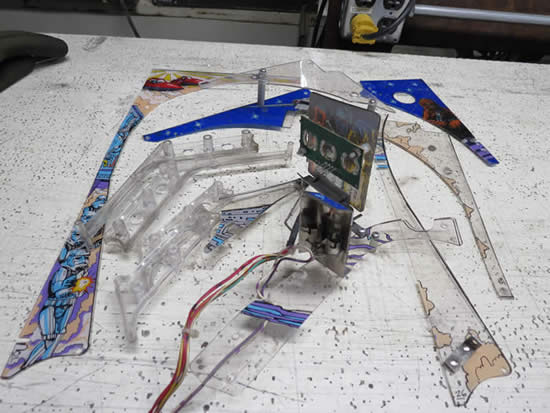

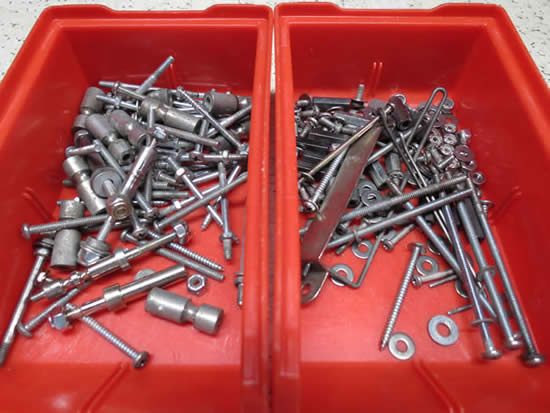

Before Cleaning in the ultrasonic cleaner After
Thanks for looking
