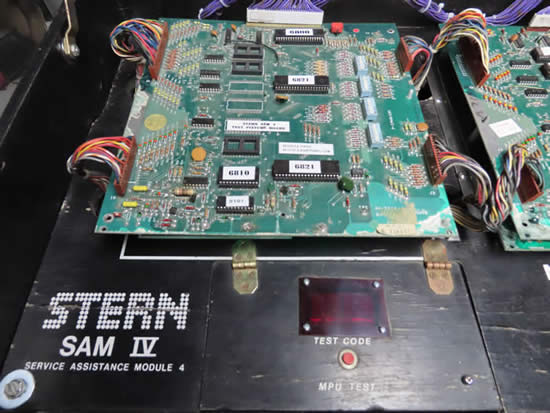

Stern Factory S.A.M. IV Test Fixture

SOLD on 03-21-22

This is a very rare and hard to find test fixture.

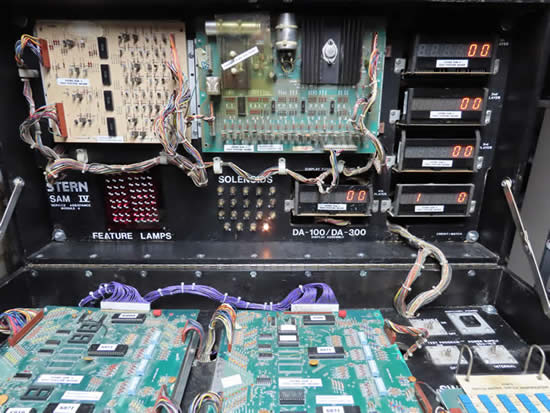

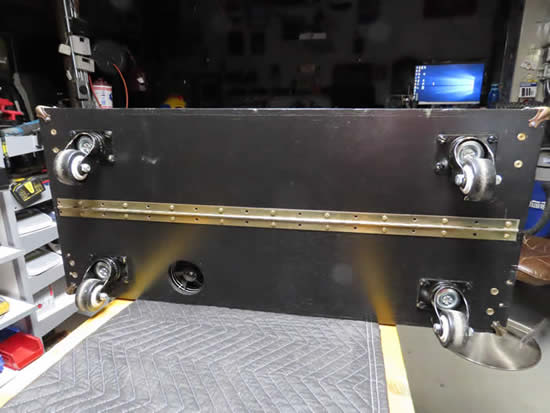

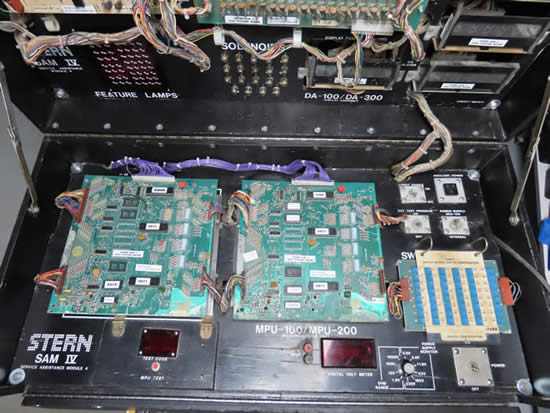

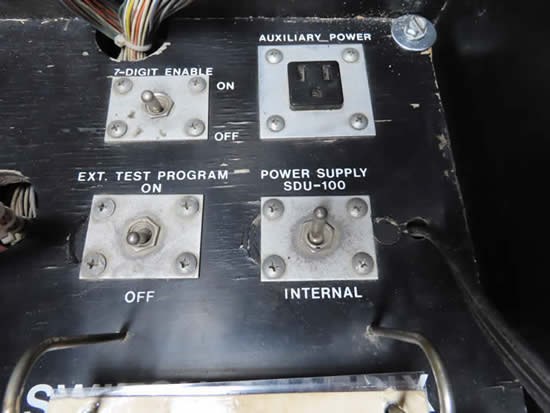

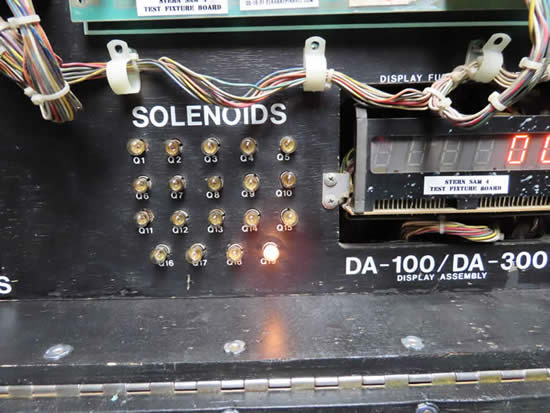

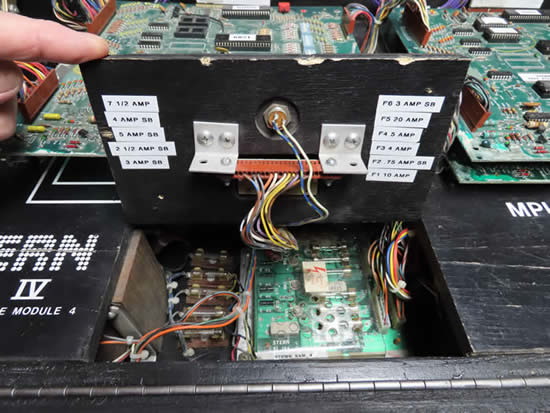

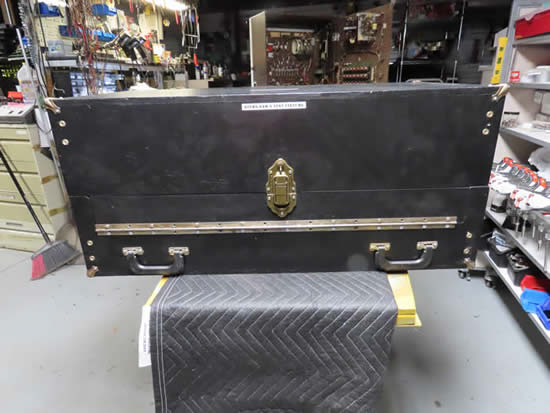

This a suitcase type test fixture can test All Bally/Stern CPU's, Solenoid Driver Board, Light Driver Boards, 6 & 7 Digit Displays. With this test fixture you can do diagnostic test on Bally/Stern CPU's. It has it own power supply, so you don't need a working solenoid driver board on top, to o the CPU diagnostic test.

With this test fixture you can run the test features as if it was in a pinball machine, and run it as a pinball game simulator.

All test features mentioned above work as they should.

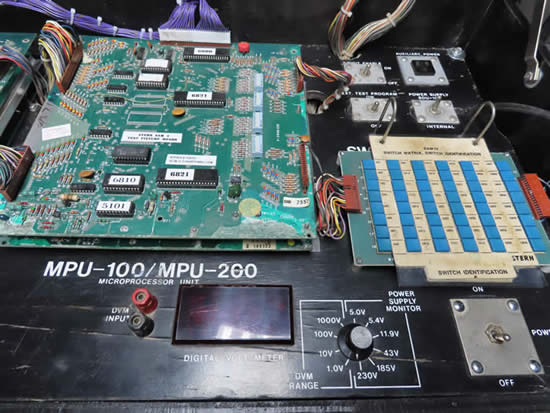

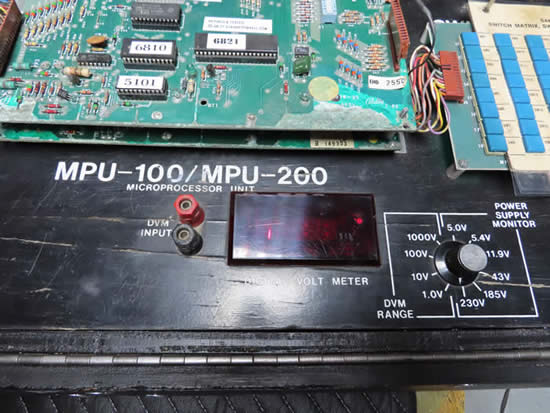

It also can test Stern sound boards.It is all there but I don't know if it works (I don't have a working sound board to try this test feature). It has a built in voltage tester, that I can't get it to work, it appears to be all there.

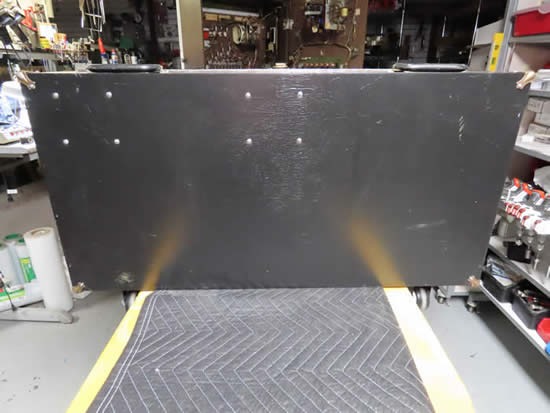

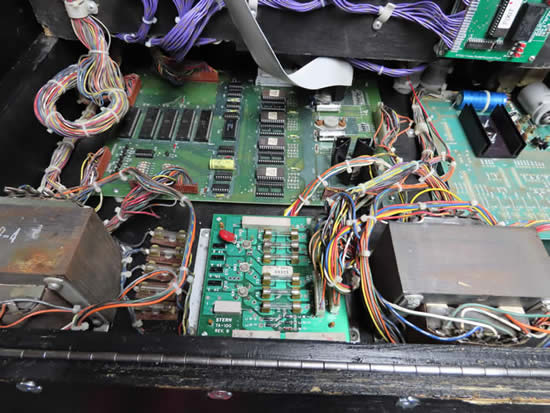

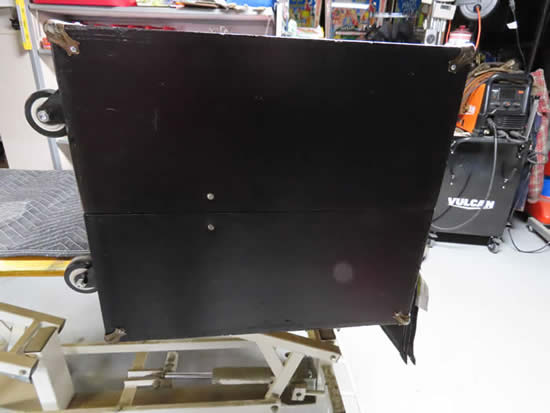

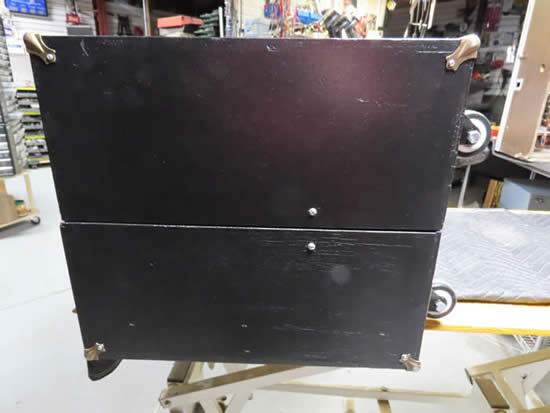

Everything you see in the pictures in the suitcase will be sold for one price.

Include in the suitcase

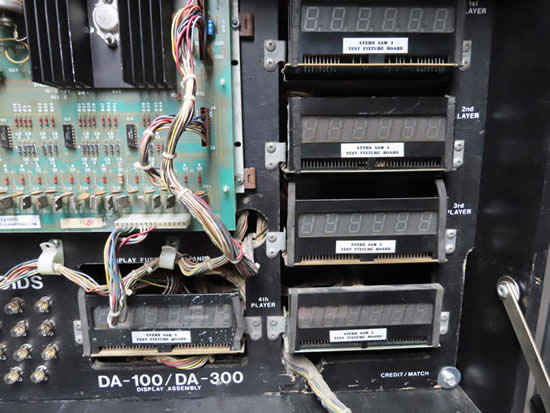

5 - 6 digit working displays with no burn marks in the tubes.

3 - Working Bally CPU's

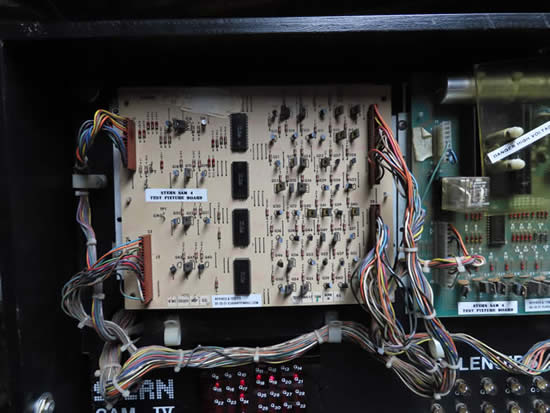

1 - Working Stern Light Driver Board

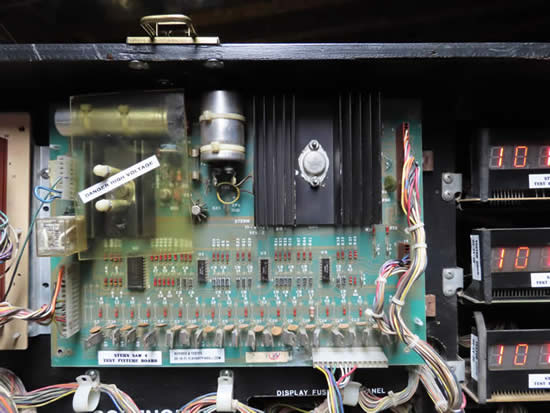

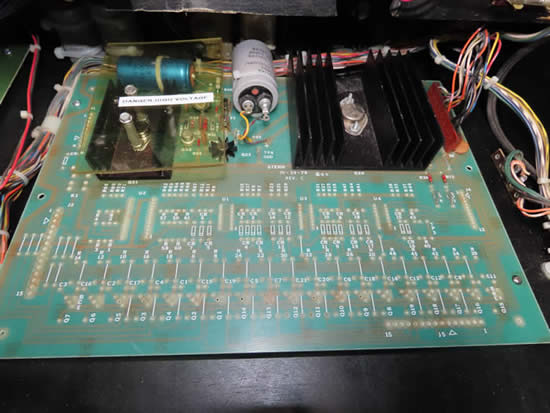

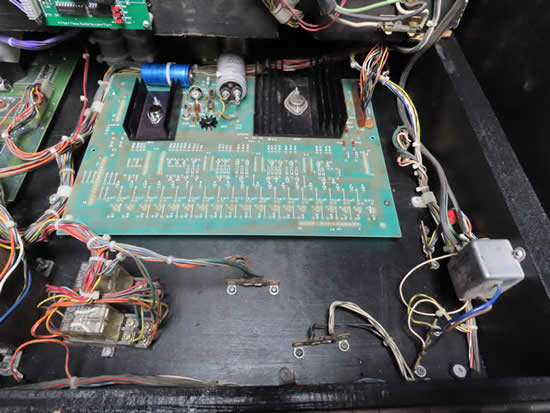

1 - Stern Solenoid Driver Board

1 - Stern S.A.M. II Test Fixture Manual





Thanks for looking

John Freel
