Elkhart Pinball Inc.

This game belongs to a customer

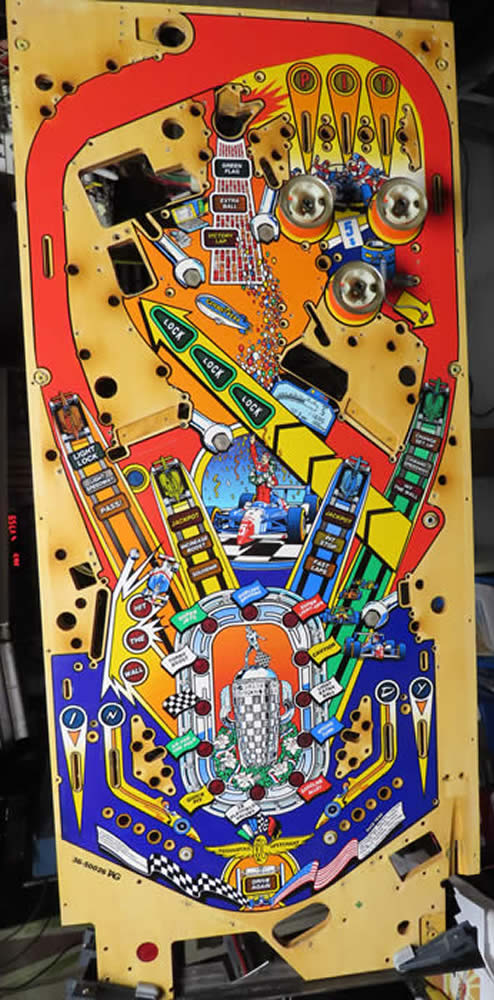

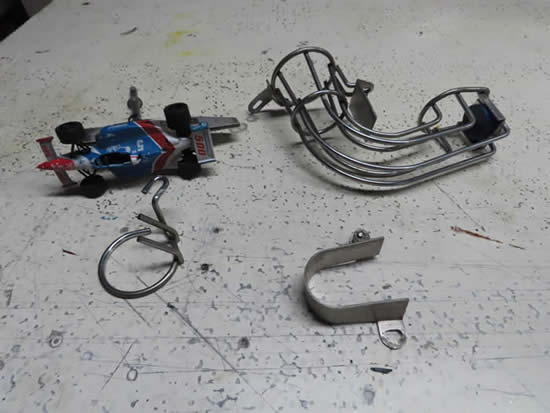

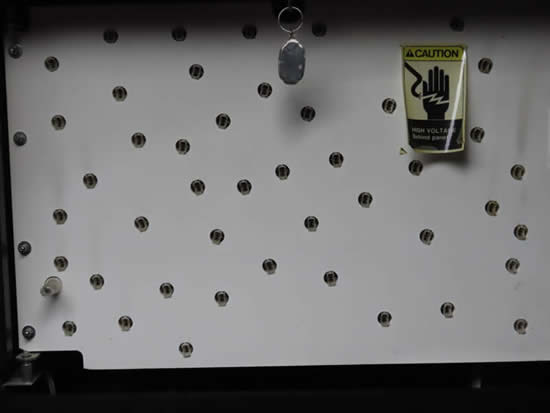

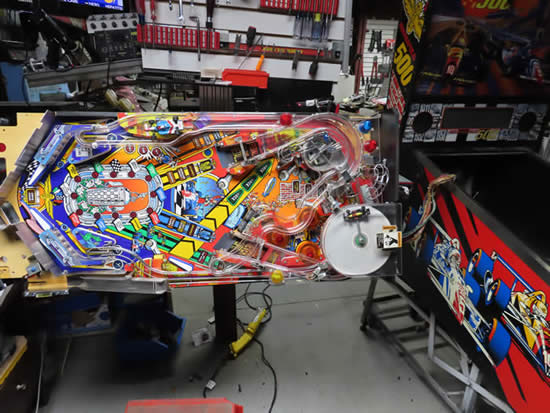

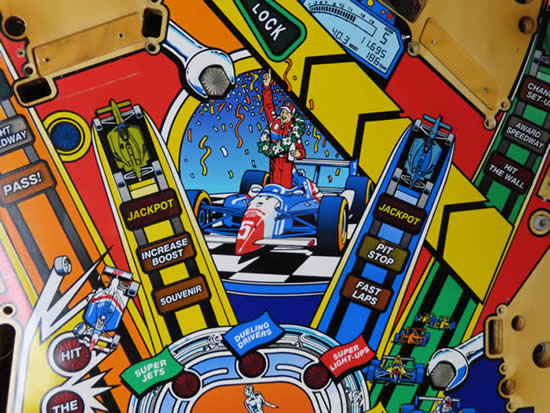

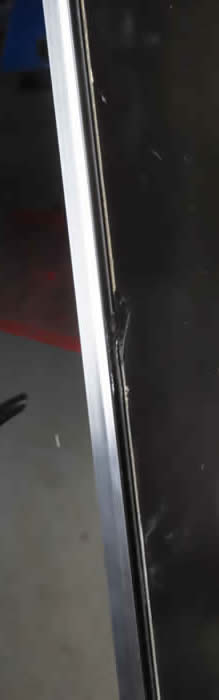

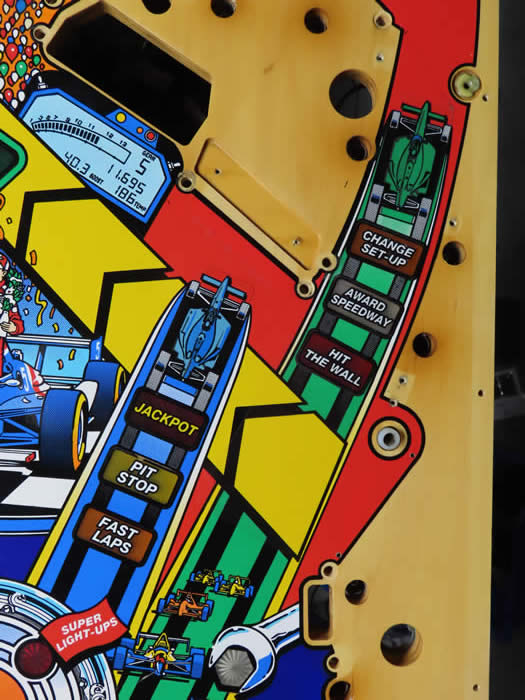

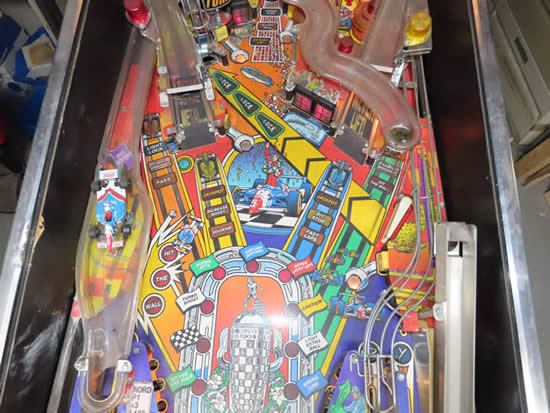

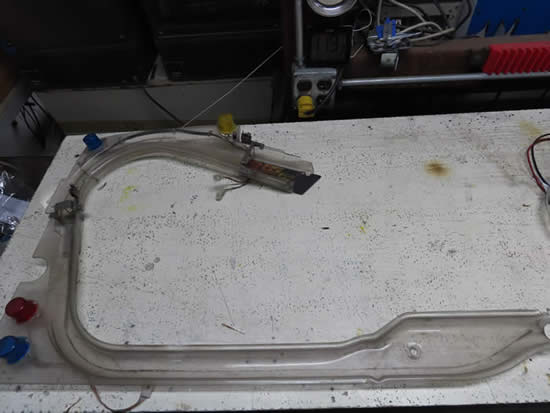

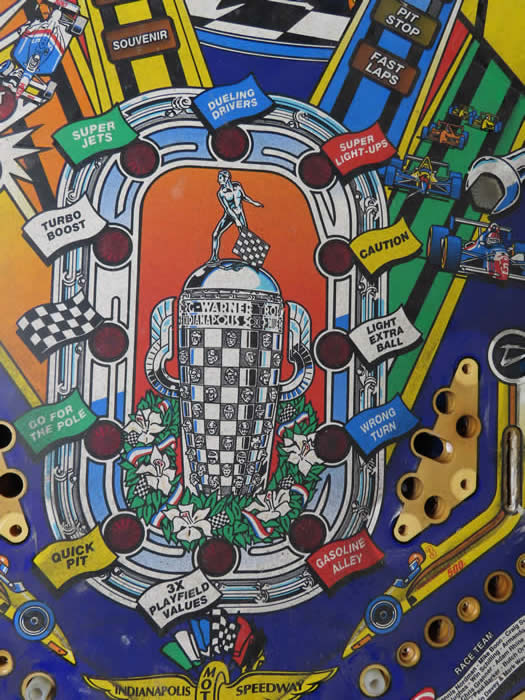

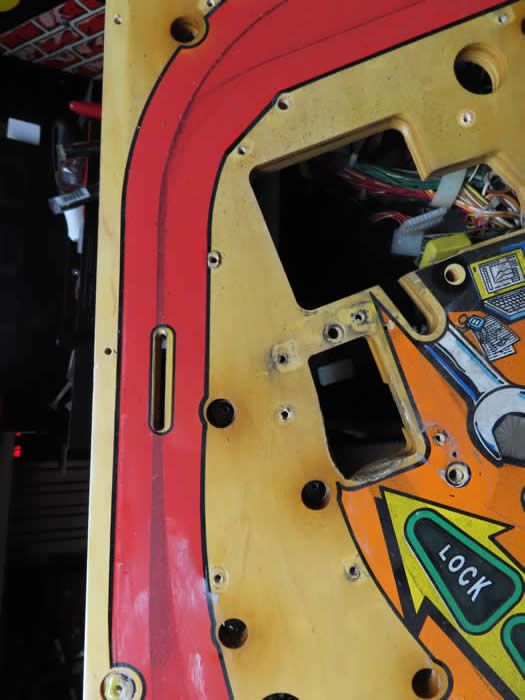

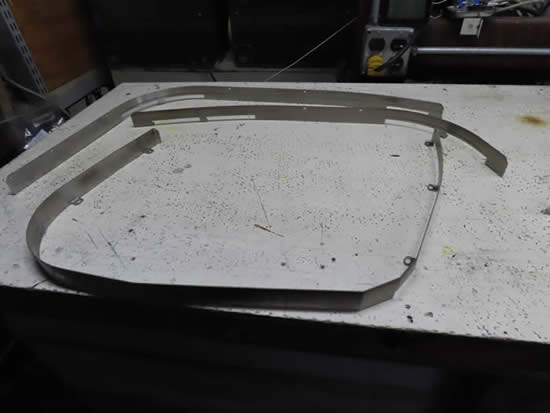

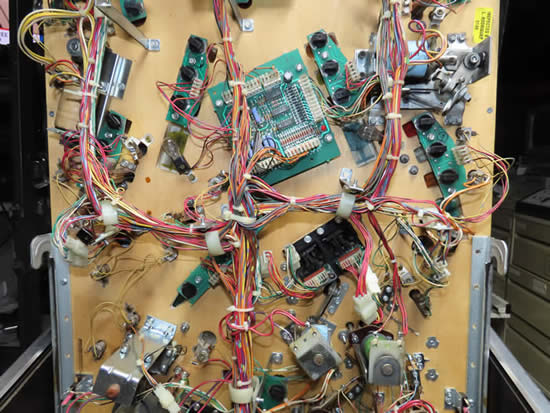

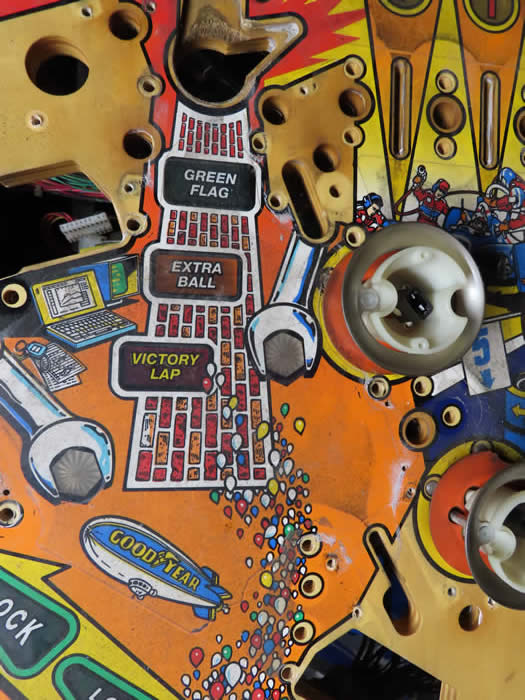

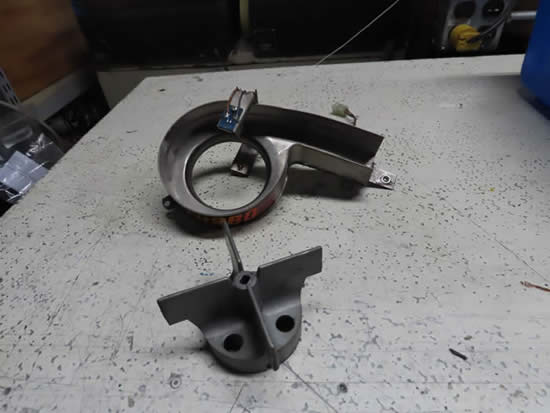

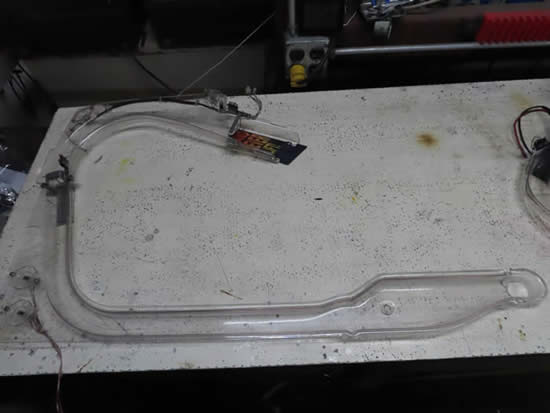

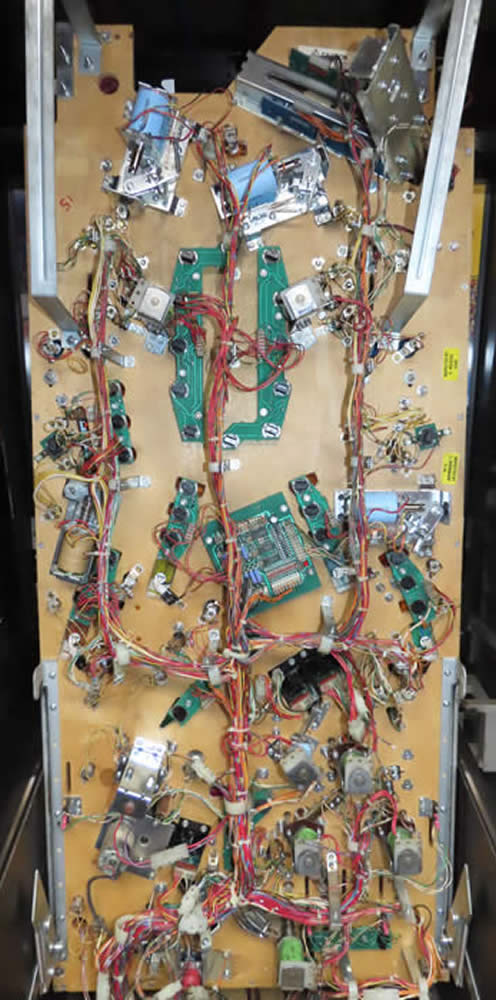

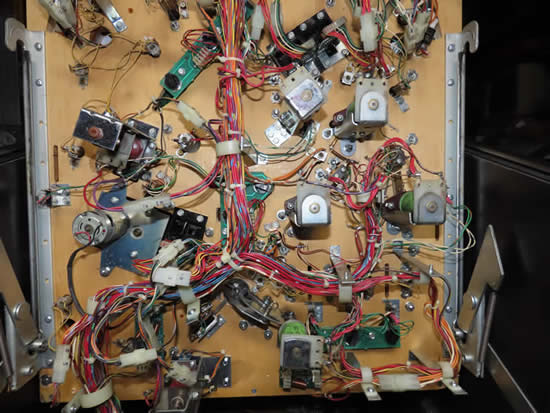

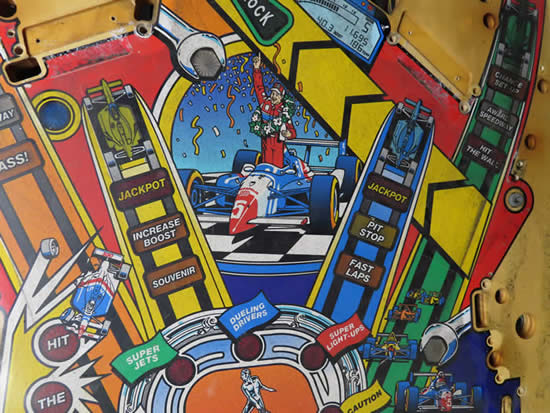

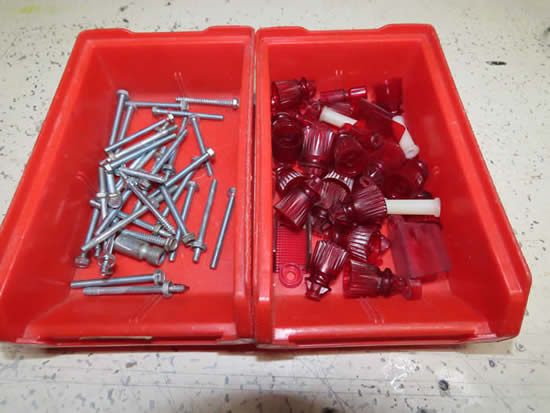

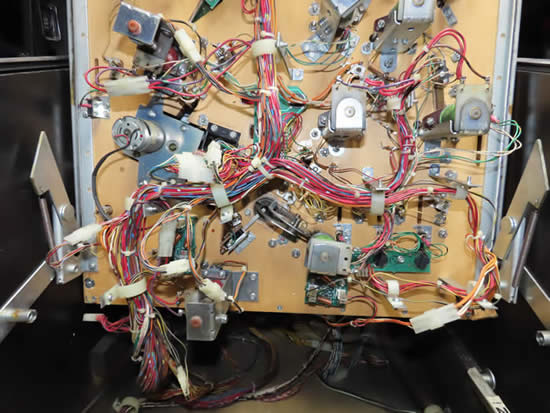

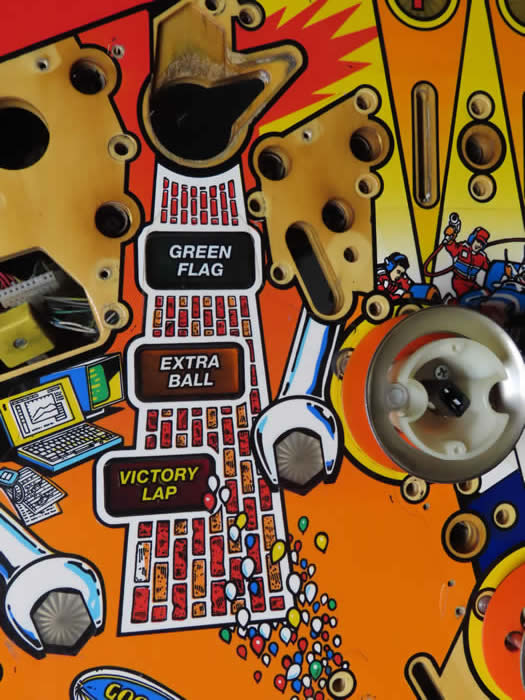

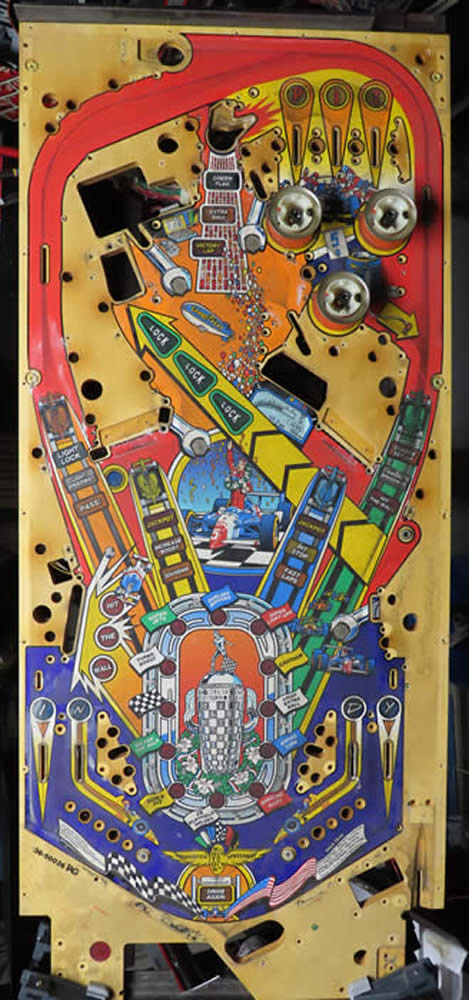

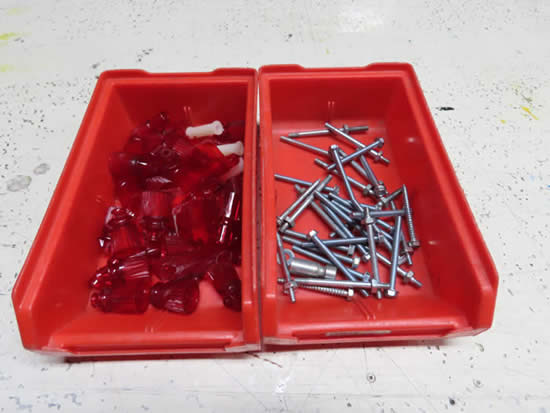

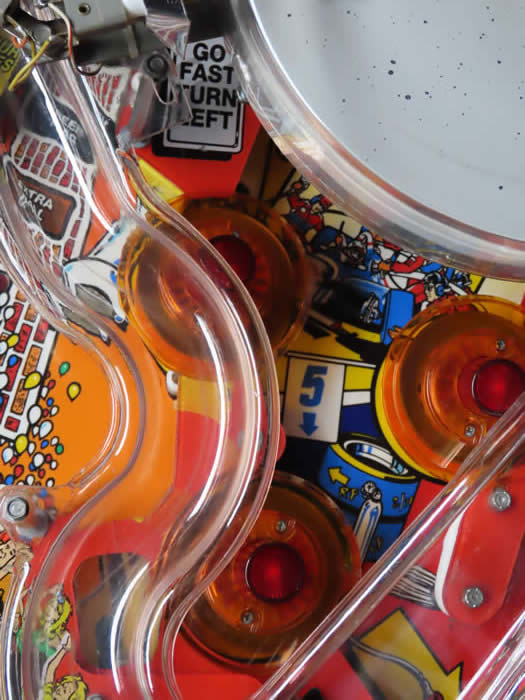

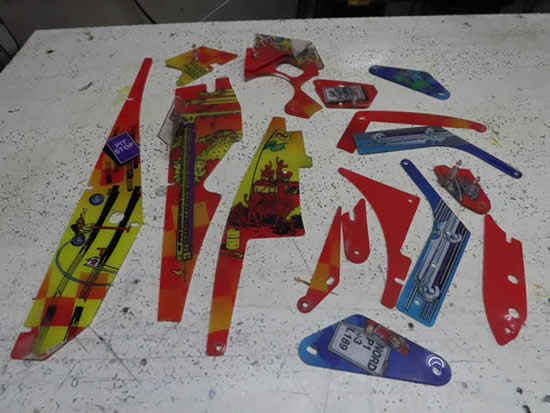

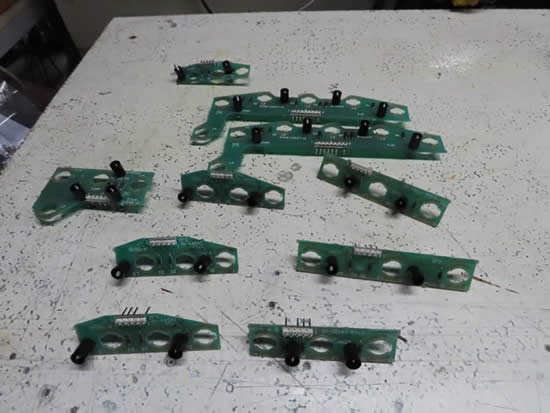

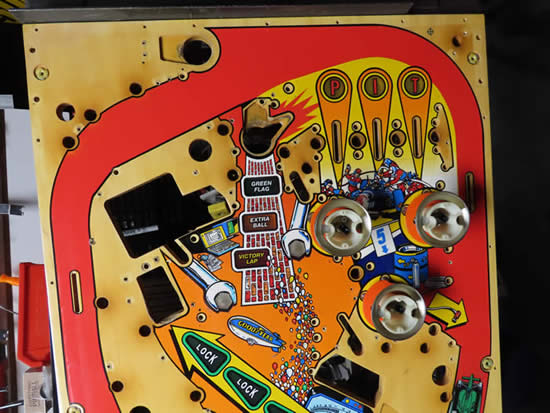

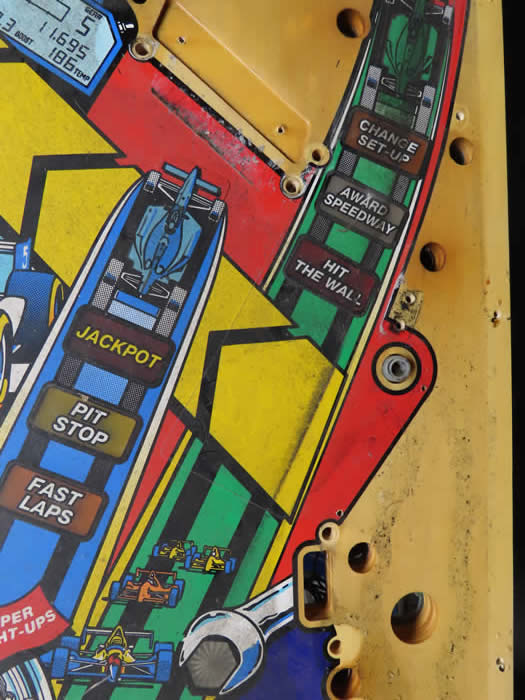

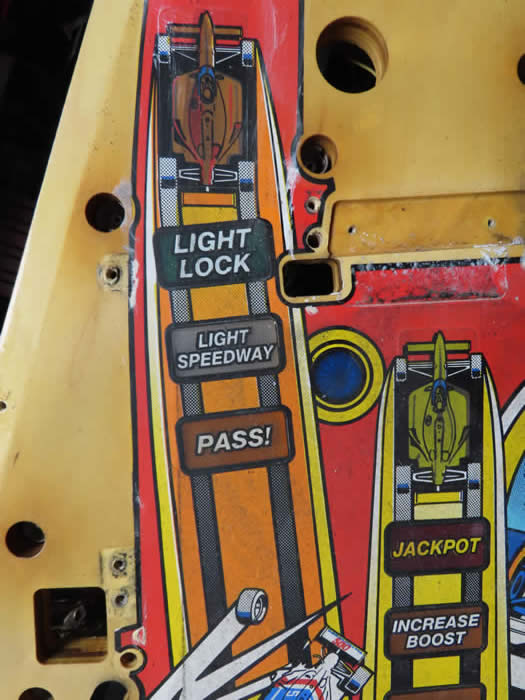

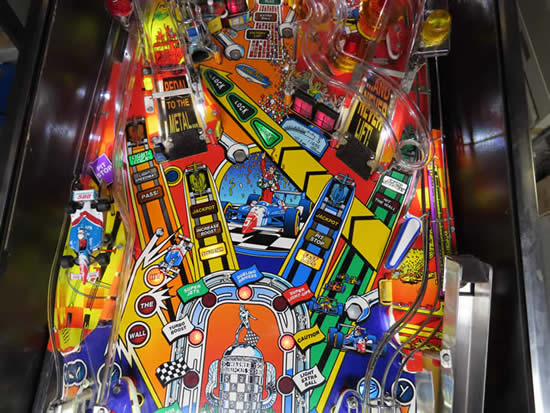

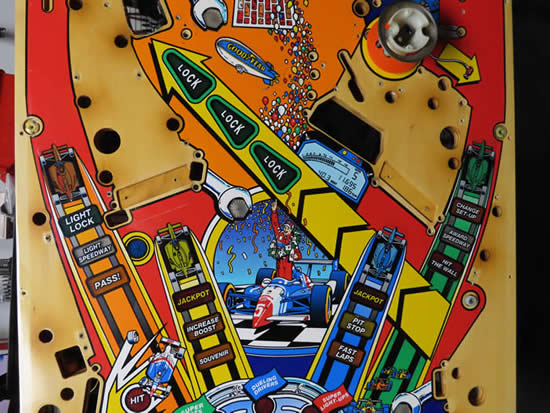

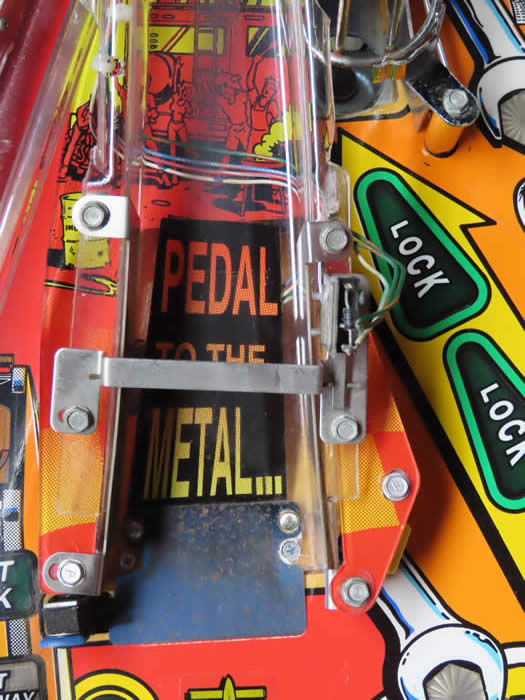

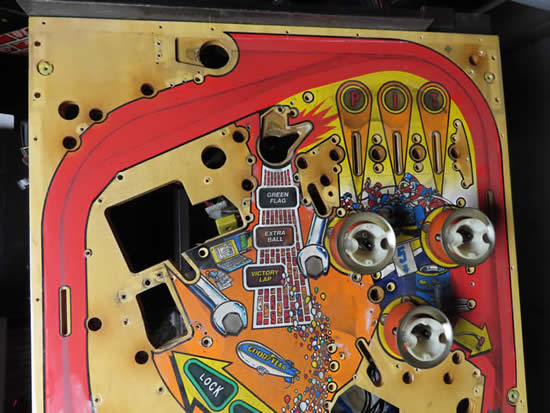

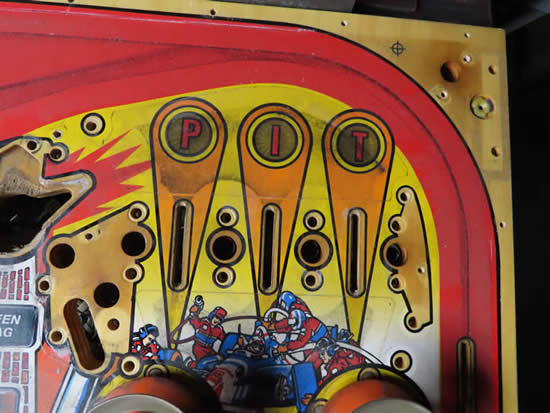

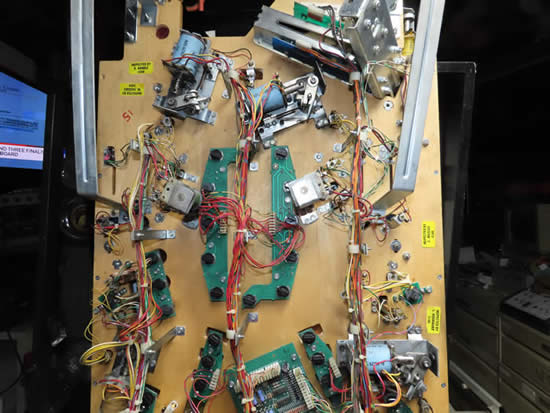

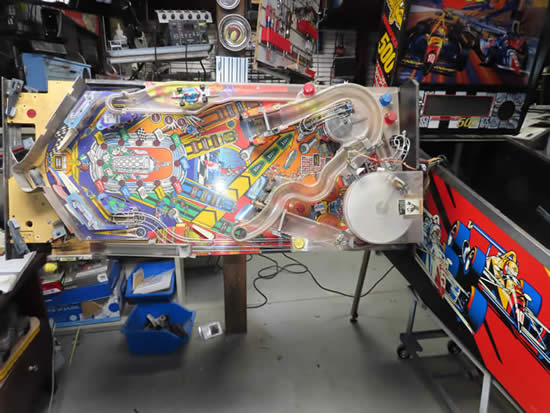

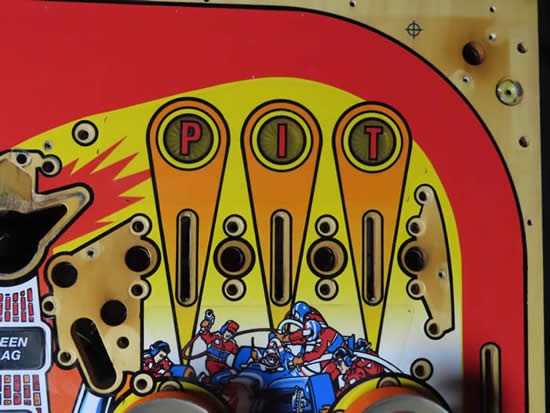

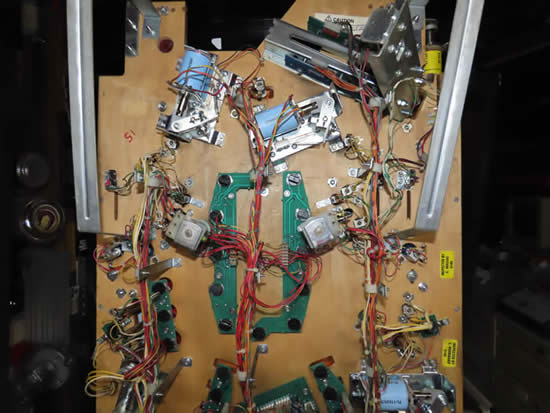

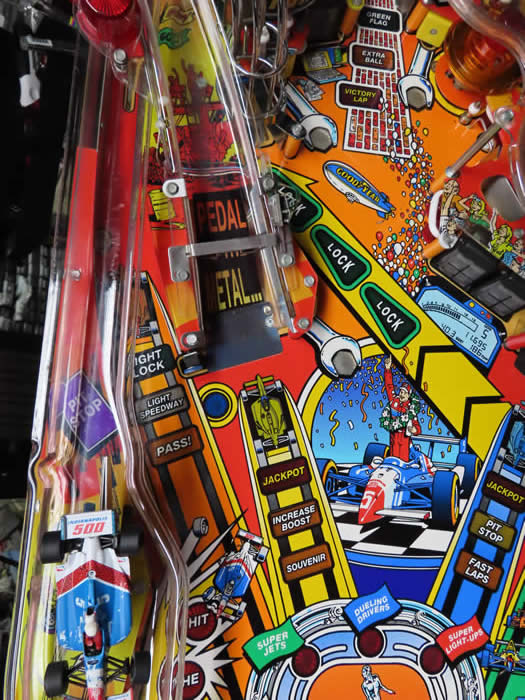

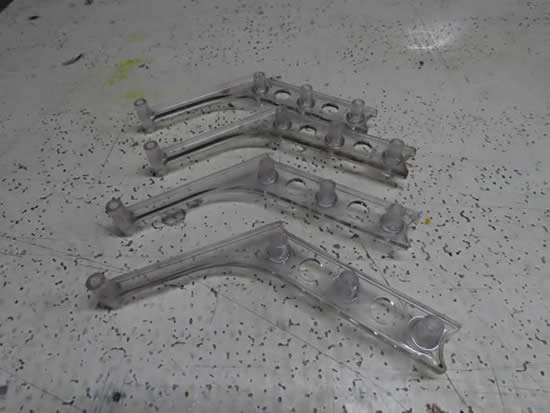

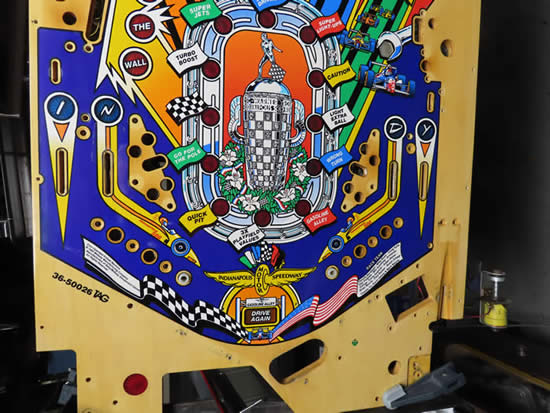

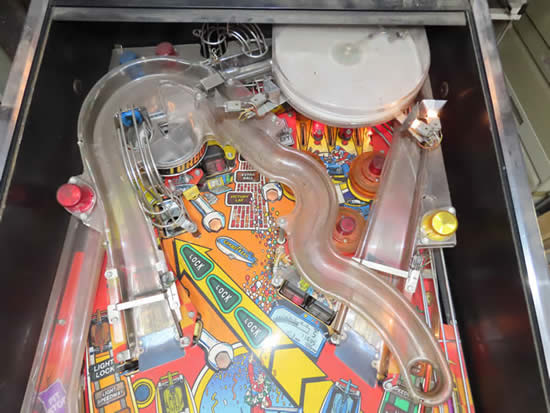

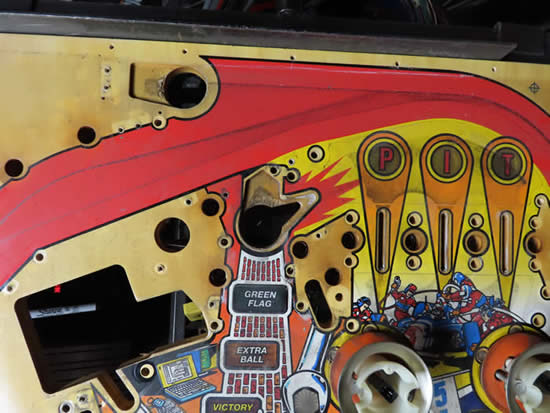

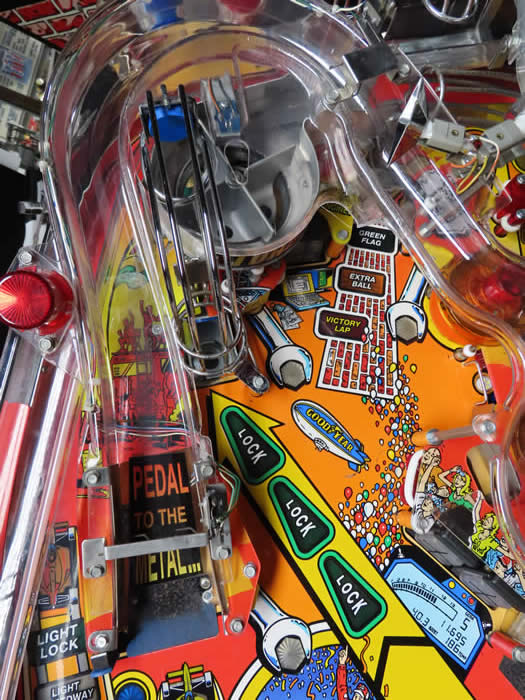

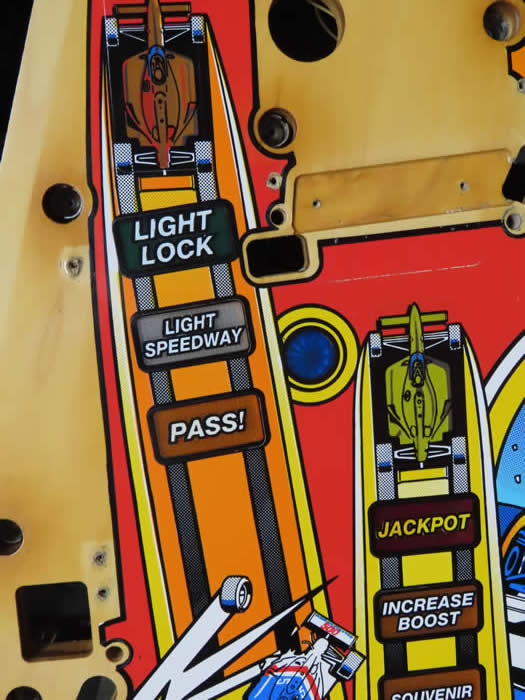

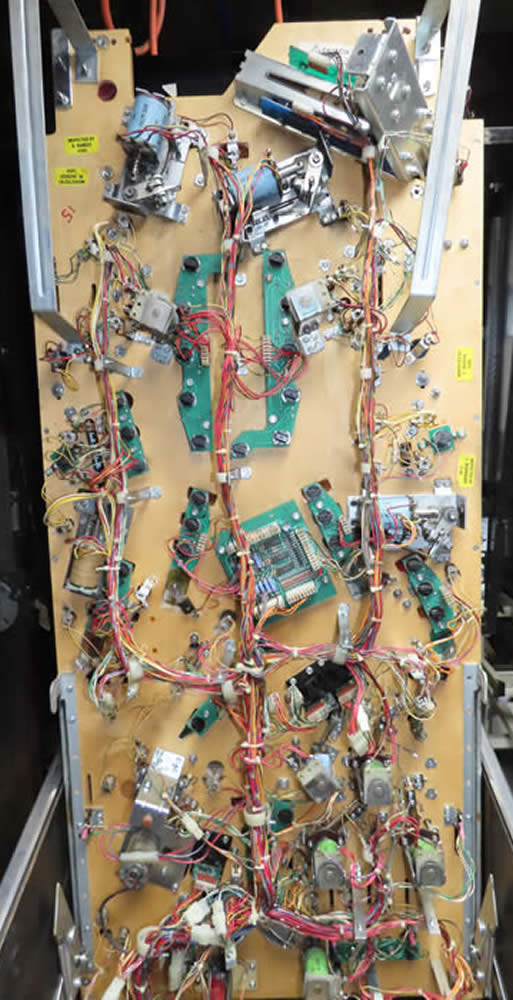

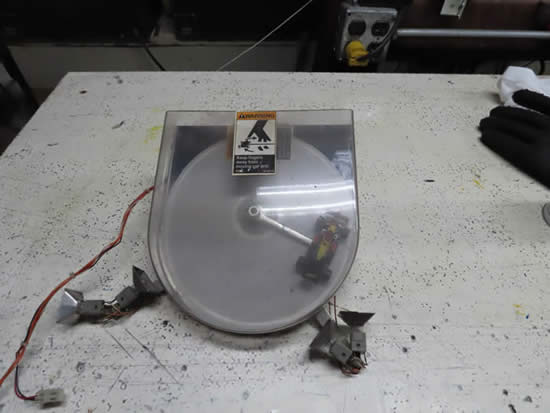

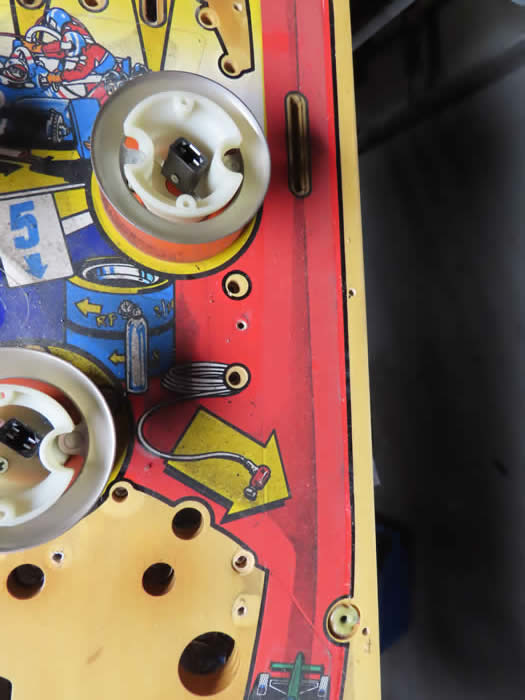

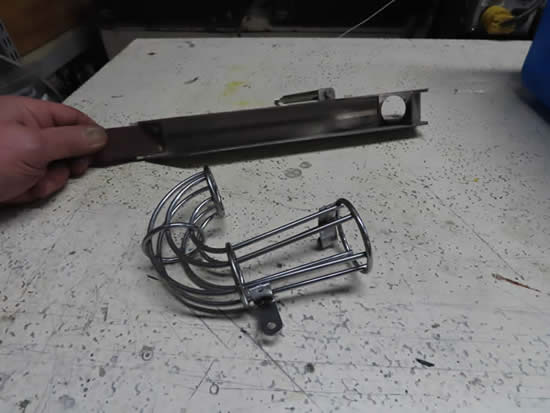

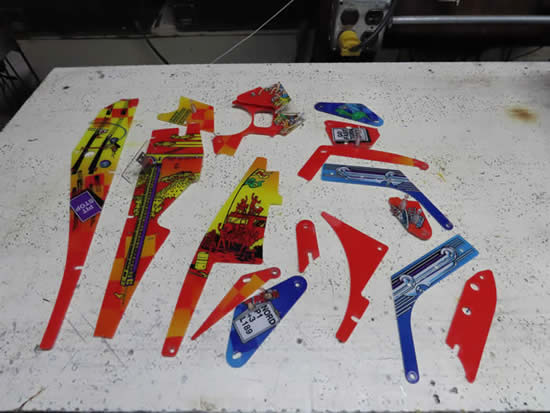

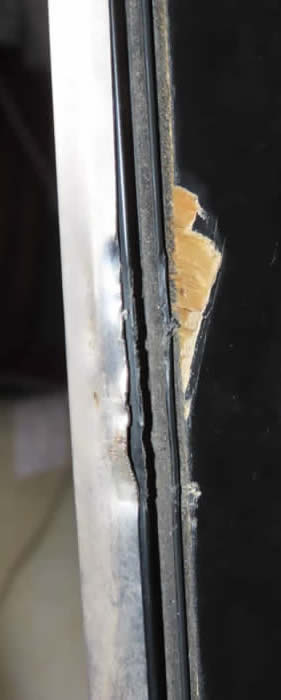

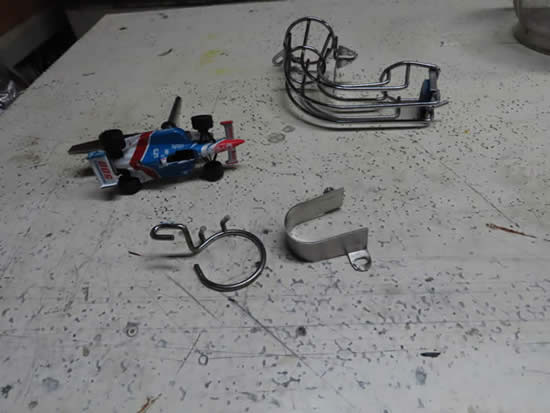

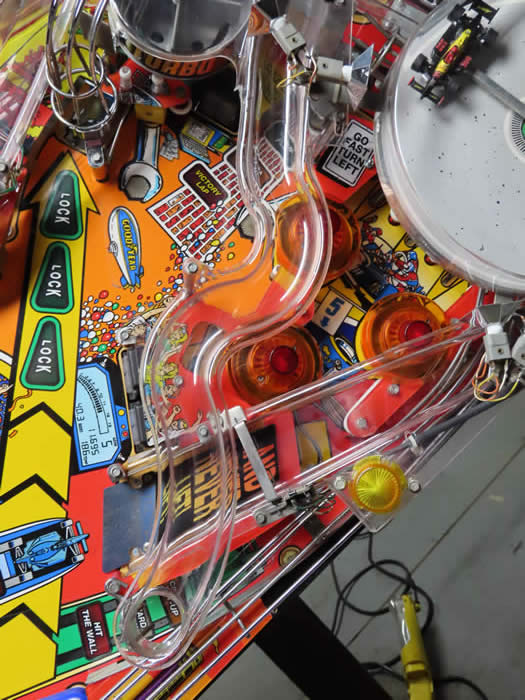

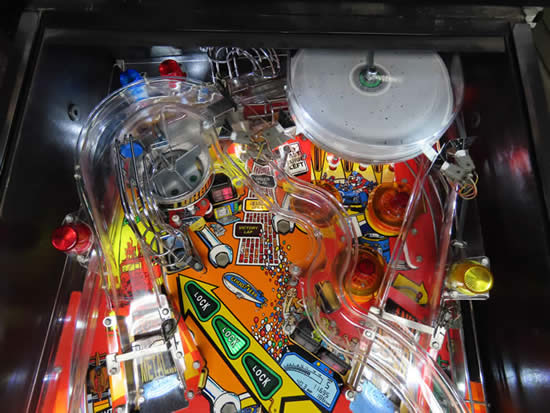

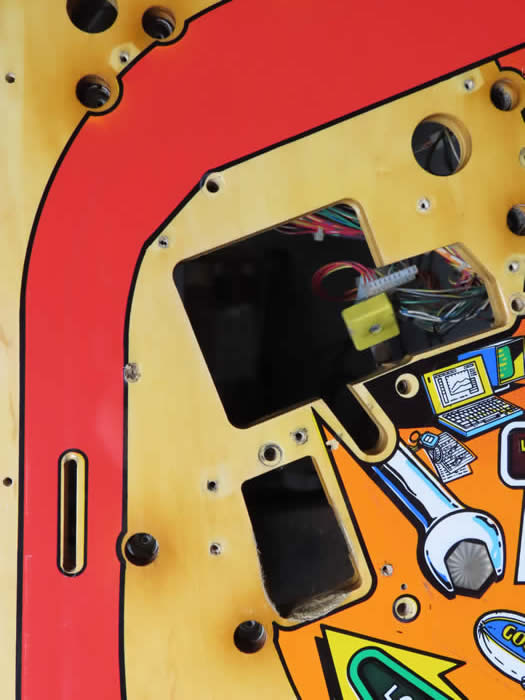

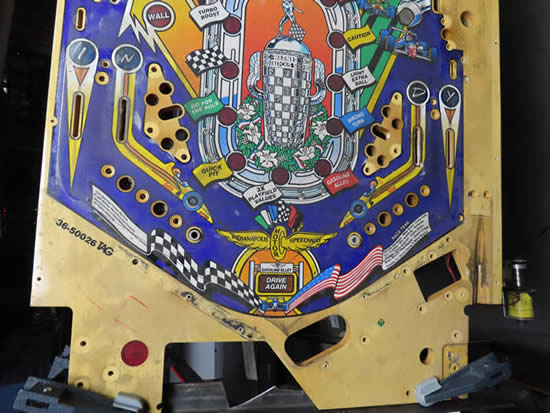

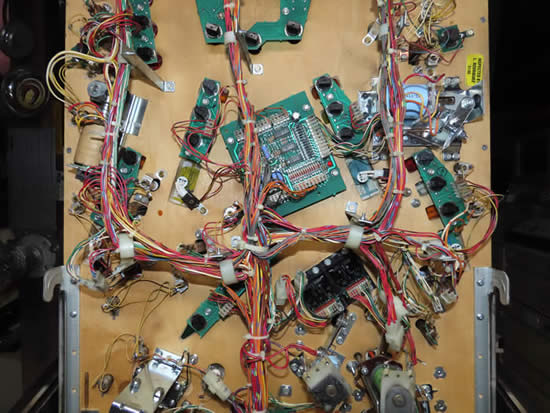

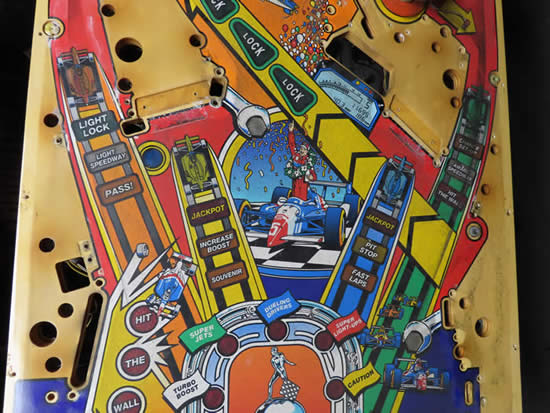

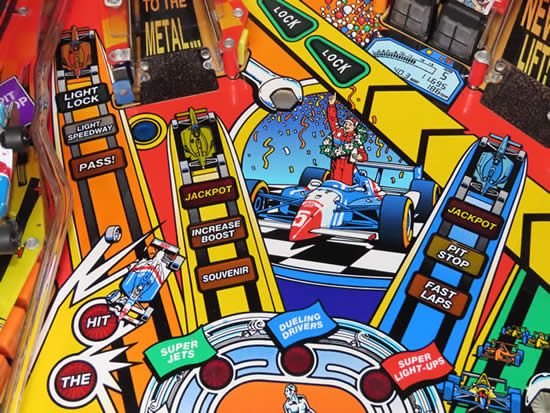

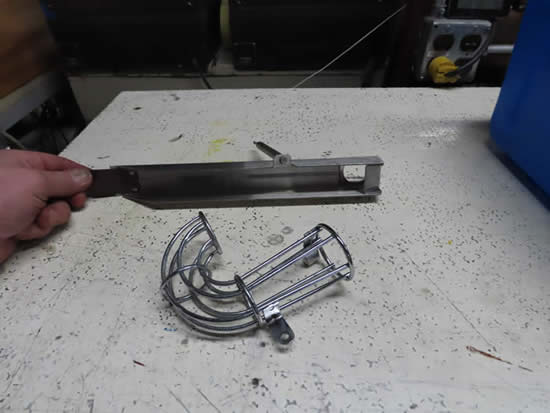

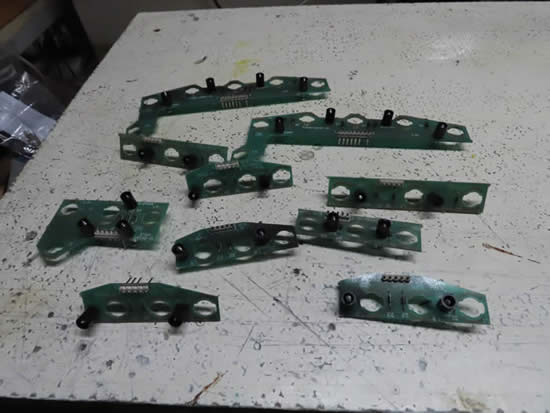

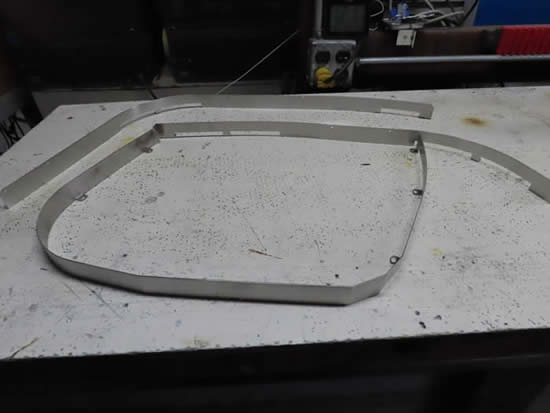

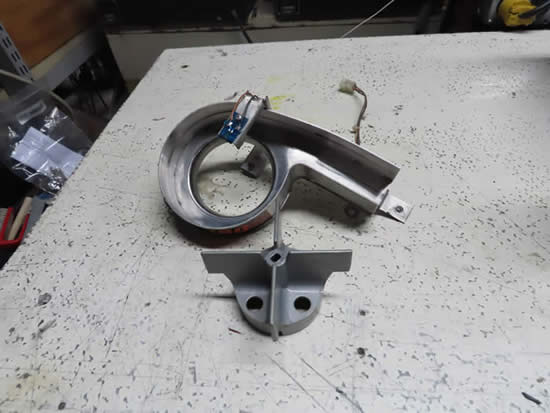

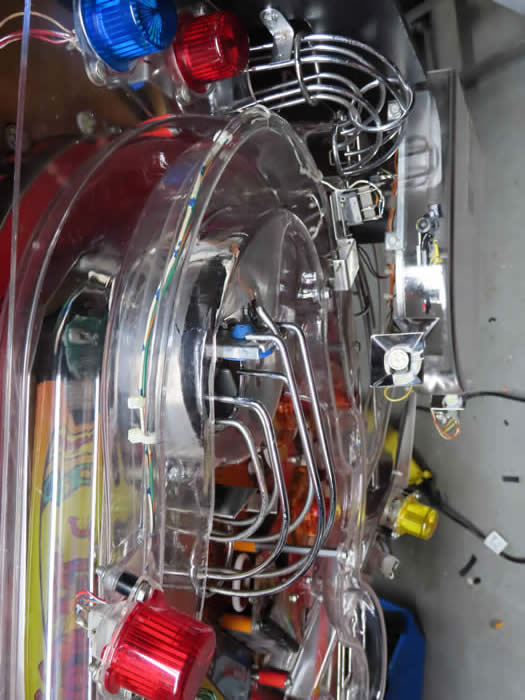

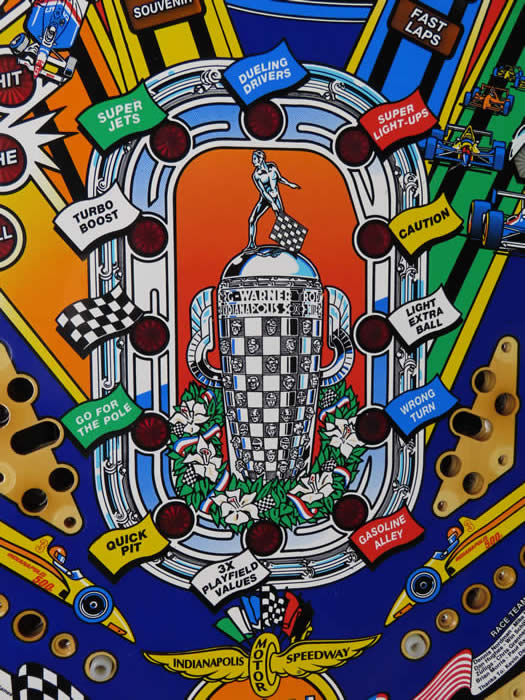

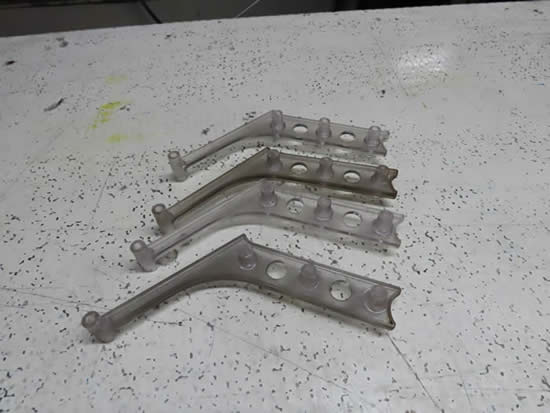

It was given a complete check up and Reconditioning, we remove all playfield plastic, ramps, light bulbs and posts, clean everything removed in the ultrasonic cleaner, clean the playfield and polish it, and then reassemble the game, check all switches for proper adjustment, install new LED's bulbs, and Premium Silicone  bands, check all the bulbs to make sure there are no shorts in the lamp matrix. Then we will reassemble the ramp, playfield plastic's, and check switches and lamps again to make sure they work properly. We removed left side rail that has damage and replacedit.

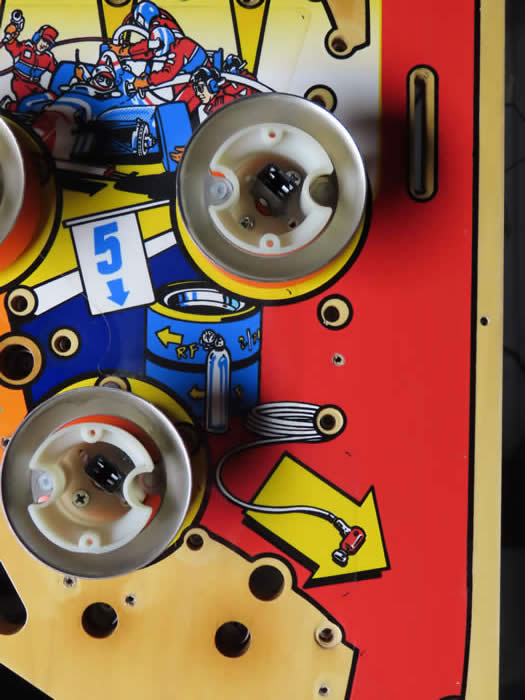

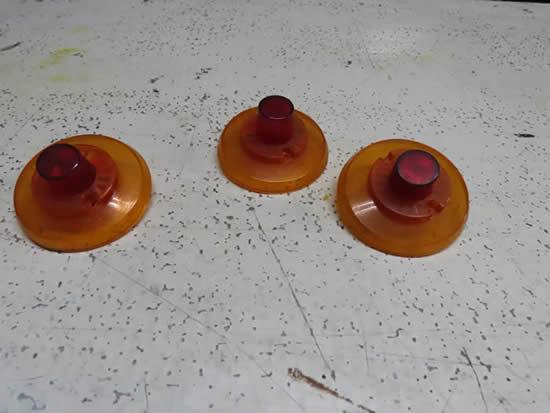

New 3 Flipper Assembles, All Coil Sleeves on all coils, 1 Pop Bumper skirt replaced, 3 Flipper Bats.

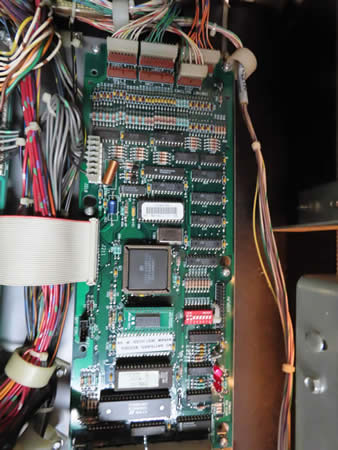

3 AAA Batteries removed and converted over to a NVRAM by www.pinitech.com

These modules use CYPRESS F-RAM nvram ICs rated at 151-year data retention & 100 trillion reads/writes. So no more changing or leaking batteries very great idea.

5 Volt Regulator Replaced with PSU5 No Noise Replacement

5 Volt Regulator Replaced with PSU5 LM323K Replacement

• Drop-in replacement of the obsolete LM323K or equivalent linear voltage regulator.
• Guaranteed 3A output current.
• Identical input voltage range of 7.2V to 20V
• Suitable for use in Pinball machines and video game consoles
• High efficiency switching regulator design reduces power disspation with superior voltage regulation compare to the LM323K.
• Thermal shutdown and current limit protection
• Board dimensions are identical to the TO3 package of the LM323K.
• Heatsinks are optional.
• All components are mounted on one side of the PCB
• Highest component is the inductor at 5mm above the PCB.
• Available with or without pins.
• Gold plated pins and PCB to withstand harsh environments over the long term.
• Can drive inductive loads such as solenoids and DC motors.

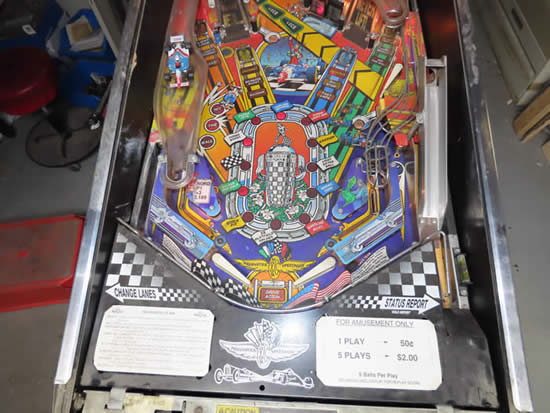

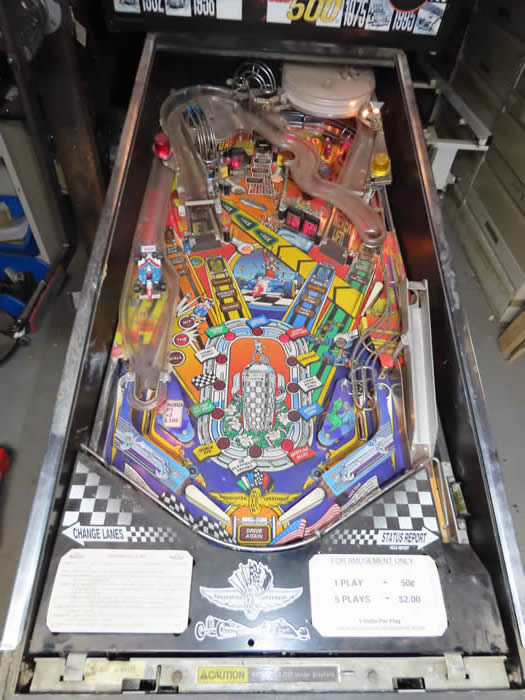

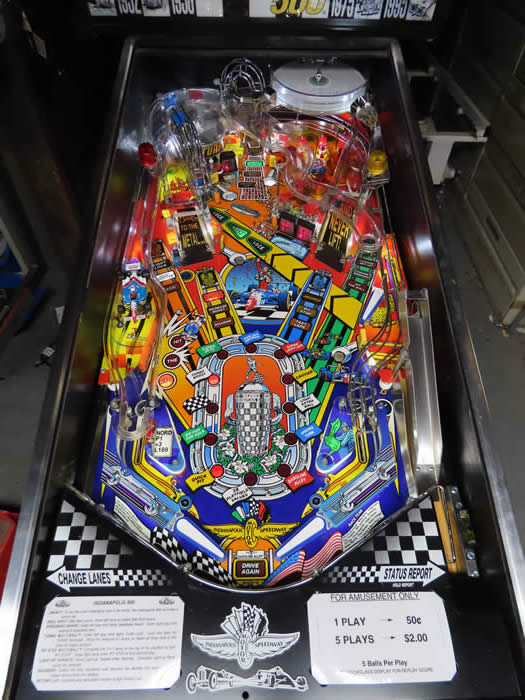

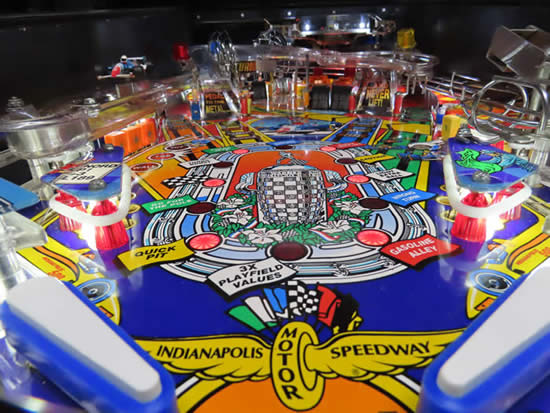

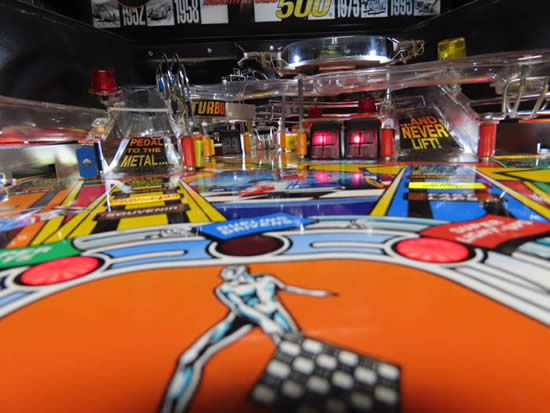

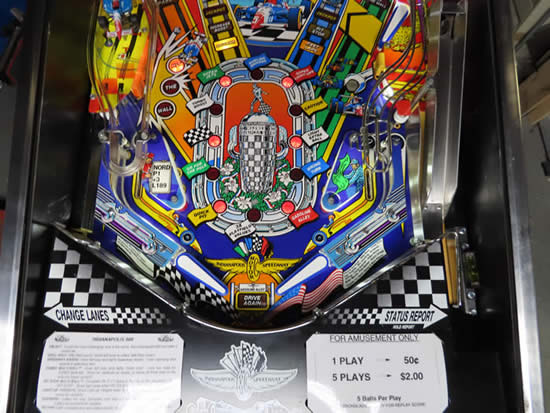

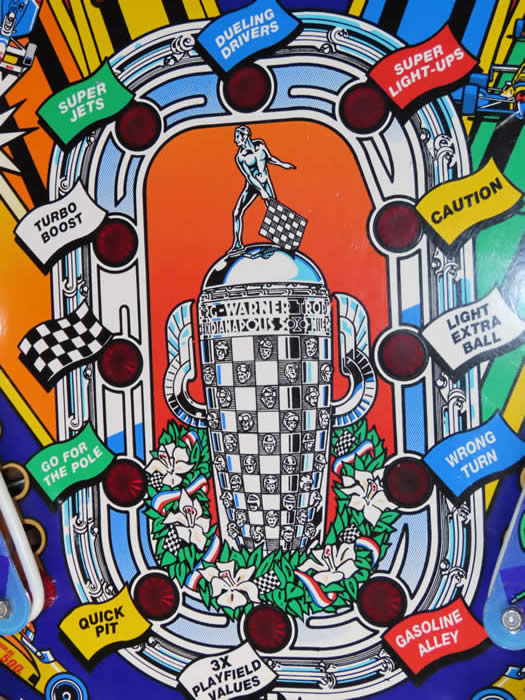

1995 Indianapolis 500 Reconditioning
